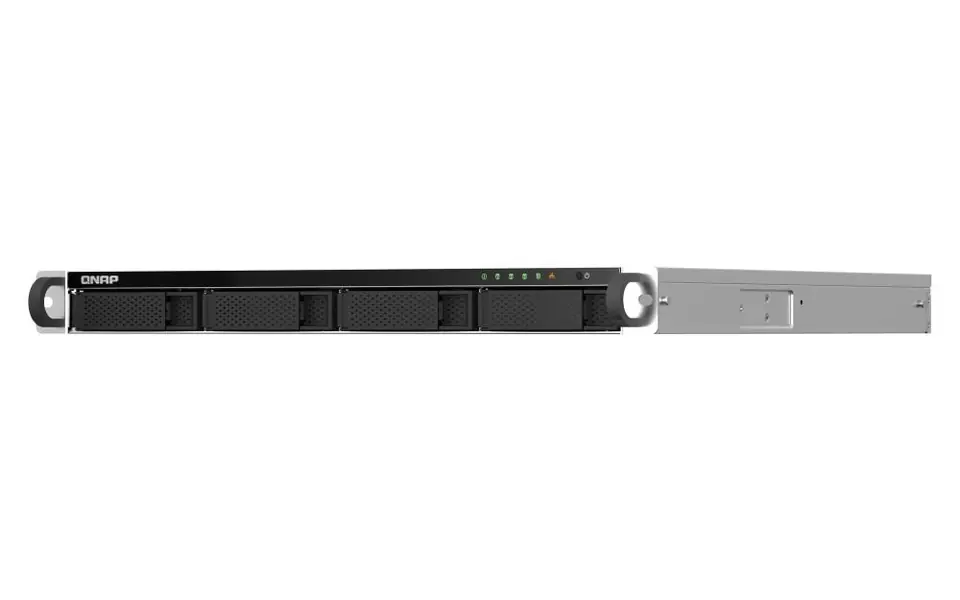

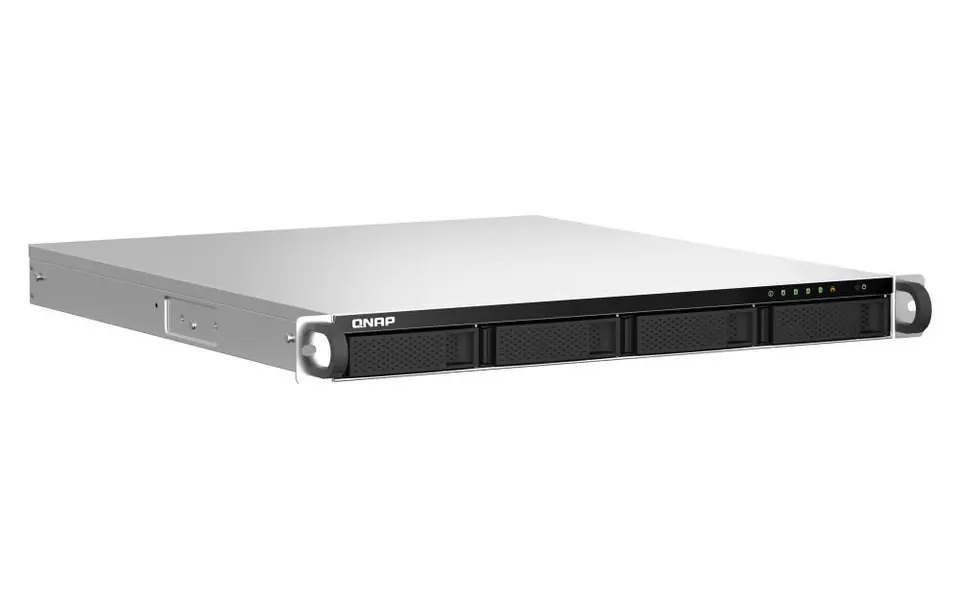

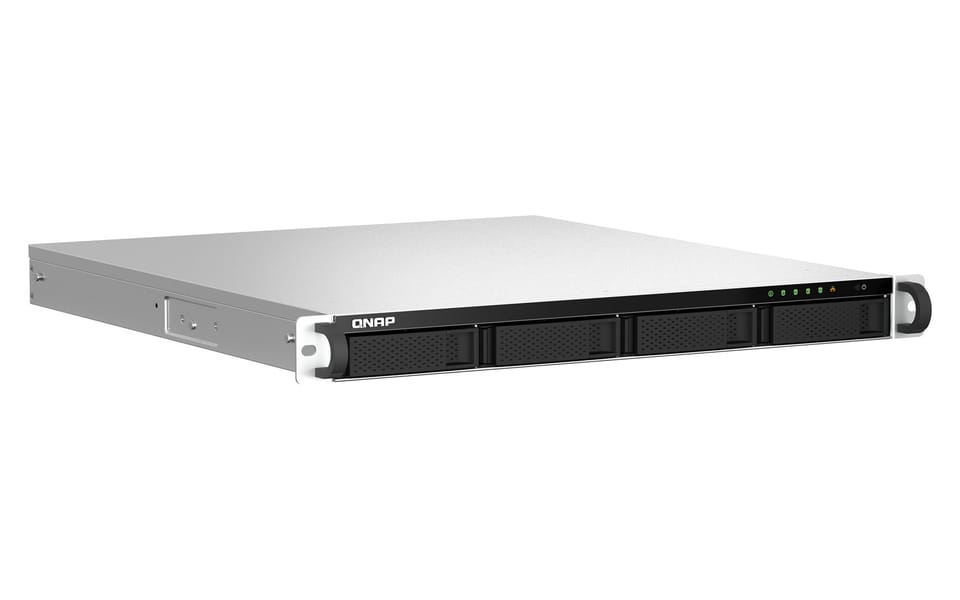

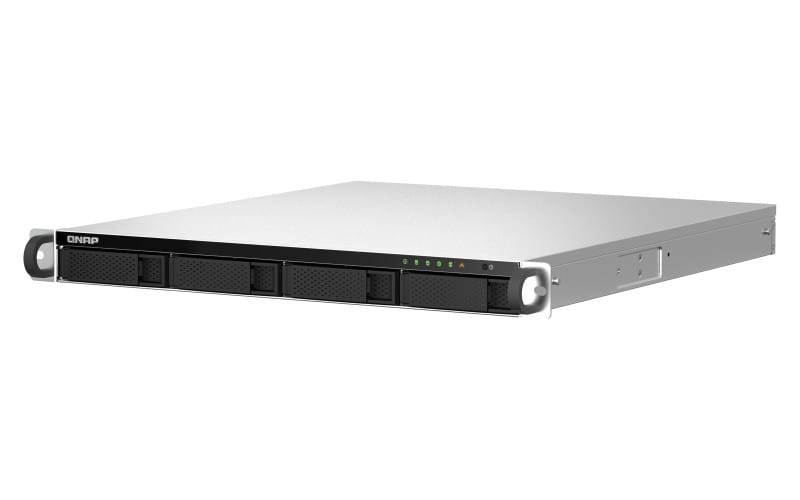

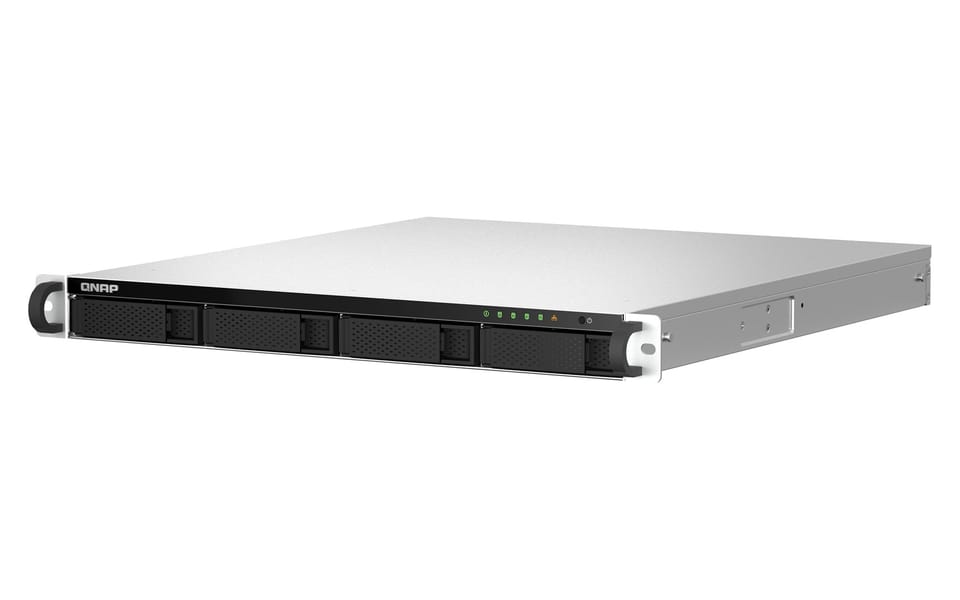

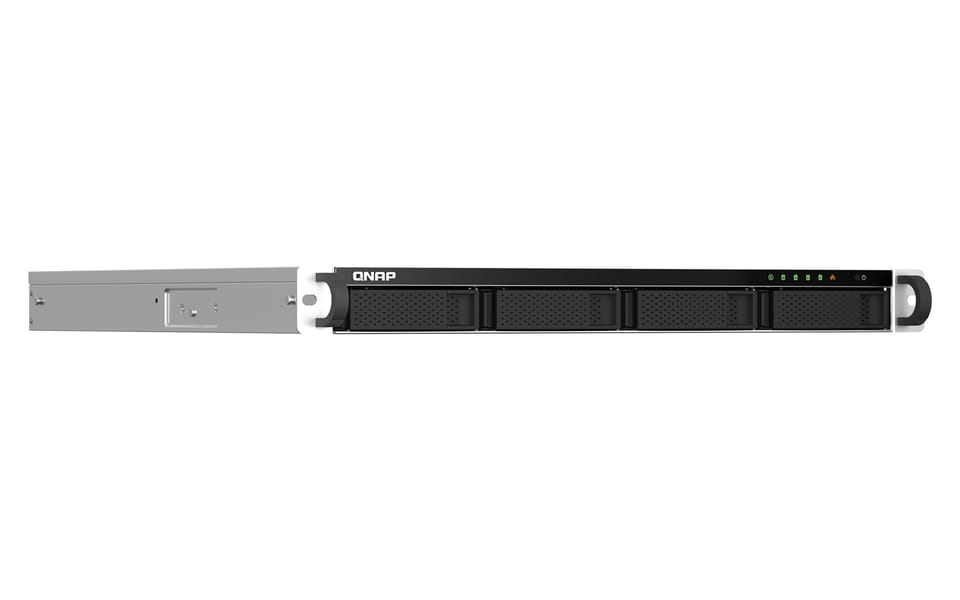

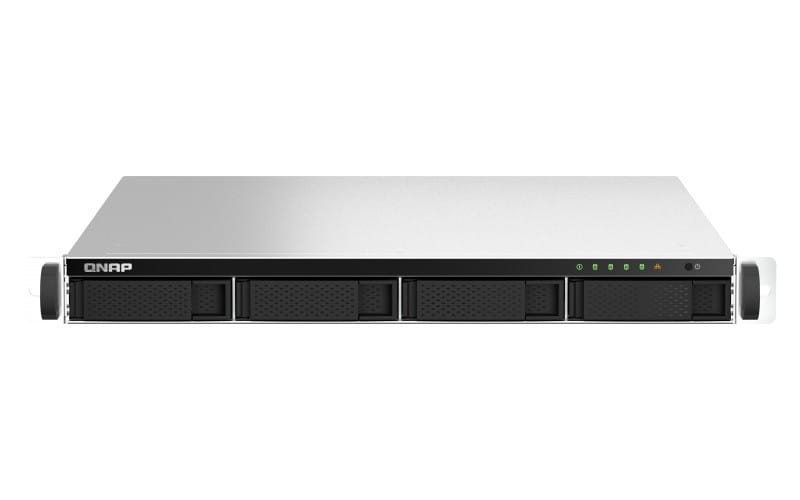

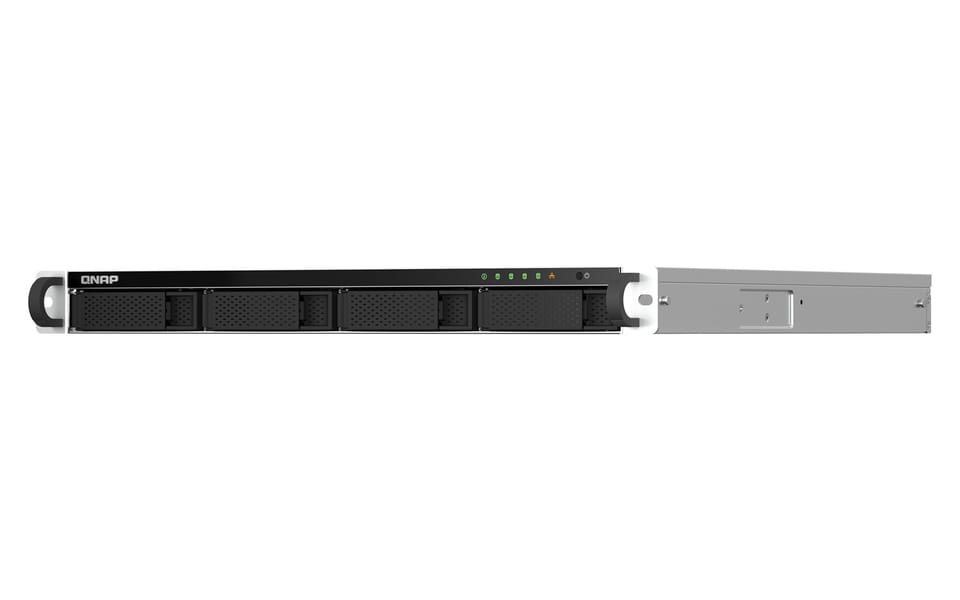

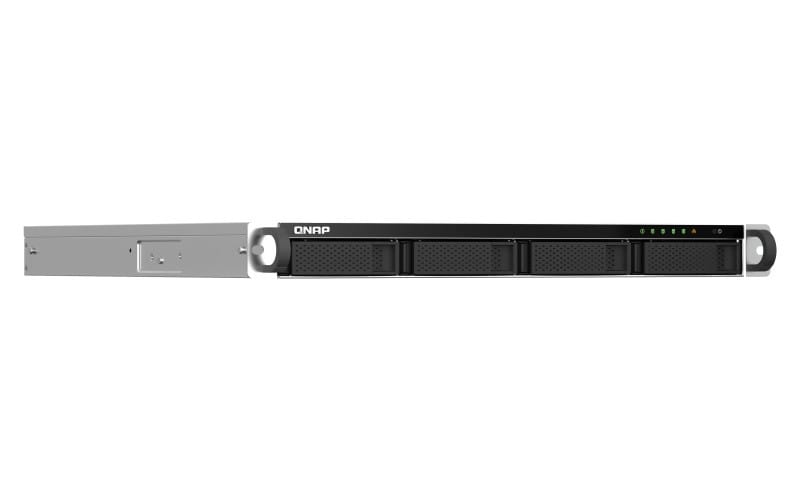

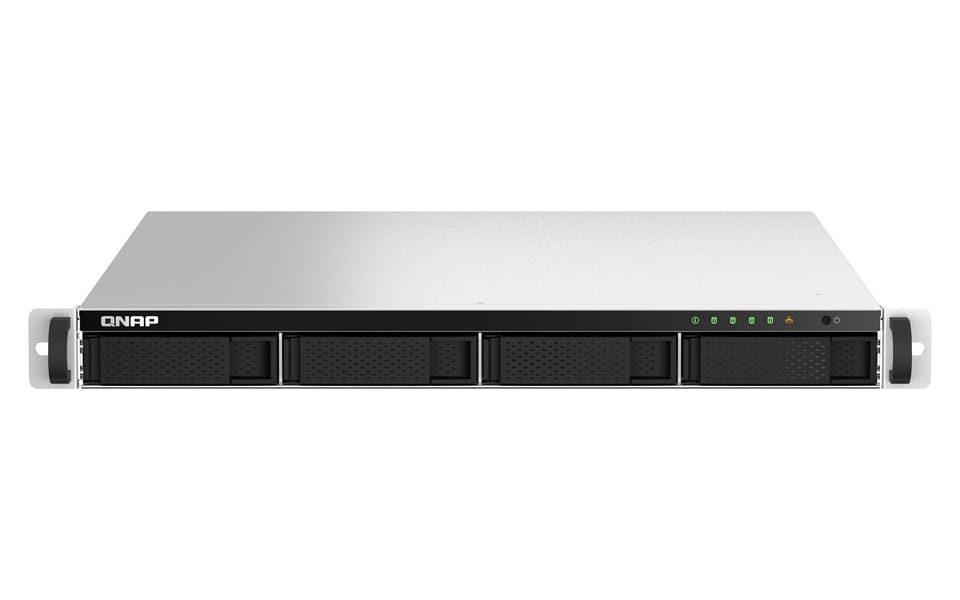

QNAP TS-464U-RP NAS Rack 1U) Intel® Celeron® N5095 8 GB QNAP Turbo System Blac

€1,772.35
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
QNAP
Product code:
TS-464U-RP-8G / 4711103082201

Specification

Ac input voltage:100 - 240 V
Access control list (acl):Yes
Backup features:iSCSI LUN, Cloud
Backup function:Yes
Browser supported:Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Built-in ftp server:Yes
Buzzer:Yes
Cables included:LAN (RJ-45), AC
Chassis type:Rack (1U)
Concurrent connections:1500
Cooling type:Active
Cpu configuration (max):1
Depth:479 mm
Device class:Small & Medium Business
Dhcp client:Yes
Dhcp server:Yes
Disk roaming:Yes
Disk scan:Yes
Dynamic dns (ddns):Yes
Enhanced intel speedstep technology:Yes

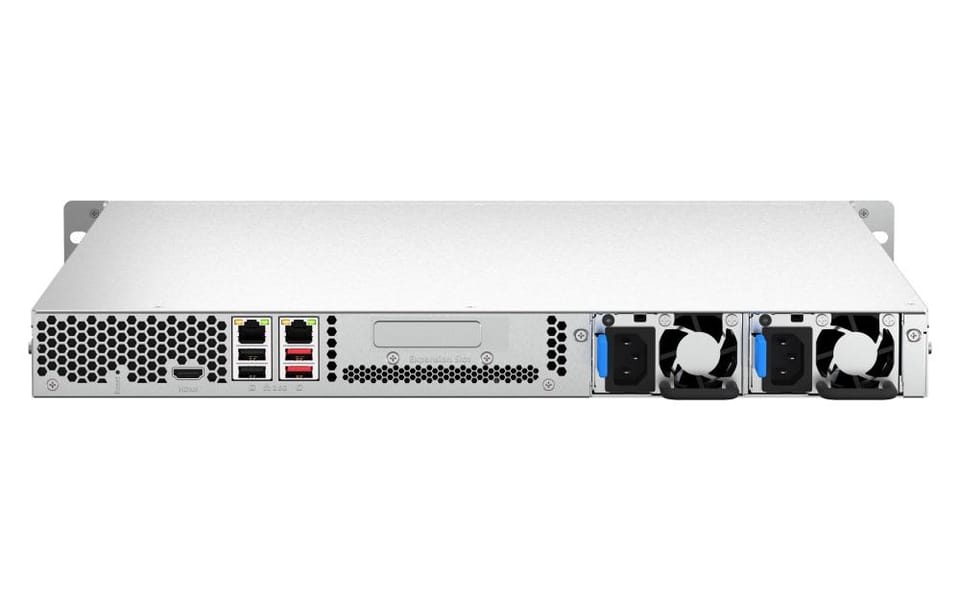

Ethernet lan:Yes

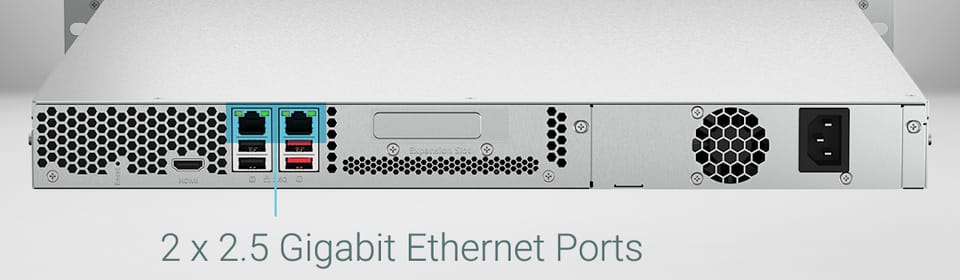

Ethernet lan (rj-45) ports:2

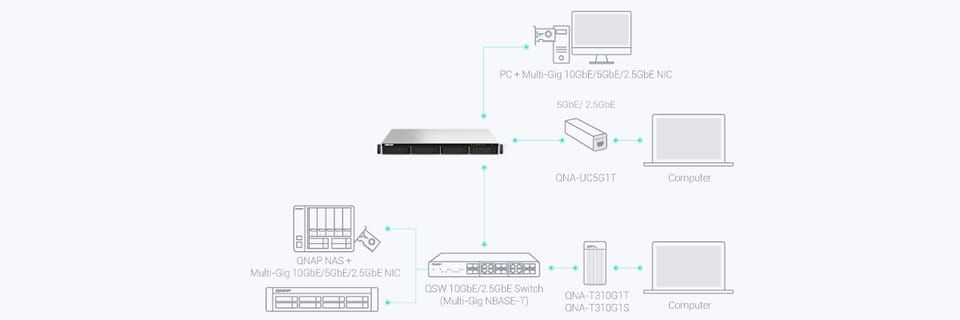

Ethernet lan data rates:2500 Mbit/s, 100, 1000 Mbit/s, 10
Fan diameter:4 cm
Fan voltage:12 V
Flash memory:4000 MB
Harmonized system (hs) code:84714100
Hdmi ports quantity:1
Hdmi version:1.4b
Height:43.3 mm
Hot spare:Yes
Hot-swap drive bays:Yes
Idle states:Yes
Installed storage drive type:No
Intel 64:Yes
Intel trusted execution technology:No
Intel virtualization technology (vt-x):Yes
Intel virtualization technology for directed i/o (vt-d):Yes
Intel vt-x with extended page tables (ept):Yes
Internal memory:8 GB
Iscsi support:Yes
Jumbo frames support:Yes
Led indicators:LAN, Status, Power, HDD
Linux operating systems supported:Yes
Mac operating systems supported:Yes
Maximum ram supported:8 GB
Multilingual support:Yes
Number of fans:2 fan(s)
Number of power supply units:2
Number of screws:84
Number of storage drives supported:4
On-board graphics card model:Intel® UHD Graphics
On/off switch:Yes
Online raid expansion:Yes
Online raid migration:Yes
Operating relative humidity (h-h):5 - 95%
Operating system installed:QNAP Turbo System
Operating system version:5.0.1
Operating temperature (t-t):0 - 40 °C
Other operating systems supported:Solaris 10
Package weight:10.1 kg
Pci express x2 (gen 3.x) slots:1
Power cables quantity:2
Power consumption (hdd standby):37.469 W
Power consumption (typical):51.404 W
Power supply location:Built-in
Power supply unit (psu) capacity:250 W
Processor boost frequency:2.9 GHz
Processor cores:4
Processor family:Intel® Celeron®
Processor manufacturer:Intel
Processor model:N5095
Processor threads:4
Product colour:Black
Raid levels:1, JBOD, 0, 6, 10, 5
Raid rebuild:Yes
Raid support:Yes
Redundant power supply (rps) support:Yes
Reset button:Yes
S.m.a.r.t. support:Yes
Security algorithms:256-bit AES, HTTPS, FIPS 140-2, SSH
Server operating systems supported:Windows Server 2019, Windows Server 2012 R2, Windows Server 2016, Windows Server 2008 R2, Windows Server 2012
Share folder:CIFS/SMB
Snapshot:Yes
Storage drive sizes supported:2.5, 3.5"
Storage drives installed:No
Storage relative humidity (h-h):5 - 95%
Storage temperature (t-t):-20 - 70 °C
Supported file systems:ext3, NTFS, ext4, FAT32, exFAT, HFS+
Supported storage drive interfaces:Serial ATA II, Serial ATA III
Supported storage drive types:HDD & SSD
System log:Yes
Type:NAS
Usb 2.0 ports quantity:2
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:2
Usb port:Yes
Wake-on-lan ready:Yes
Weight:8.12 kg
Width:430 mm
Windows operating systems supported:Windows 11, Windows 10, Windows 7, Windows 8

SSD cache and auto-tiering technology provide optimized storage performance

The TS-464U-RP supports SSD caching to improve the flow of many random I/O operations such as virtualization. Qtier technology allows the TS-464U-RP to use automatic data tiering that continuously optimizes storage utilization across high-capacity SSDs and SATA drives. Qtier 2.0 technology provides I/O knowledge that augments SSD tiered storage with cache-like reserved space to support increased real-time I/O, maximizing SSD benefits.

Direct 4K HDMI output to display media and VM content

The TS-464U-RP features Intel UHD Graphics with support for dual-channel hardware decoding and real-time transcoding*. The HDMI 1.4b output supports 4K (3840 x 2160p) output at 60Hz, which is an invaluable advantage for video production/editing or industrial design, among others, requiring high image resolution and color fidelity for intensive use of multimedia content storage, transmission and display. Connecting the TS-464U-RP to an HDMI display allows you to directly watch multimedia content stored on the NAS or use the TS-464U-RP as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station.

*Note: The TS-464U-RP supports hardware decoding, encoding and transcoding. However, video quality can be affected by factors such as playback software, file formats, system usage, and available bandwidth.

The integrated Intel OpenVINO AI engine provides faster image identification.

With integrated Intel OpenVINO AI computing resources, the TS-464U-RP enhances AI-based image recognition performance without impacting other applications or services. QNAP AI Core mainly works with QuMagie.

QTS 5 speed, reliability and ease of use!

The TS-464U-RP comes with the QTS 5 operating system as standard, and the updated system kernel, optimized user interface and advanced security features bring user experience to a whole new level.

Smarter. More fit. You will like him.

As you navigate through the QTS 5 system, you will notice how much emphasis has been placed on details that improve the quality of use. You'll appreciate the smoother operation of the NAS, the convenient graphical interface and faster finding of your favorite applications.

Start with the guide

During the first installation, the guide will guide you through the setup process. With step-by-step instructions, installation is quick and simple.

Smooth and fast user interface

Clicking buttons, switching between apps, expanding and collapsing windows all are much smoother. Additionally, the search bar in the main menu helps you find the apps you're looking for

A comprehensive data backup and disaster recovery solution

The TS-464U-RP supports a variety of applications to cover all your backup needs. Practice secure IT habits by regularly backing up your files and device content, allowing you to easily restore them when needed.

Multi-version snapshots reduce the risk of ransomware

The TS-464U-RP supports block-based snapshots that record the system state at any given time. This helps to protect data that can be restored at any time, which greatly helps in mitigating the threat of ransomware.

All-in-one hosting solution for virtual machines and containers

By running multiple VMs and containers on the TS-464U-RP, you can deploy multi-tenant environments and applications to increase management efficiency and reduce hardware costs. Combined with the Network and Virtual Switch application, the system improves the interoperability of virtual machines, containers, QNAP NAS and other physical devices on the network, allowing the user to flexibly allocate physical and virtual network resources, simplifying network deployment.

Comprehensive security and permission settings

The TS-464U-RP comes with flexible permission settings and security measures. In addition to blocking IP addresses, 2-step verification, HTTPS connections offers apps that help ensure your NAS is optimally protected against threats such as malware and hackers.
