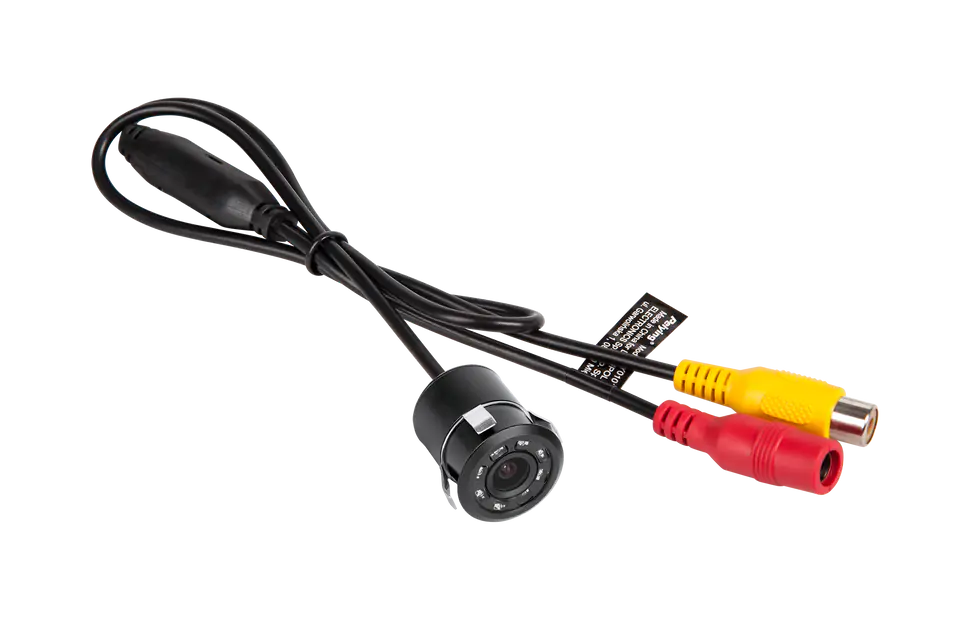

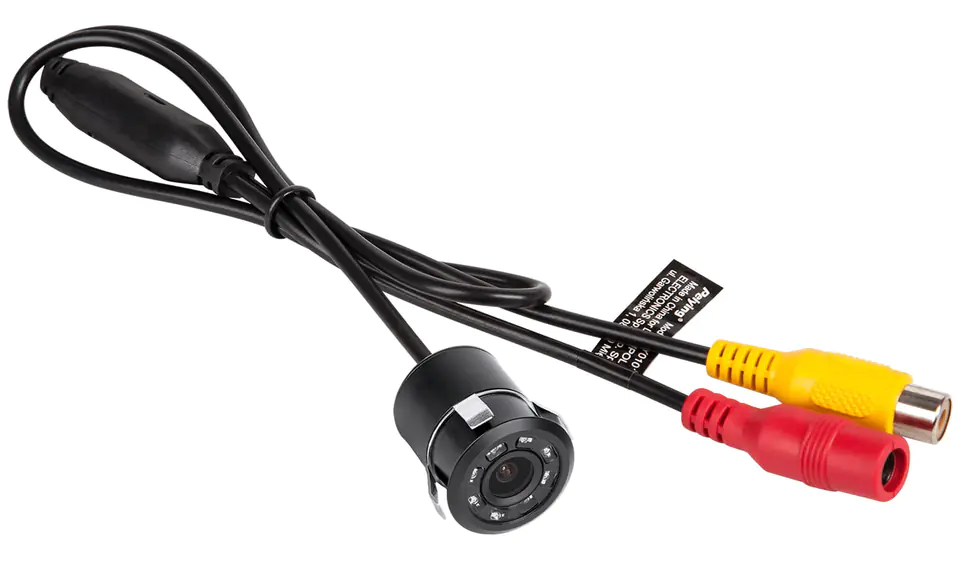

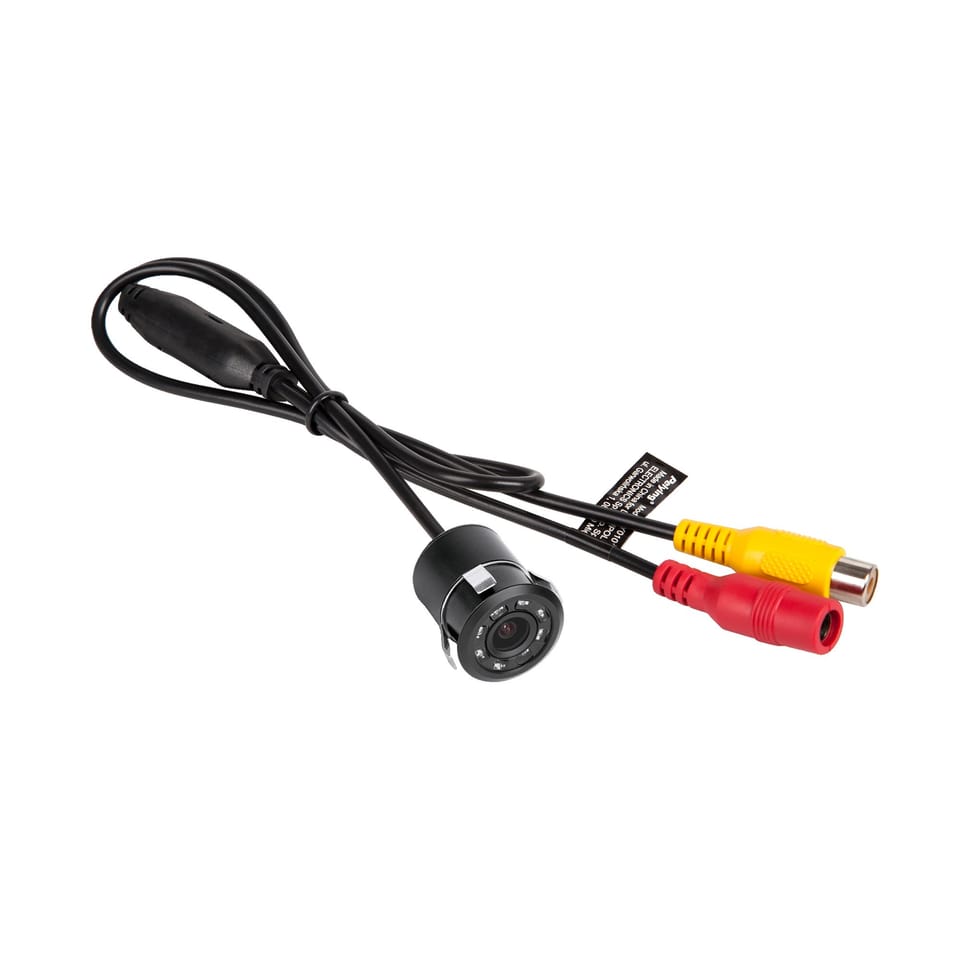

PY0101 Peiying Rear View Camera
Peiying reversing camera with 648x488 px resolution will allow you to avoid unnecessary stress when reversing or parking. The device has a wide viewing angle of 140°, allowing you to see objects in the field invisible to the rear-view mirror. The system will start automatically when you shift into reverse gear, and in addition to the camera image, auxiliary lines will be displayed on the screen, which will greatly facilitate the performance of all maneuvers. An additional advantage of the device is the ability to mount it both at the front and rear of the car – decide for yourself where you need it more!
The Peiying camera has an IP68 degree of protection, which means that it is not afraid of any weather and can easily cope with the conditions on Polish roads.
Technical data:
- Sensor: 1 CMOS (color)
- Resolution: 648x488 px
- Viewing angle: 140°
- Power consumption: max. 1 watts
- Min. Illumination: 0.3 Lux
- Video Output: CVBS 1.0V (p-p)/75 Ohm
- TV System: PAL
- Mirror image
- Automatic engagement in reverse
- Guides
- Protection class: IP68
- Mounting: front / rear of the vehicle
- Operating Temperature: -20°C~70°C
- Power supply: 9-15 VDC

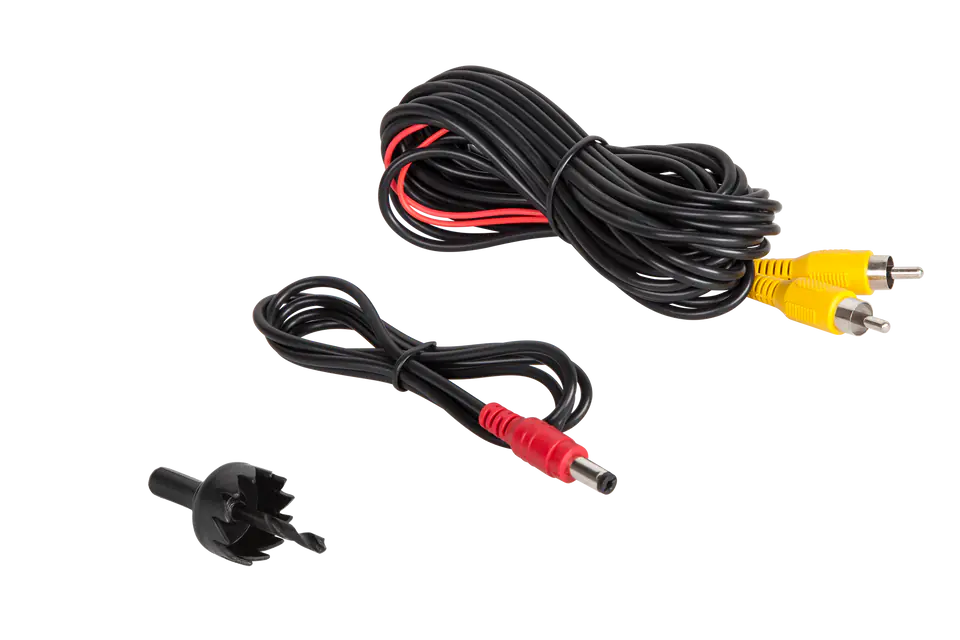

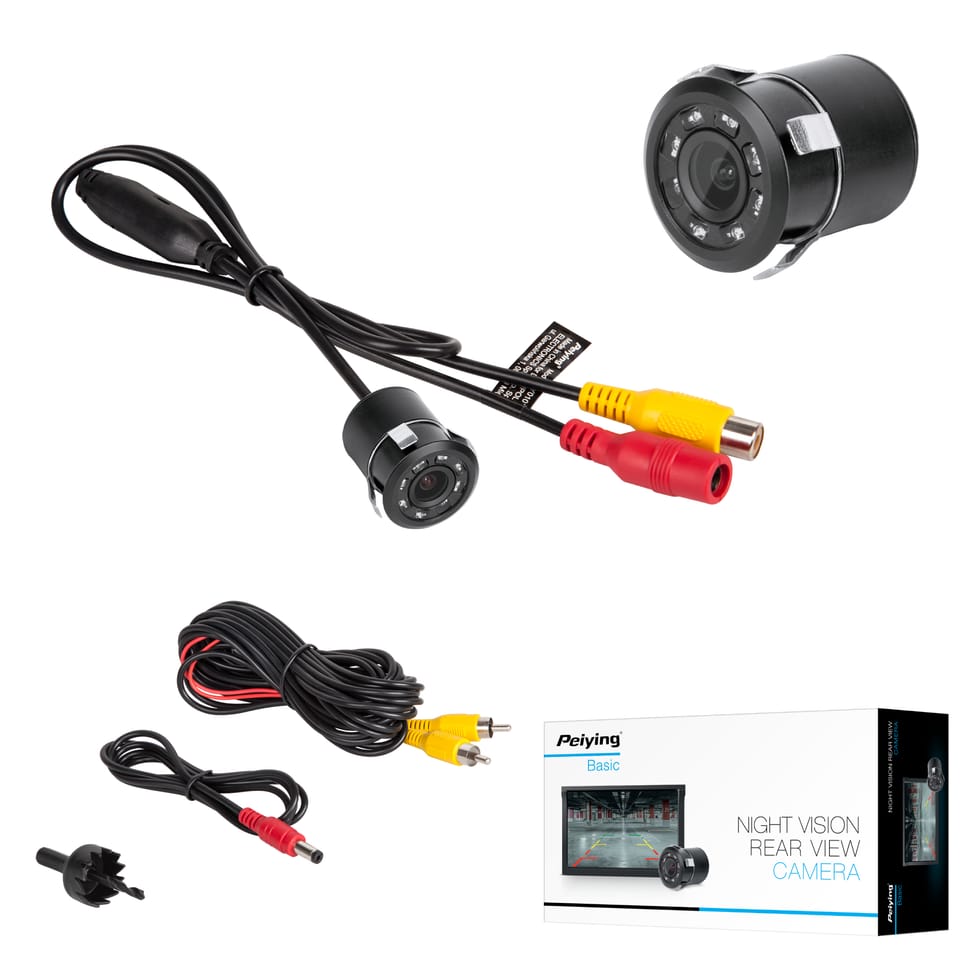

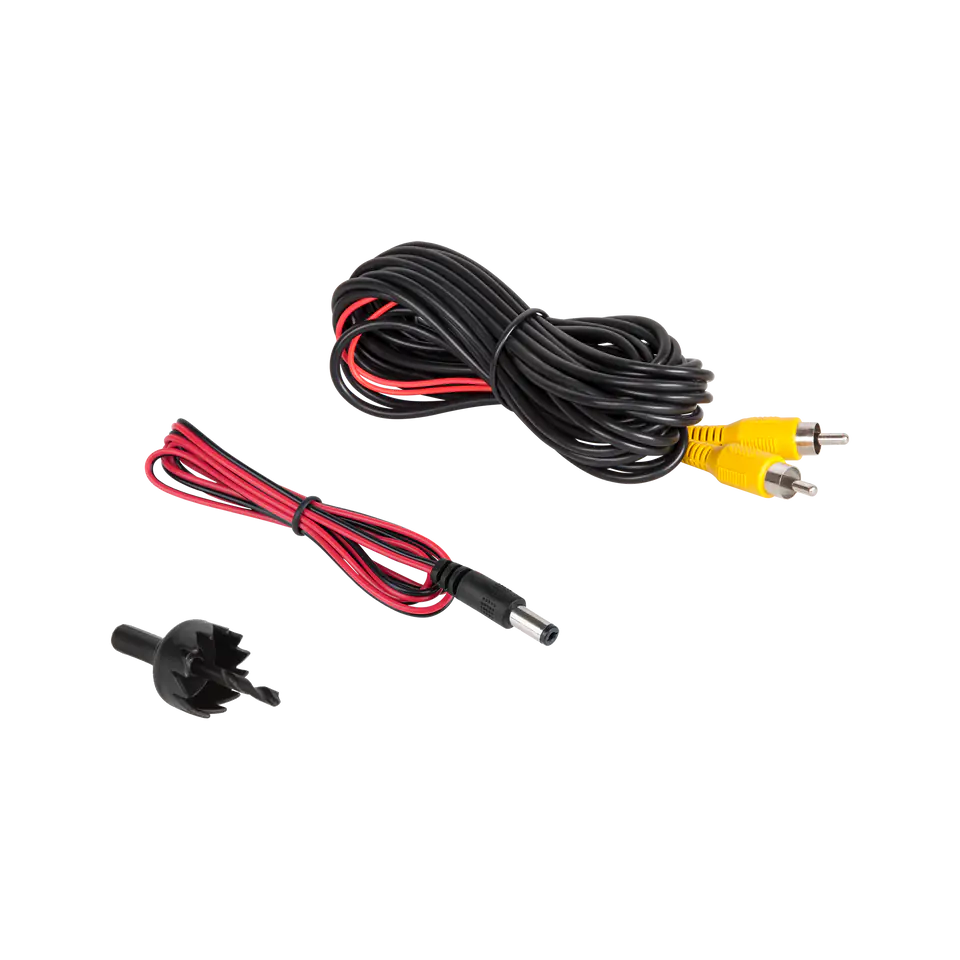

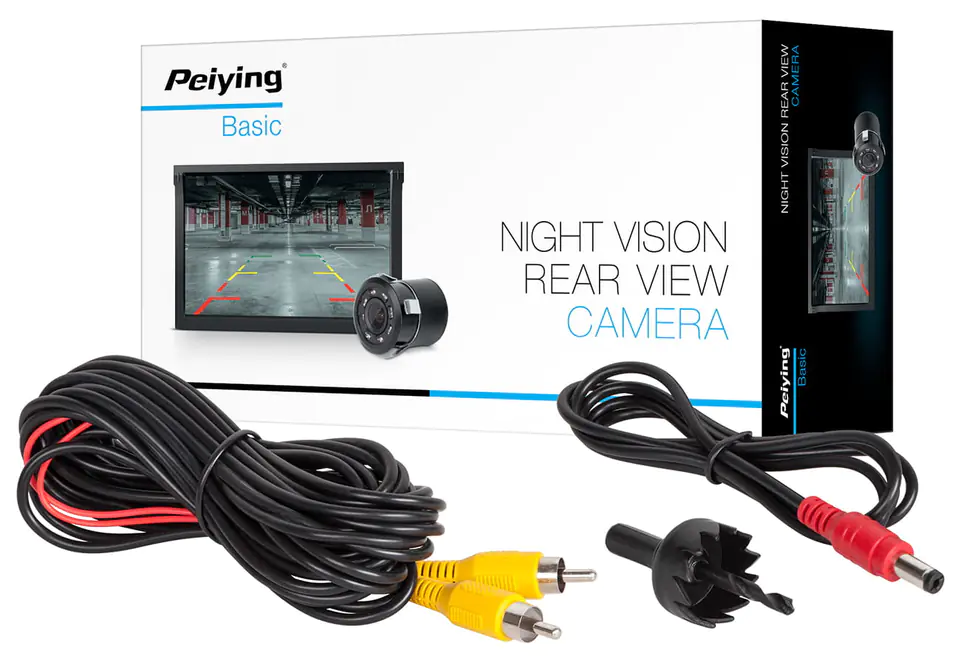

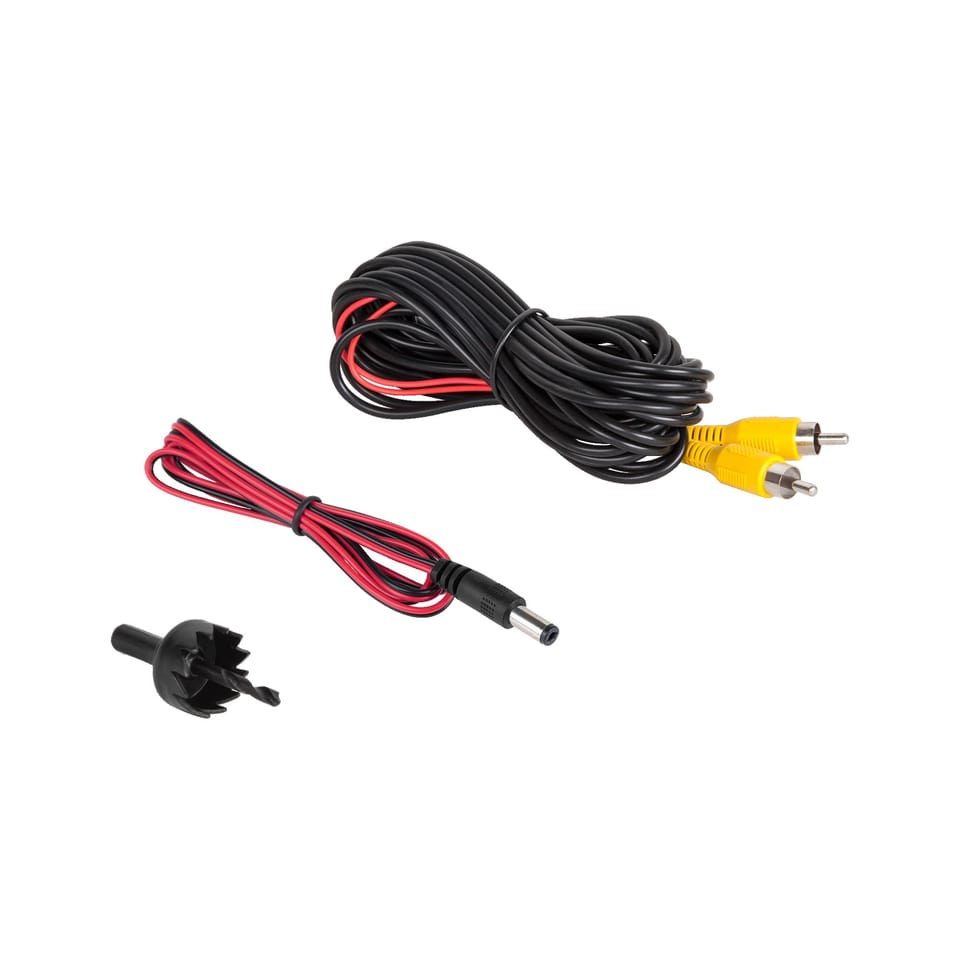

Included:
- camera
- AV cable (6 m)
- power cord (1.5 m)
- drill bit
- Manual
