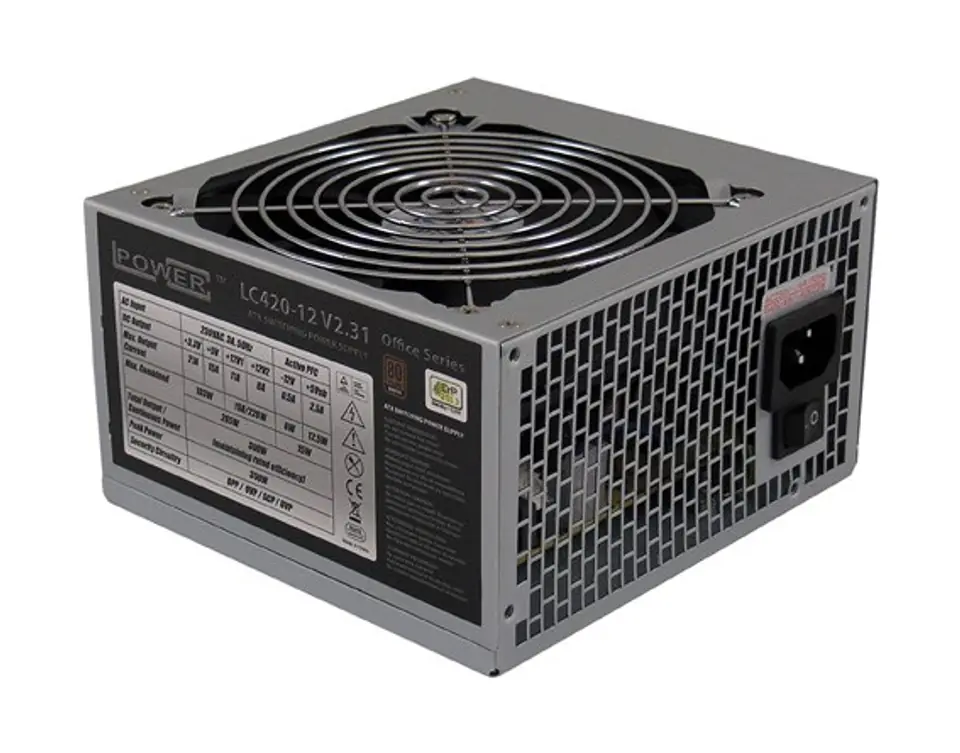

PSU 350W LC420-12 V2.31 80+ BRONZE

This product is not available
Availability:
expected delivery
Brand:
LC-POWER
Product code:
LC420-12 V2.31 / 4260070124396

Specification

80 plus certification:80 PLUS Bronze
Atx power connector (20+4 pin):Yes
Atx version:2.31
Cabling type:Non-Modular
Cpu p4 connector (4-pin):1
Cpu power connector (4+4 pin):Yes
Depth:141 mm
Efficiency:89.48%
Fan diameter:12 cm
Floppy disk drive connector:Yes
Floppy drive power connector:1
Harmonized system (hs) code:84733020
Height:85 mm
Max output current (+12v1):11 A
Max output current (+12v2):8 A
Max output current (+3.3v):21 A
Max output current (+5v):15 A
Maximum input current (@110v):+12V1,+12V2,+3.3V,+5V
Motherboard power connector:20+4 pin ATX
Number of pata power connectors:1
Number of sata power connectors:3
On/off switch:Yes
Package type:Box
Package weight:1.27 kg
Pci express connector:Yes
Pci express power connectors (6-pin):1
Power factor correction (pfc) type:Active
Power supply unit (psu) form factor:ATX
Product colour:Grey
Purpose:PC
Total power:350 W
Width:150 mm

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
