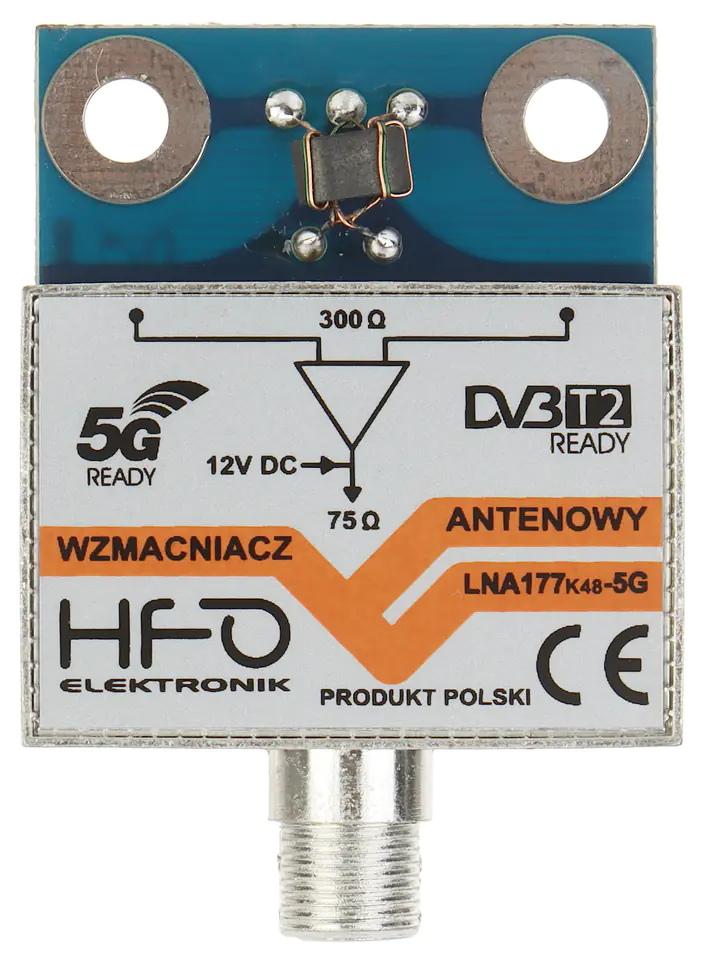

PS Antenna amplifier LNA 177 original. (1LM)

€11.06
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Thu, Nov 28
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
LNA-177 / 5905289670041

Specification

Amplification:16  ... 30 dB
Amplification::16  ... 30 dB
Channels:6  - 12 21  - 69
Channels::6  - 12 21  - 69
Dimensions:55 x 40 x 12 mm
Dimensions::55 x 40 x 12 mm
Input/output impedance:300 Ω / 75 Ω
Input/output impedance::300 Ω / 75 Ω
Maximum output level:98 dB
Maximum output level::98 dB
Noise:3.5 dB @ 174 ... 230 MHz 3.0 dB @ 470 ... 858 MHz
Noise::3.5 dB @ 174 ... 230 MHz 3.0 dB @ 470 ... 858 MHz
Number of inputs [type of connectors]:1 pc (antenna terminals)
Number of inputs [type of connectors]::1 pc (antenna terminals)
Number of outputs [type of connectors]:1 pc (F connector)
Number of outputs [type of connectors]::1 pc (F connector)
Power:12 V / 55 mA after antenna cable
Power::12 V / 55 mA after antenna cable

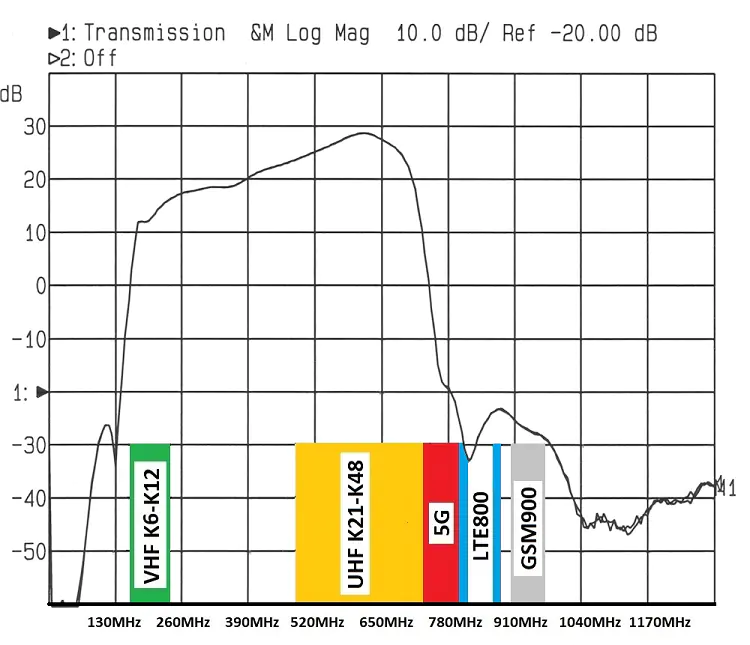

Reinforcement k21 - k54:24 dB ... 30 dB (incremental)
Reinforcement k21 - k54::24 dB ... 30 dB (incremental)
Reinforcement k54 - k69:30 dB ... 16 dB (descending)
Reinforcement k54 - k69::30 dB ... 16 dB (descending)
Reinforcement k6 - k12:16 dB ... 20 dB (incremental)
Reinforcement k6 - k12::16 dB ... 20 dB (incremental)
Scales:0.024 kg
Scales::0.024 kg
Scope:174 MHz ... 858 MHz
Scope::174 MHz ... 858 MHz
Warranty:2 years
Warranty::2 years
Antenna amplifier: LNA 177 original.
1-68Kanały odbioru:
Pasmo III k6-k12 (174MHz-230MHz) <=3,5dBPasmo IV, V k21-k68 (470MHz-862MHz) <=3,0dBPoziom szumów:
Pasmo III k6-k12 (174MHz-230MHz) narastające 16dB~20dB (±2dB)Pasmo IV k21-k54 (470MHz-742MHz) narastające 24dB~30dB (±2dB)Pasmo V k54-k68 (742MHz-862MHz) narastające 30dB~19dB (±2dB)Wzmocnienie:
300 Ohm (przystosowane do zacisków anteny)Impedancja wejściowa:
75 Ohm (gniazdo typu F służy też do zsilania wzmacniacza)Impedancja wyjściowa:
12V DC +/-5%Zasilanie:
50mA +/-5%Pobór prądu:

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
