Leak locator ROTEST® GW 150/4

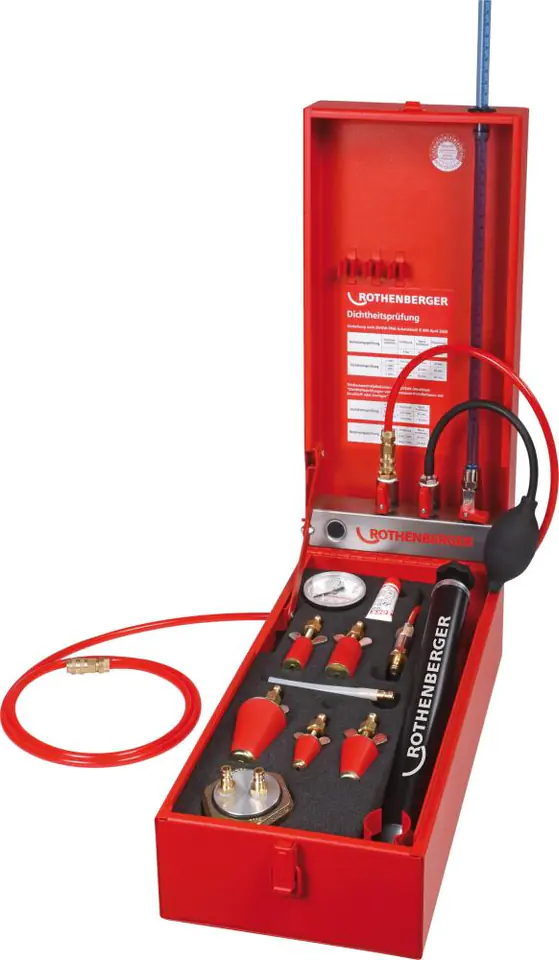

Design: the measuring device is permanently mounted in a stable metal cassette for carrying. Self-controlled pressure pump with check valve and pressure gauge (Ø 60 mm), 0-4 bar, precisely scaled with a pitch accuracy of 0.1 bar.
Directions for use:
Leak testing of gas pipes and appliances with working pressure up to 150 mbar.
Leak testing of domestic drinking water systems according to DIN 1988 (TRWI) 3 bar/150 mbar.
Strength test according to DVGW-TRGI 96 7.1.2 with a test pressure of 1,0 bar.
Water column leak test according to DVGW-TRI 96 7.1.3 with a test pressure of 150 mbar.
Setting of atmospheric burners and gas burners with a blower in the range of 0-30 mbar.
Control test of liquefied petroleum gas (low pressure) with a test pressure of 40 to 60 mbar according to TRF 96 9.4.
Test of liquefied petroleum gas propane/butane with a test pressure of 150 mbar according to TRF 96 9.4.
Scope of delivery: pressure pump 4 bar, pressure vessel, pear rubber pump, control hose, 4-piece plug-in pipe extension, 5 conical plugs with hose connection sizes 0-2 (conical) and 1-2 (cylindrical) and adapter connector for gas meters.
