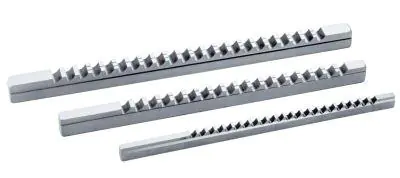

Keyway pusher type III, HSS, 5-8 mm
Execution: HSS, with a grind. Bushings marked I, II and III have flanges, inserts included in the price.
Application: for making machine components, templates, welding, drilling and clamping jigs, rake angle suitable for steel, but can also be used for cast iron, bronze and aluminum.
For fast and economical execution of the dimensionally accurate and centric keyway, according to DIN 6885 for JS9 fitting. The required chip thickness is obtained in several passes of the tool. The shape of the teeth and grinding ensure a smooth surface. For use on hand presses and hydraulic presses.
Inserts supplied with pusher.
