| Card reading range:: | 3 ... 6 cm |
|---|---|
| Card support:: | Unique EM 125kHz |
| Case:: | Metal |
| Colour:: | Silver + Black |
| Dimensions:: | 120 x 58 x 22 mm |
| Manufacturer / brand:: | ATLO |
| Maximum current consumption:: | 35 mA (standby) 100 mA (Operating) |
| Operating temperature:: | -20 °C ... 60 °C |
| Permissible relative humidity:: | 0 ... 95 % (non-condensing) |
| Power:: | 12 ... 24 VDC |
| Scales:: | 0.35 kg |
| Sealing:: | IP68 |
| Selected features:: | 10,000 indexed users Cooperation with output button NO/NC Output Standard Wiegand 26-bit Opening time adjustment: 0 ... 99 sec |
| Warranty:: | 2 years |

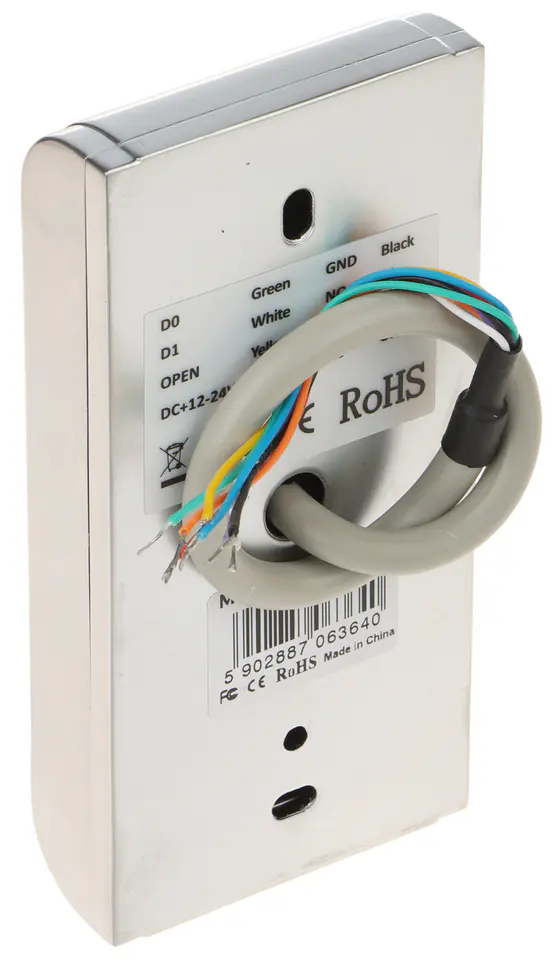

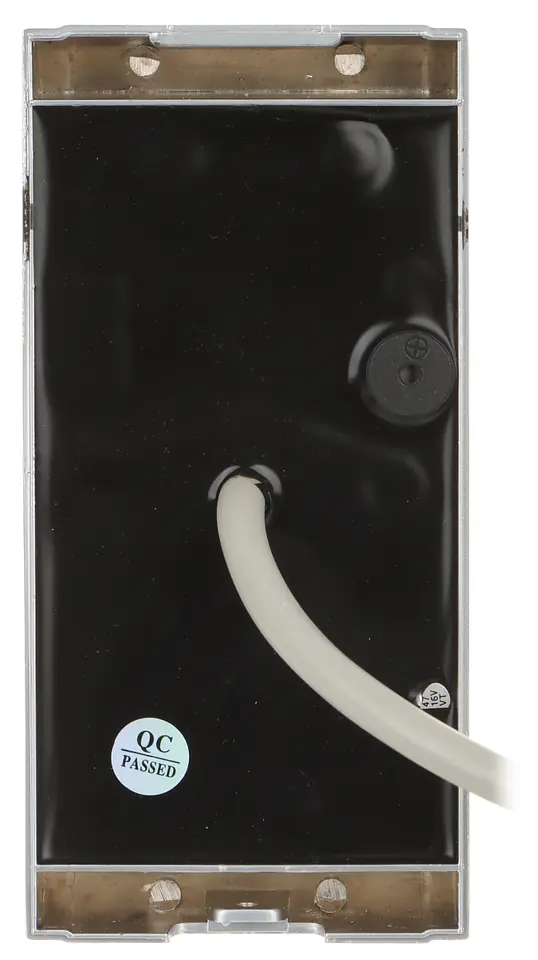

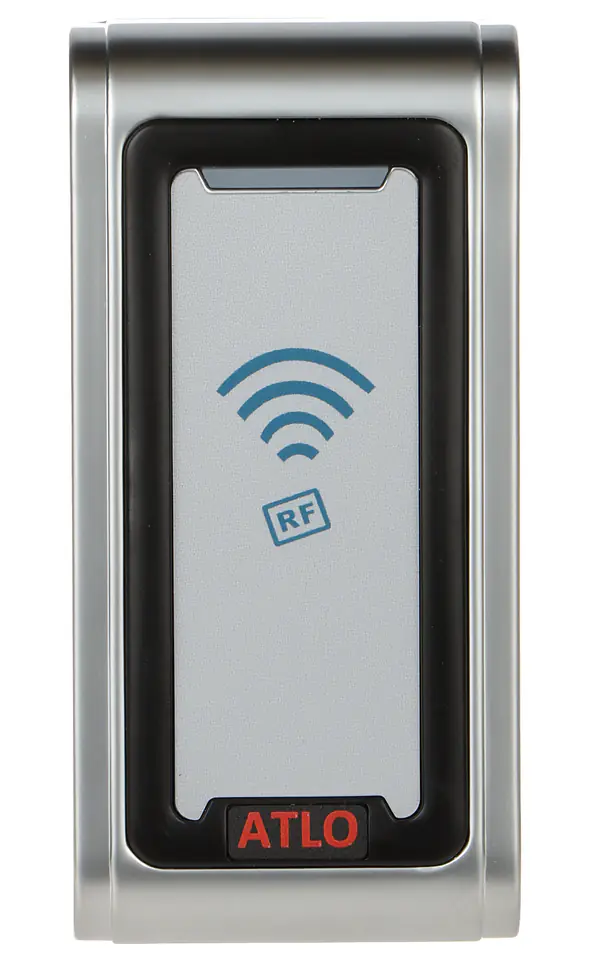

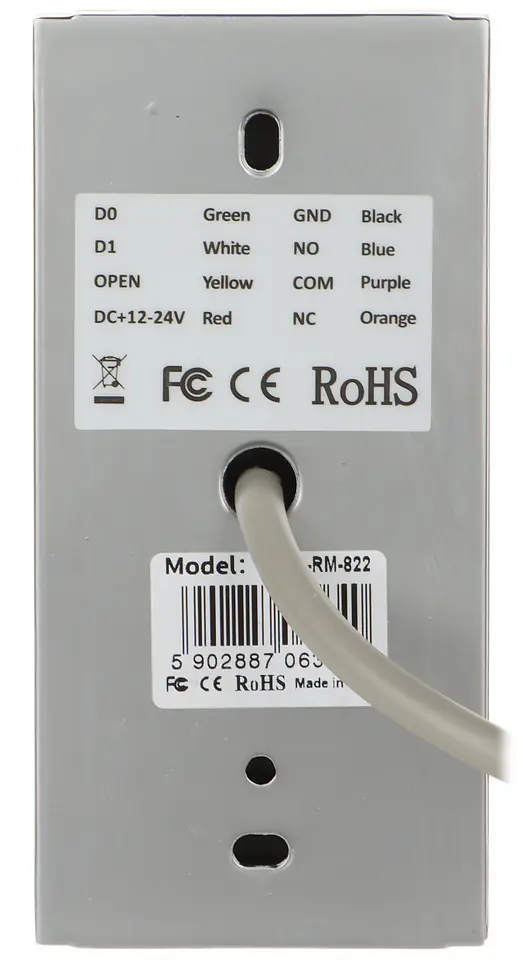

External standalone RFID reader
Autonomous operation of the device allows the user:
Opening with a tab
Remember saved cards
Indication of the door left open
Audible and optical signalling
The administrator's capabilities are as follows:

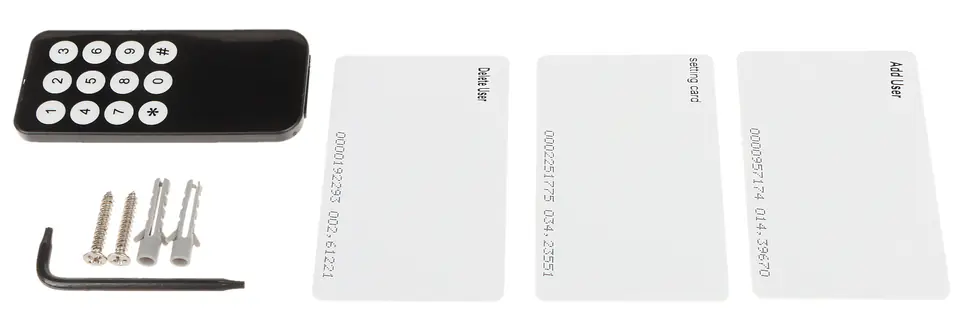

Programming with the included IR remote control
Setting the lock release time
Restore default settings
