External card and key ring reader

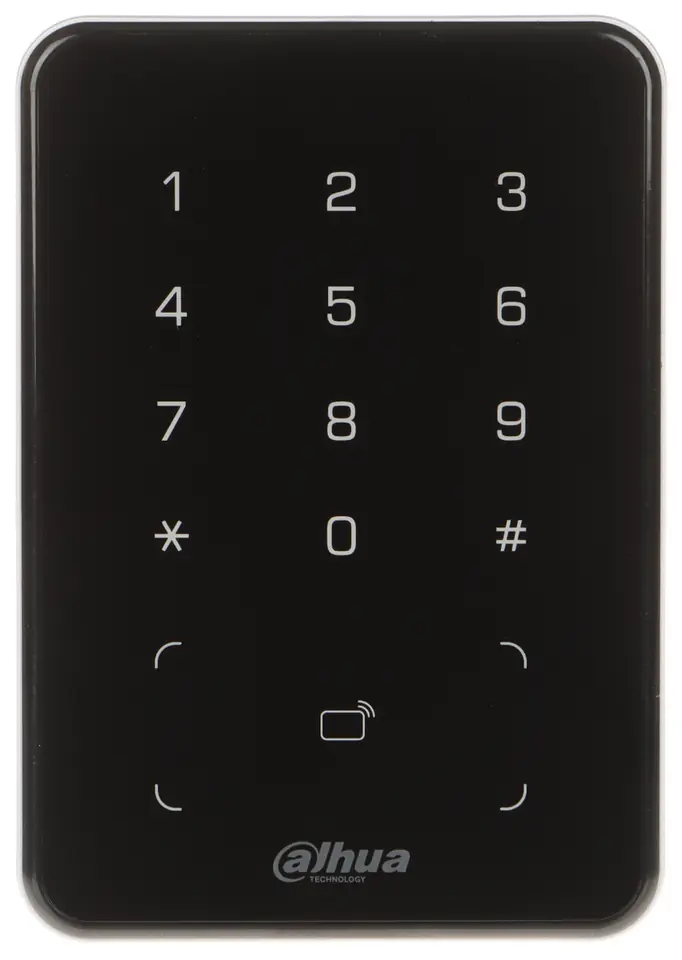

PROXIMITY READER WITH ASR2101A DAHUA KEYBOARD
€48.03
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Dahua
- Product code:
- ASR2101A / 6939554950858
Share this product:
Specification

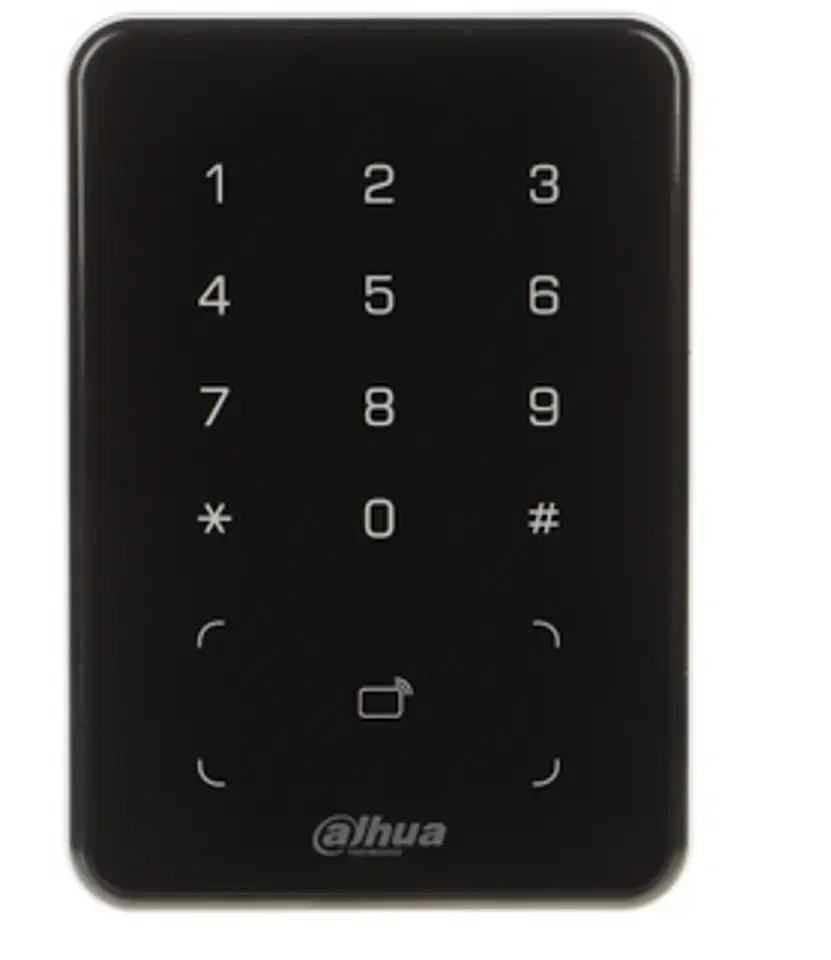

| Built-in keyboard:: | Touch control buttons |
|---|---|
| Card reading range:: | 0 ... 5 cm |
| Card support:: | MIFARE 13.56 MHz |
| Case:: | Plastic + Acrylic glass (plexiglass), Waterproof |
| Colour:: | Black + Silver |

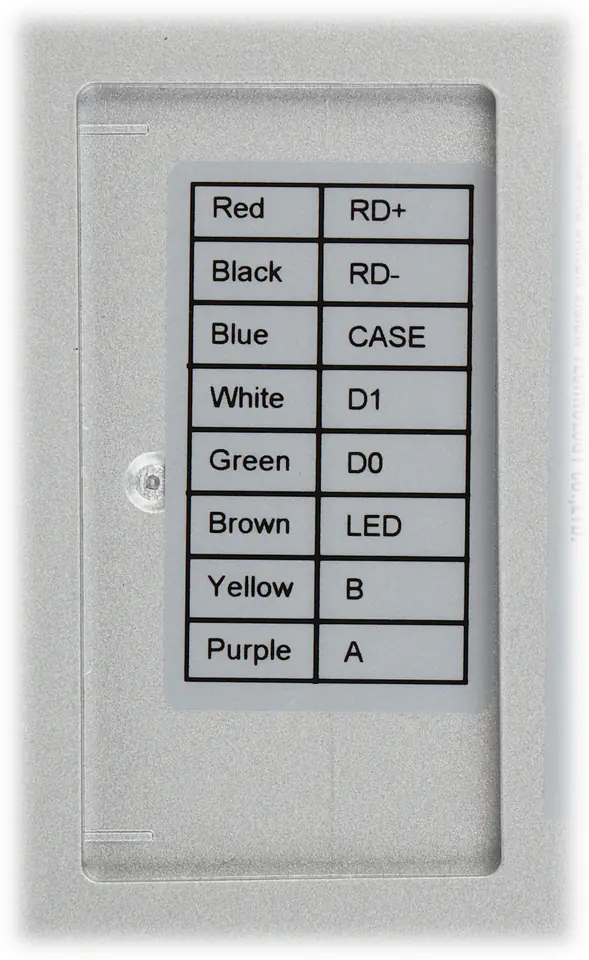

| Communication:: | RS-485, Wiegand |

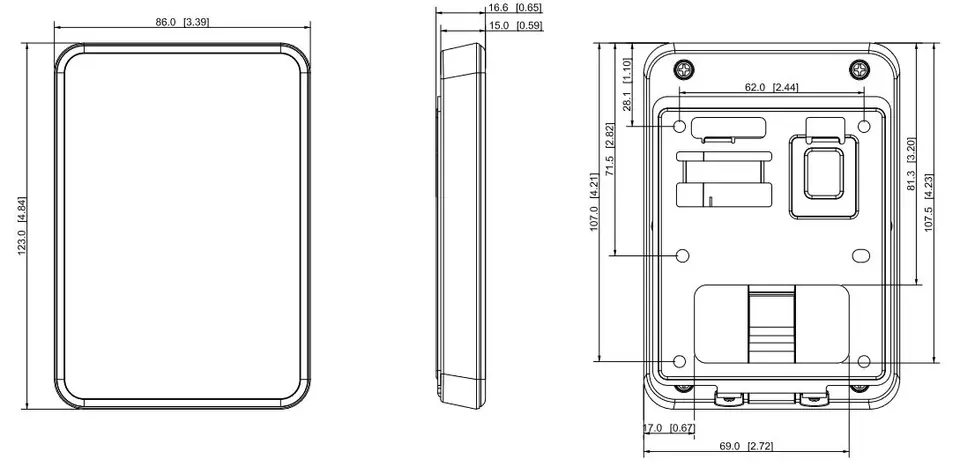

| Dimensions:: | 123 x 86 x 15 mm |
| Manufacturer / brand:: | DAHUA |
| Maximum current consumption:: | 500 mA |
| Operating temperature:: | -30 °C ... 70 °C |
| Permissible relative humidity:: | 5 ... 95 % (non-condensing) |
| Power:: | 12 VDC |
| Scales:: | 0.18 kg |
| Sealing:: | IP66 - after additional sealing of the housing connection with the mounting surface, e.g. silicone |
| Selected features:: | Built-in watchdog Buzzer LED indicator to indicate the operating status Identification modes (Card or PIN, Card and PIN, Card only, PIN only) Protection : Surge protector, Overload |
| Warranty:: | 3 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
