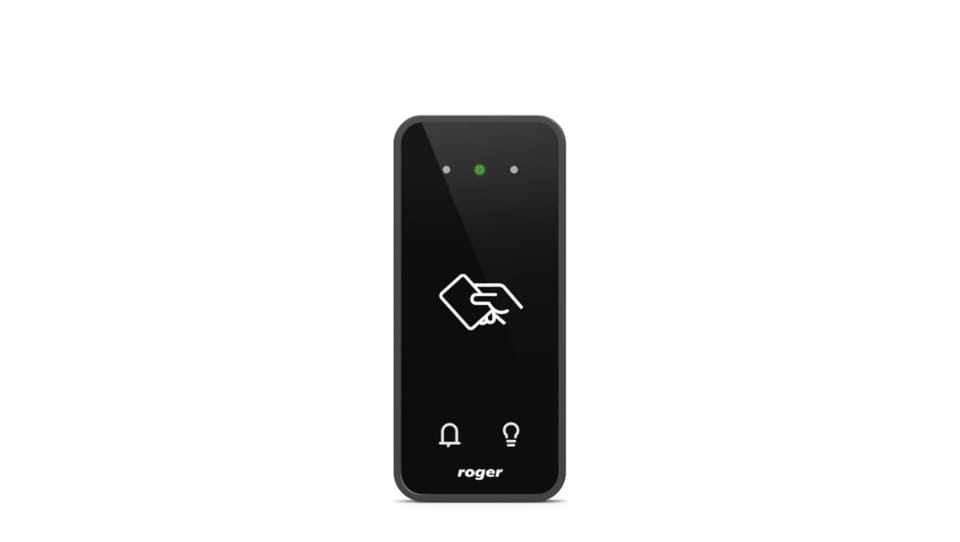

PROXIMITY READER MCT80M-BLE ROGER

€220.02
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
ROGER Sztum
Product code:
MCT80M-BLE / 5907608961250

Specification

Average current consumption::60 mA
Card reading range::Max. 7 cm
Card support::MIFARE 13.56 MHz
Communication::RS-485
Cooperation::RACS 5 (Roger)

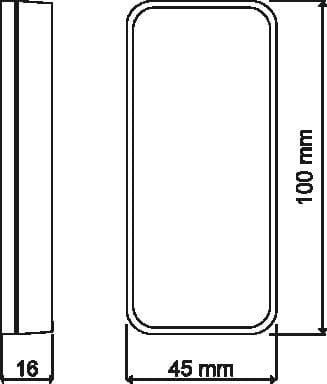

Dimensions::100 x 45 x 16 mm
Manufacturer / brand::ROGER
Operating temperature::-25 °C ... 60 °C
Permissible relative humidity::10  ... 95 % (non-condensing)
Power::12 VDC
Scales::0.09 kg
Sealing::IP65
Selected features::Mobile identification via phone with NFC / Bluetooth Tamper protection (detection of detachment from the ground and opening of the case) LED signaling Beep
Warranty::3 years

External card and key ring reader designed to work in the access control and building automation system RACS 5

The terminal allows user recognition not only via 13.56 MHz MIFARE® Ultralight/Classic/DESFire/PLUS proximity cards, but also via a mobile device (phone) equipped with NFC or Bluetooth technology

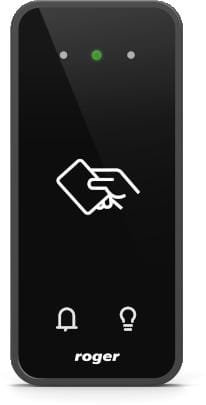

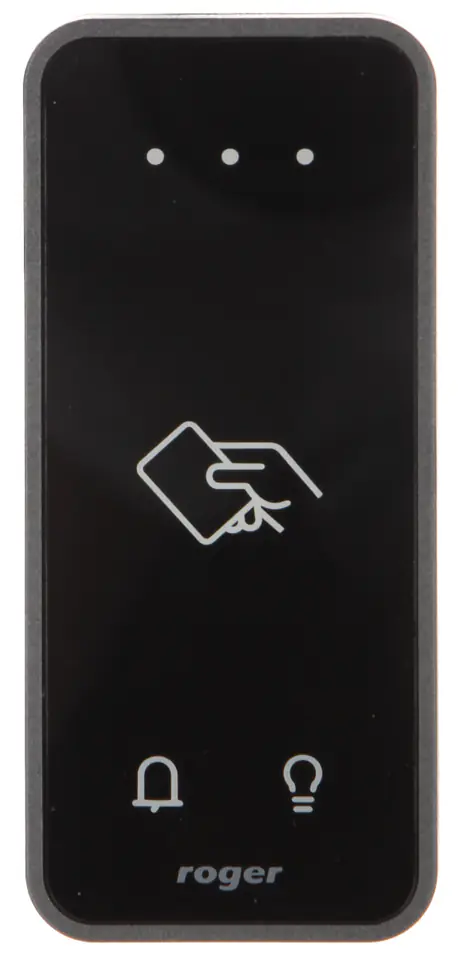

The reader is equipped with two function keys marked with the symbols Ringtone and Light, which can alternatively be used for purposes other than those indicated by the symbols associated with themIn the case of identification using Bluetooth technology, the reading range can reach up to several meters. Other methods require the identifier to be brought closer to the reader at a distance of several centimeters

The device meets the IP65 protection class

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
