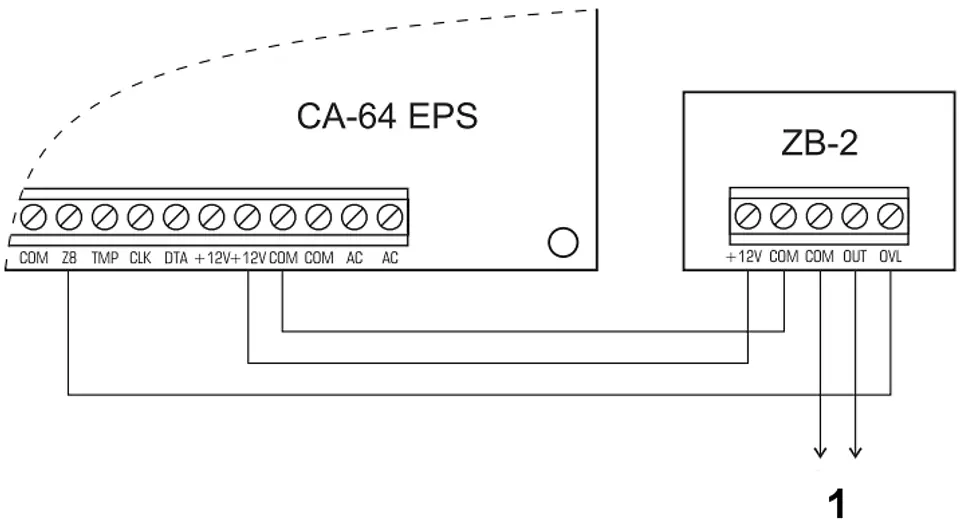

| Cooperation: | CA-64 EPS, CA-64 ADR, CA-64 PP, CA-64 OPS-R/OC/ROC |
|---|---|
| Current consumption: | 1.5 mA |
| Cut-off current: | 1700 mA |
| Dimensions: | 61 x 51 mm |
| Operating temperature: | -10 °C ... 55 °C |
| Output voltage: | Input voltage - 0.6 V (at full load) |
| Producer / brand: | SATEL |
| Scales: | 0.015 kg |
| Supply voltage: | 12 volts DC |
| Warranty: | 2 years |

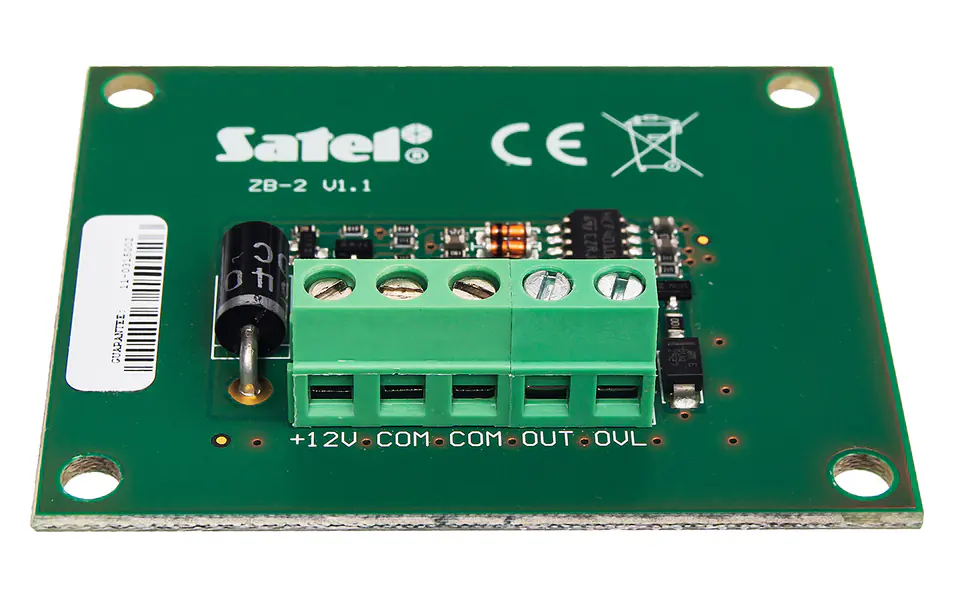

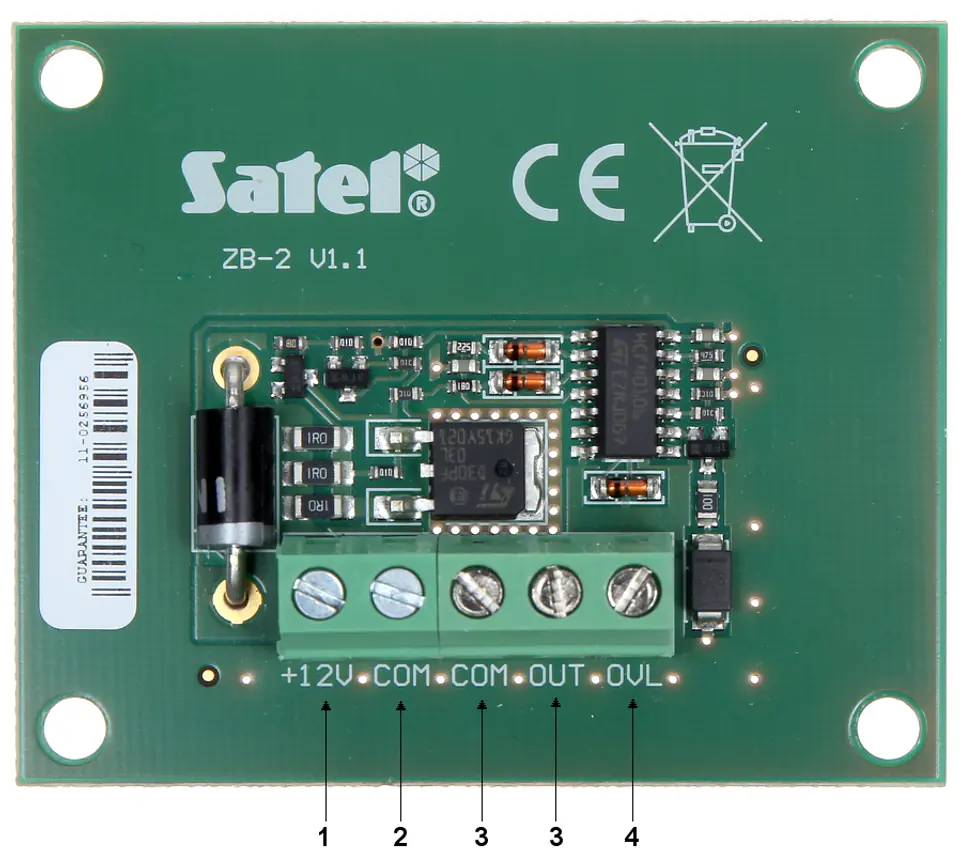

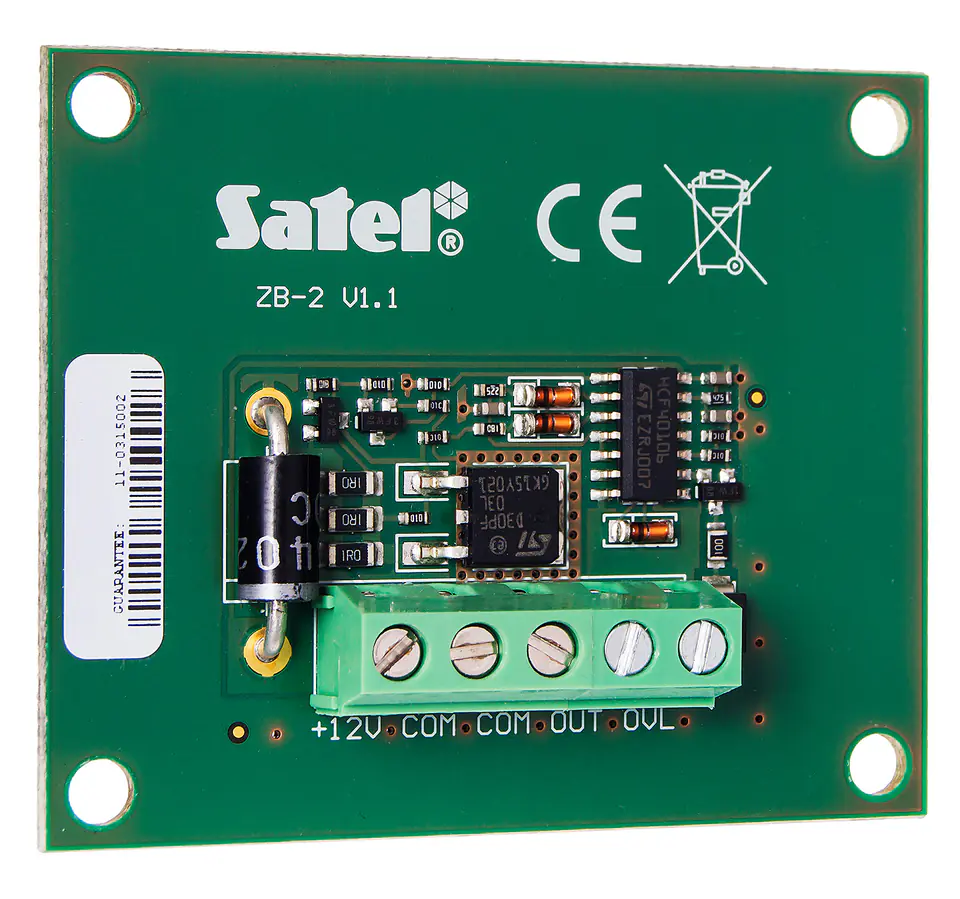

The ZB-2 module is a device that protects the output of the DC power supply against overloadIt is used for power supplies without a current limiter and overload indicator
The OVL output during normal operation of the module is shorted to ground, but in the case of overloading the OUT output, it is cut off
