TECHNICAL DATA:
Gas type: Propane-butane
Inlet thread: W21,8x1/14LH
Rated inlet pressure: 15 bar
Outlet pressure range: 0.1-1.5 bar
Rated throughput: 4 l/min
Nut thread at outlet: G 3/8 LH
Outlet connection (diameter): 8 mm
Reducer Type: RB-LPG
FUNCTIONAL FEATURES:

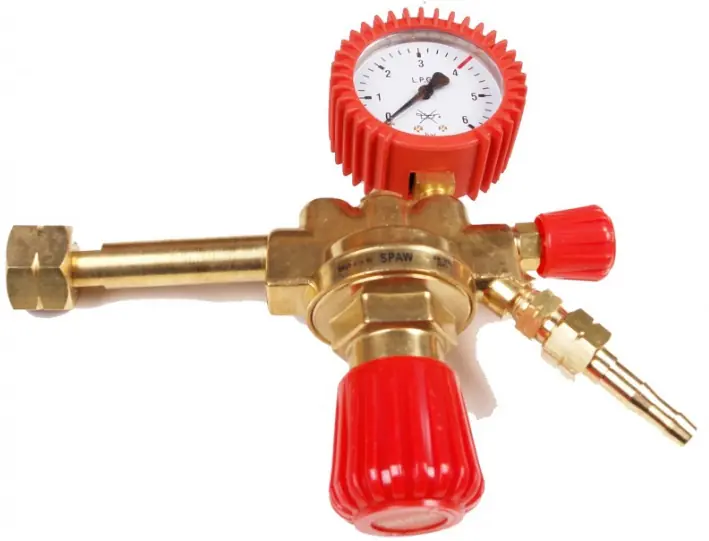

Single-stage cylinder reducer is a leverless reducer with variable regulation of the outlet pressure.
This reducer allows you to reduce the pressure of gases taken from the cylinder to the required outlet (working) pressure.
It ensures that this pressure is automatically kept as constant as possible regardless of changes in the inlet pressure.
The reducer is equipped with a safety valve, through which when the exhaust pressure rises above the permissible excess gas is released.
The maximum inlet and outlet pressure of the reducer is marked with a red line on the pressure gauges.
Gas type: Propane-butane
Inlet thread: W21,8x1/14LH
Rated inlet pressure: 15 bar
Outlet pressure range: 0.1-1.5 bar
Rated throughput: 4 l/min
Nut thread at outlet: G 3/8 LH
Outlet connection (diameter): 8 mm
Reducer Type: RB-LPG
FUNCTIONAL FEATURES:
Single-stage cylinder reducer is a leverless reducer with variable regulation of the outlet pressure.
This reducer allows you to reduce the pressure of gases taken from the cylinder to the required outlet (working) pressure.
It ensures that this pressure is automatically kept as constant as possible regardless of changes in the inlet pressure.
The reducer is equipped with a safety valve, through which when the exhaust pressure rises above the permissible excess gas is released.
The maximum inlet and outlet pressure of the reducer is marked with a red line on the pressure gauges.
