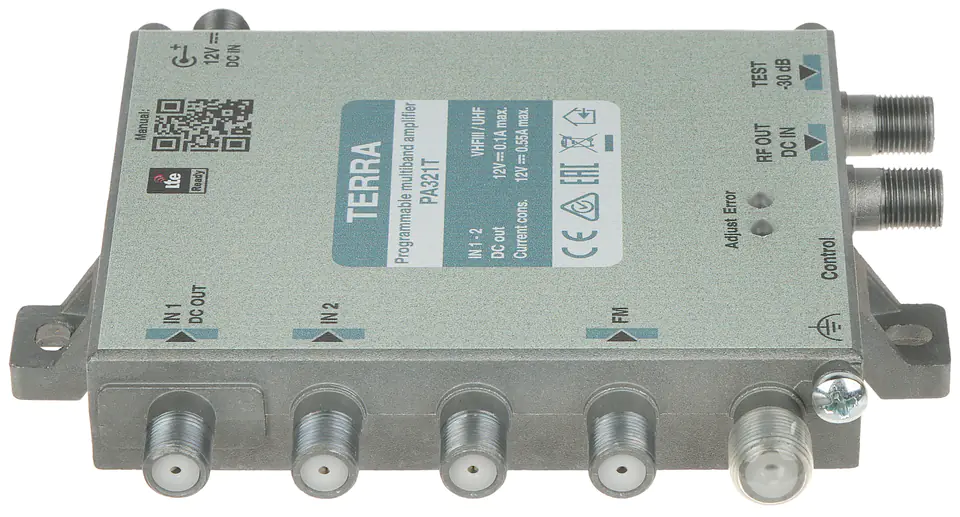

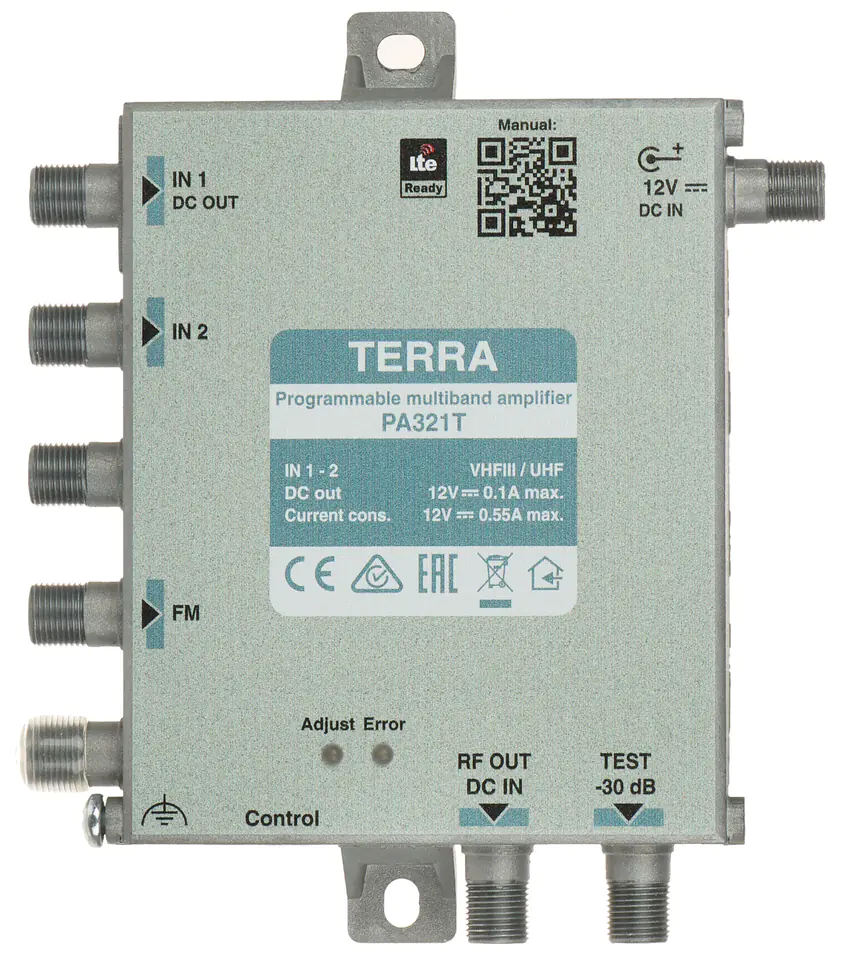

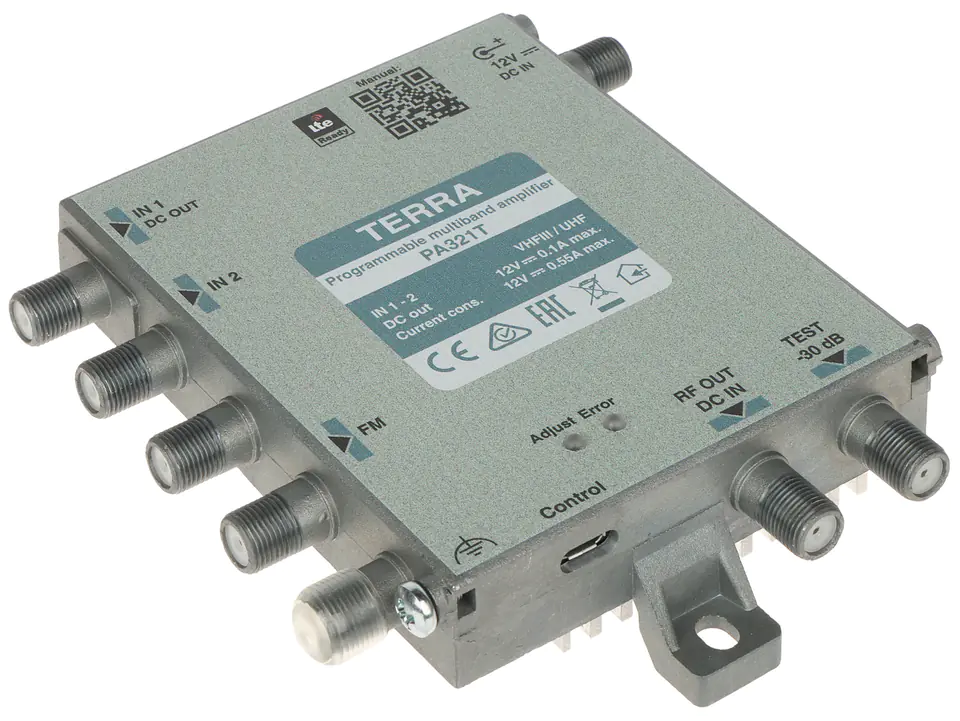

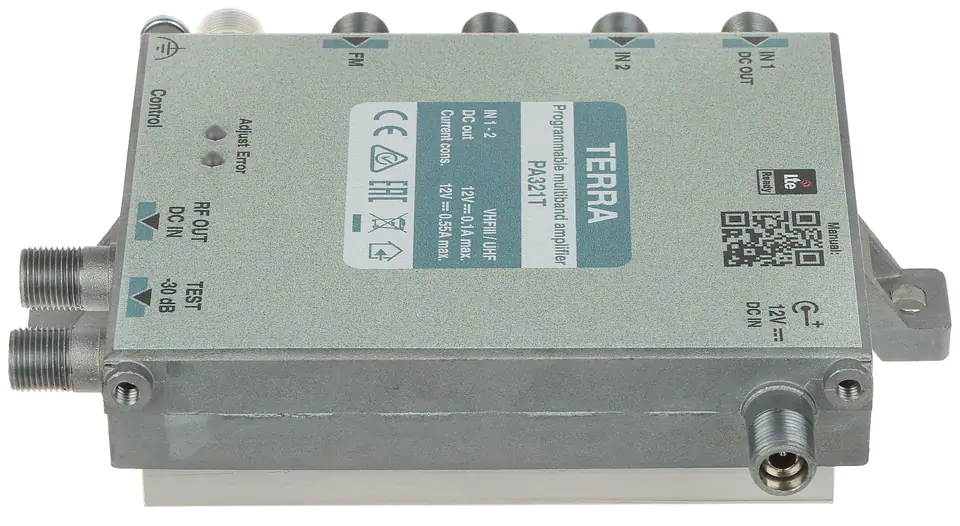

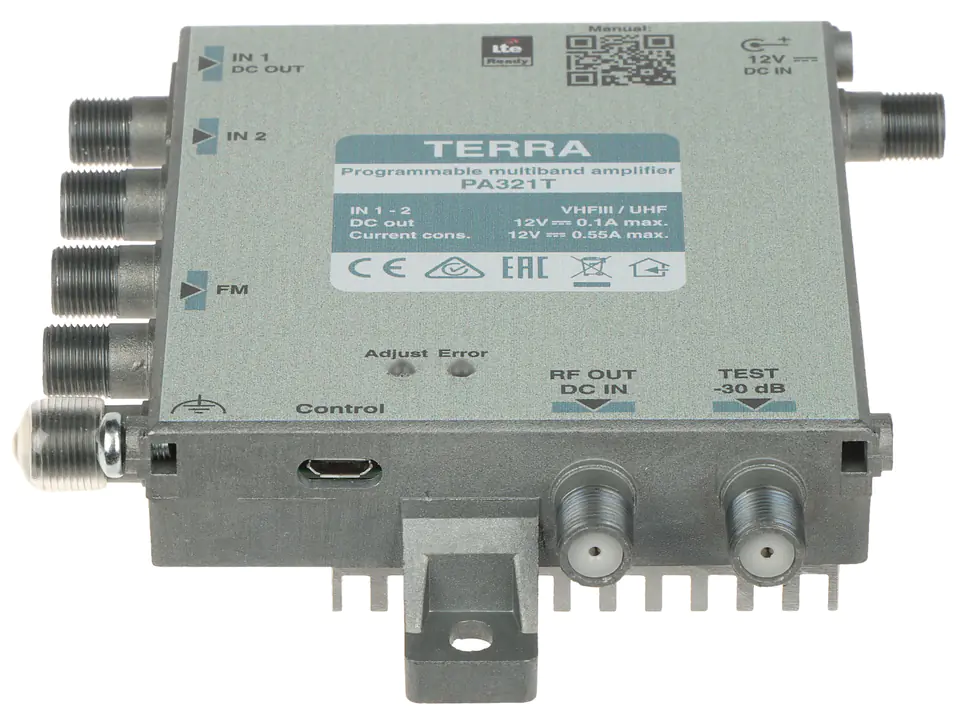

PROGRAMMABLE MULTI-BAND AMPLIFIER TERRA PA-321TP

€200.95
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Terra
Product code:
PA-321TP / 5902887073465

Specification

Amplification:29 dB @ FM 63 dB @ VHF/UHF
Dimensions:114 x 135 x 30 mm
Entry level:69  ... 89 dBμV @ FM, 50 ... 100 dBμV @ VHF/UHF
Frequency range:87 MHz ... 108 MHz - FM, 174 MHz ... 230 MHz - VHF, 470 MHz ... 694 MHz - UHF
Gain adjustment:0 dB ... 20 dB
Maximum output level:106 dBμV @ FM 113 dBμV @ VHF/UHF : 6 MUXs 110 dBμV @ VHF/UHF : 7 - 12 MUXs 109 dBμV @ VHF/UHF : 13 - 16 MUXs 108 dBμV @ VHF/UHF : 17 - 20 MUXs
Noise ratio:< 7 dB
Number of inputs/outputs:3 / 1 - 2x programmable VHF/UHF inputs, 1x FM input and 1x output
Number of supported muxs:20
Operating temperature:-20 °C ... 50 °C

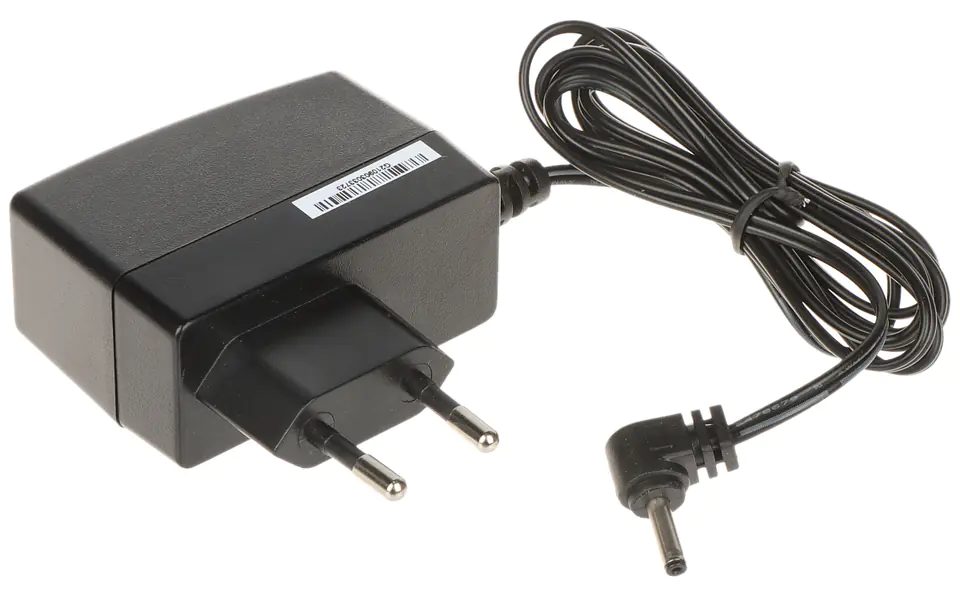

Power:12 V DC / 550 mA (power adapter included)
Power consumption:≤ 6.6 watts
Preamplifier power supply:12 V DC : 100 mA / Input
Producer / brand:TERRA
Scales:0.41 kg
Selected features:Amplification of twenty DVB-T/T2 AGC multiplexes Automatic signal level equalization for all channels Selectivity 30 dB at 1 MHz from the channel boundary Built-in LTE / 5G filter High MER modulation error rate ≥ 36 dB The device is programmed from any mobile device equipped with Android system or Windows computer (TERRnet application) - Control connector (micro USB socket)
Warranty:2 years

The programmable multi-band channel amplifier PA-321TP is designed for receiving DVB-T/T2 digital terrestrial television in multi-family buildings, hotels, boarding houses, holiday homes, schools, hospitals, etc. High MER modulation error rate of min. 36dB allows you to implement even the most complex projects

The device has 20 independent amplification paths, each of which is equipped with an automatic gain control system (AGC) and an ultra-selective SAW filterThe AGC system allows for automatic equalization of the signal level for all channels, regardless of their level at the input of the device (while maintaining the minimum required for the correct signal quality)
