Technical data:
Index Number:YT-73138
EAN:5906083069192
Brand:Yato
Metal Detection:Yes
Wood Profile Detection:Yes
Live Wire Detection:Yes
Ferromagnetic Metal Detection Depth:120 mm
Non-ferrous metal detection depth:80 mm
Live wire detection depth:50mm
Wood Profile Detection Depth:38 mm

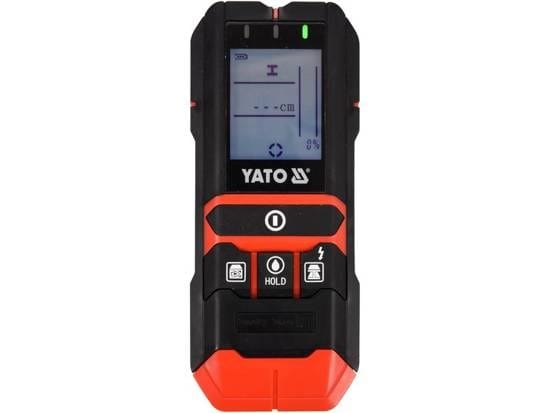

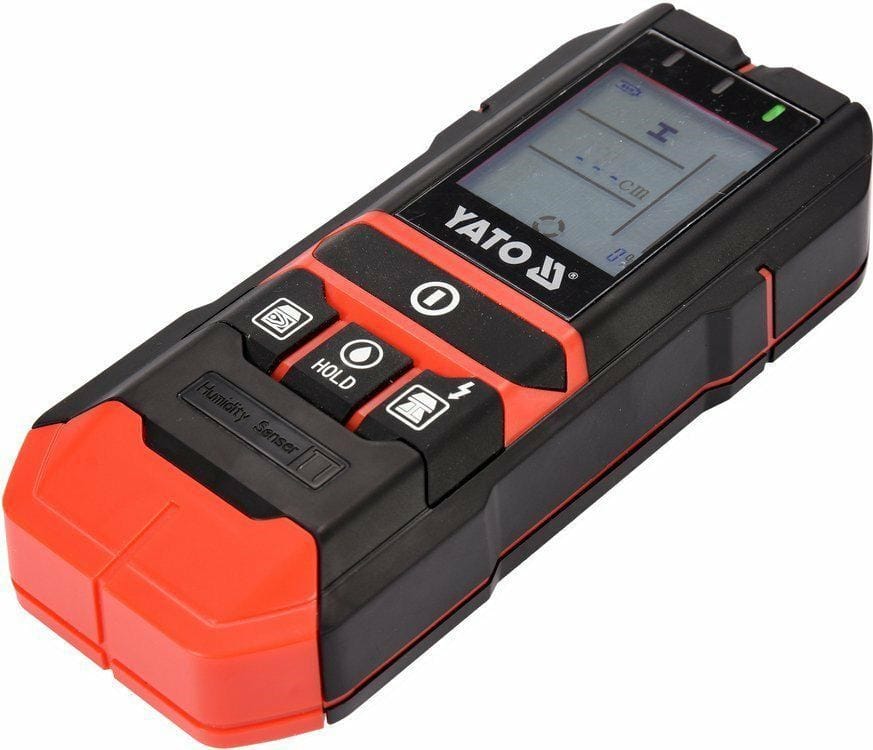

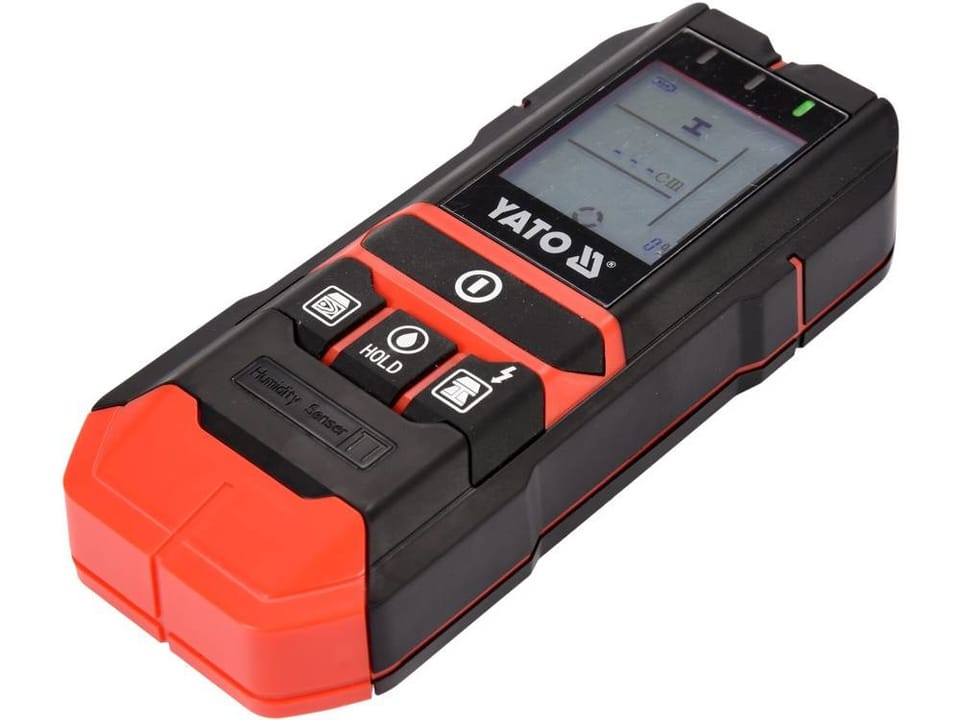

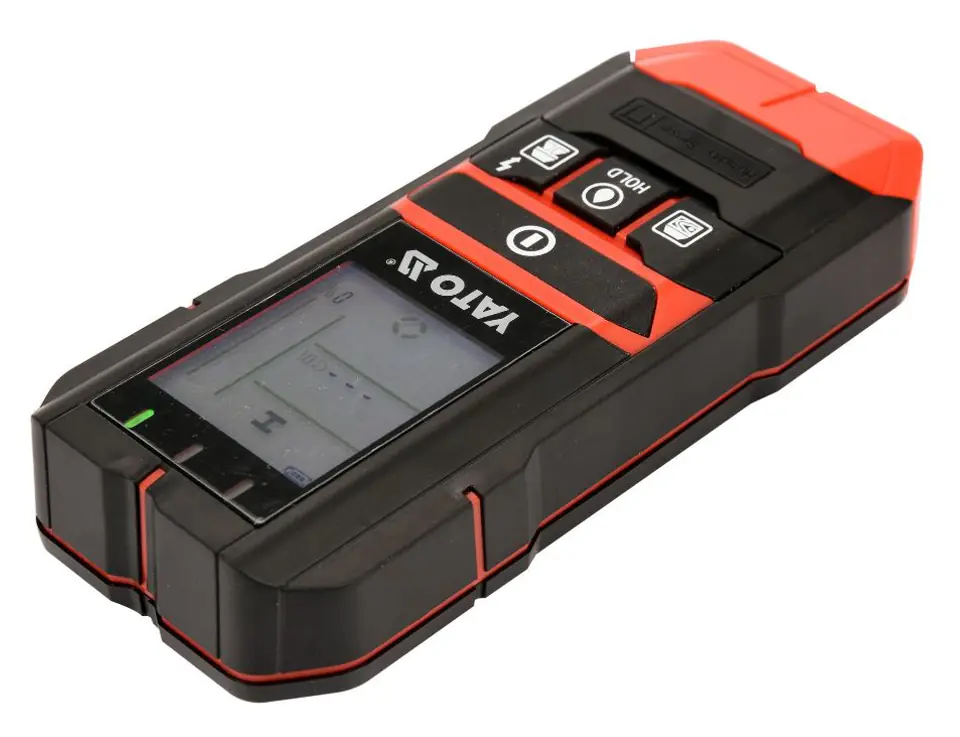

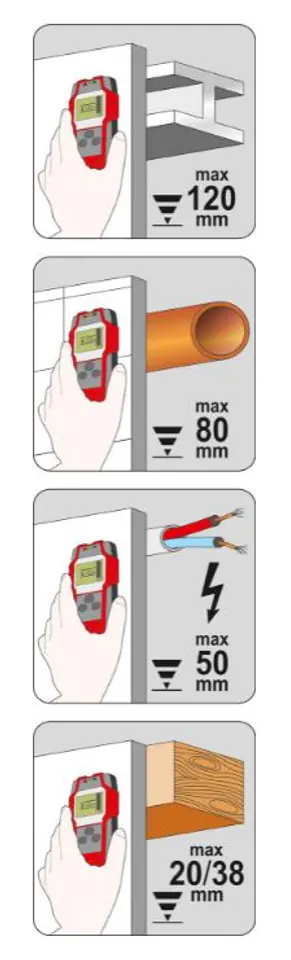

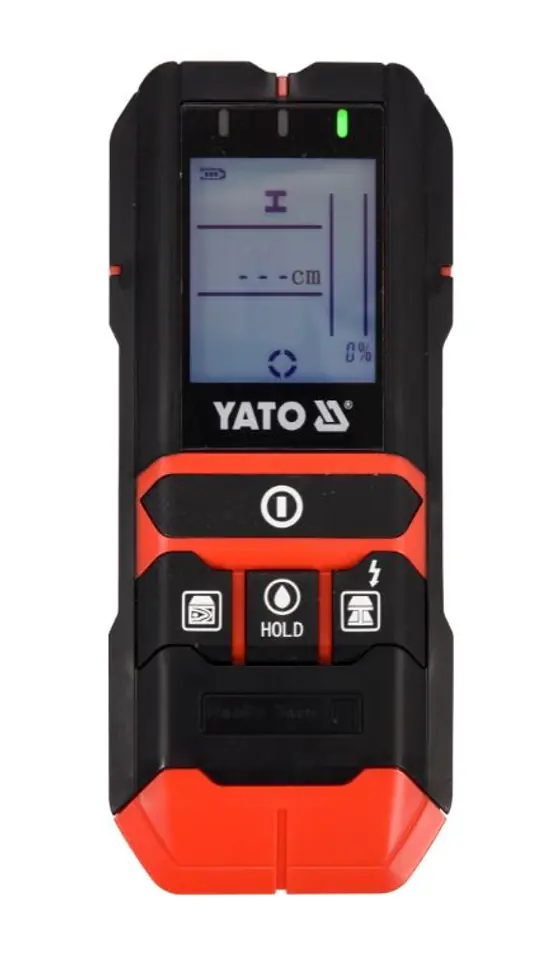

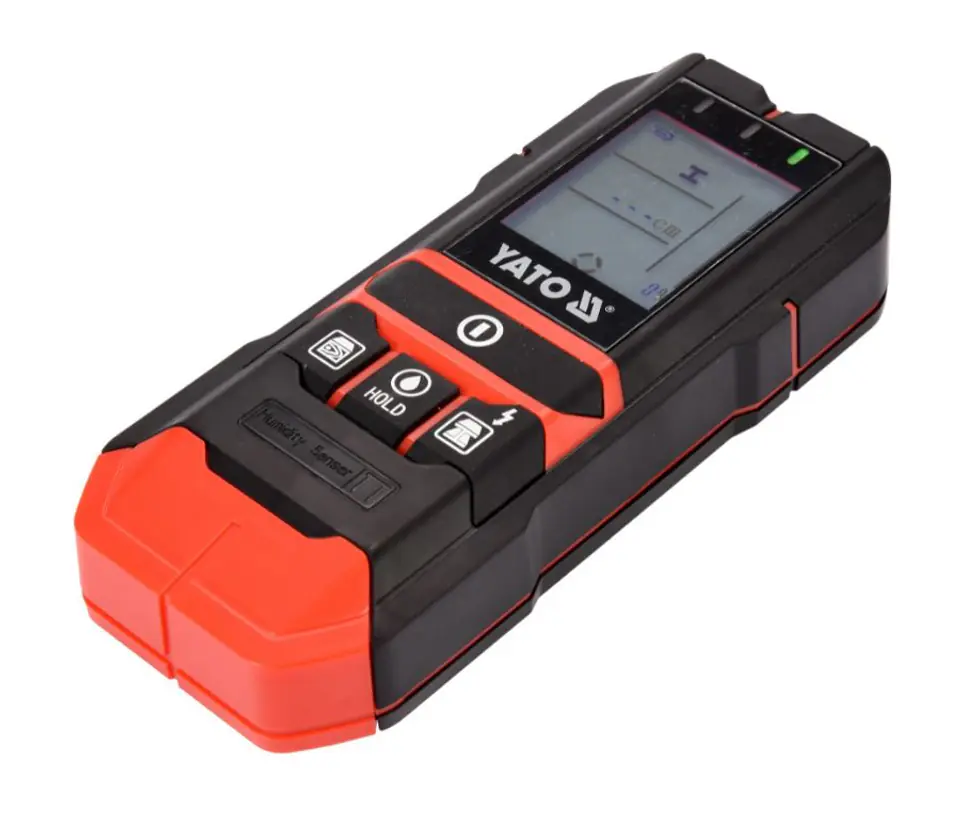

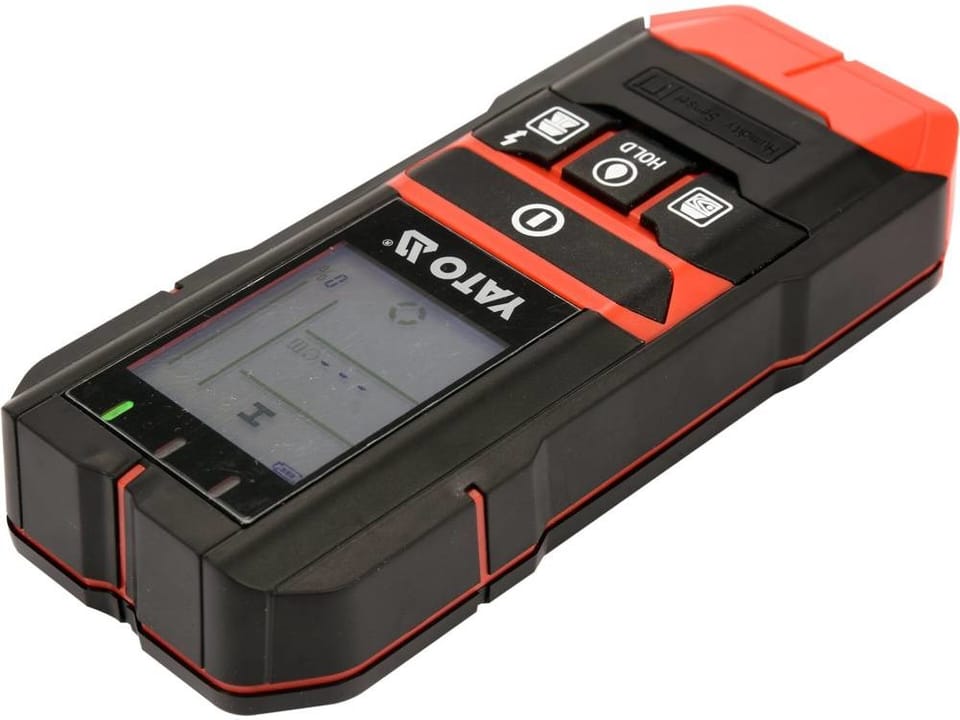

Professional detector of wires, profiles and humidity meter in one. YT-73138 allows detection in walls or drywall:
live wires up to 50 mm
ferromagnetic metals up to 120 mm
non-ferrous metals (e.g. copper tubes) up to 80 mm
wooden elements of the structure precisely up to 20 mm, roughly up to 38 mm
The built-in moisture meter for wood and building materials enables:
measurement to a depth of up to 8 mm
wood moisture measurement in the range of 5-50%
moisture measurement of building materials in the range of 1.5-33%
The use of a YATO YT-73138 4-in-1 detector and meter significantly speeds up work, increases safety and minimizes the risk of accidental damage to the electrical or hydraulic installation placed under the plaster. Thanks to it, you can m.in safely drill a hole or find a place to screw the screw into a wooden or metal profile hidden under the drywall. The built-in humidity meter will make it possible, m.in, to determine the level of moisture in plaster in thermal bridges, as well as to check the humidity for wood intended for fuel.

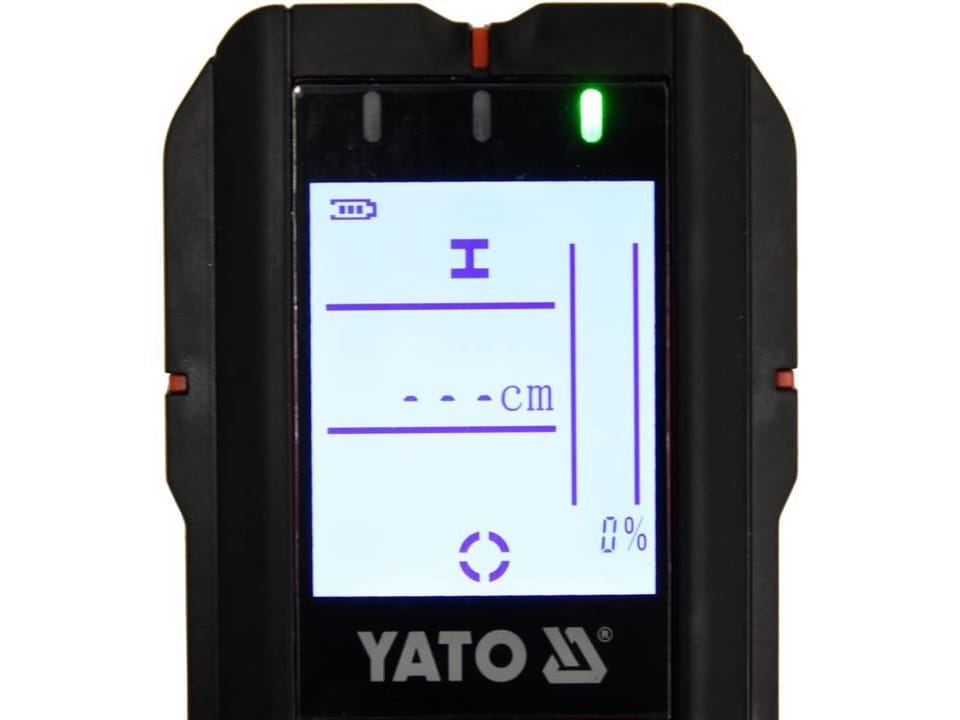

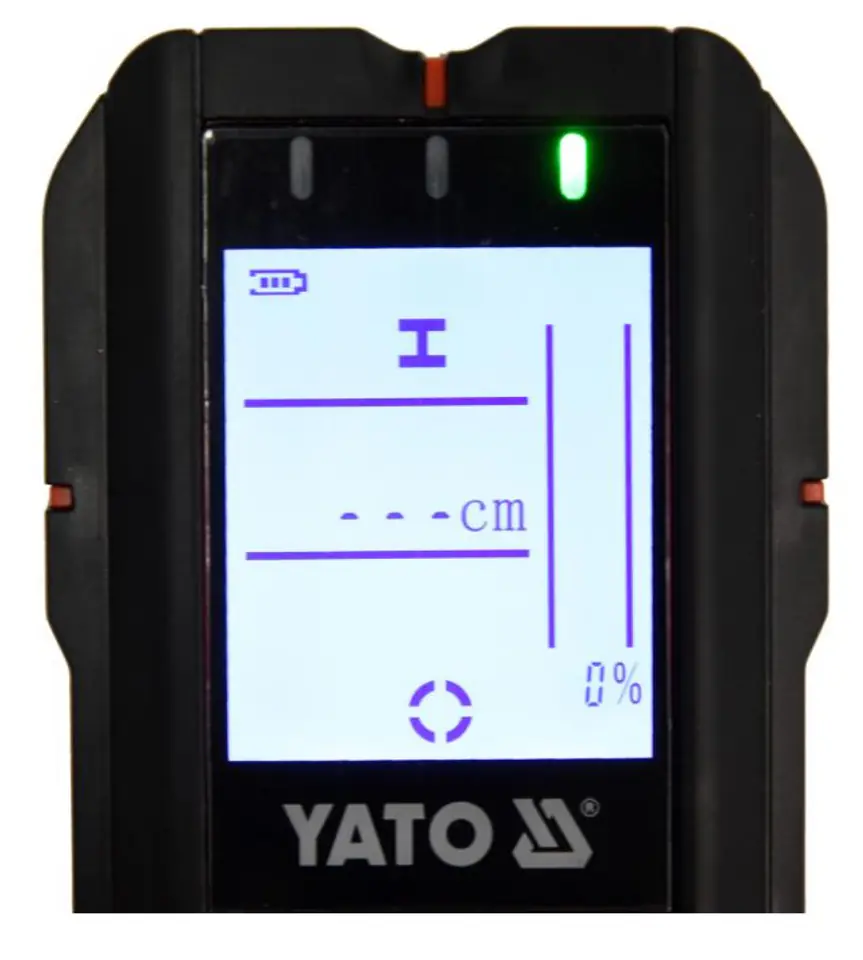

A large and legible display, with LED backlight, informs us about:
selected function
signal strength [%]
distance from the metal element being sought [cm]
centric location relative to the sensor
Additional functions and equipment:
a beep and three indicator LEDs, in green / orange / red, which additionally indicate the detection of the material being sought.
adjustment of detection force for live wires and metal elements
automatic shutdown after 5 minutes of inactivity
on the underside of the detector there are inserts made of soft material, which during contact with the surface protect the housing from scratches.
device cover made of durable material
**
Photos have an illustrative function.
