S-LS-10STAMOS SOLDERINGprofessional soldering worksSOIC, QFP, PLCC, BGA, SMDstepped is fully digitalPID

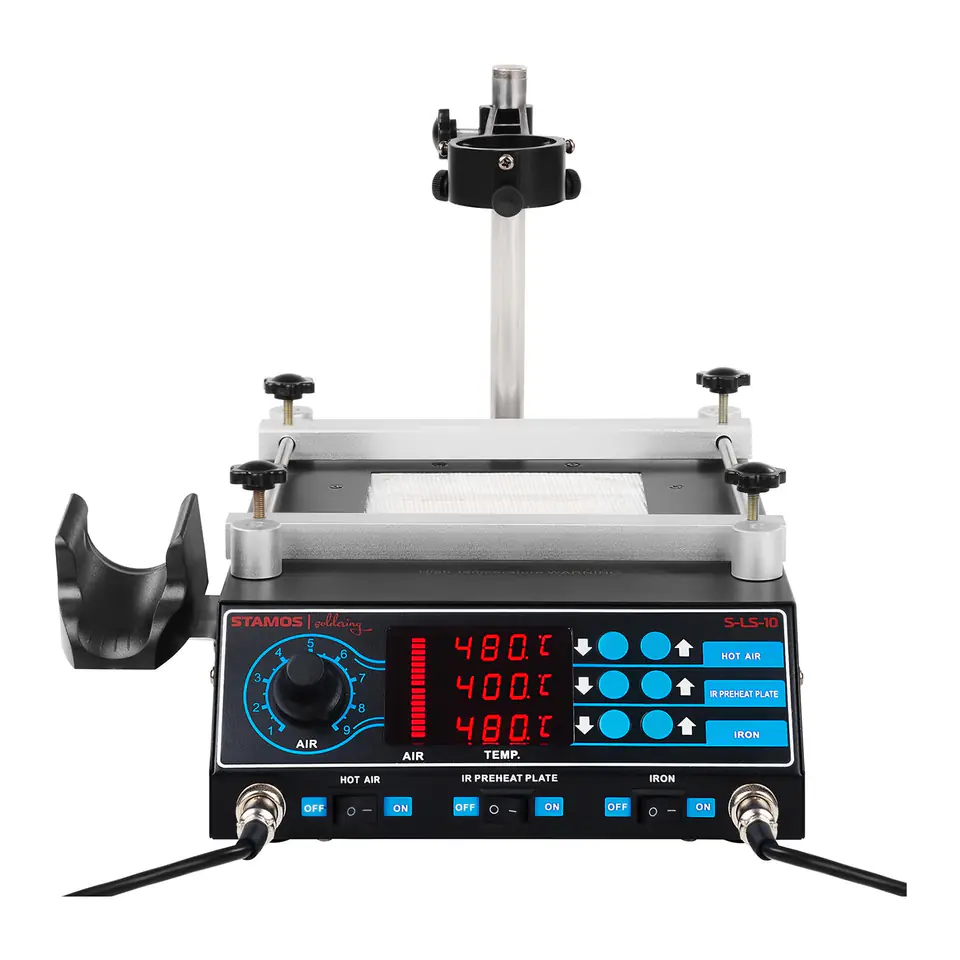

- ADVANCED CONTROL UNIT allows precise determination of all parameters of the tip stock and the HOT AIR stock. It has a large, legible LED display that gives the temperature of two flasks: soldering and hot air. Buttons on the control panel allow you to control:
- - the temperature of the soldering flask
- - temperature of the HOT AIR flask
- - preheater plate temperature

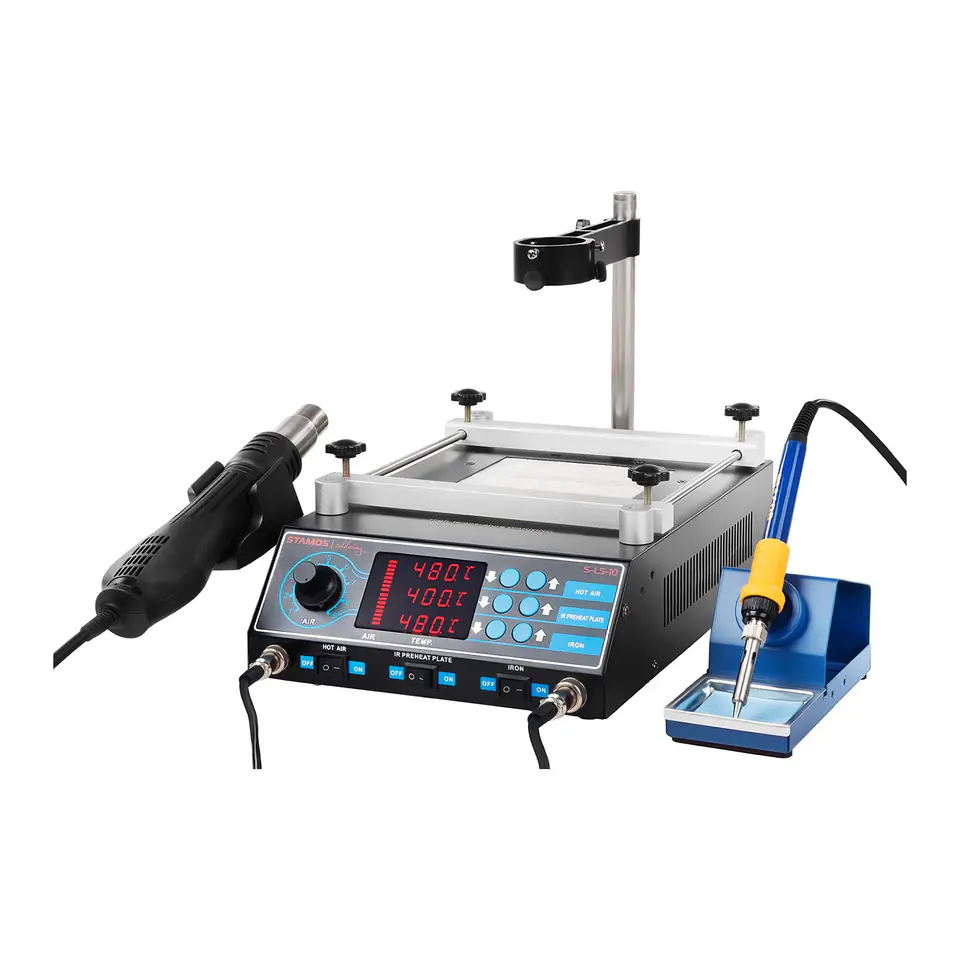

- The soldering station has a convenient hot AIR stock gripper that increases the convenience and efficiency of soldering work and a heating plate for preheating integrated circuits, the so-called PREHEATER.

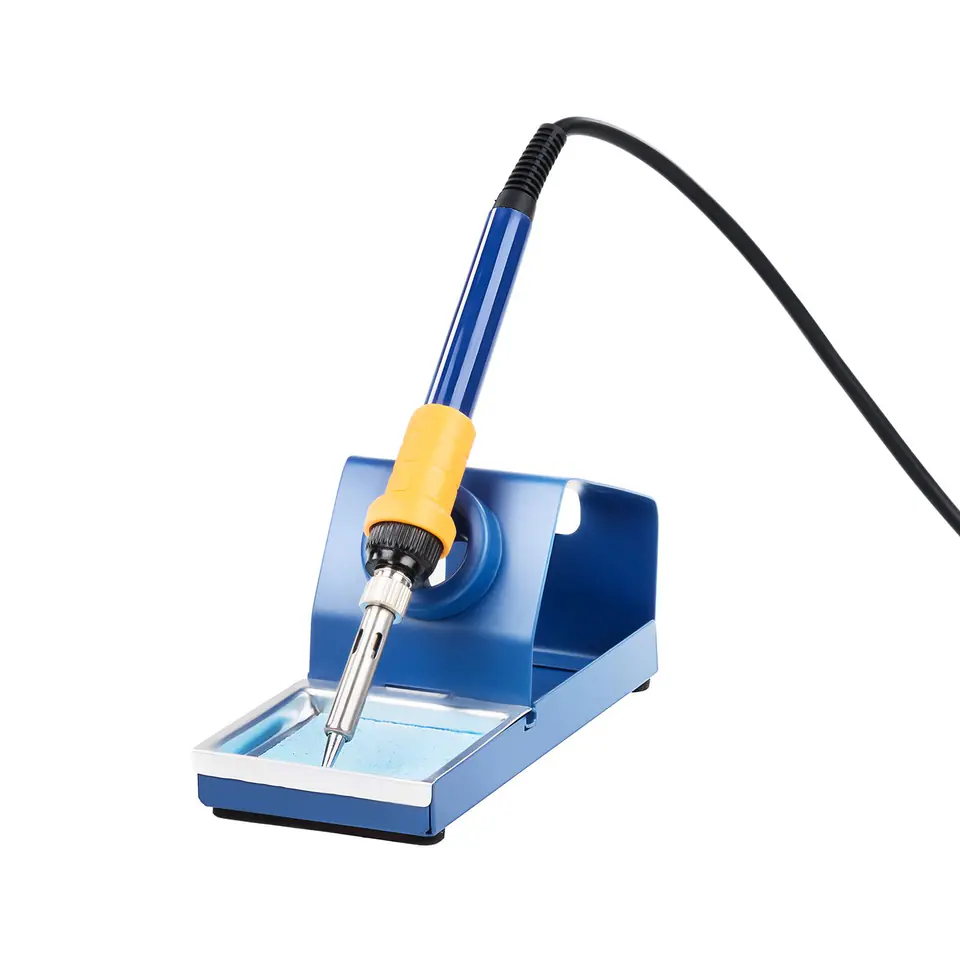

- SOLDERING IRON - TIP FLASK with a power of 75W with protection protecting ESD Safe electronic systems.

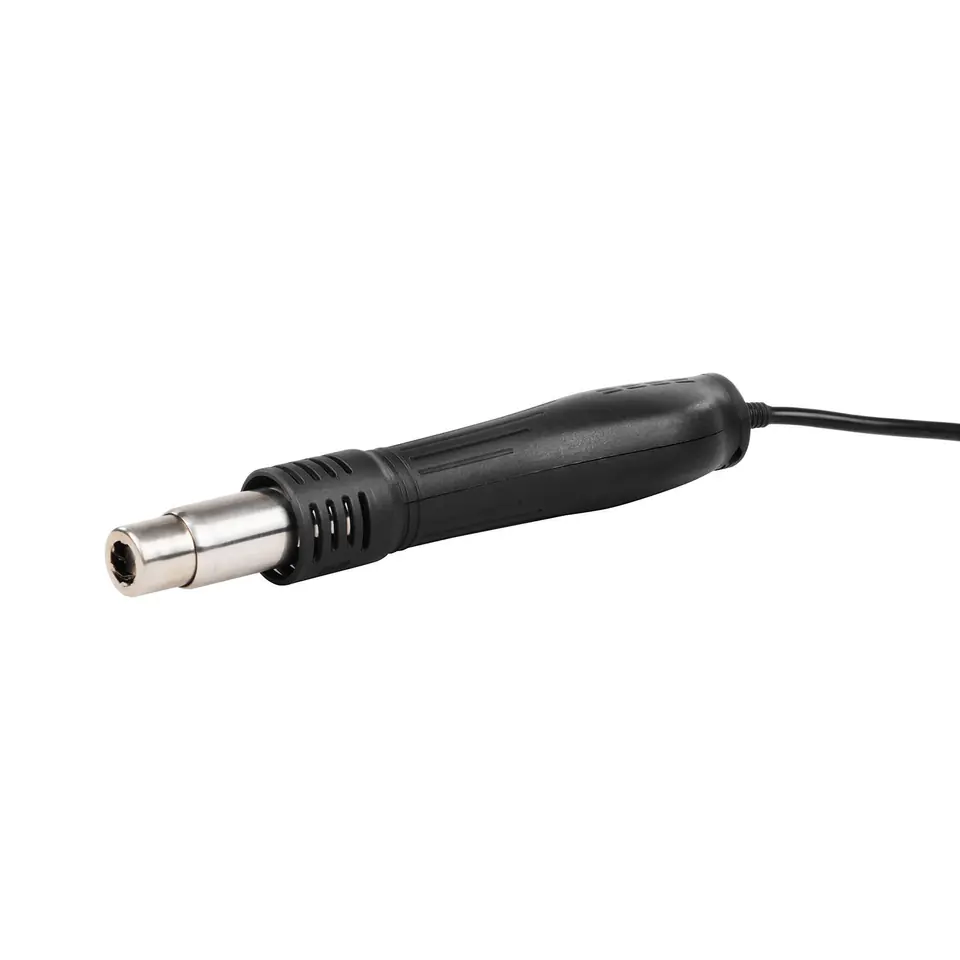

- HOT AIR MODULE with efficient 650W heater and fan providing air flow of 130 l/min. The flask with hot air blowing has many applications, including:
- - soldering and desoldering of surface-mounted components (SMD)
- - heating and defrosting
- - shrinking shrink sleeves
- - dissolution of adhesives
- - tanning paints
- - plastic welding
- - many other applications where a temperature of 100 to 480 C is necessary
- - Model - S-LS-10
- - Catalogue number - 6109
- - Article status - New
- - Voltage - 230 V
- - Hot air gun - Yes
- - Power - 1270 W
- - Rated current - 15 A
- - Soldering flask – Power - 75 W
- - Soldering flask – Temperature control range - 200 – 480C
- - Hot air flask – Power - 650 W
- - Hot air flask – Temperature control range - 100 – 480C
- - Digital soldering station - Yes
- - Hot air soldering - Yes
- - Station with heating plate - Yes
- - Display - LED
- - Air flow velocity - 130 l/min
- - Power cord - 1.5 m

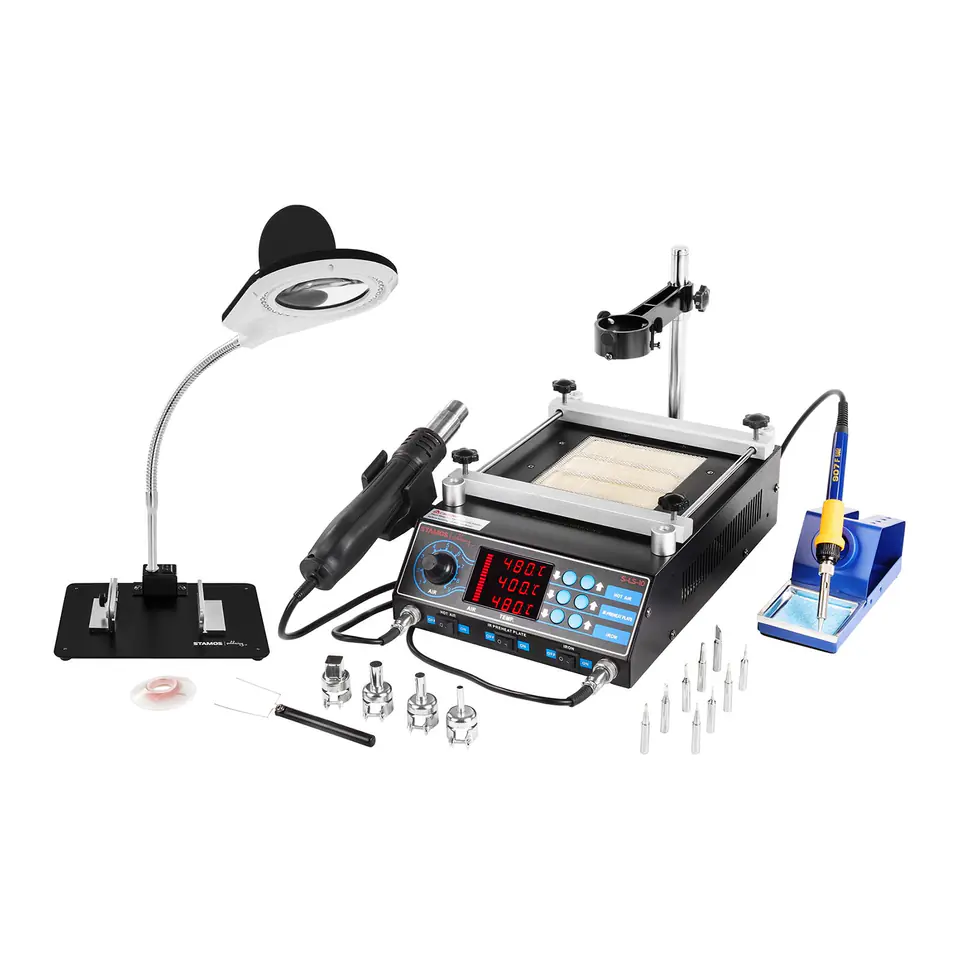

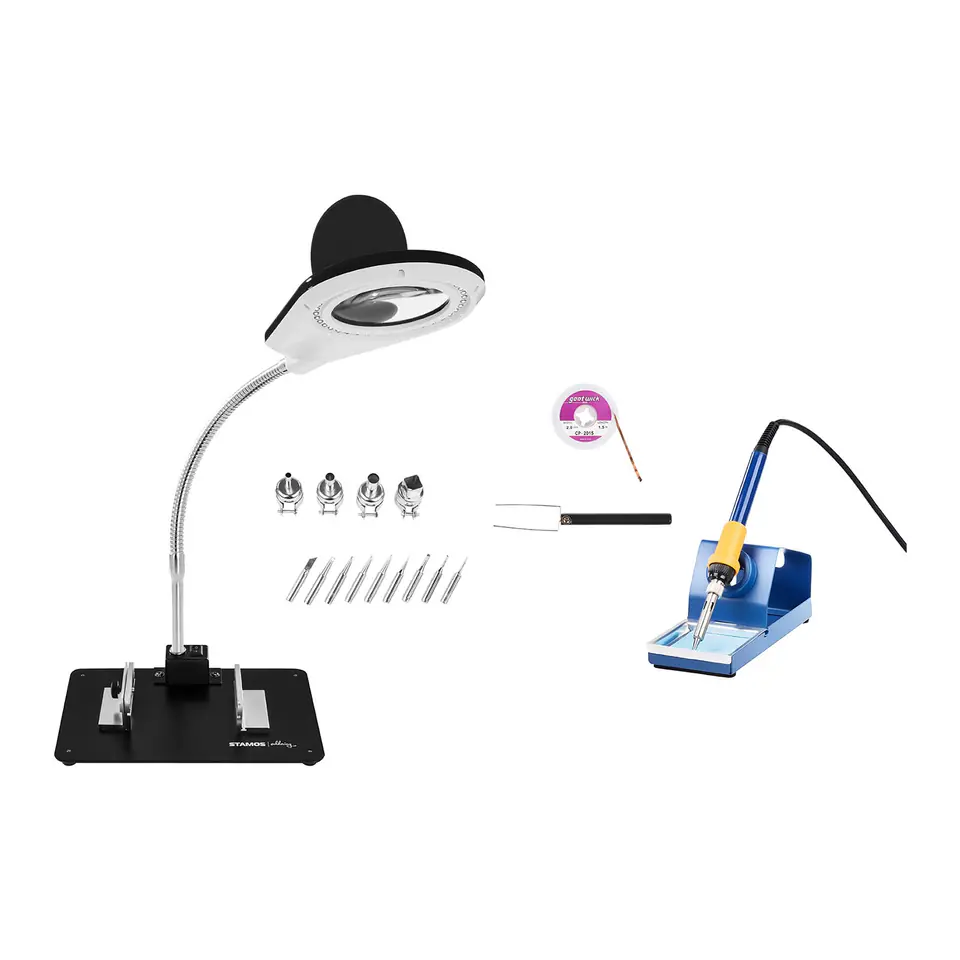

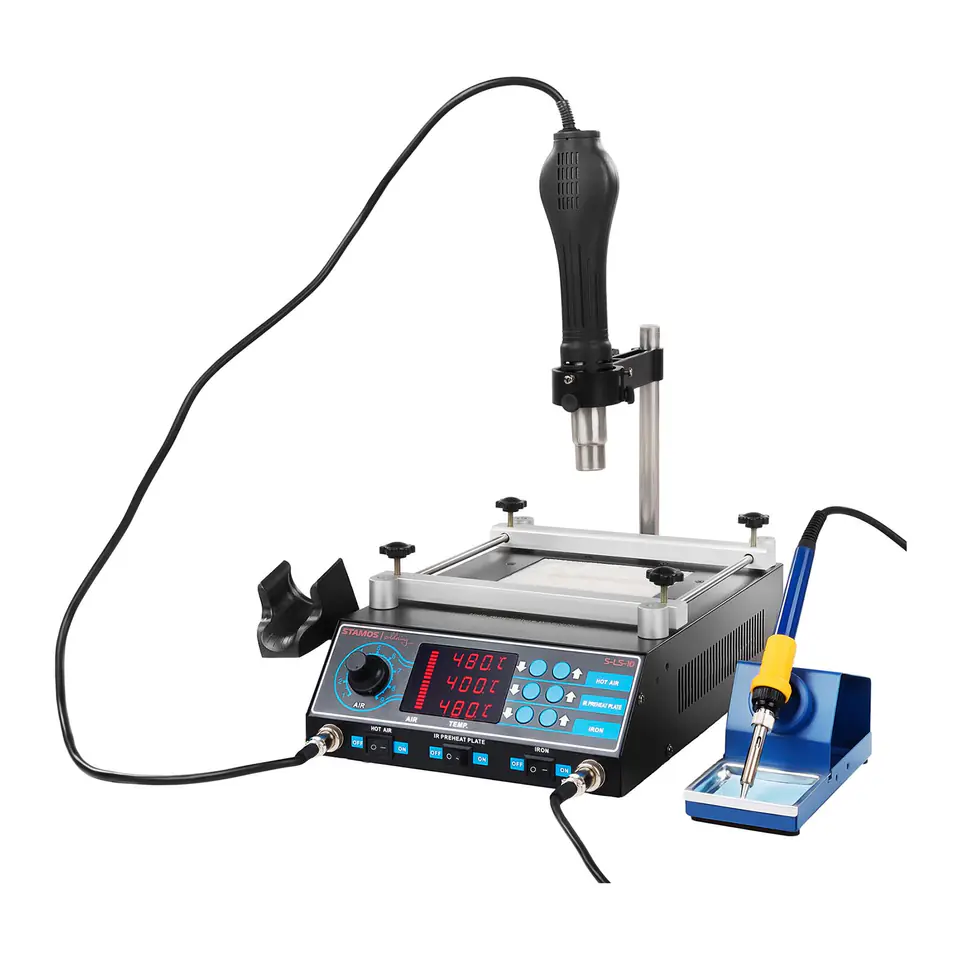

- - integrated 4in1 soldering station (control module, tip soldering iron, HOT AIR module, PREHEATER heater, Hot Air stock gripper)

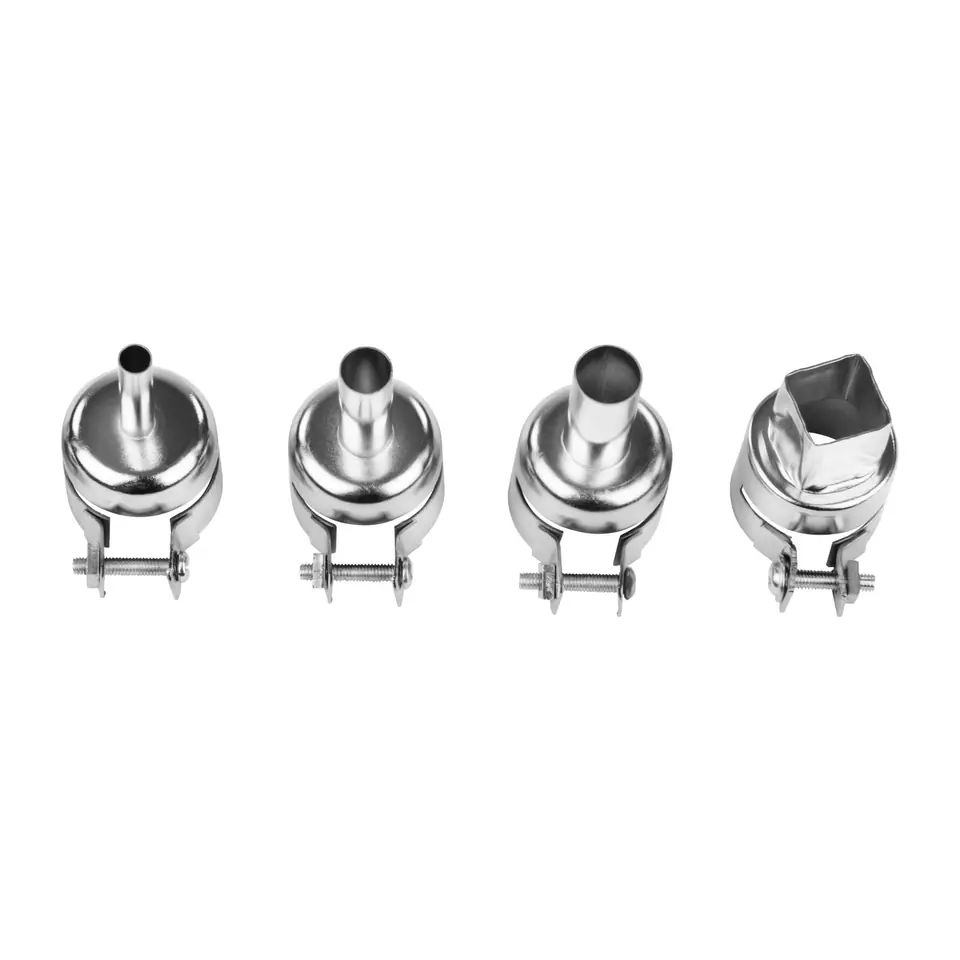

- - 4x HOT AIR nozzles of various sizes and shapes

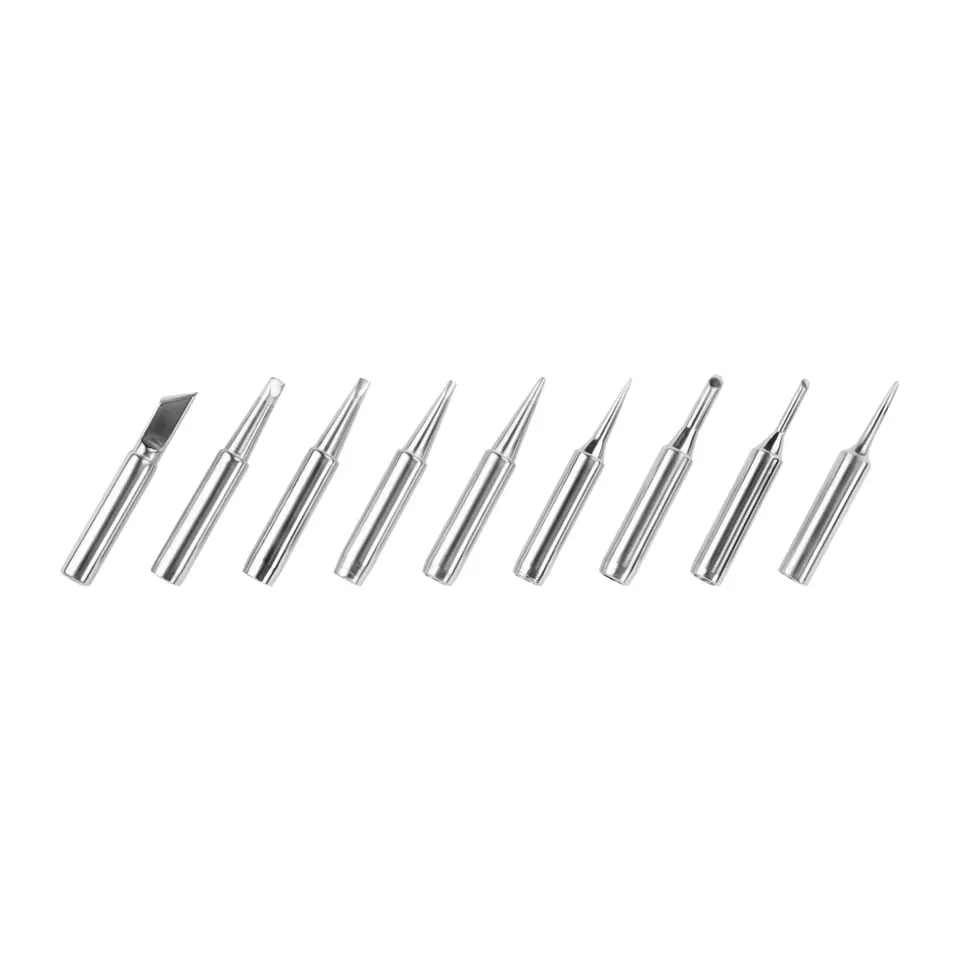

- - 10x soldering tips of different sizes and shapes
- - stand with sponge for soldering flask

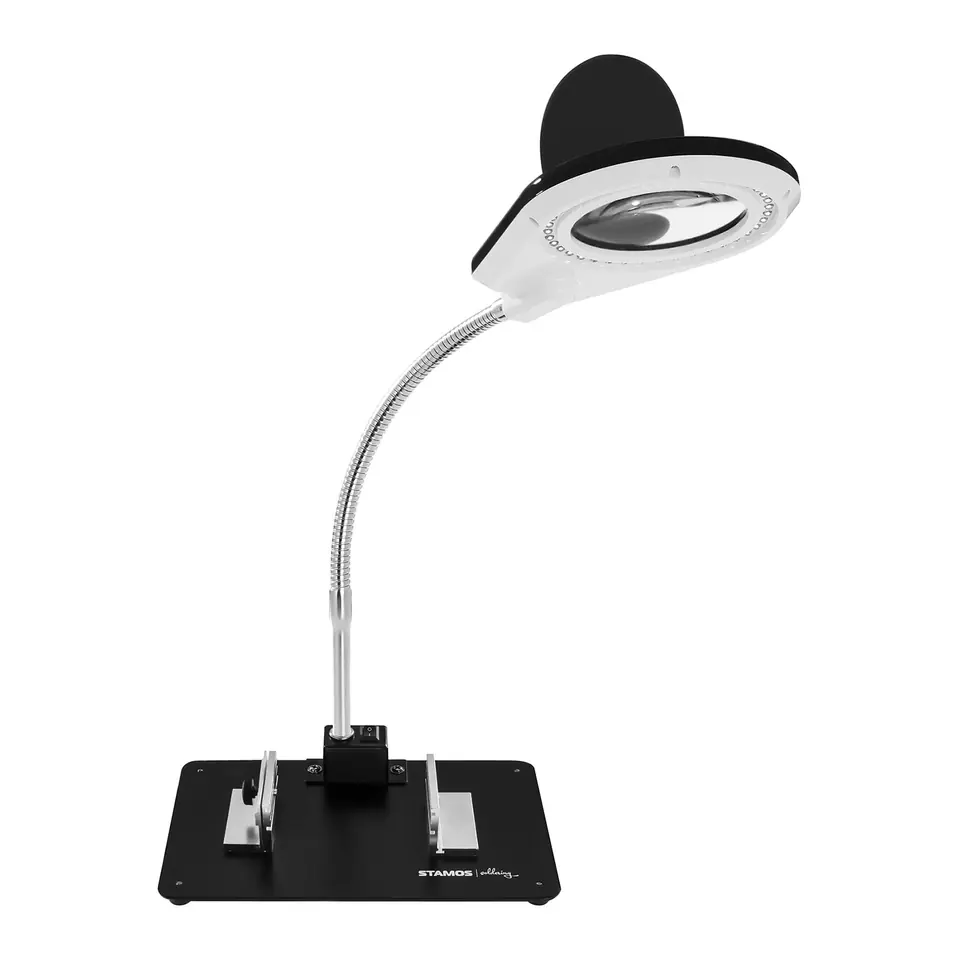

- - lamp with magnifying glass
- - component lift (so-called IC popper)

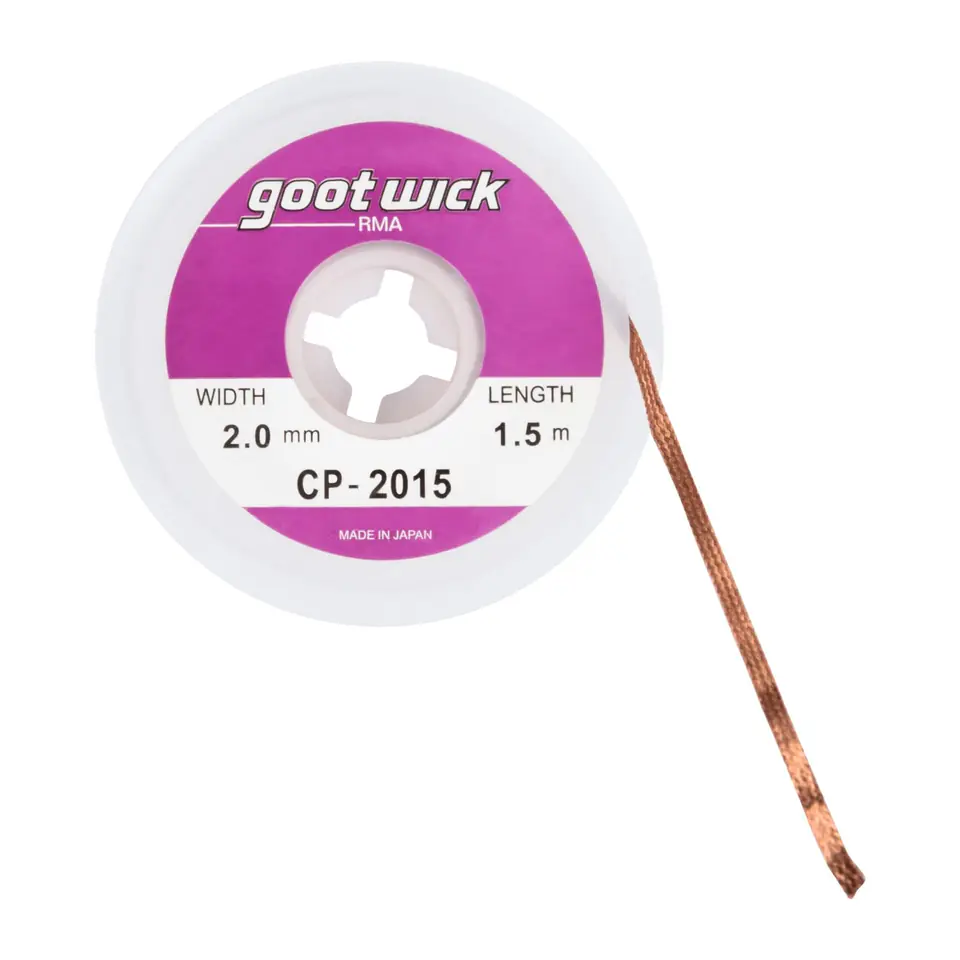

- - tape for desoldering
