Product Description:

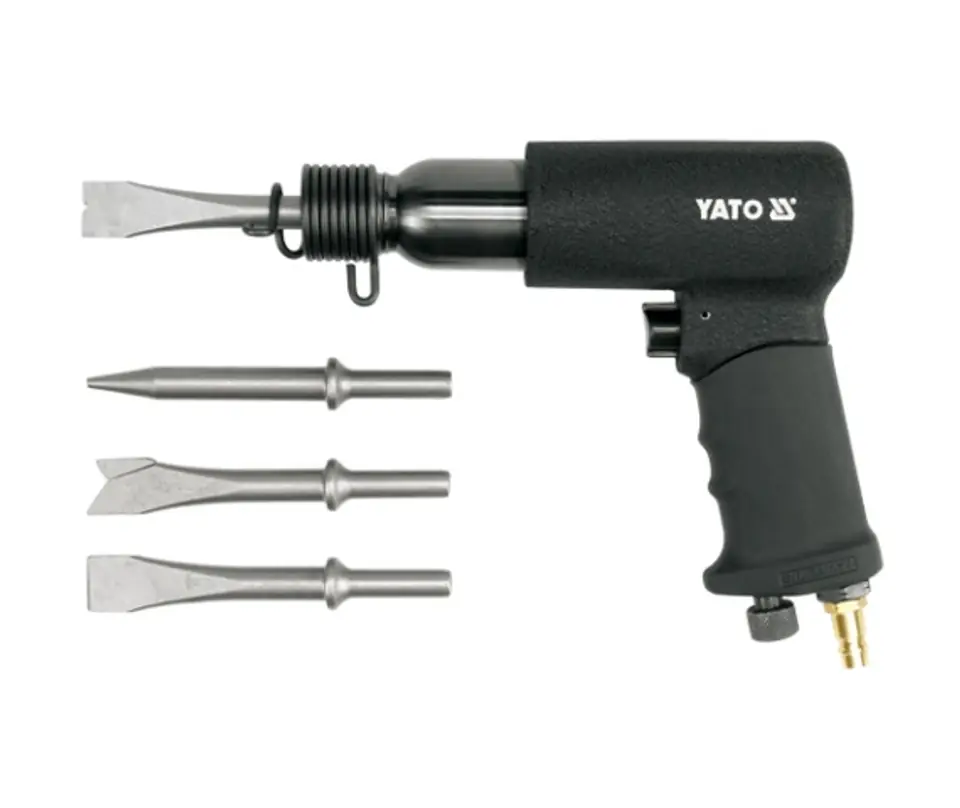

A jackhammer is a tool powered by a stream of compressed air.
With the help of chisels, cutters and punches fixed in the handle, it allows cutting, chiselling and piercing metal.
The hammer is equipped with a fitting that allows it to be connected to the pneumatic system,
additional chisels and punches as well as a spring enabling correct and safe operation of the tool.
Technical data:
Weight [kg] - 1,5
Air connection diameter (PT) [" / mm] - 6,3 / 1/4
Diameter of air supply hose (internal) [" / mm] - 10 / 3/8
Stroke frequency [min-1] - 3200
Tool holder diameter [mm] - 10
Maximum working pressure [MPa] - 0,70
Recommended operating pressure [MPa] - 0,62
Required air flow (at 6.2 bar) [l/min] - 560
Sound pressure (ISO 15744) [dB(A)] - 96,9 ± 1,2
Sound power (ISO 15744) [dB(A)] - 106,5 ± 2,0
Vibration (ISO 28927-9) [m/s2 ] - 73,66 ± 7,79
Index NumberYT-0990
EAN5906083909900
Markayato
UNIT PCA
Gross Weight (kg) 2.4500
Master Carton MC 10pcs
Pallet 240pcs.
Working pressure [MPa]0.63
Max inlet pressure [bar] 6.3
Quick coupler size [inch] 1/4"
Capacity [l/min] 110
