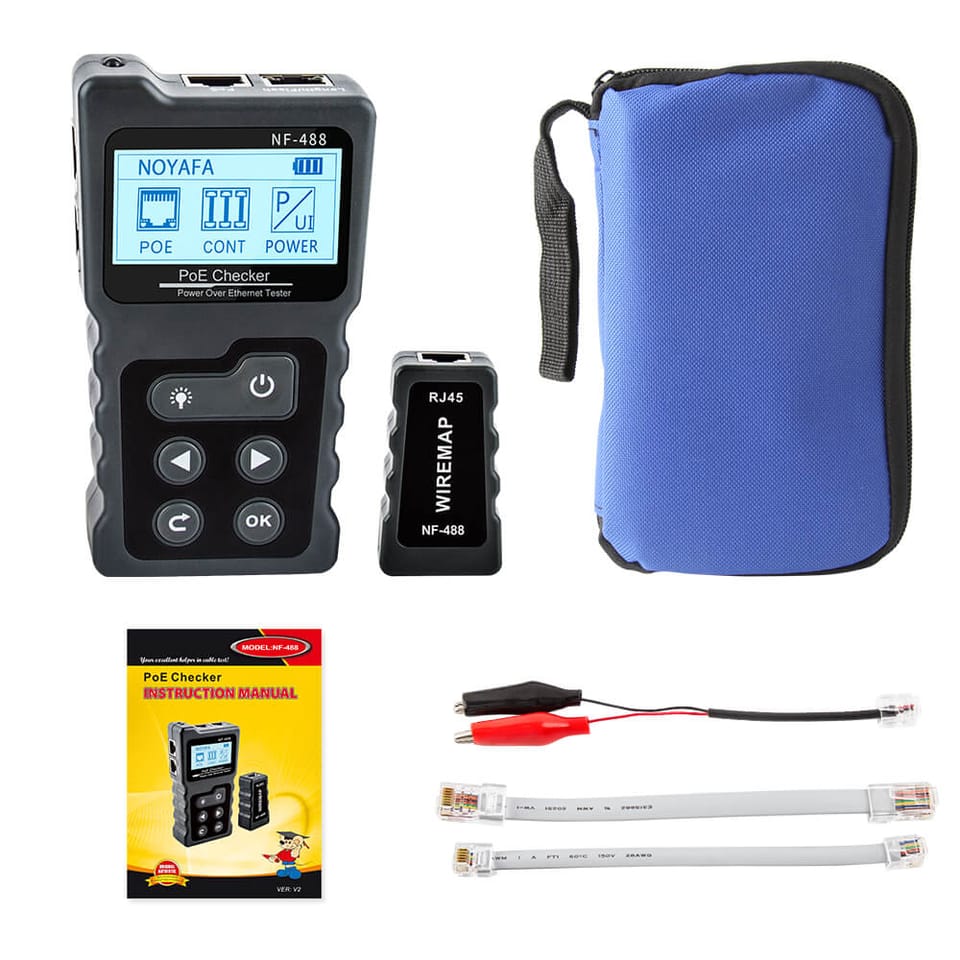

Noyafa NF-488 device for diagnosing the functionality of PoE cables
Advanced network cabling tester with LED display. It allows you to verify the correctness of connection of PoE power network cables. Device for testing installations with PoE. The device recognizes on which lines there is voltage, gives its value and determines the PoE standard. They can also be switched on in series between the switch and the powered device, thanks to which we will get information about the current consumption and power consumed by the receiver, it carries out a standard connection map test.
- Automatic identification of af / standard - Quick identification of power equipment type (PSE), IEEE802.3af or 802.3at standard.
- Inline Power Testing - Testing information on built-in standard/custom PoE devices, including supply voltage, power polarity, crossover mode, and more.
- Cable continuity testing - Check the short-circuit, junction and open circuit status for STP, UTP lan cable.
- Loopback testing - Check whether the loop circuit connected to the switch is normal or not.
- Flashlight - The lamp is equipped with the main unit, it facilitates work in the dark.
- LCD backlit display 128x64mm
- Cables supported Cat 5, Cat 6
- Maximum tested cable length 300m
- PoE voltage range DC 5 - 60V
- Recognized standards 802.3af, 802.3at, custom
- Tested RJ-45 cabling
- Current measurement 0 - 3A
- Power measurement 0 - 18W
- Detected faulty connections, short circuits and wiring breaks
- Battery type 3xAAA
User manual available >>HERE<<
