| Box: | Yes |
|---|---|
| Bus type: | DMI4 |
| Commodity classification automated tracking system (ccats): | 740.17B1 |
| Cooler included: | Yes |
| Cpu configuration (max): | 1 |
| Direct media interface (dmi) revision: | 4.0 |
| Discrete graphics card: | No |
| Discrete graphics card model: | Not available |
| Ecc: | Yes |
| Efficient cores: | 8 |
| Efficient-core base frequency: | 1.8 GHz |
| Efficient-core boost frequency: | 3.5 GHz |
| Embedded options available: | Yes |
| Enhanced intel speedstep technology: | Yes |
| Execute disable bit: | Yes |
| Export control classification number (eccn): | 5A992C |
| Graphics output: | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Harmonized system (hs) code: | 8542310001 |
| Idle states: | Yes |
| Intel 64: | Yes |
| Intel stable image platform program (sipp): | Yes |
| Intel trusted execution technology: | Yes |
| Intel turbo boost max technology 3.0: | No |
| Intel virtualization technology (vt-x): | Yes |
| Intel virtualization technology for directed i/o (vt-d): | Yes |
| Intel vpro® enterprise platform eligibility: | Yes |
| Intel vpro® essentials platform eligibility: | Yes |
| Intel vt-x with extended page tables (ept): | Yes |
| Intel® active management technology (intel® amt): | Yes |
| Intel® aes new instructions (intel® aes-ni): | Yes |
| Intel® boot guard: | Yes |
| Intel® clear video hd technology (intel® cvt hd): | Yes |
| Intel® control-flow enforcement technology (cet): | Yes |
| Intel® deep learning boost (intel® dl boost): | Yes |
| Intel® deep learning boost (intel® dl boost) on cpu: | Yes |
| Intel® gaussian & neural accelerator (intel® gna) 3.0: | Yes |
| Intel® hardware shield eligibility: | Yes |
| Intel® hyper threading technology (intel® ht technology): | Yes |
| Intel® one-click recovery: | Yes |
| Intel® os guard: | Yes |
| Intel® quick sync video technology: | Yes |
| Intel® remote platform erase (rpe): | Yes |
| Intel® secure key: | Yes |
| Intel® speed shift technology: | Yes |
| Intel® standard manageability (ism): | Yes |
| Intel® thread director: | Yes |
| Intel® threat detection technology (tdt): | Yes |
| Intel® total memory encryption - multi key: | Yes |
| Intel® turbo boost technology: | 2.0 |
| Intel® virtualization technology with redirect protection (vt-rp): | Yes |
| Intel® volume management device (vmd): | Yes |
| Intel® vpro™ platform eligibility: | Yes |
| L2 cache: | 11776 KB |
| Launch date: | Q1'23 |
| Market segment: | Desktop |
| Maximum internal memory: | 192 GB |
| Maximum internal memory supported by processor: | 192 GB |
| Maximum number of dmi lanes: | 8 |
| Maximum number of pci express lanes: | 20 |
| Maximum turbo power: | 154 W |
| Memory bandwidth (max): | 76.8 GB/s |
| Memory bandwidth supported by processor (max): | 76.8 GB/s |
| Memory channels: | Dual-channel |
| Memory types supported by processor: | DDR5-SDRAM, DDR4-SDRAM |
| Mode-based execute control (mbe): | Yes |
| Multi-format codec engines: | 2 |
| Non-ecc: | Yes |
| Number of displays supported (on-board graphics): | 4 |
| Number of execution units: | 32 |
| On-board graphics card: | Yes |
| On-board graphics card base frequency: | 300 MHz |
| On-board graphics card directx version: | 12.0 |
| On-board graphics card dynamic frequency (max): | 1550 MHz |
| On-board graphics card id: | 0x4680 |
| On-board graphics card maximum resolution (displayport): | 7680 x 4320 pixels |
| On-board graphics card maximum resolution (edp - integrated flat panel): | 5120 x 3200 pixels |
| On-board graphics card maximum resolution (hdmi): | 4096 x 2160 pixels |
| On-board graphics card model: | Intel UHD Graphics 770 |
| On-board graphics card opengl version: | 4.5 |
| On-board graphics card outputs supported: | DisplayPort 1.4a, Embedded DisplayPort (eDP) 1.4b, HDMI 2.1 |
| On-board graphics card refresh rate at maximum resolution (displayport): | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (edp - integrated flat panel): | 120 Hz |
| On-board graphics card refresh rate at maximum resolution (hdmi): | 60 Hz |
| Opencl version: | 3.0 |
| Pci express configurations: | 1x16+1x4, 2x8+1x4 |
| Pci express slots version: | 4.0, 5.0 |
| Performance cores: | 6 |
| Performance-core base frequency: | 2.5 GHz |
| Performance-core boost frequency: | 4.8 GHz |
| Processor ark id: | 230580 |
| Processor base power: | 65 W |
| Processor boost frequency: | 4.8 GHz |
| Processor cache: | 24 MB |
| Processor cache type: | Smart Cache |
| Processor codename: | Raptor Lake |
| Processor cores: | 14 |
| Processor family: | Intel® Core™ i5 |
| Processor generation: | 13th gen Intel® Core™ i5 |
| Processor manufacturer: | Intel |
| Processor model: | i5-13500 |
| Processor operating modes: | 64-bit |
| Processor package size: | 45 x 37.5 mm |
| Processor socket: | LGA 1700 |
| Processor threads: | 20 |
| Scalability: | 1S |
| Status: | Launched |
| Supported instruction sets: | AVX 2.0, SSE4.2, SSE4.1 |
| Target market: | Gaming |
| Thermal monitoring technologies: | Yes |
| Tjunction: | 100 °C |
| Use conditions: | PC/Client/Tablet, Workstation |

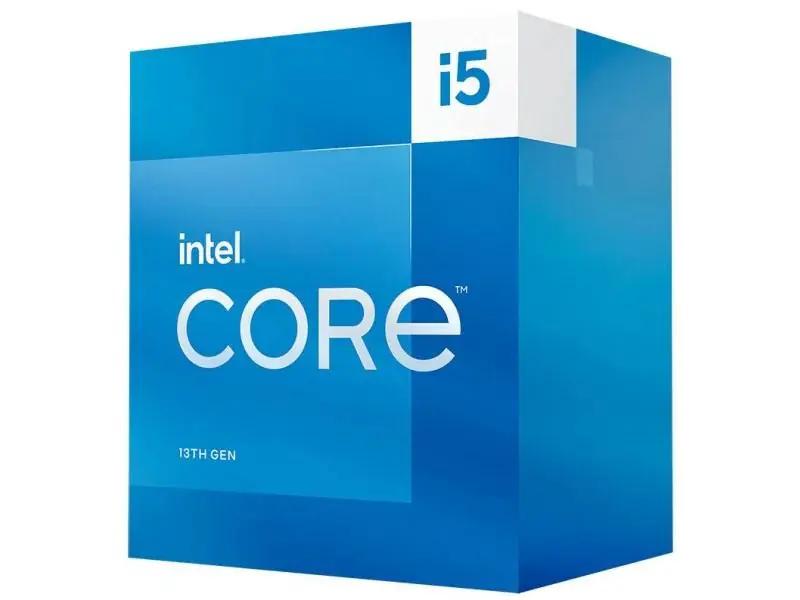

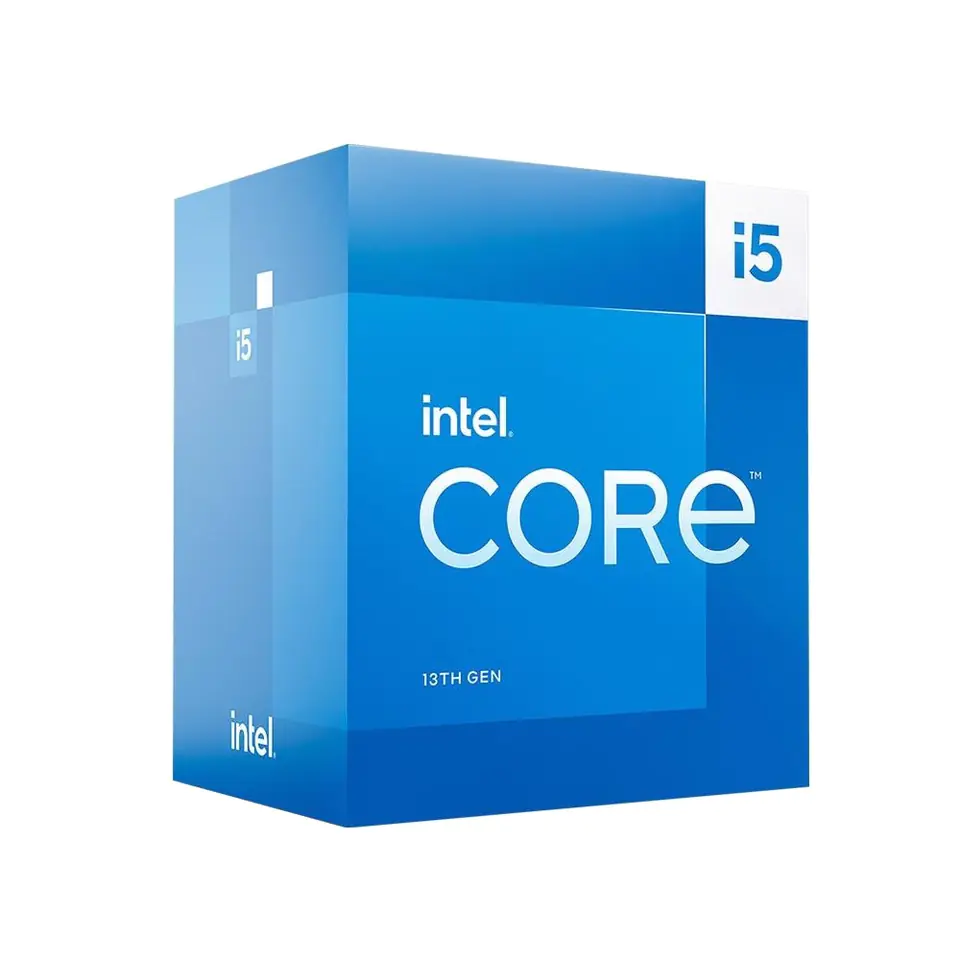

Intel Core i5-13500 Desktop Processor
13th Generation Intel Core i5-13500 desktop processor. With PCIe 5.0 and 4.0 support, DDR5 and DDR4 support, 13th Gen Intel Core i5 desktop processors are optimized for gamers and productivity and help deliver high performance. Compatible with motherboards based on Intel 700 and Intel 600 series chipsets. Basic CPU power 65 W
Intel Core i5-13500
