| Box: | Yes |
|---|---|
| Commodity classification automated tracking system (ccats): | 740.17B1 |
| Cooler included: | Yes |
| Cpu configuration (max): | 1 |
| Direct media interface (dmi) revision: | 4.0 |
| Discrete graphics card: | No |
| Discrete graphics card model: | Not available |
| Efficient cores: | 4 |
| Efficient-core base frequency: | 1.8 GHz |
| Efficient-core boost frequency: | 3.3 GHz |
| Embedded options available: | No |
| Enhanced intel speedstep technology: | Yes |
| Execute disable bit: | Yes |
| Export control classification number (eccn): | 5A992C |
| Harmonized system (hs) code: | 8542310001 |
| Idle states: | Yes |
| Intel 64: | Yes |
| Intel turbo boost max technology 3.0: | No |
| Intel virtualization technology (vt-x): | Yes |
| Intel virtualization technology for directed i/o (vt-d): | Yes |
| Intel vt-x with extended page tables (ept): | Yes |
| Intel® aes new instructions (intel® aes-ni): | Yes |
| Intel® boot guard: | Yes |
| Intel® control-flow enforcement technology (cet): | Yes |
| Intel® deep learning boost (intel® dl boost): | Yes |
| Intel® deep learning boost (intel® dl boost) on cpu: | Yes |
| Intel® gaussian & neural accelerator (intel® gna) 3.0: | Yes |
| Intel® hyper threading technology (intel® ht technology): | Yes |
| Intel® os guard: | Yes |
| Intel® secure key: | Yes |
| Intel® speed shift technology: | Yes |
| Intel® standard manageability (ism): | Yes |
| Intel® thread director: | Yes |
| Intel® turbo boost technology: | 2.0 |
| Intel® volume management device (vmd): | Yes |
| L2 cache: | 9728 KB |
| Launch date: | Q1'23 |
| Market segment: | Desktop |
| Maximum internal memory: | 192 GB |
| Maximum internal memory supported by processor: | 192 GB |
| Maximum number of dmi lanes: | 8 |
| Maximum number of pci express lanes: | 20 |
| Maximum turbo power: | 148 W |
| Memory bandwidth (max): | 76.8 GB/s |
| Memory channels: | Dual-channel |
| Memory types supported by processor: | DDR4-SDRAM, DDR5-SDRAM |
| Mode-based execute control (mbe): | Yes |
| Non-ecc: | Yes |
| On-board graphics card: | No |
| On-board graphics card model: | Not available |
| Pci express configurations: | 1x16+1x4, 2x8+1x4 |
| Pci express slots version: | 4.0, 5.0 |
| Performance cores: | 6 |
| Performance-core base frequency: | 2.5 GHz |
| Performance-core boost frequency: | 4.6 GHz |
| Processor ark id: | 230501 |
| Processor base power: | 65 W |
| Processor boost frequency: | 4.6 GHz |
| Processor cache: | 20 MB |
| Processor cache type: | Smart Cache |
| Processor codename: | Raptor Lake |
| Processor cores: | 10 |
| Processor family: | Intel® Core™ i5 |
| Processor generation: | 13th gen Intel® Core™ i5 |
| Processor manufacturer: | Intel |
| Processor model: | i5-13400F |
| Processor operating modes: | 64-bit |
| Processor package size: | 45 x 37.5 mm |
| Processor socket: | LGA 1700 |
| Processor threads: | 16 |
| Scalability: | 1S |
| Supported instruction sets: | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal monitoring technologies: | Yes |
| Tjunction: | 100 °C |
| Use conditions: | PC/Client/Tablet |

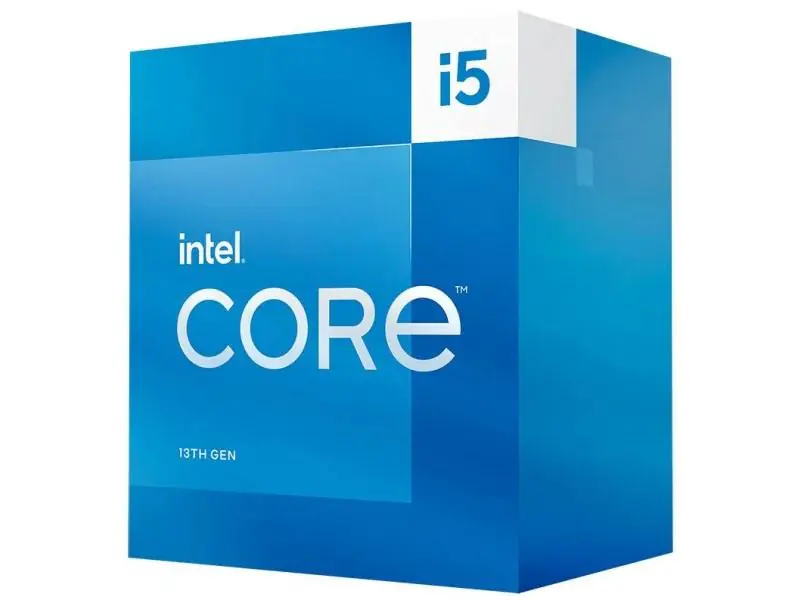

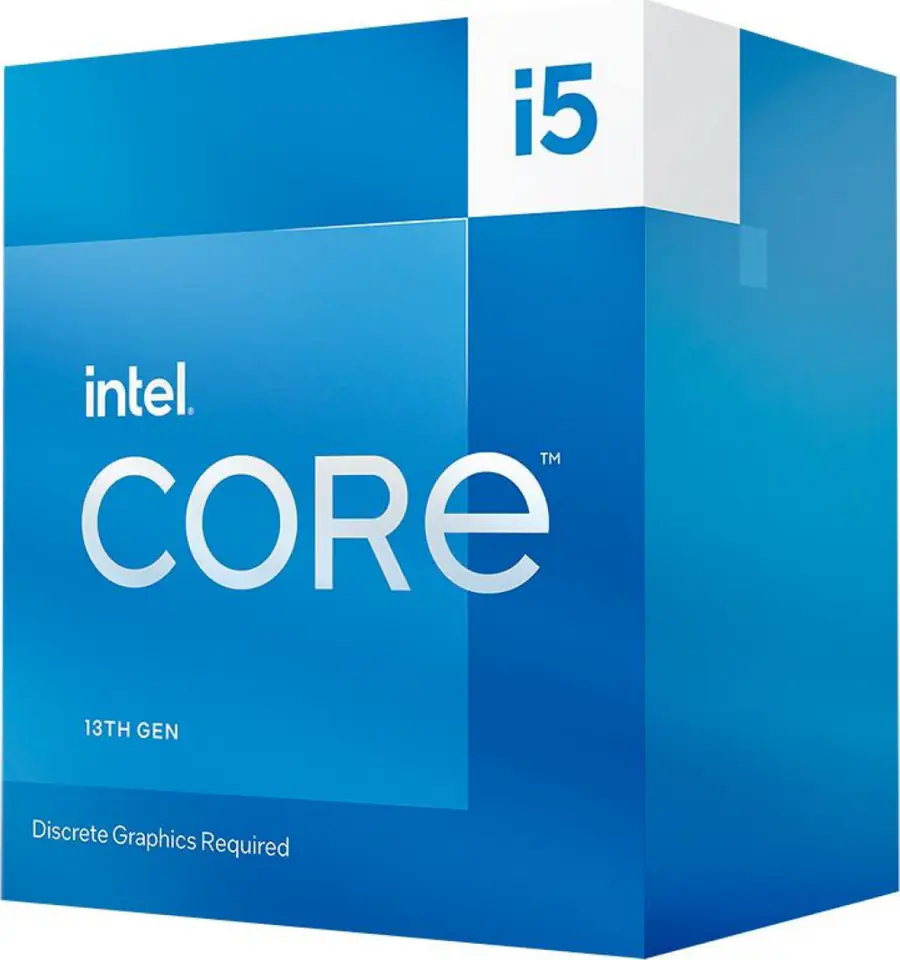

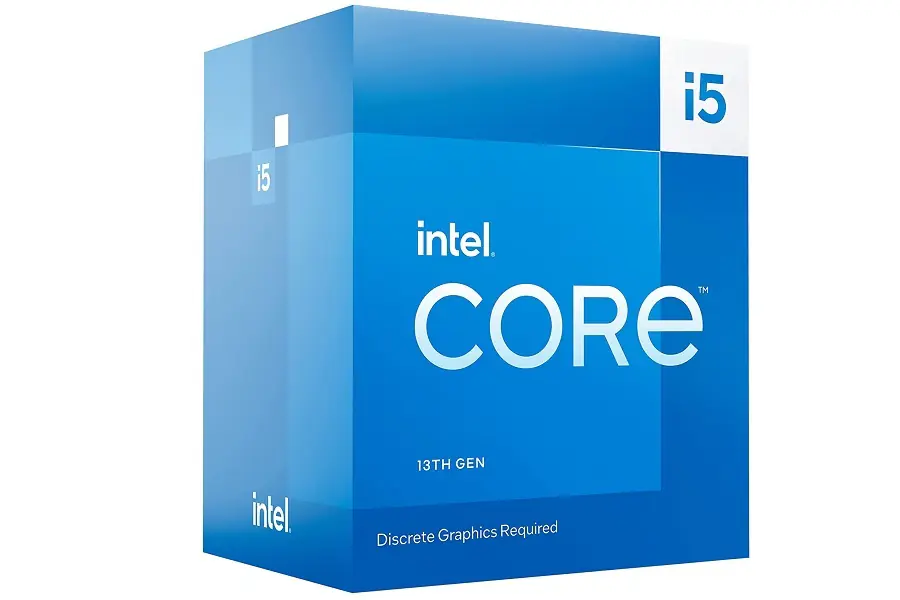

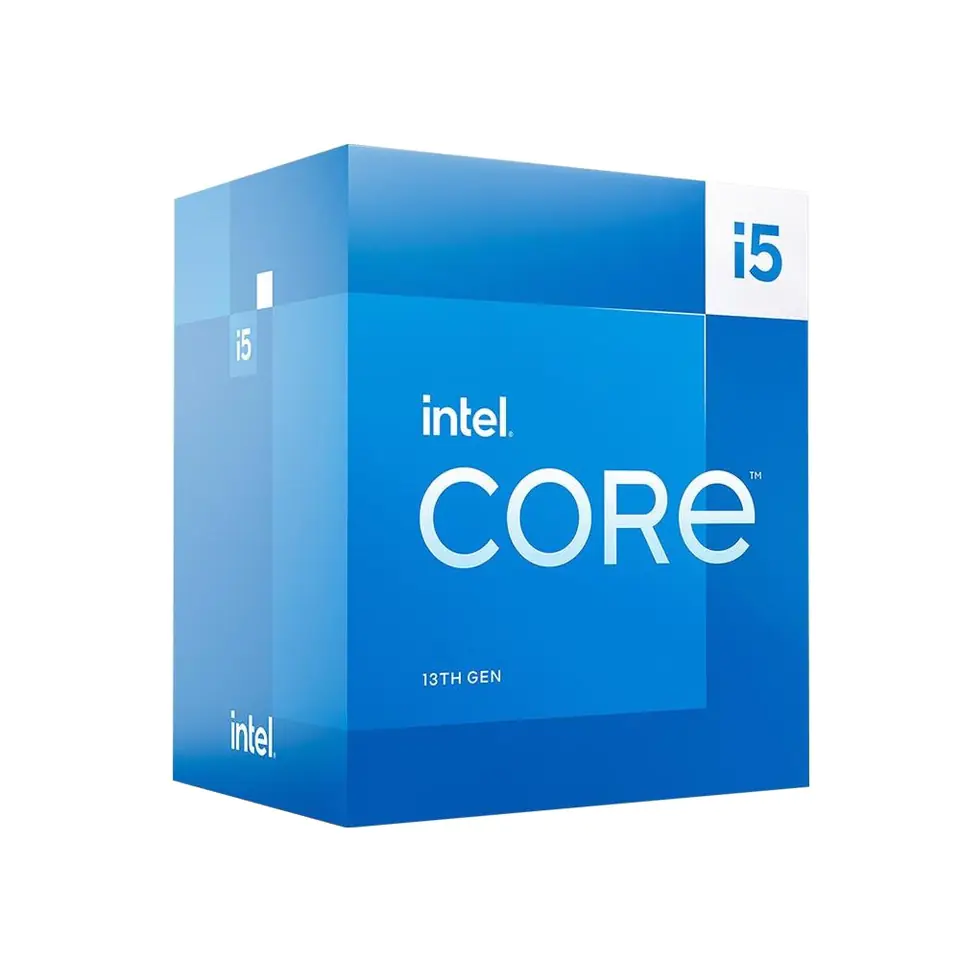

Intel Core i5-13400F Desktop Processor
13th Gen Intel Core i5-13400F desktop processor, no GPU-less. With PCIe 5.0 and 4.0 support, DDR5 and DDR4 support, 13th Gen Intel Core i5 desktop processors are optimized for gamers and productivity and help deliver high performance. Discrete graphics required. Compatible with motherboards based on Intel 700 and Intel 600 series chipsets. Basic CPU power 65 W
Intel Core i5-13400F
