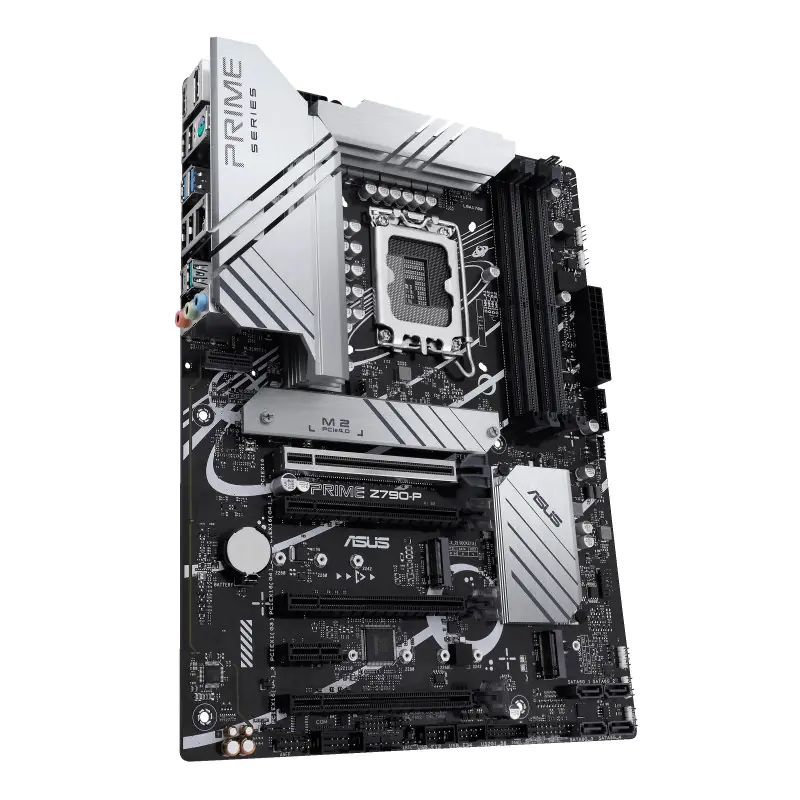

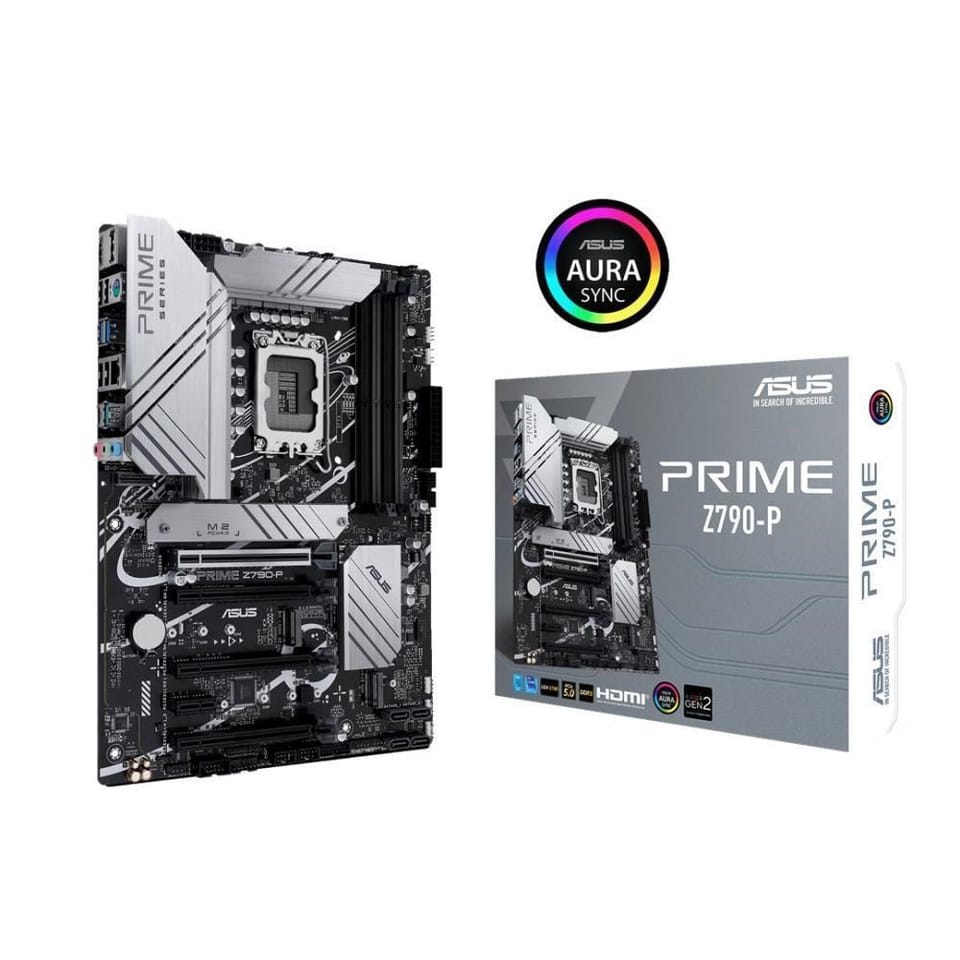

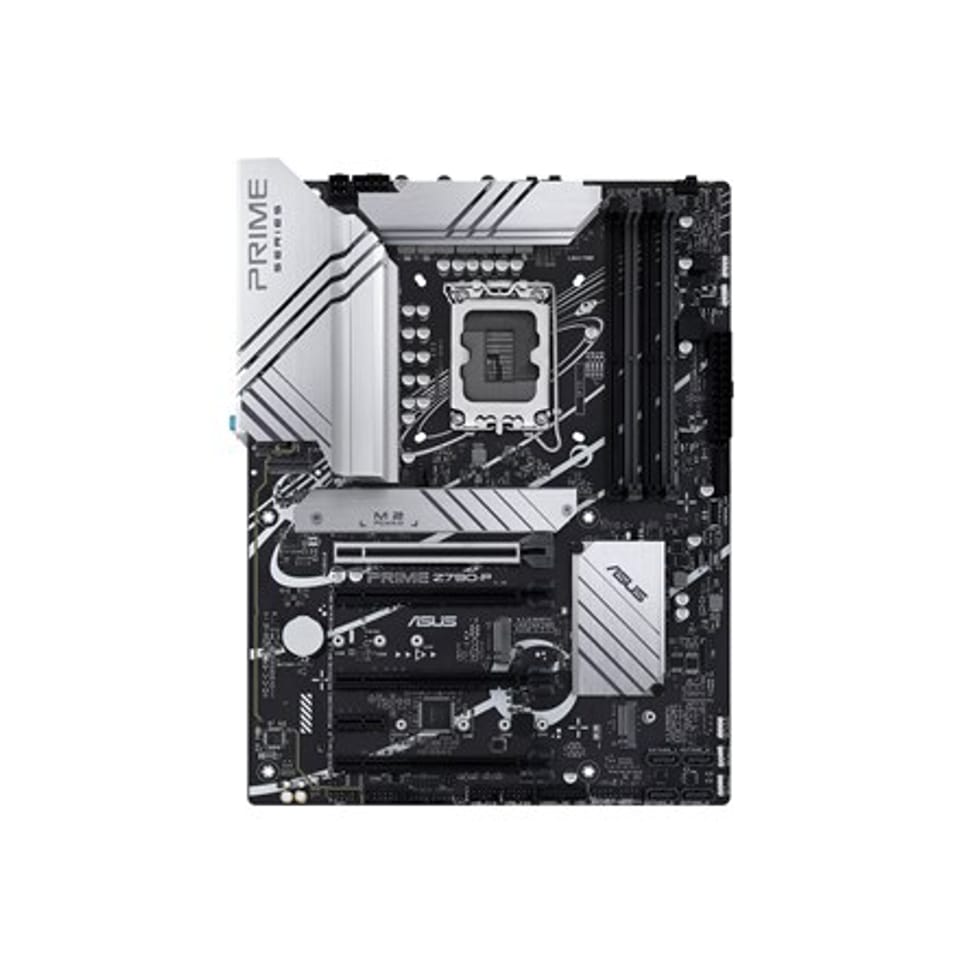

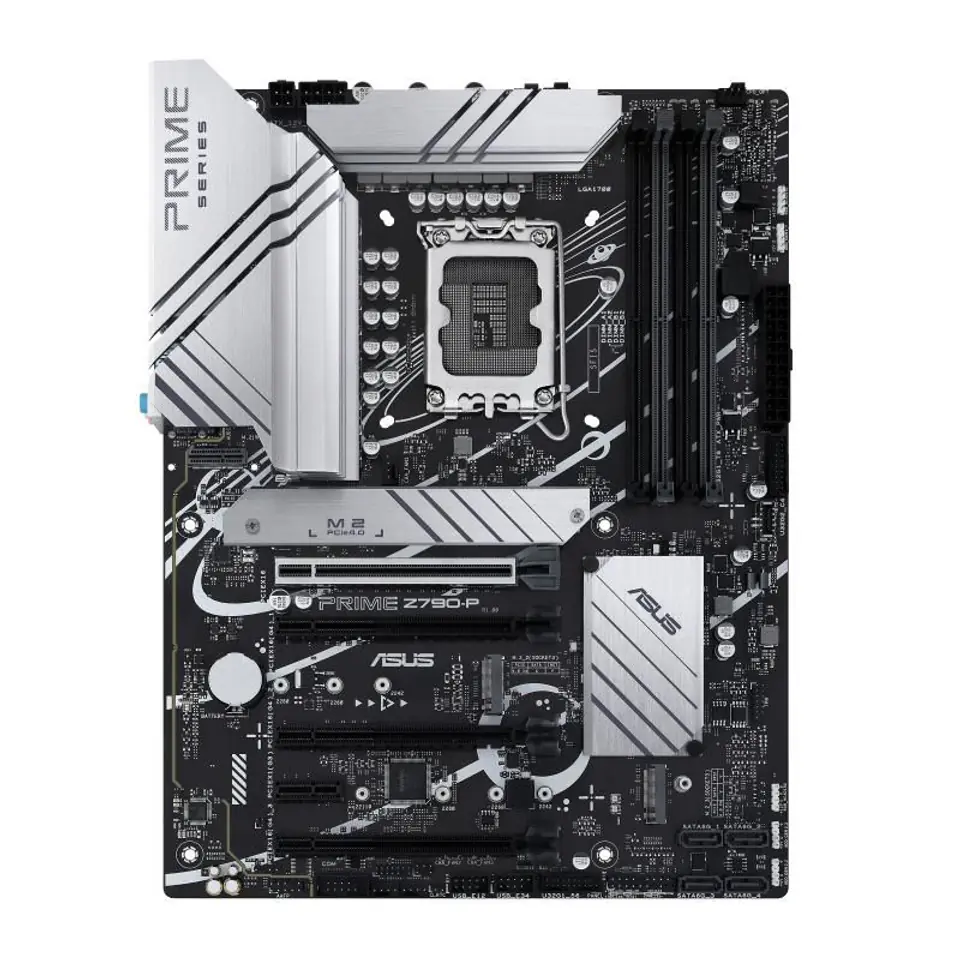

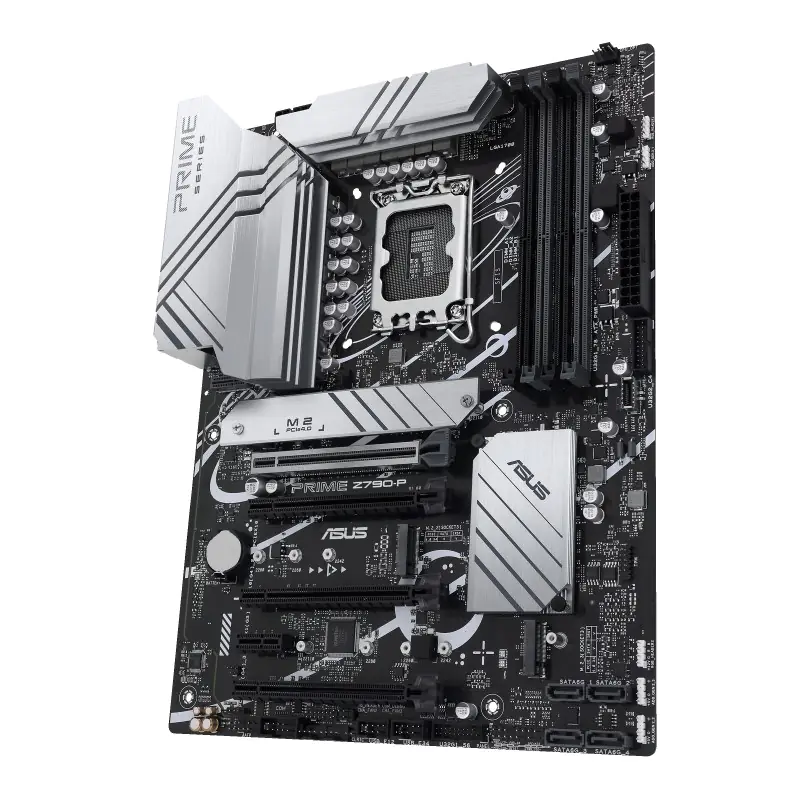

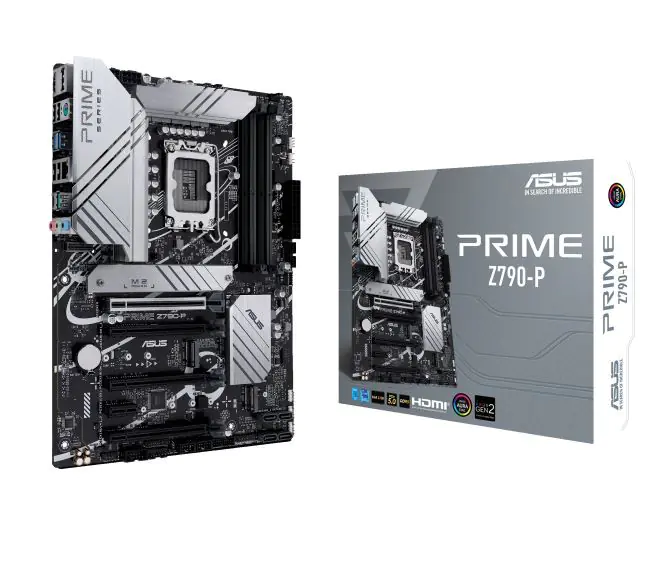

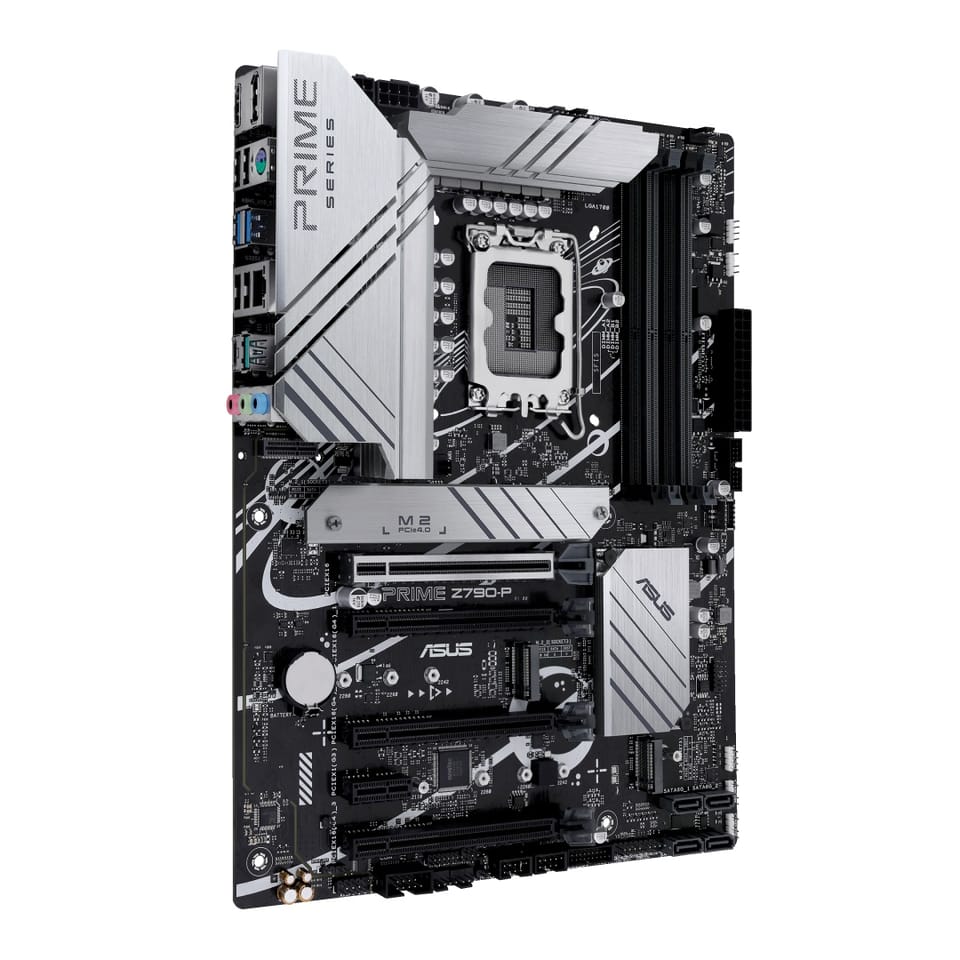

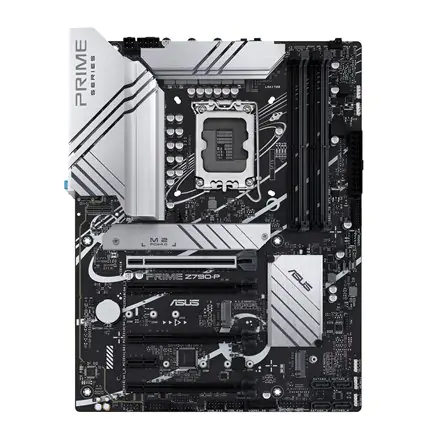

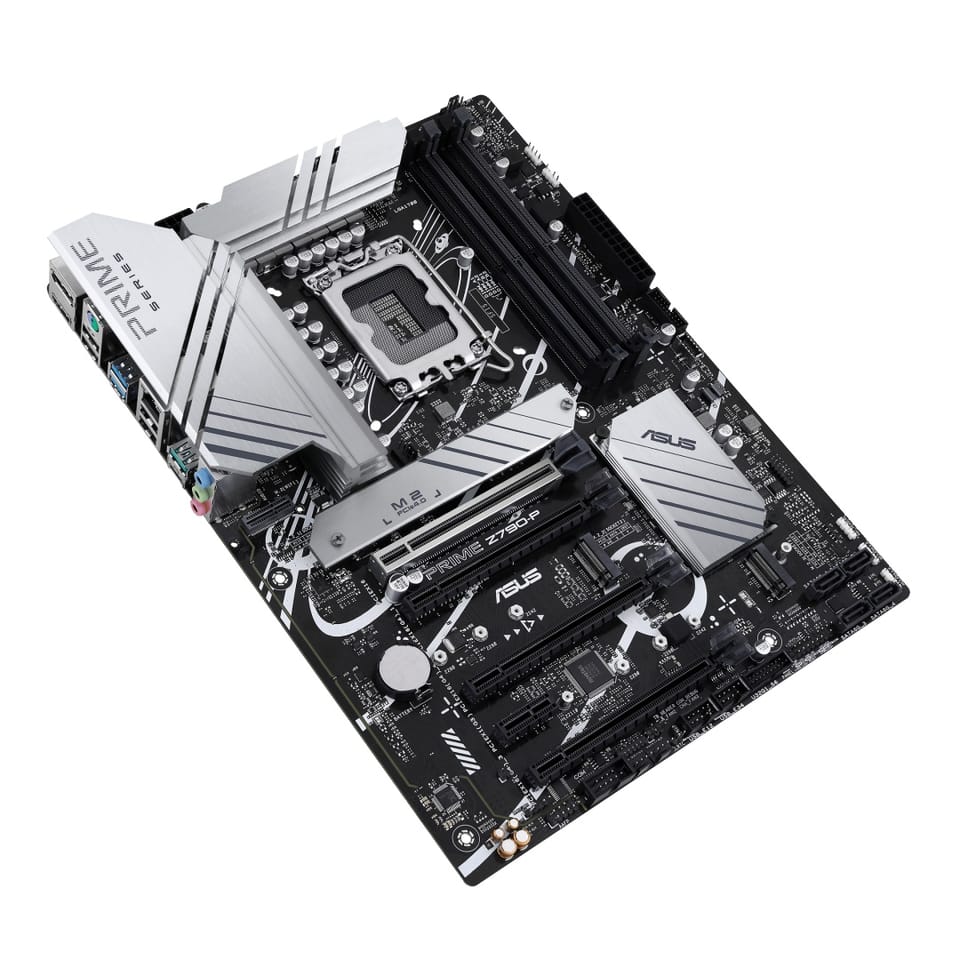

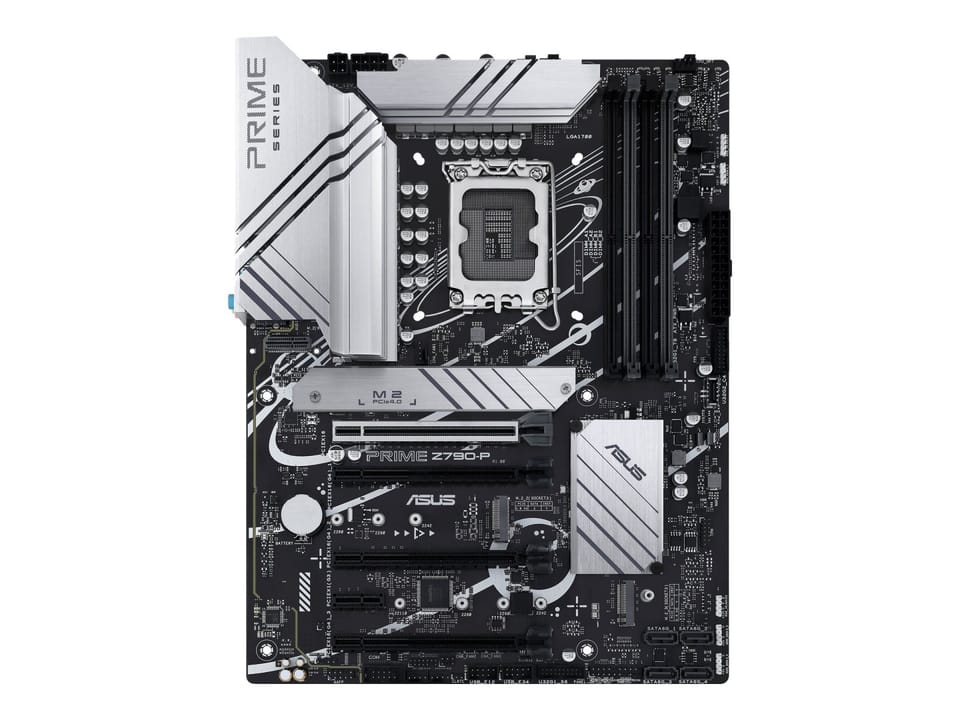

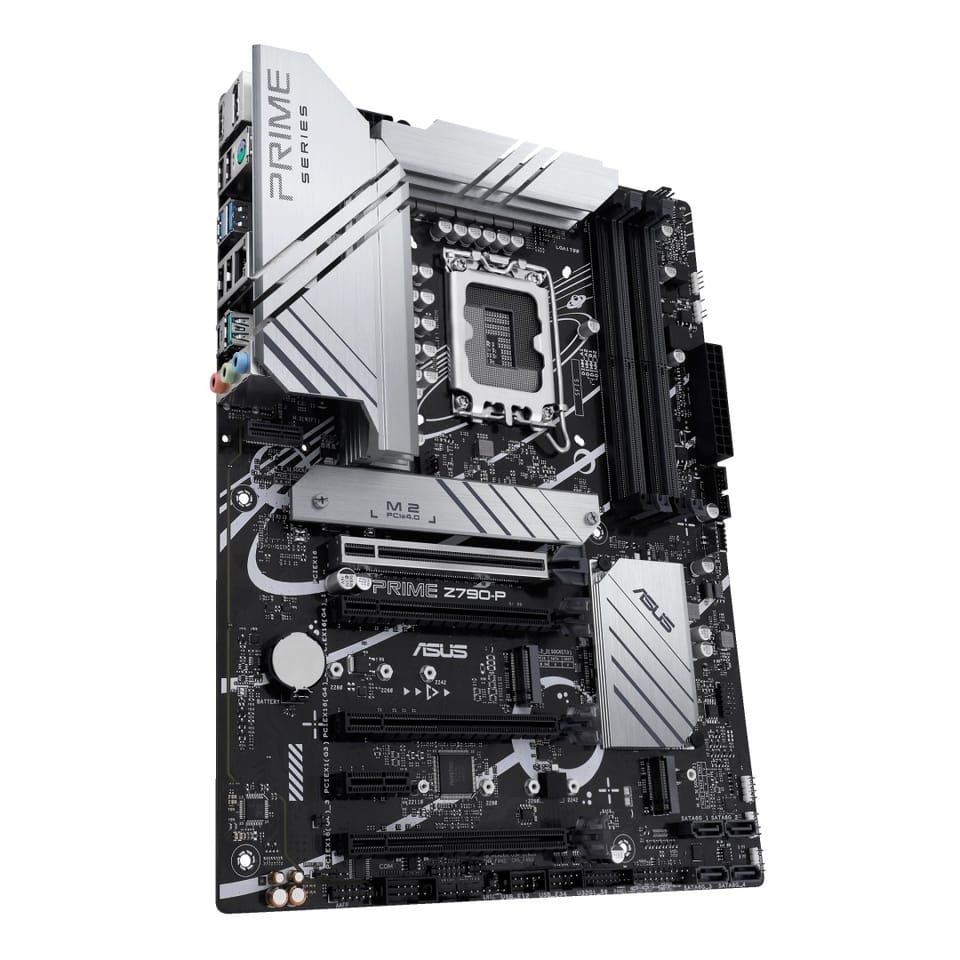

PRIME Z790-P 4DDR5 HDMI/DP ATX Motherboard

€276.36

Shipping from warehouse: ⁨M7⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:
Product code:: 90MB1CK0-M0EAY0 / 4711081937449

Specification

12v power connector:	Yes
Atx power connector (24-pin):	Yes
Audio output channels:	7.1 channels
Bios type:	UEFI AMI

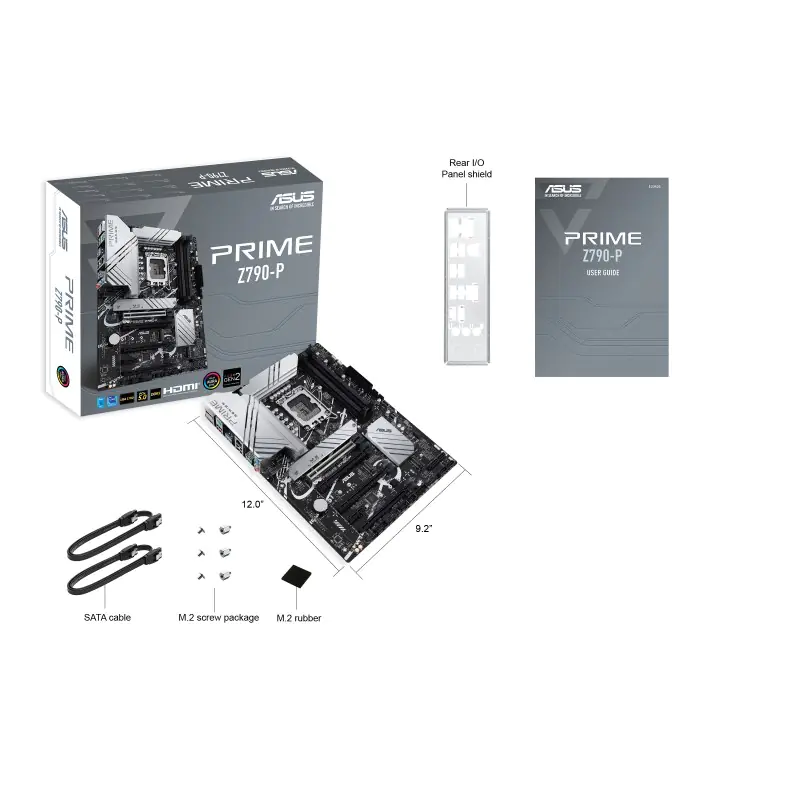

Cables included:	SATA
Clear cmos button:	Yes
Compatible processor series:	Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Cpu fan connector:	Yes
Depth:	234 mm
Displayports quantity:	1
Drivers included:	Yes
Ecc сompatibility:	Non-ECC
Eps power connector (8-pin):	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Hdmi ports quantity:	1
Headphone outputs:	1
Line-in:	Yes
Maximum internal memory:	128 GB
Memory channels:	Dual-channel
Memory slots type:	DIMM
Microphone in:	Yes
Motherboard chipset:	Intel Z790
Motherboard chipset family:	Intel
Motherboard form factor:	ATX
Number of chassis fan connectors:	3
Number of com connectors:	1
Number of m.2 (e) slots:	1
Number of m.2 (m) slots:	3
Number of memory slots:	4
Number of sata iii connectors:	4
Package depth:	273 mm
Package height:	68 mm
Package weight:	1.58 kg
Package width:	338 mm
Parallel processing technology support:	Not supported
Pci express x1 (gen 3.x) slots:	1
Pci express x16 (gen 4.x) slots:	3
Pci express x16 (gen 5.x) slots:	1
Peripheral (molex) power connectors (4-pin):	1
Power source type:	ATX
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Ps/2 ports quantity:	1
Raid levels:	10, 0, 1, 5
Raid support:	Yes
Rgb led pin header:	Yes
S/pdif out connector:	Yes
Supported memory clock speed (max):	7200 MHz
Supported memory clock speeds:	6000, 6600, 6200, 6800, 6400, 5800, 5400, 5200, 5000, 7000, 4800, 5600, 7200
Supported memory types:	DDR5-SDRAM
Supported processor sockets:	LGA 1700
Supported storage drive interfaces:	M.2, SATA III
Supported storage drive types:	HDD & SSD
Thunderbolt headers:	1
Tpm connector:	Yes
Unbuffered memory:	Yes
Usb 2.0 connectors:	2
Usb 2.0 ports quantity:	4
Usb 3.2 gen 1 (3.1 gen 1) connectors:	2
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	2
Usb 3.2 gen 2 (3.1 gen 2) connectors:	1
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:	1
Usb 3.2 gen 2x2 type-c ports quantity:	1
Warehouse:	Global
Wi-fi:	Yes
Width:	305 mm
Windows operating systems supported:	Windows 10 x64, Windows 11

Warranty:

Intel LGA 1700 socket: Ready for 12th and 13th Gen Intel processors
Next Gen Connectivity: DDR5, PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C, USB 3.2 Gen 2 Type-C Front Panel, Thunderbolt header (USB4), 3 x PCIe 4.0 M .2
Exclusive memory technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Comprehensive cooling: Large VRM heatsinks, flexible M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 4 with AI Cooling II

PRIME Z790-P

Intel Z790 Chipset

Supports 3 x M. 2 and 4 x SATA 6Gb/s ports*

13th and 12th generation Intel processors

M. 2_1 slot (Key M), type 2242/2260/2280/22,110 (supports PCIe 4.0 x4 mode)

Chipset Intel Z790

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M. 2_3 slot (Key M), type 2242/2260/2280/22,110 (supports PCIe 4.0 x4 and SATA modes)
4 SATA 6Gb/s ports

* Intel Rapid Storage Technology supports PCIe RAID 0/1.5.10 and SATA RAID 0/1.5.10.

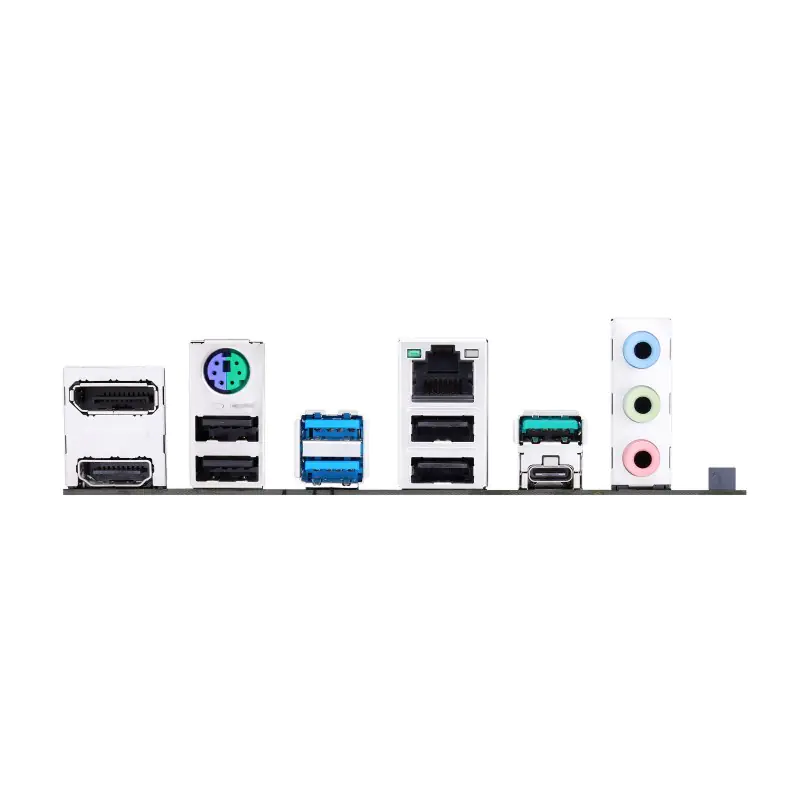

1 x DisplayPort**
1 x HDMI connector(s***)

**Support max. 4K@60Hz according to DisplayPort 1.4.

Support 4K@60Hz as defined in HDMI 2. 1.

Realtek 7.1 Surround Sound High Definition Audio CODEC

Wi-Fi sold separately

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

30.5 x 23.4 cm
