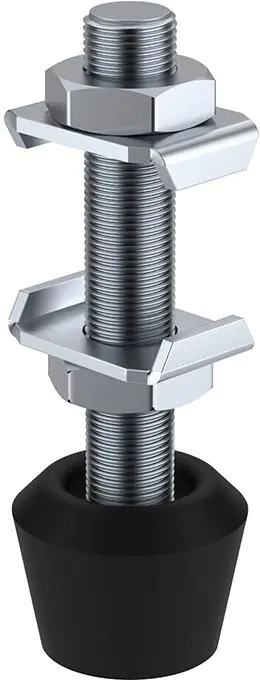

Pressure screw plus
Design: for quick-clamping clamp, horizontal plus. Matt black, complete with washers and hexagonal nuts. Screw with subvulcanized pressure element made of oil-resistant neoprene to protect workpieces. Strength class 8.8.

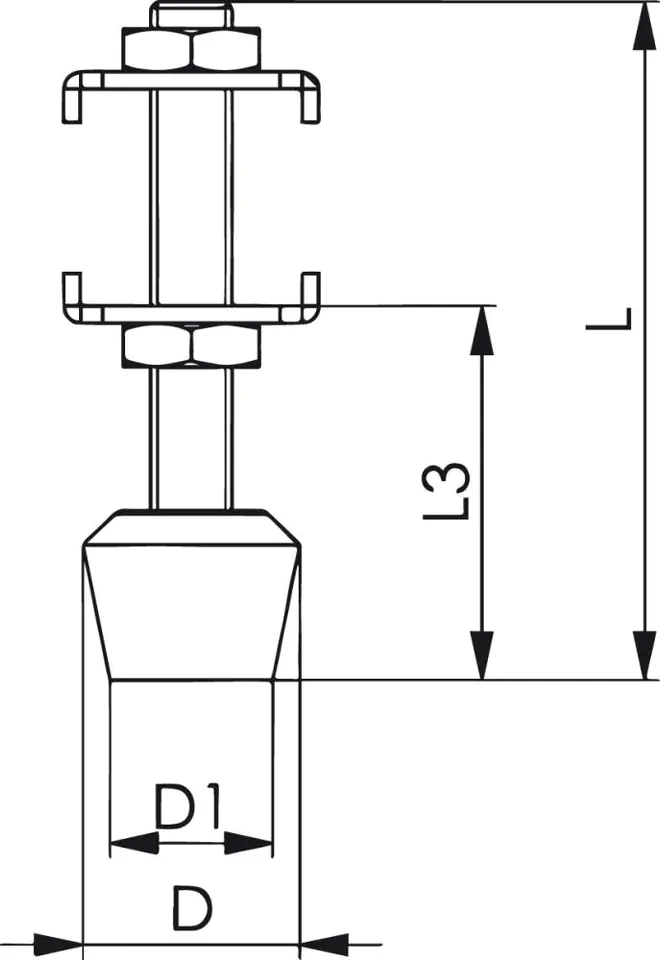

D: | 21 mm |
---|---|
D1: | 16 mm |
L3: | 21-34 mm |
M x l: | M8 x 58 |
Scales: | 36 g |
Size: | 3 |
Pressure screw plus
Design: for quick-clamping clamp, horizontal plus. Matt black, complete with washers and hexagonal nuts. Screw with subvulcanized pressure element made of oil-resistant neoprene to protect workpieces. Strength class 8.8.
