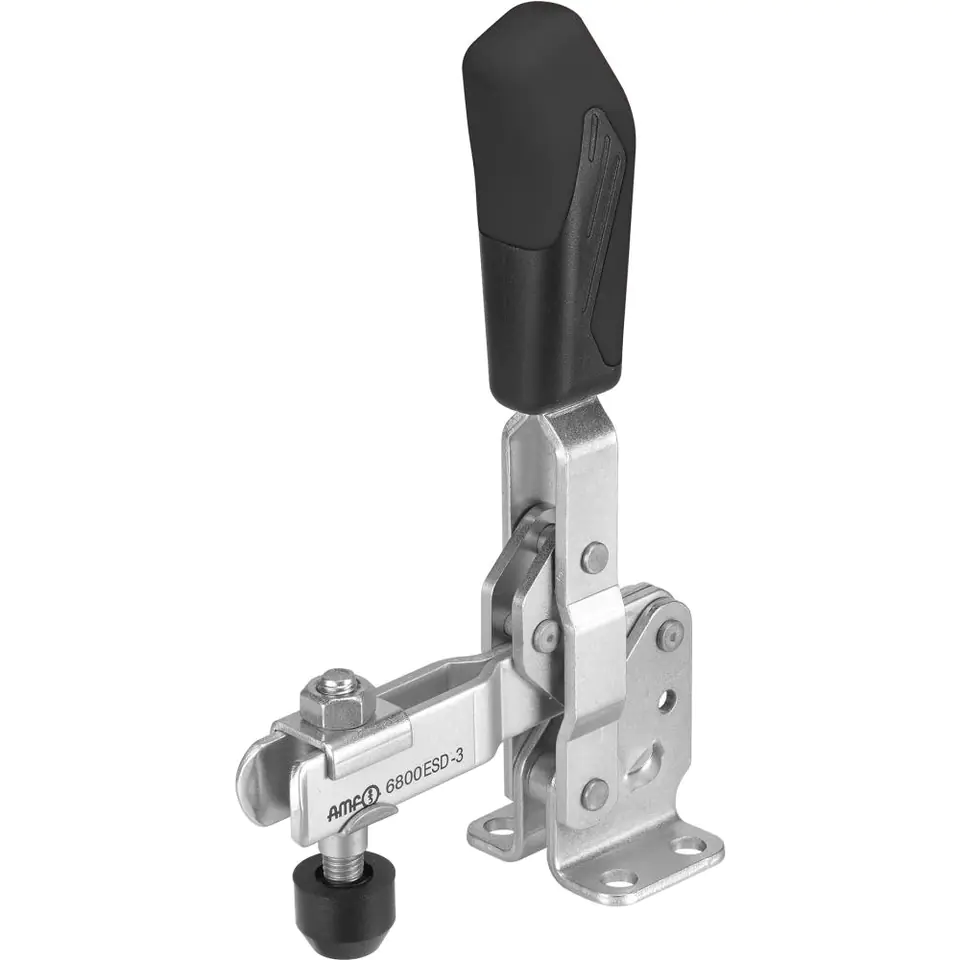

Vertical ESD quick clamping pressure
Design: with protective cap and handle made of electrostatic dissipating material. Quick clamping vertical pressure, with open pressure arm and horizontal foot. Galvanized and passivated. Stainless steel rivets, which in sizes 2 and 3 move in diffusion-hardened bearing sleeves.
Lubricated bearing points. Ergonomic oil-resistant handle with large palm bond surface, soft components. Secure clamping element with finger protection, anti-loss protection of the pressure screw at the end of the clamping arm.
Application: the vertical ESD terminal has been specially developed for use in electrostatic protected areas (EPA) when working on electrostatically sensitive components, components or devices in accordance with DIN EN 61340-5-1.
Delivery: vertical clamp with heat enhanced, galvanized pressure screw.
