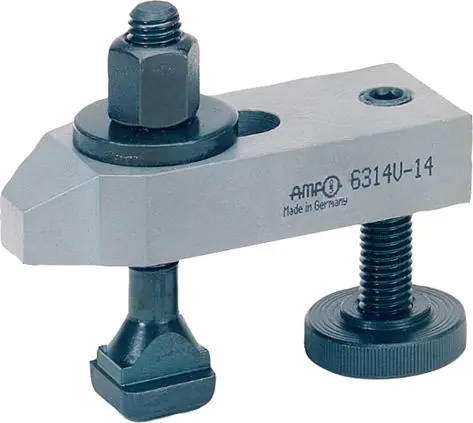

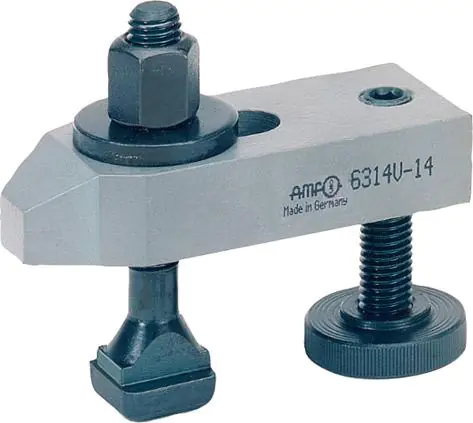

Pressure foot, diagonal, with adjustable support screw
Material: heat treated steel, varnished.
Scope of delivery: pressure foot with support screw, T-slot screw DIN 787, nut and washer.
Pressure leg DIN6314V amplified. 14/10-38mm AMF
€38.11
Shipping from warehouse: B6
Estimated shipping: Mon, Dec 2 - Tue, Dec 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- AMF
- Product code:
- 70284 / 4020772070281
Share this product:

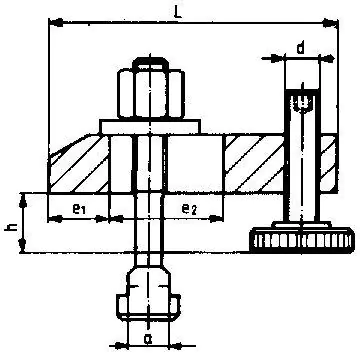

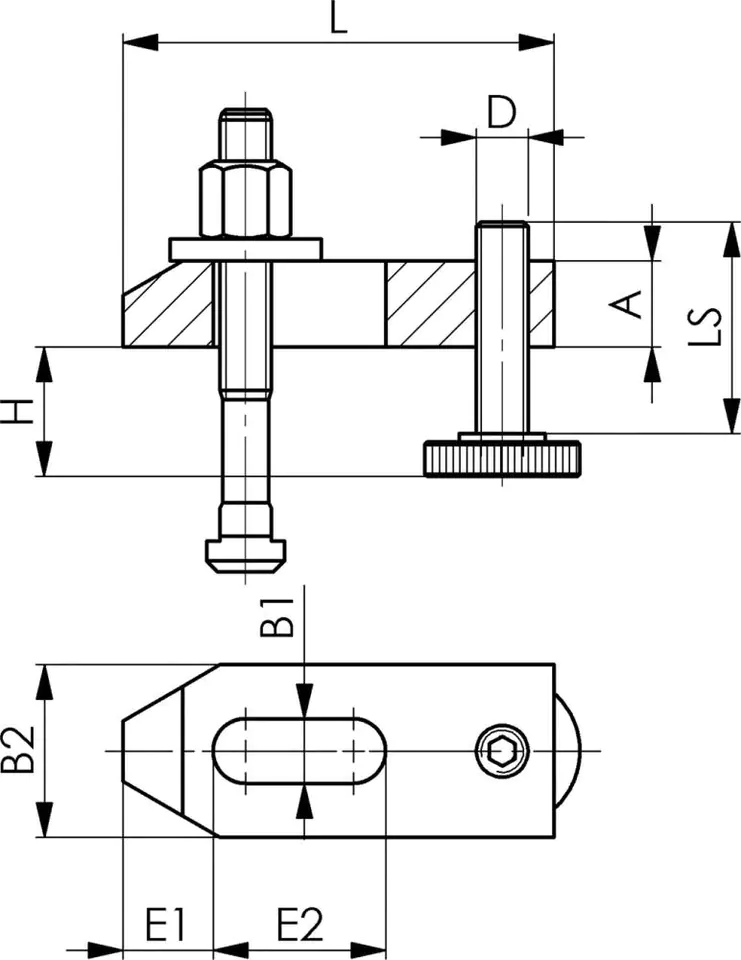

Specification
| E1: | 21 mm |
|---|---|
| E2: | 40 mm |
| Gap width: | 14 mm |
| Groove width: | 14 mm |
| H: | 10-38 mm |
| L1: | 49 mm |
| T-slot screw: | M12 x 14 x 100 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
