Pressure clamp – Format
Material: steel pressure foot, forged, heat treated and galvanized.
Scope of delivery: pressure pin with T-slot screw DIN 787, hexagon nut DIN 6330B and washer DIN 6340.

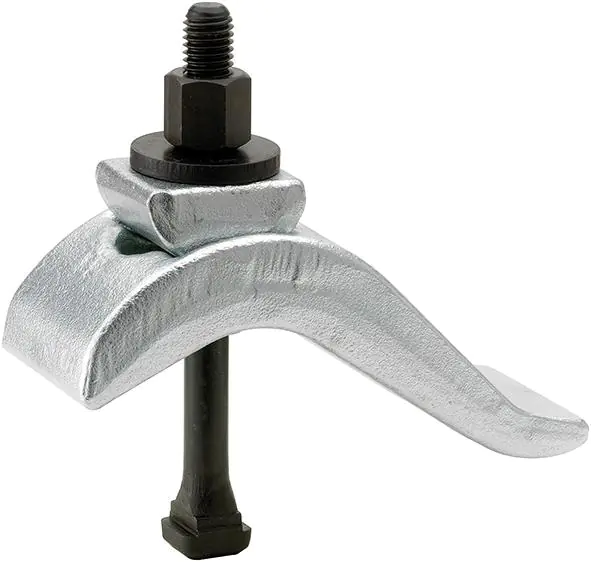

Pressure flap, set with screws 17x16mm AMF
This product is not available
- Availability:
- expected delivery
- Brand:
- AMF
- Product code:
- 74922 / 4020772074920
Share this product:
Specification

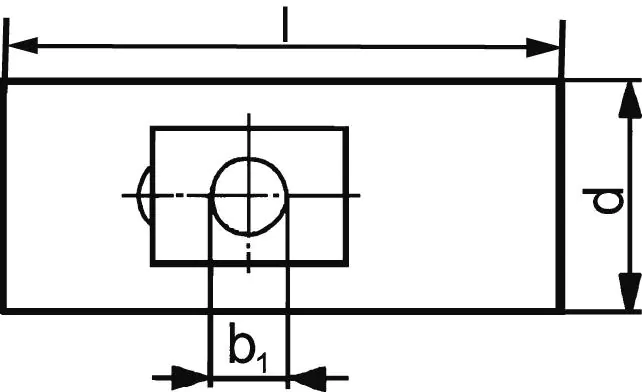

| B1: | 17 mm |
|---|---|
| D x l: | 50 x 140 mm |
| Groove width: | 16 mm |
| Mounting height: | 0-75 mm |
| T-slot screw: | M16 x 16 x 160 |
