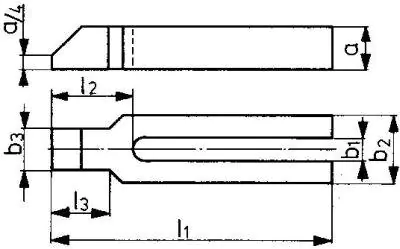

| A: | 25 mm |
|---|---|
| B2: | 40 mm |
| B3: | 24 mm |
| For screws: | M12/M14 |
| Gap width b1: | 14 mm |
| L1: | 160 mm |
| L2: | 47 mm |
| L3: | 30 mm |

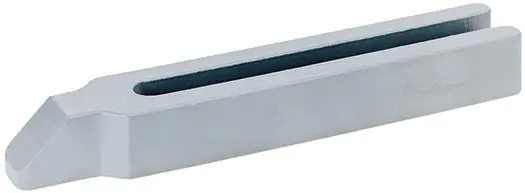

Fork pressure foot, with nose, AMF
Material: heat treated steel, varnished. With parallel contact and pressure surfaces.
Application: the pressure feet can be combined with various attachment pads to suit the most diverse shapes and sizes of workpieces.
