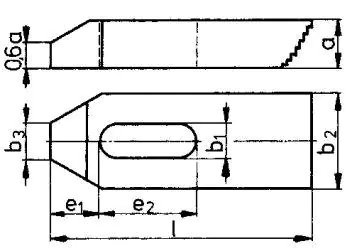

| A: | 20 mm |
|---|---|
| B2: | 40 mm |
| B3: | 14 mm |
| E1: | 21 mm |
| E2: | 40 mm |
| For screws: | M12/M14 |
| Gap width b1: | 14 mm |
| Length l: | 100 mm |

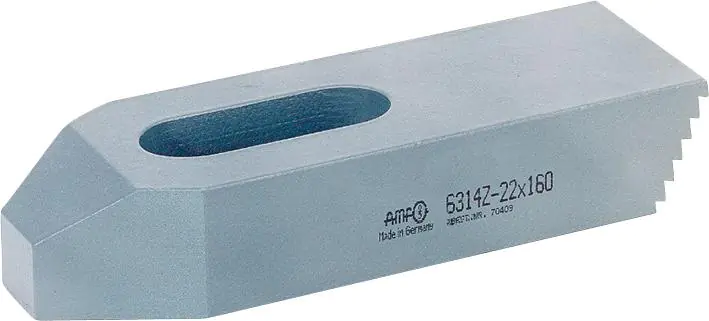

Pressure foot, with trapezoidal teeth
Material: heat treated steel, varnished. With parallel contact and pressure surfaces.
Application: the pressure feet can be combined with various attachment pads to suit the most diverse shapes and sizes of workpieces.
