Pressure fast.front. with travel bar.6842 Wlk. 3 AMF

€51.12
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
AMF
Product code:
94235 / 4020772094232

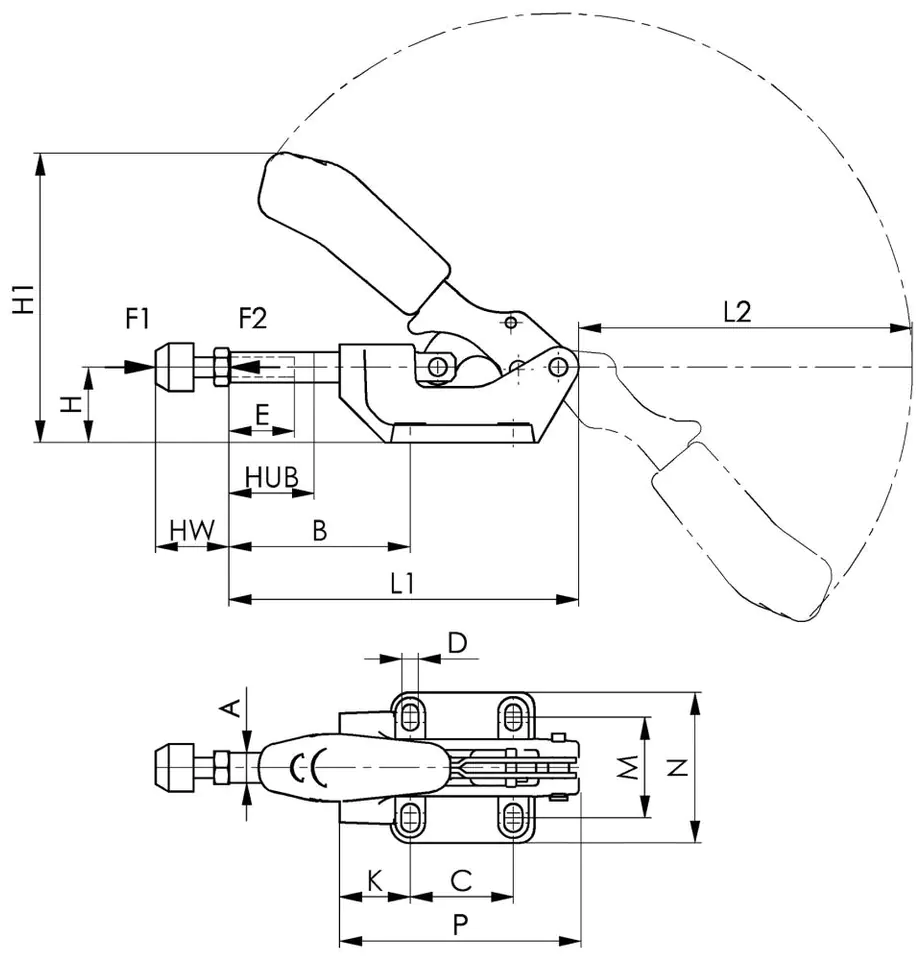

Specification

A:12
B max.:72
B min.:40
C:41
D:6,5
E:30
F1:4 kN
F2:4 kN
H:30
H1:116
Hw max.:35
Hw min.:22
Jump:32
K:28
L1:139
L2:135
N:60
P:95
Pressure screw:M8 x 35
Scales:540 g
Size:3

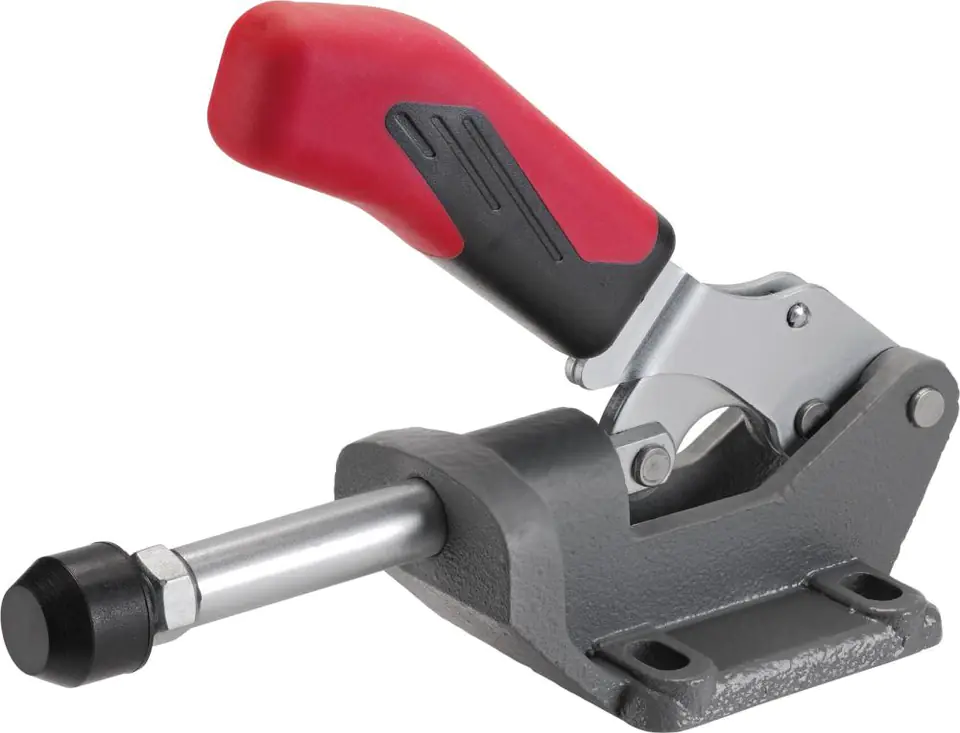

Quick clamping front, with sliding bar, heavy execution

Design: pressing and tightening pressure (sliding bar and manual lever are concurrent). Heavy workmanship, with a long sliding bar guide. Ductile cast iron body, varnished. Galvanized and passivated. Lever parts and sliding bar made of heat-treated steel. Stainless steel rivets, for size 3, move in diffusion-hardened bearing sleeves. Lubricated bearing points. Handle made of red plastic, resistant to oils.
For size 3: Ergonomic oil-resistant handle with large palm adhesion surface, soft components.
Application: use as pressing and tightening pressure. Ideal for use in special clamping mechanisms in series production.
Scope of delivery: complete with heat-treated, galvanized pressure screw.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
