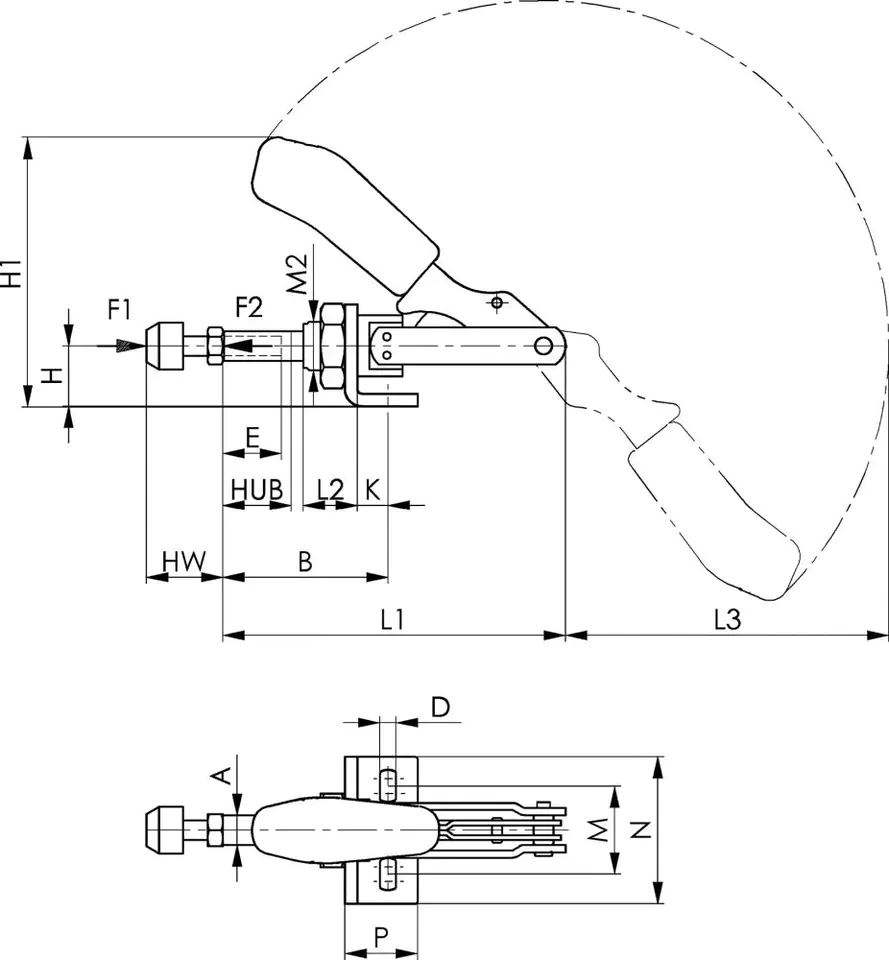

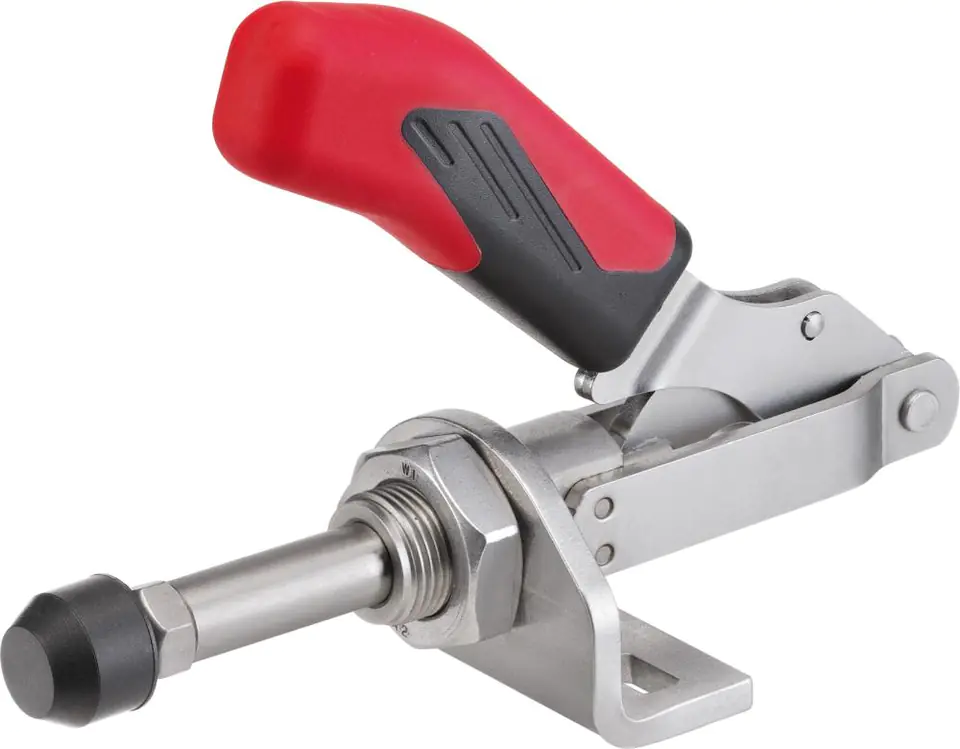

Quick clamping front, with sliding bar, with small angle foot
Design: pressing and tightening pressure, with a small angle foot (sliding bar and manual lever are rotating). Long sliding bar guide with clamping thread and nut. Galvanized and passivated. Lever parts and sliding bar made of heat-treated steel. Stainless steel rivets move in diffusion-hardened bearing sleeves; Due to lack of space, it does not apply to sizes 0, 1 and 5. Lubricated bearing points. Handle made of red plastic, resistant to oils.
For sizes 0, 2 and 3: Ergonomic oil-resistant handle with large palm bond surface, soft components. The hand lever can be rotated at any angle to the surface of the base.
Application: use as pressing and tightening pressure. The pressure can be fixed without an angle foot on sheet metal walls or screwed into the body of the device using its thread.
Scope of delivery: complete with heat-treated, galvanized pressure screw.
Note: sizes 0 and 3 are also available on request in stainless steel.
