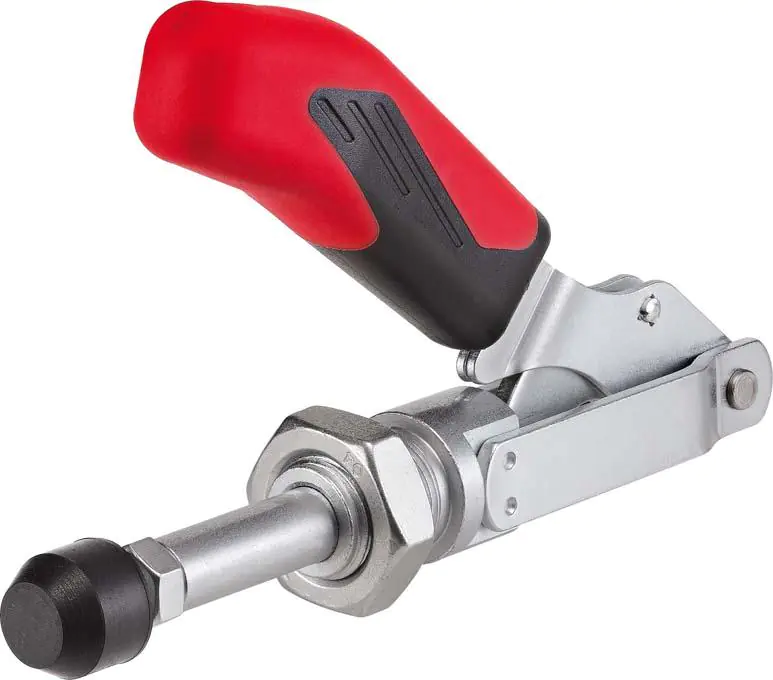

Quick clamping front, with sliding bar
Design: without angle foot. Pressing and tightening pressure (sliding bar and manual lever are concurrent). Long sliding bar guide with clamping thread and nut. Galvanized and passivated. Stainless steel rivets, which in sizes 2 and 3 move in diffusion-hardened bearing sleeves.
Lever parts and sliding rods made of heat-treated steel. Lubricated bearing points. Quick-clamping pressure with sliding rod with thread from the front for direct installation on sheet metal walls or in jigs.
Ergonomic oil-resistant handle with large palm bond surface, soft components. Complete with heat-treated, galvanized pressure screw. Ergonomic oil-resistant handle with large palm bond surface, soft components. Complete with heat-treated, galvanized pressure screw.
Pressure fast.front. with travel bar.6840 Wlk. 3 AMF
€36.72
Shipping from warehouse: B6
Estimated shipping: Tue, Nov 19 - Fri, Nov 22
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- AMF
- Product code:
- 93930 / 4020772093938
Share this product:

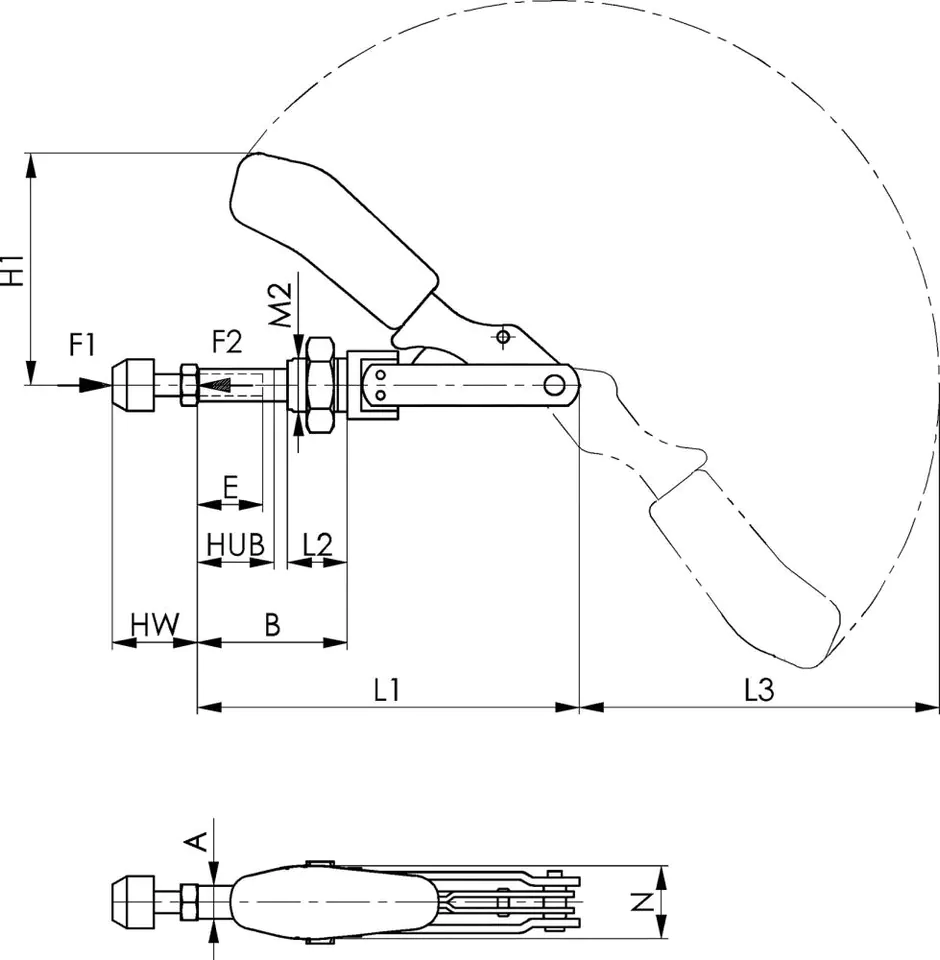

Specification
| A: | 12 |
|---|---|
| B max.: | 56 |
| B min.: | 24 |
| E: | 30 |
| F1: | 2.5 kN |
| F2: | 2.5 kN |
| H1: | 82,5 |
| Hw max.: | 35 |
| Hw min.: | 22 |
| Jump: | 32 |
| L1: | 1400 |
| L2: | 22 |
| L3: | 127 |
| M2: | M20 x 1.5 |
| N: | 27 |
| Pressure screw: | M8 x 35 |
| Scales: | 330 g |
| Size: | 3 |
