Pressure fast power.levels 6830 ESD wlk.2 AMF

€31.25
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
AMF
Product code:
562490 / 4020772023942

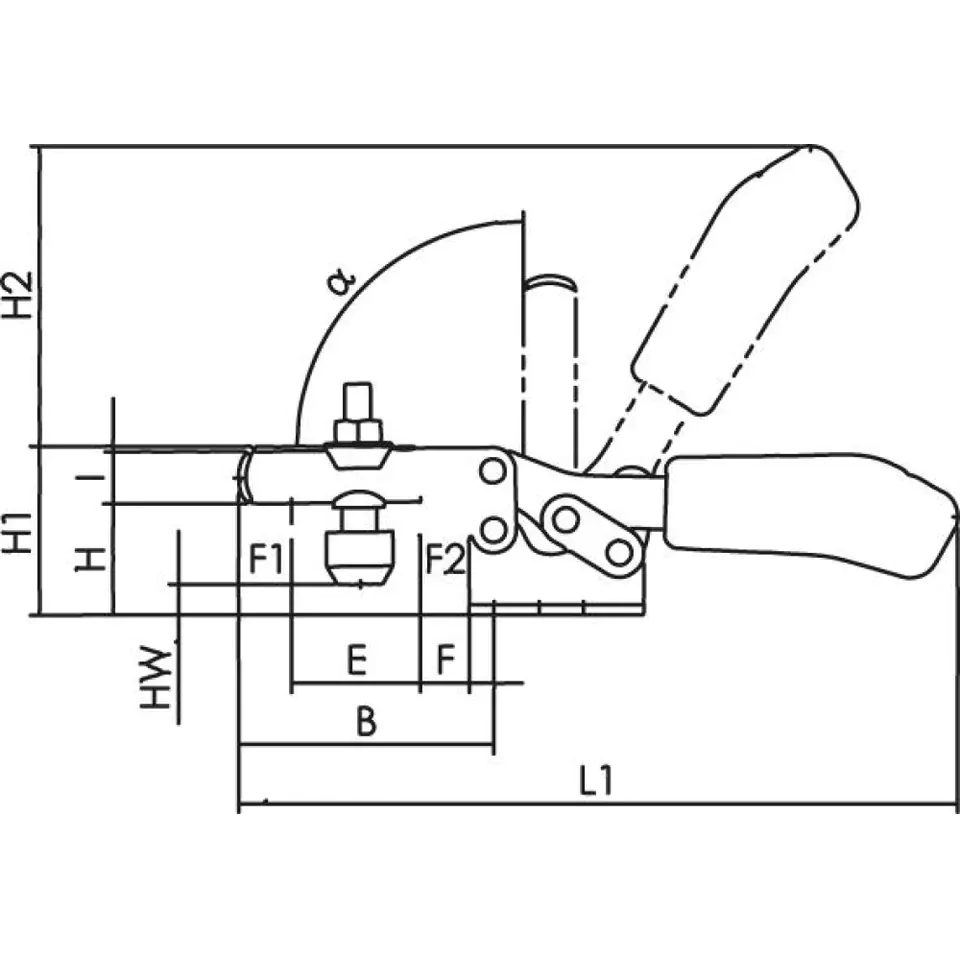

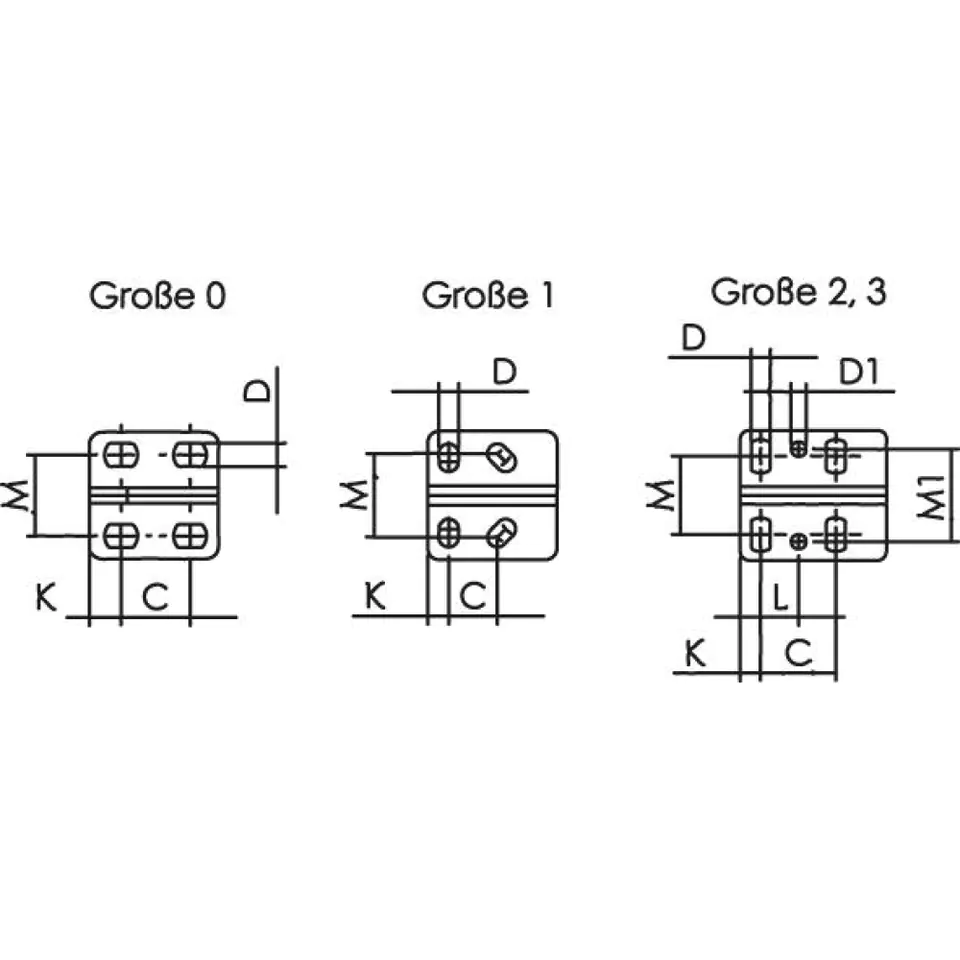

Specification

A:6
Alpha:90°
And:13,2
B:64
C:26
D:5,6
E:32
F:16
F1:1 kN
F2:1.2 kN
H:24
H1:45
Hw max.:5
Hw min.:-1,5
K:6
L1:162
M:19,5–29,5
M 1:28,5
N:42
No:562490
P:38
Pressure screw:M6 x 35
Scales:185 g
Size:2

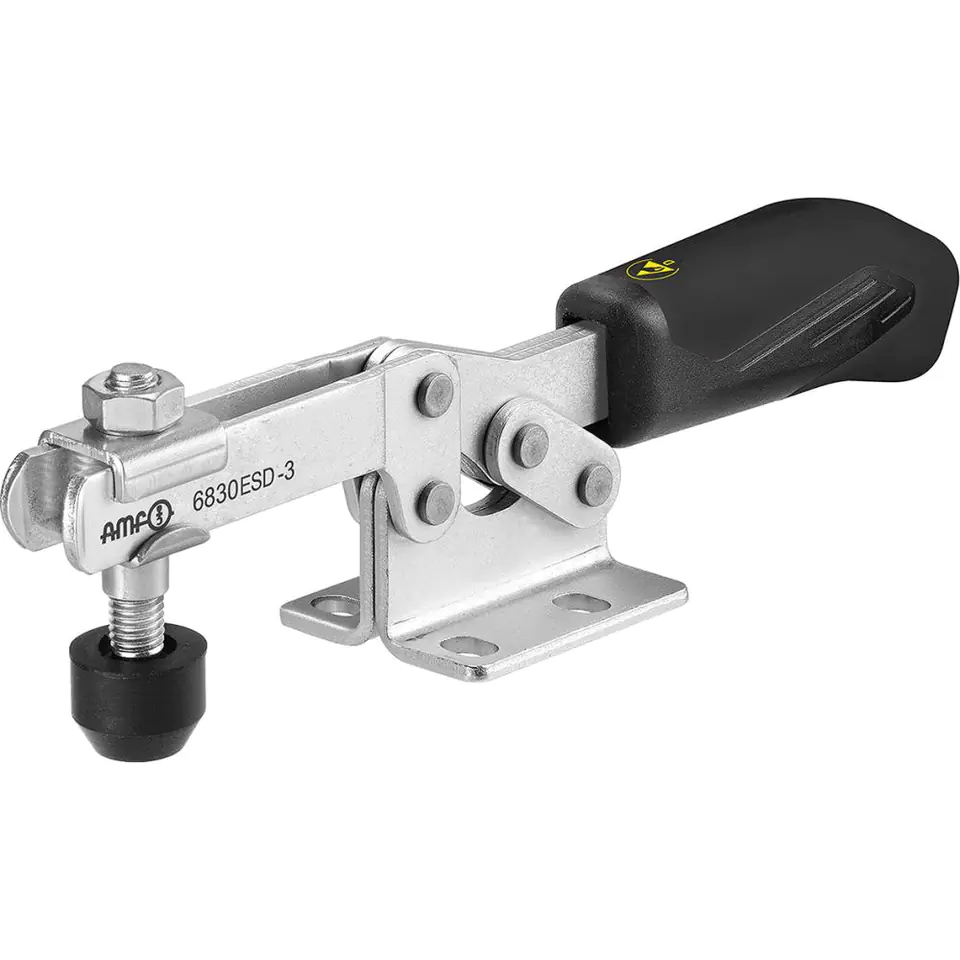

ESD horizontal quick clamping pressure

Design: with protective cap and handle made of electrostatic dissipating material. Quick clamping vertical pressure, with open pressure arm and horizontal foot. Galvanized and passivated. Stainless steel rivets, which in sizes 2 and 3 move in diffusion-hardened bearing sleeves.
Lubricated bearing points. Ergonomic oil-resistant handle with large palm bond surface, soft components. Secure clamping element with finger protection, anti-loss protection of the pressure screw at the end of the clamping arm.

Application: the vertical ESD terminal has been specially developed for use in electrostatic protected areas (EPA) when working on electrostatically sensitive components, components or devices in accordance with DIN EN 61340-5-1.

Note: ESD pressure is not isolated. Not suitable for work on live components.

Delivery: vertical quick-clamping pressure with heat-treated, galvanized pressure screw.
