Pressure foot, weaned – AMF
Material: heat treated steel, varnished. With parallel contact and pressure surfaces.
Application: the pressure feet can be combined with various attachment pads to suit the most diverse shapes and sizes of workpieces.
Pressure clamp DIN6316 22x160mm AMF
€39.94
Shipping from warehouse: B6
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- AMF
- Product code:
- 71084 / 4020772071080
Share this product:

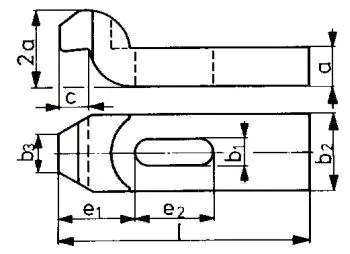

Specification
| A: | 30 mm |
|---|---|
| B2: | 60 mm |
| B3: | 30 mm |
| C: | 24 mm |
| E1: | 59 mm |
| E2: | 55 mm |
| For screws: | M20/M22 |
| Gap width b1: | 22 mm |
| Length l: | 160 mm |
