Pressure foot, weaned – AMF
Material: heat treated steel, varnished. With parallel contact and pressure surfaces.
Application: the pressure feet can be combined with various attachment pads to suit the most diverse shapes and sizes of workpieces.

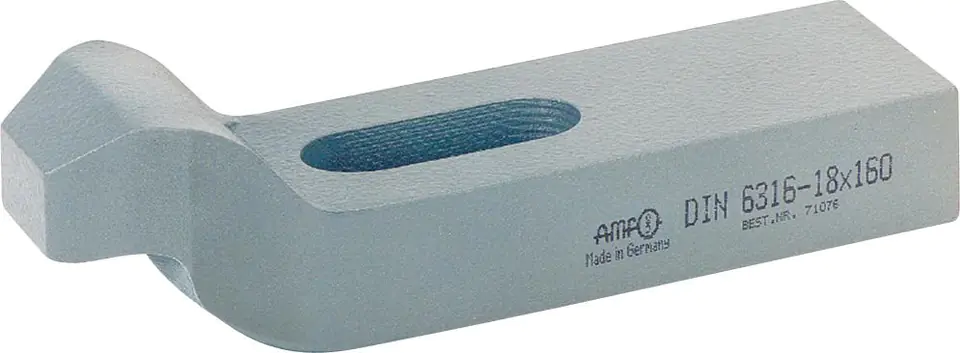

Pressure clamp DIN6316 11x100mm AMF
This product is not available
- Availability:
- expected delivery
- Brand:
- AMF
- Product code:
- 71043 / 4020772071042
Share this product:

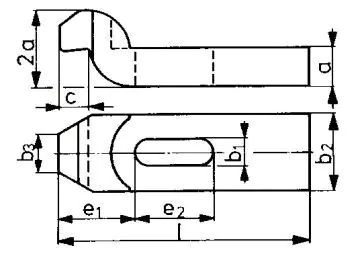

Specification
| A: | 15 mm |
|---|---|
| B2: | 30 mm |
| B3: | 15 mm |
| C: | 12 mm |
| E1: | 36 mm |
| E2: | 32 mm |
| For screws: | M10 |
| Gap width b1: | 11 mm |
| Length l: | 100 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
