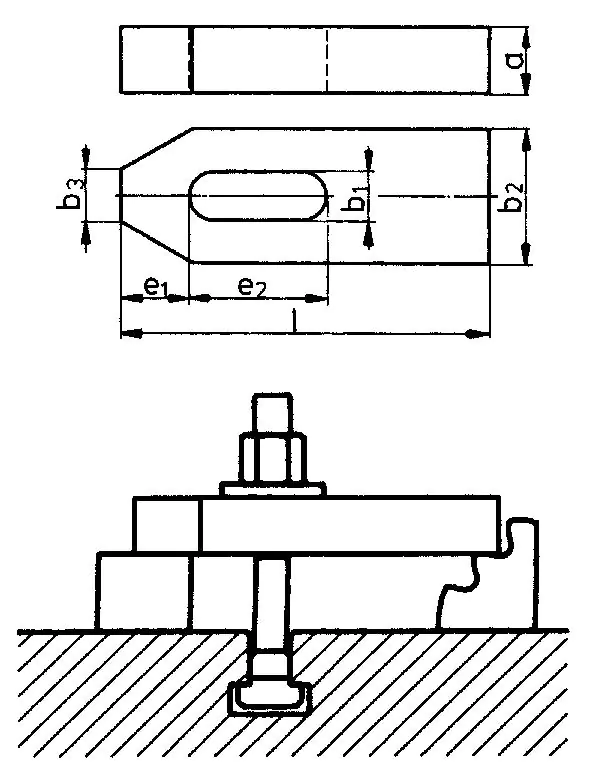

| A: | 10 mm |
|---|---|
| B2: | 20 mm |
| B3: | 8 mm |
| E1: | 10 mm |
| E2: | 20 mm |
| For screws: | M6 |
| Gap width b1: | 6.6 mm |
| Length l: | 50 mm |

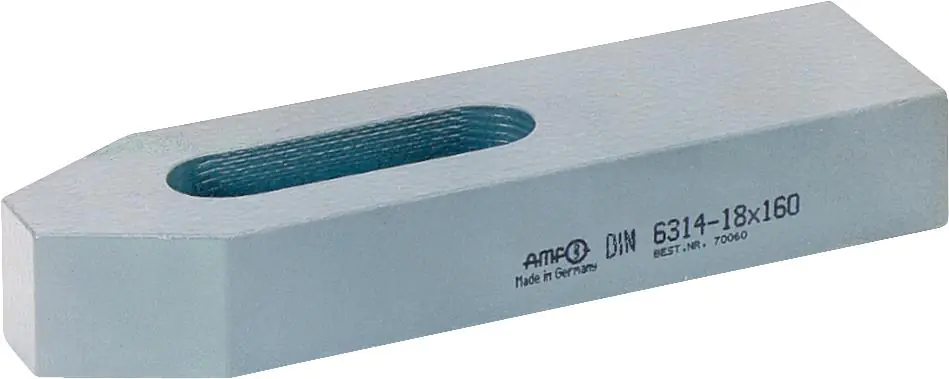

Single pressure foot, DIN 6314
Material: heat treated steel, varnished. With parallel contact and pressure surfaces.
Application: the pressure feet can be combined with various attachment pads to suit the most diverse shapes and sizes of workpieces.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
