Pressure bolt 6890 ESD wlk.0 AMF

€7.78
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
AMF
Product code:
562598 / 4020772024031

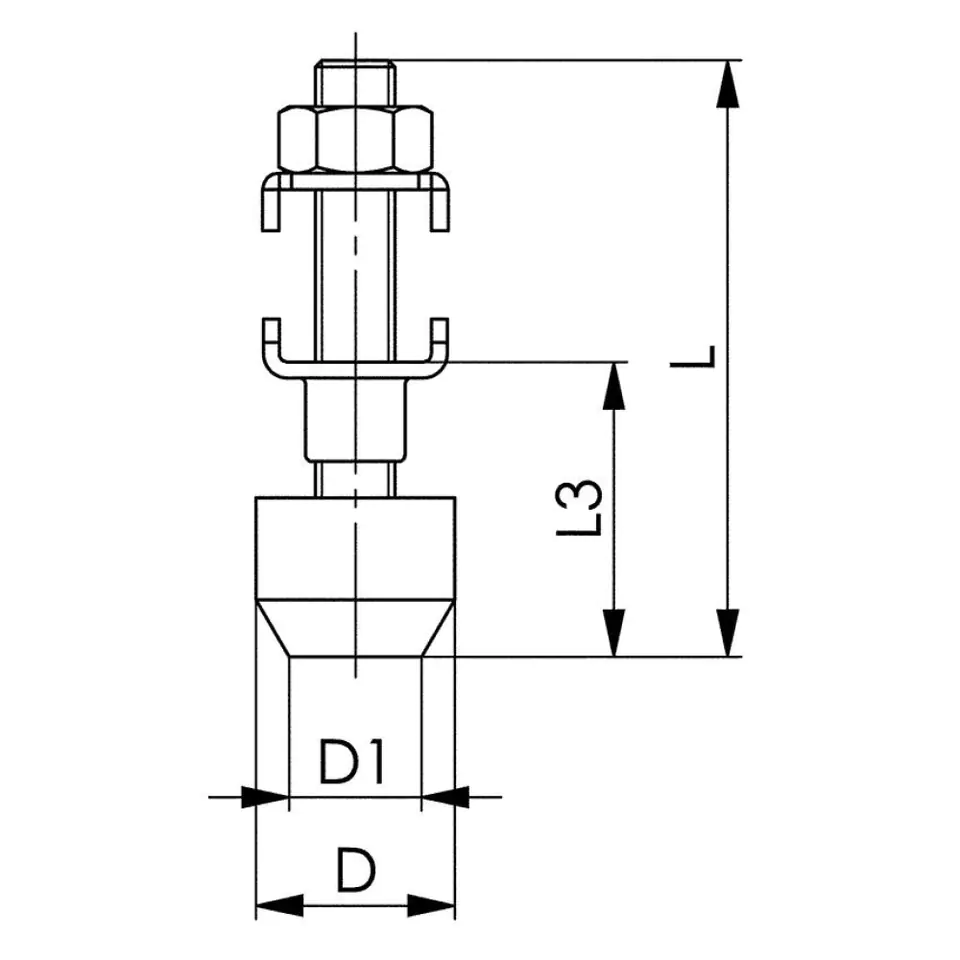

Specification

D:11 mm
D1:7 mm
L:32 mm
L3:13-20 mm
No:562598
Scales:5 g
Size:0
Uk x l:M4 x 25

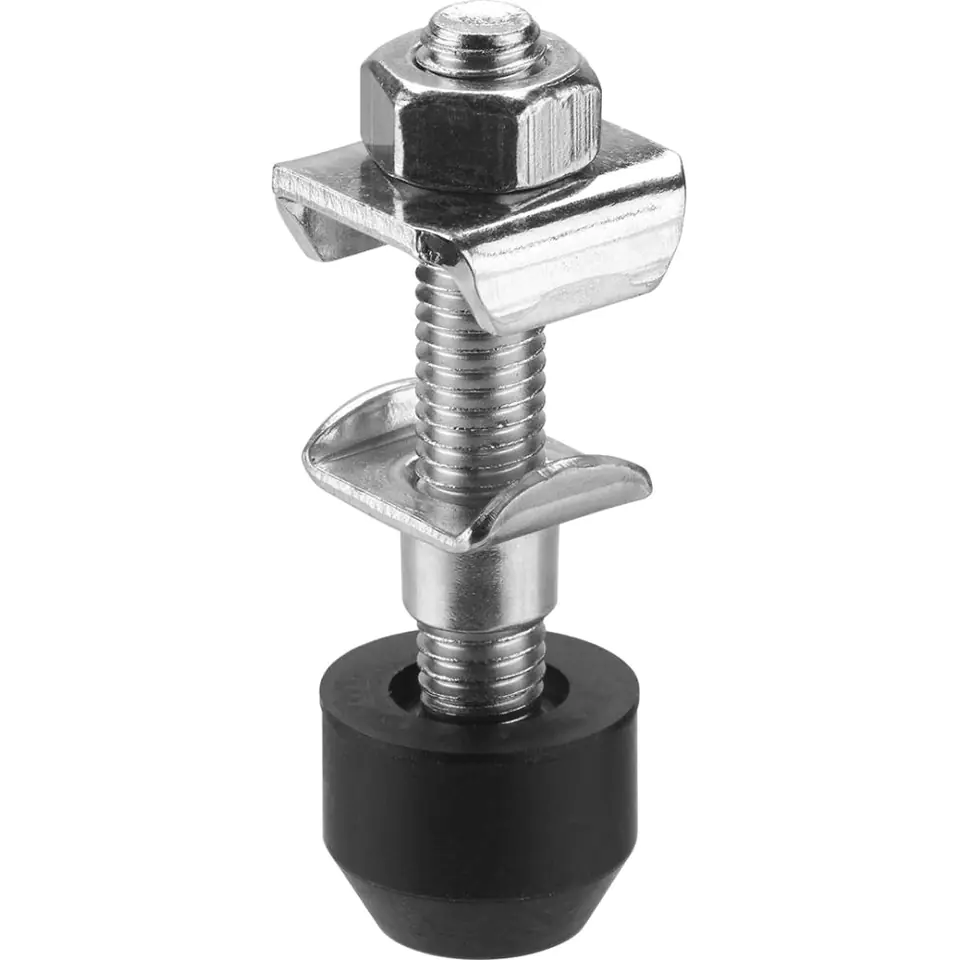

ESD pressure screw

Design: with protective cap made of electrostatic dissipating material. For open pressure arm, heat enhanced, galvanized and passivated. Strength class 8.8, with removable protective cap and nut washer.

Application: the ESD pressure screw has been specially developed for use in electrostatic protected areas (EPA) when working on electrostatically sensitive components, components or devices in accordance with DIN EN 61340-5-1.

Note: The ESD pressure screw is not insulated. Not suitable for work on live components.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
