Large set - crimping machine + sleeves
High-class press designed for crimping insulated and non-insulated sleeves in size from 0.25 to 10mm2. High quality workmanship, four-angle clamping system and three-stage jaw lock ensures convenience of use.
The bushings are placed in a transparent packaging - thanks to which it is easy to maintain order and control the condition of the bushings.

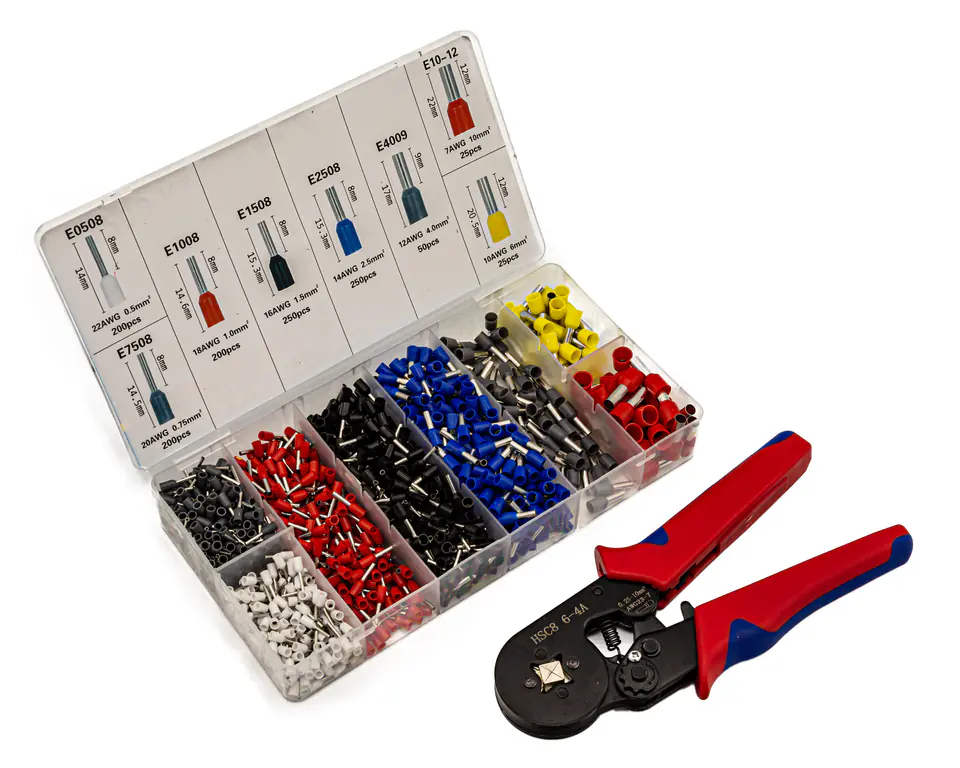

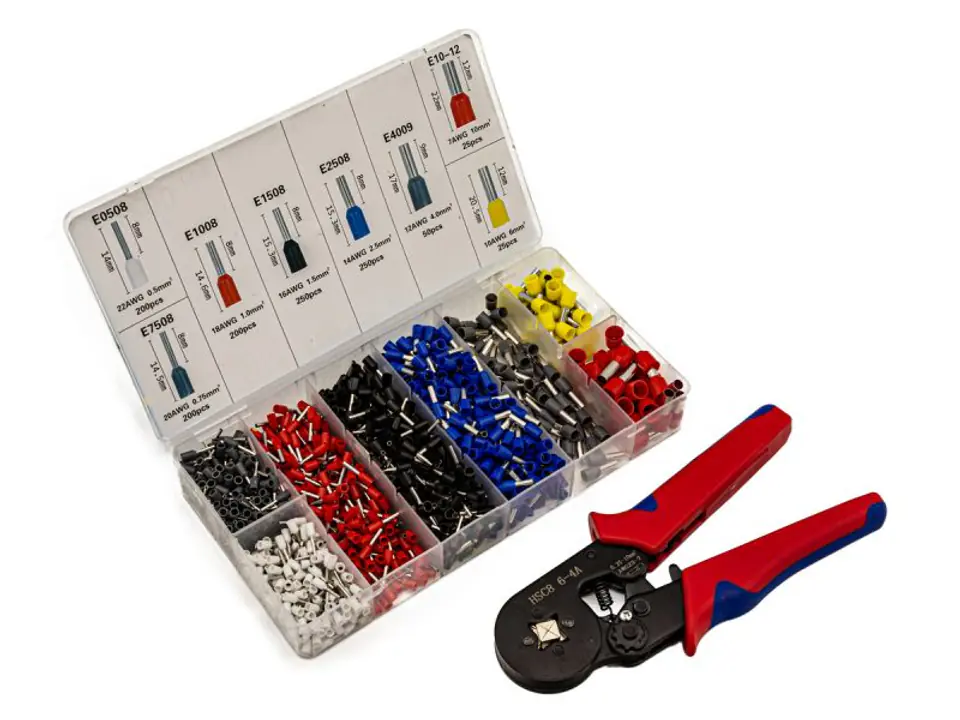

The set includes:
- Automatic press,
- 1200 pieces of various types of bushings,
- Organizer for bushings.

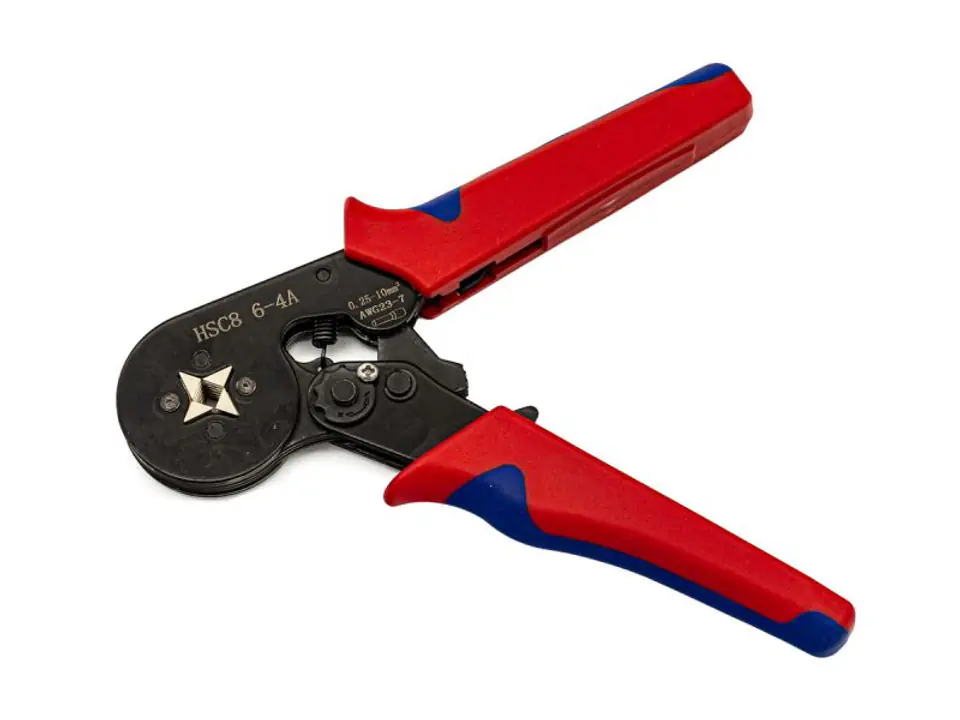

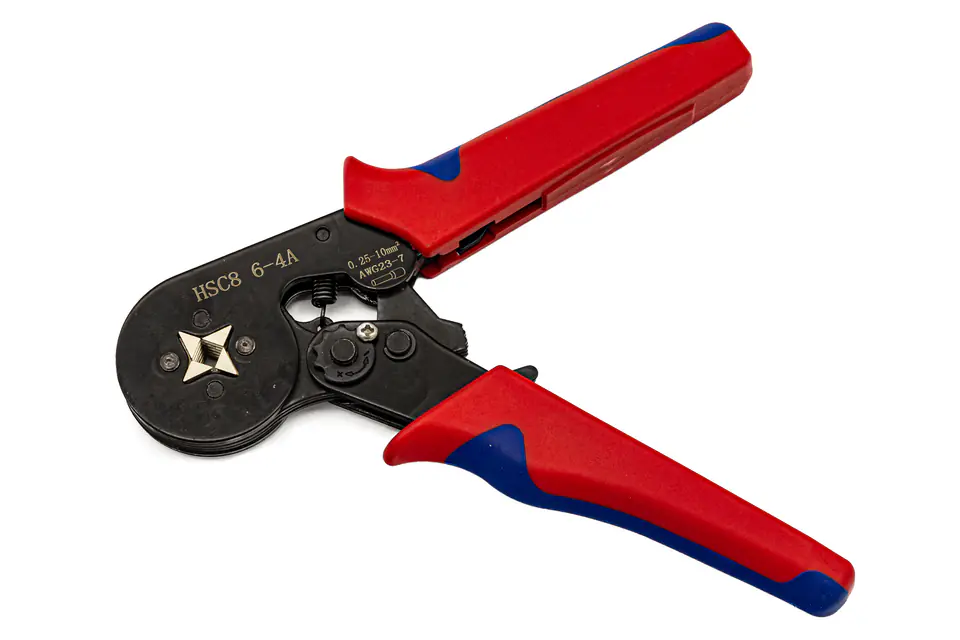

Prague specification:
Model:
HSC8 6-4A
Operating range:
0.25 - 10mm2, AWG 23-7
It has a terminal lock:
the press opens only after tightening the sleeve.
Dimensions:
length approx. 175mm

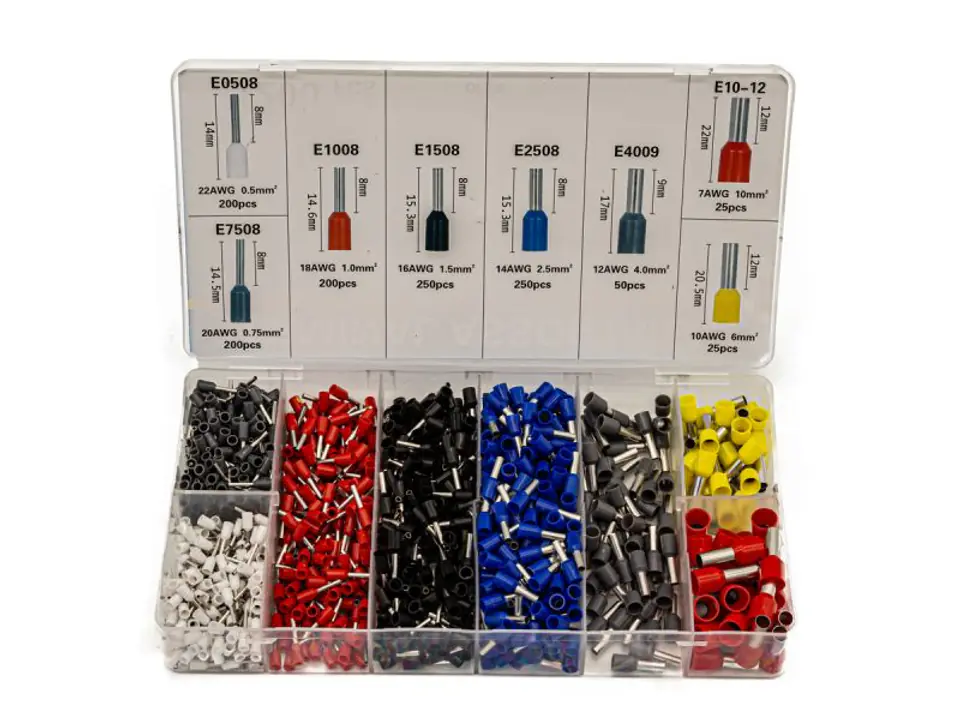

Organizer with sleeves:
E0508 white:
200 pieces
E7508 grey:
200 pieces
E1008 red:
200 pieces
E1508 black:
250 pieces
E2508 blue:
250 pieces
E4009 grey:
50 pieces
E6012 yellow:
25 pieces
E10-12 red:
25 pieces
Including:
1200 pieces

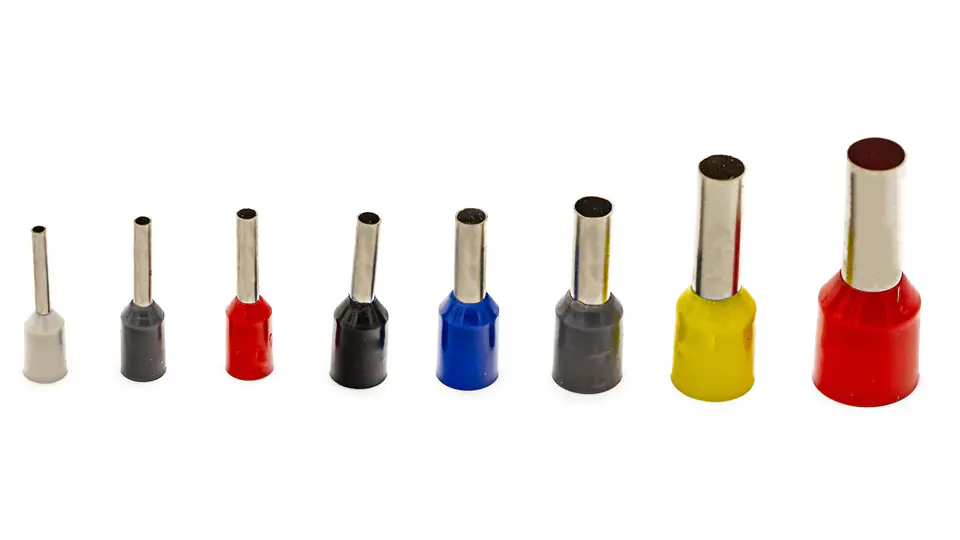

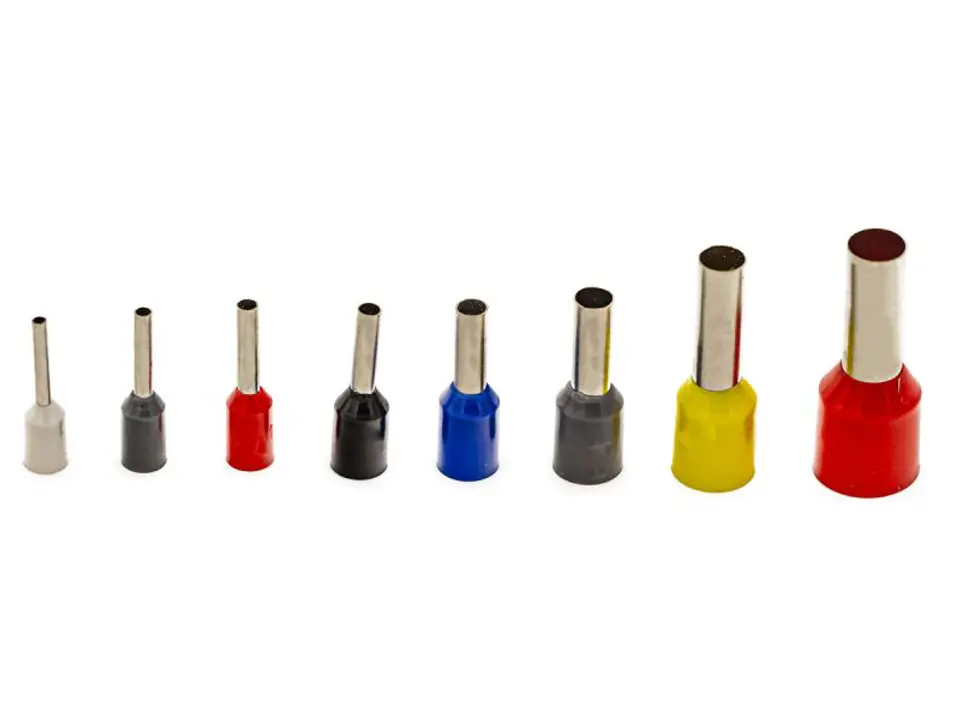

Sleeve Specification:
E0508:
22AWG, 0.5mm2
E7508:
20AWG, 0.75mm2
E1008:
18AWG, 1mm2
E1508:
16AWG, 1.5mm2
E2508:
14AWG, 2.5mm2
E4009:
12AWG, 4.0mm2
E6012:
10AWG, 6mm2
E10-12:
7AWG, 10mm2mm2
