Precision vice PL-S, Micro, wlk. 1 30mm RÖHM

€207.24
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Röhm
Product code:
1179514 / 4019208228228

Specification

Clamping force:2 kN
Jaw height:15 mm
Jaw width:34 mm
Mounting range:25 mm
Overall length:75 mm
Scales:0.35 kg
Size:1
Total height:35 mm

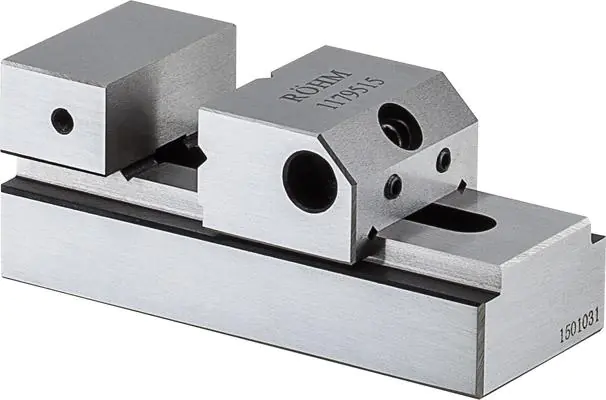

Precision vice PL-S micro

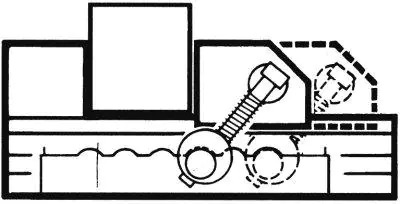

Manufacture: alloy tool steel body and jaws, hardened and precision ground. The fixed jaw is smooth, the movable jaw has a horizontally ground pile and a quick adjustment mechanism. Fastening and loosening with an Allen key. With quick adjustment mechanism and downtightening effect. Side mounting surfaces for pressure feet.
Perpendicularity (1): 100 mm = 0,005 mm
Parallelism 2: 100 mm = 0.002 mm
Application: for precision grinding, milling, measurement and EDM.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
