Precision centering instrument Centro 6-125mm HAIMER

€579.85
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Mon, Nov 18 - Tue, Nov 19
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
HAIMER
Product code:
80.300.00.FHN / 4034221006738

Specification

Case diameter:64 mm
Centering accuracy:0.003 mm
Max. speed:150 1/min
Measuring range hole:3-125 mm
Measuring range shaft:0-125 mm
Read:0.01 mm

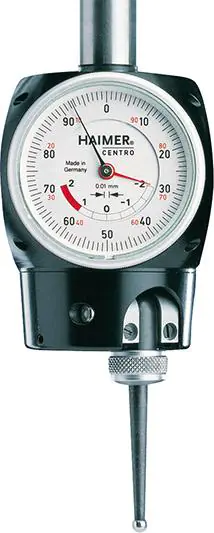

Centro precision centering instrument

Material: fixing pin with a diameter of 16 mm. Centering accuracy 0.003 mm and measuring accuracy 0.01 mm (only with original Haimer measuring tips). Large measuring timer for easy reading.
Application: for fast and accurate centering of holes, shafts, flat surfaces and reference edges centred on the working spindle on milling machines. For vertical and horizontal use.
Scope of delivery: precision centering instrument with a straight measuring tip with a diameter of 5 mm.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
