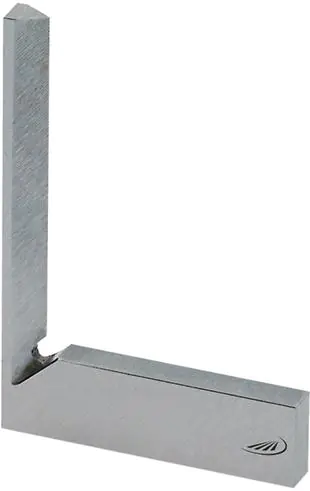

Precision angle for cutting angle determination GG00 DIN875/00 hardened 40x28mm HP

€30.45
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Mon, Feb 24 - Thu, Feb 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
HELIOS PREISSER
Product code:
0387201 / 4029713208387

Specification

Angle tolerance:0.003 mm
Arm length:40 x 28 mm
Cross-section of the thick arm:8.0 x 3.5 mm
Narrow arm cross section:5.0 x 3.5 mm

Precision angle for determining the cutting angle, stainless steel

Made of: hardened stainless steel, tolerance of perpendicularity, parallelism and flatness. Highest accuracy, diagonal measuring edge on the inner side of the long arm. Vertical edges and flat sides finely ground, control surfaces sanded. 90° angle. Delivery in transport packaging.
Application: in the production of tools and devices.
