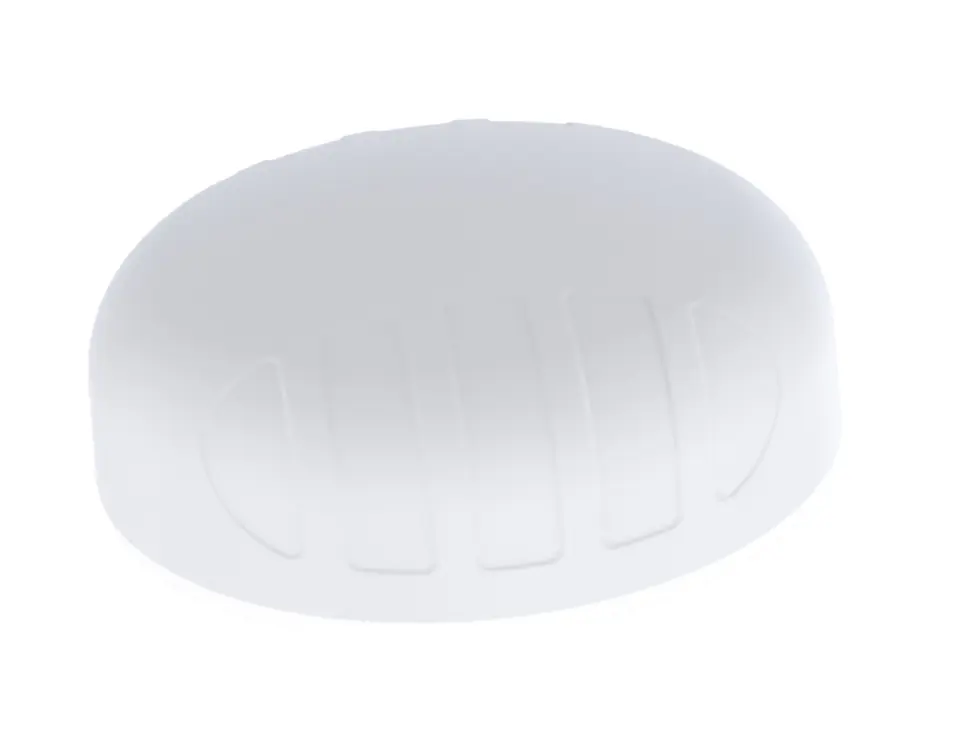

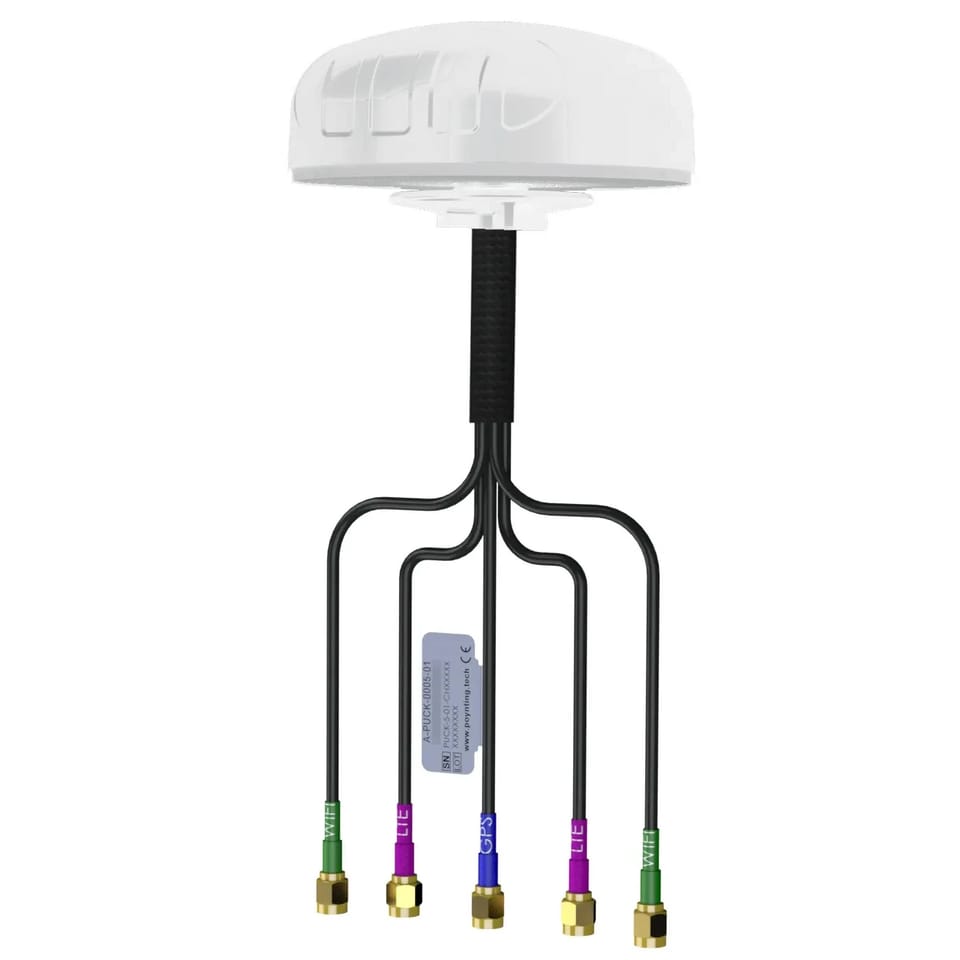

Wideband panel omnidirectional antenna Poynting PUCK-5 2X2 LTE (MIMO) 6 dBi, 2X2 Wi-Fi (MIMO) 7.5 dBi, GPS/GLONASS, 21 dBi
Poynting's new PUCK antenna offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and Agro-Agricultural markets. Puck-5 consists of a 5-in-1 antenna system in one housing, equipped with 2X2 MIMO LTE, 2X2 MIMO Wi-Fi (dual-band 2.4 GHz and 5 GHz) and GPS / GLONASS. 2x Cellular MIMO antennas (for 2G / 3G / 4G) cover the band from 698 MHz to 3800 MHz, including the most popular international LTE bands. The antenna provides two separate dual-band Wi-Fi antennas offering simultaneous 2.4GHz and 5GHz bands, supporting 802.11ni 802.11ac/ax with 2 × 2 MIMO. The fifth antenna is a high-performance, active GPS/GLONASS system operating at temperatures down to -40ºC. PUCK outperforms the performance of many competitors thanks to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, variety of patterns and good radiation abilities at the desired altitude, which is often overlooked in antennas of such small sizes. Despite its small size, this antenna provides excellent performance, especially in the higher frequency bands, where performance is critical to LTE bandwidth and connection stability. This antenna is designed so that both LTE ports are connected to the router/device to ensure the best performance. Familiarize yourself with other derivatives of the PUCK series that are more suitable for SISO applications.
- High performance of 5 in 1 LTE multi-frequencies
- 2G / 3G / 4G / LTE antenna (5G ready)
- LTE (2X2 MIMO), dual-band Wi-Fi (2X2 MIMO), GPS / GLONASS
- Broadband frequency range, including CBRS 3.5 GHz band
- Independent of the ground plane
- Robust, vandal-proof and waterproof antenna housing (IP 68 rating)
- Ideal for transportation, marine and IoT/M2M applications
- Ultra-veZAtile mounting options for easy installation
- Smart tools: smart metering of energy, gas and water
- Smart buildings: air conditioning control, access control, security, irrigation
- Industrial automation, robotics and other M2M systems
- Digital Signage
- Warehouses and logistics systems
- Transport (buses, utilities and public safety)
- Communication, telemetry and automation of mining vehicles and machines (M2M and IoT)
-Agricultural machinery
- Marine: small boats, yachts near coasts or internal waters

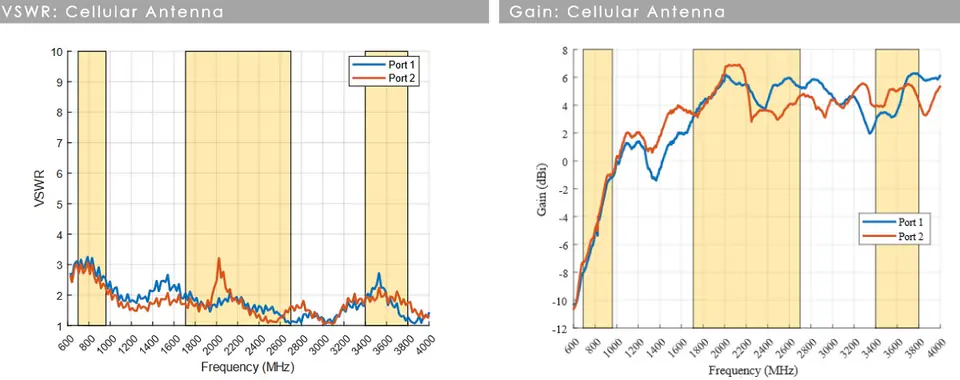

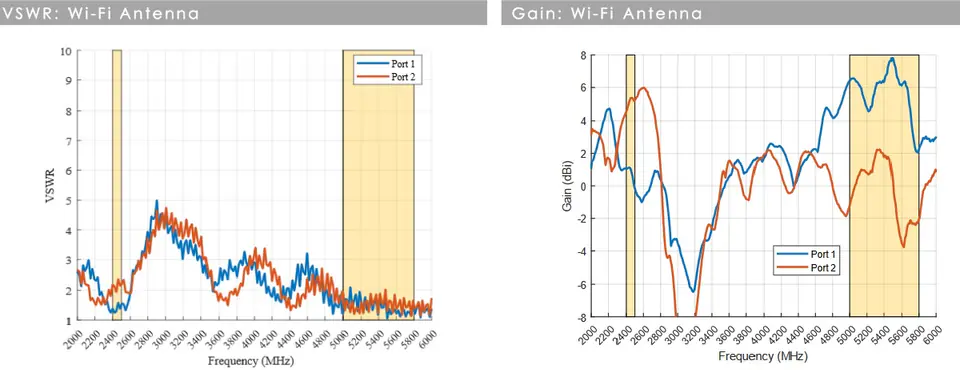

Voltage Wave Factor (VSWR)*
VSWR is a measure of the efficiency of transmitting radio frequency power from a power source through a transmission line to a load.
In an ideal system, 100% of the energy is transmitted, which corresponds to a VSWR of 1:1, the PUCK-5 provides excellent performance in all bands with VSWR ≤2.5:1 over 85% of the bandwidth

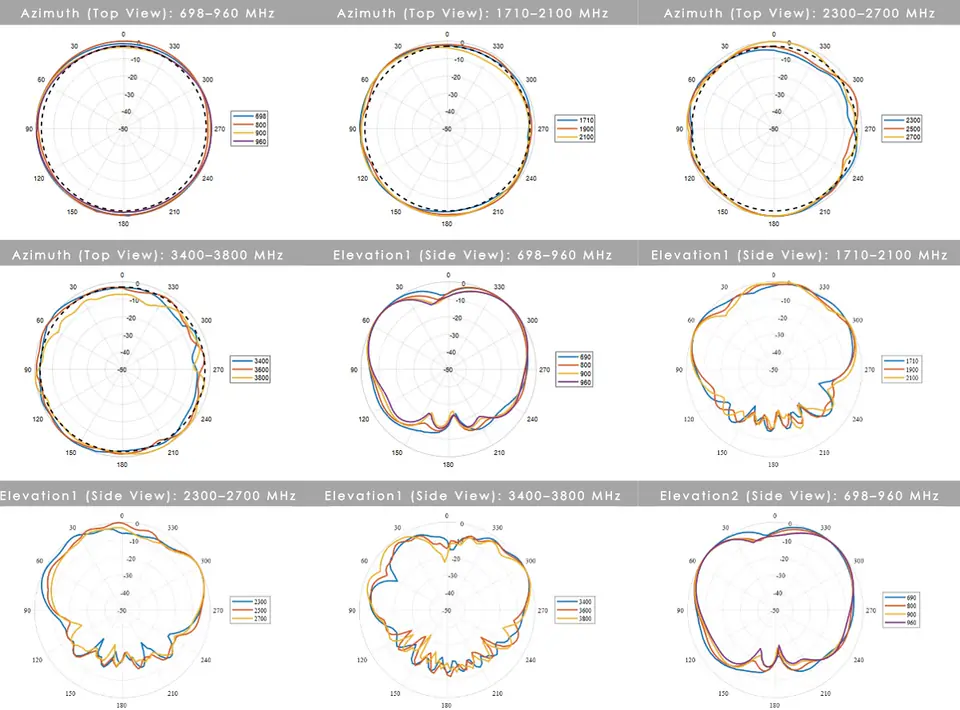

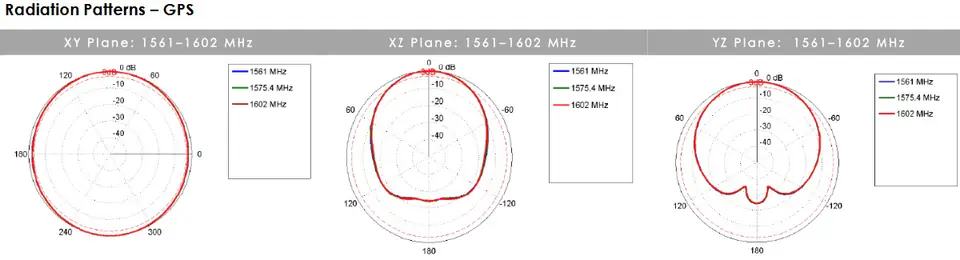

Gain in dBi
6dBi is the peak gain in all bands from 698-960, 1710-2700 and 3400-3800 MHz
7.5dBi is peak gain in all bands from 2400-2500, 5000-5800 MHz
- Gain at 698–960 MHz: -1 dBi
- Gain at 1710–2700 MHz: 6 dBi
- Gain at 3400–3800 MHz: 6 dBi
- Gain at 2400-2500 MHz: 5 dBi
- Gain at 5000-5800 MHz: 7.5 dBi
link: https://youtu.be/wQ7WTtjMNPM
Links to other videos about PUCK-5: Unboxing - https://youtu.be/AfL5b7pRWbk
PUCK High Voltage Test - https://youtu.be/A-3FVcQjK-I
PUCK wind tunnel test - https://youtu.be/Yga3oqAGly0
Endurance Test - https://youtu.be/MS_gkMZ26tE
Building 4x4 MIMO solutions - https://youtu.be/YsRRjBAfX4k

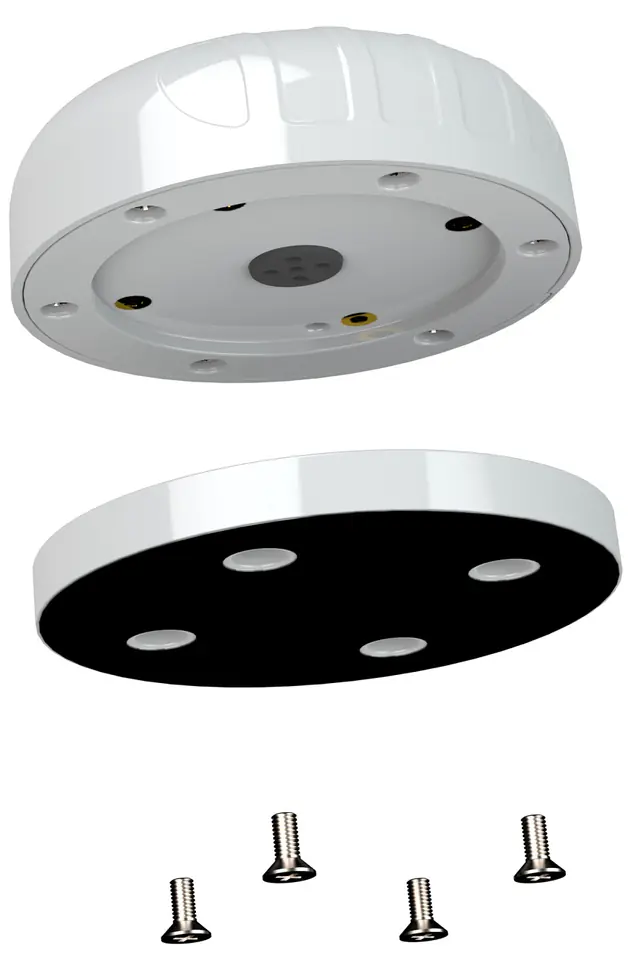

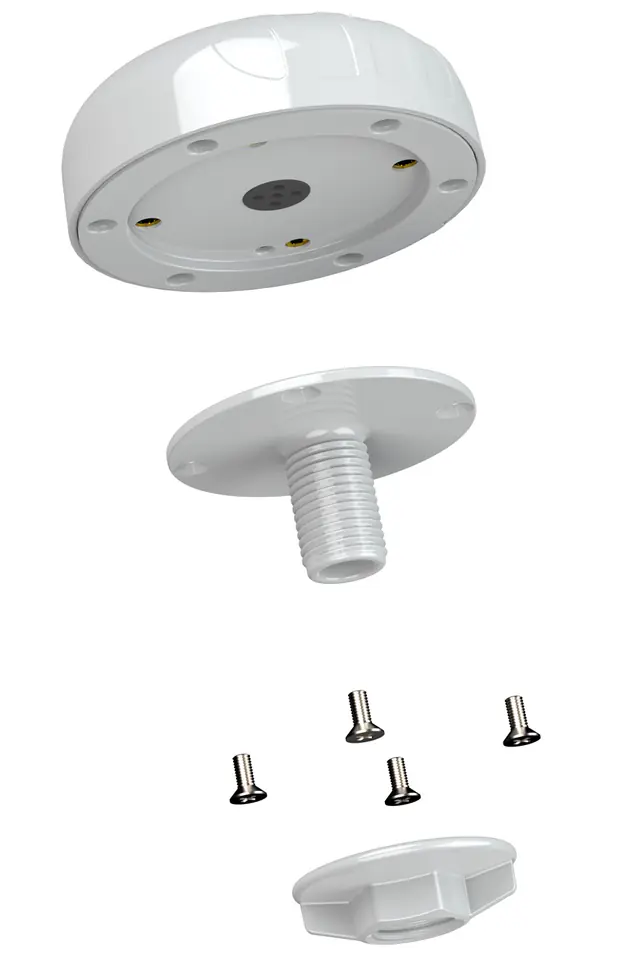

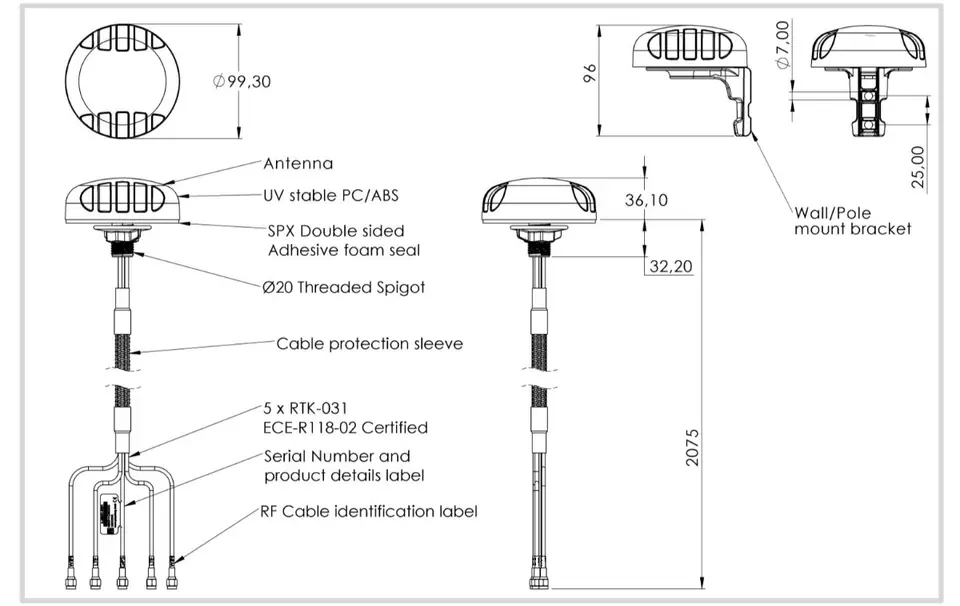

Poynting's new PUCK antenna series provides easy installation with multiple mounting options. This includes as standard:
- Attachment to the spigot - two different lengths (40 mm and 80 mm) included
- Vertical post mounting (internal and external mounting for smaller and larger poles)
- Horizontal pole mounting (e.g. sea rails)
- Magnetic mount
- Surface mounting (double-sided tape)
- Wall mount

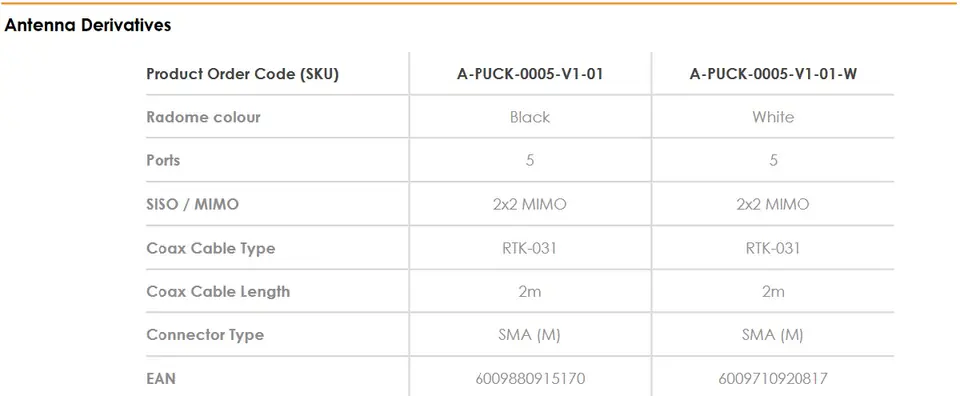

Click here for full technical documentation of the antenna.
