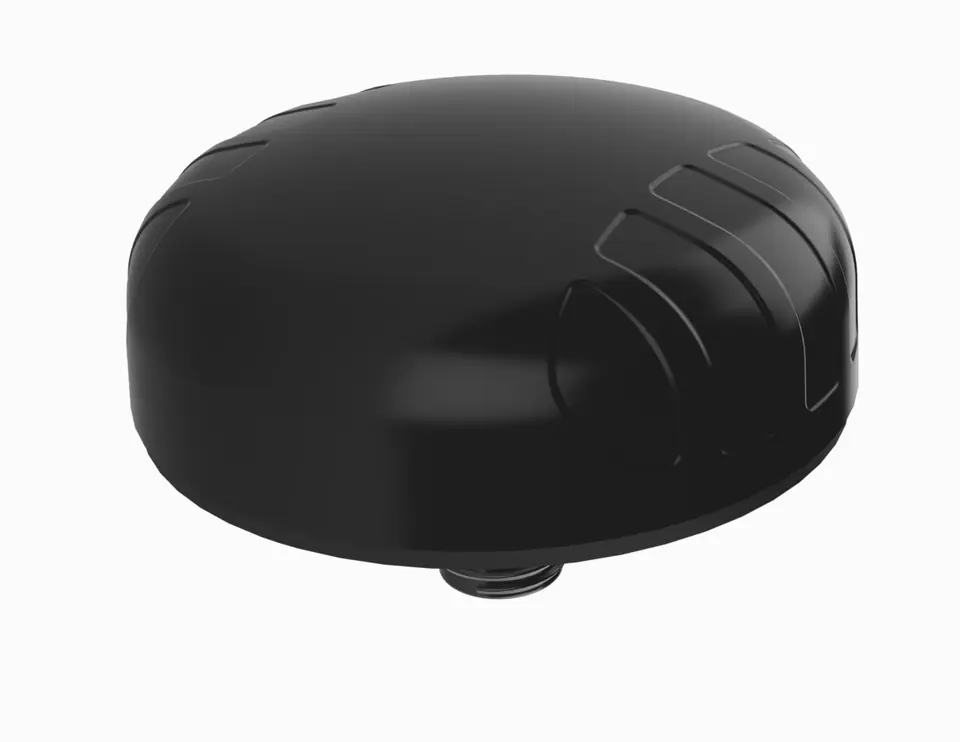

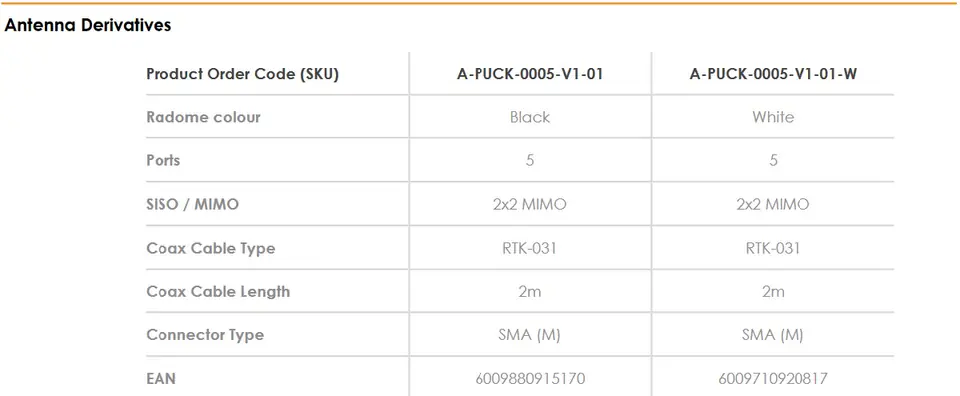

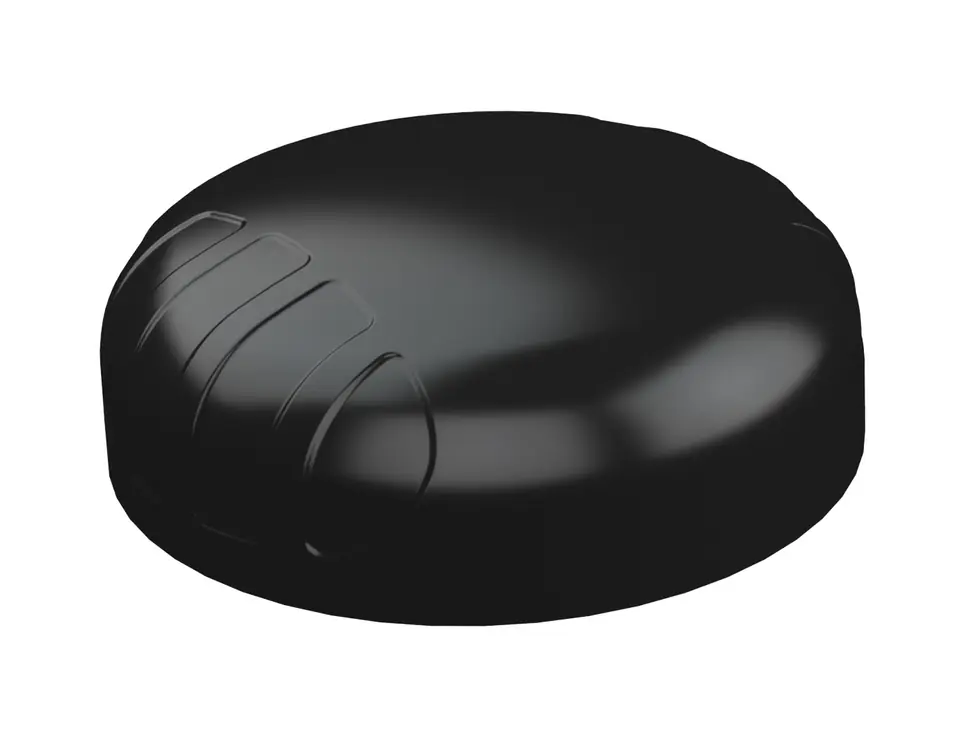

Poynting PUCK-5 2X2 LTE (MIMO) 6 dBi, 2X2 Wi-Fi (MIMO) 7.5 dBi, GPS/GLONASS 21 dBi

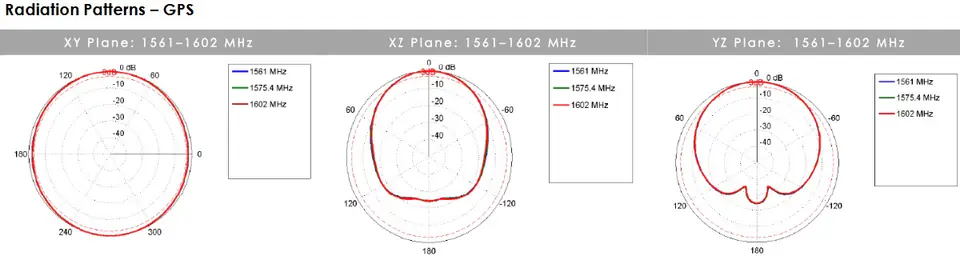

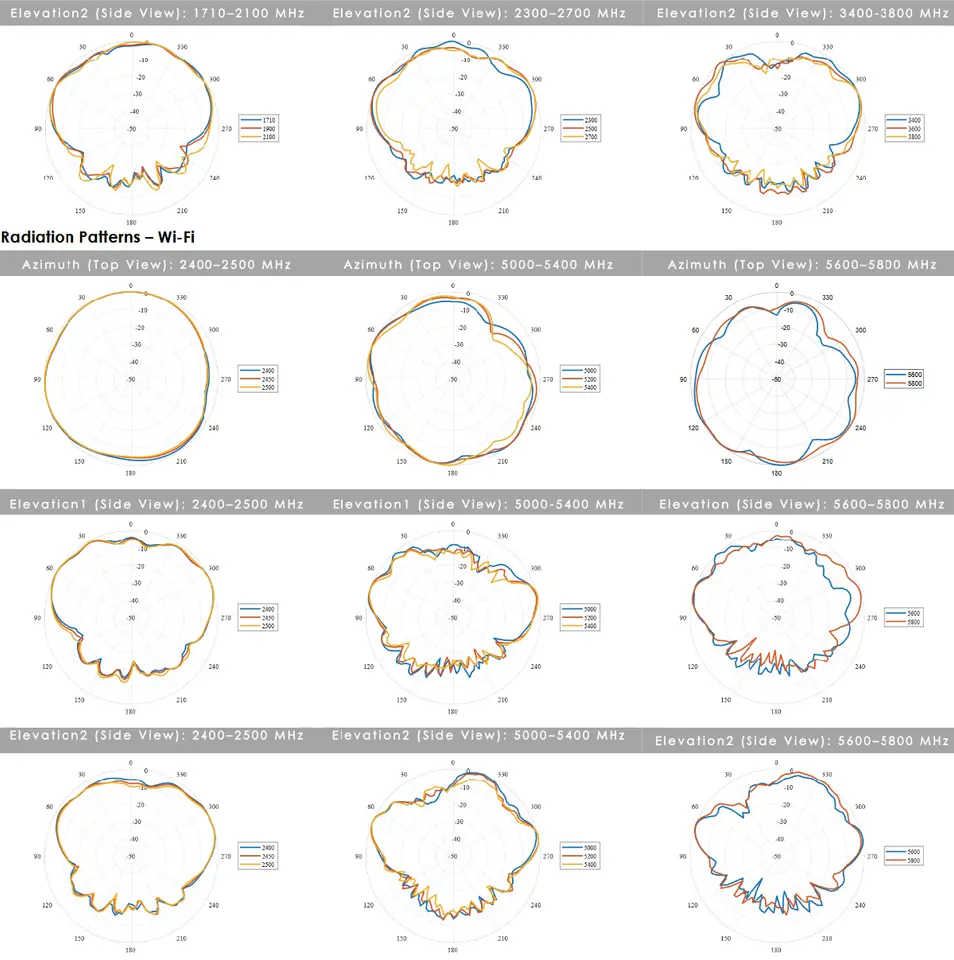

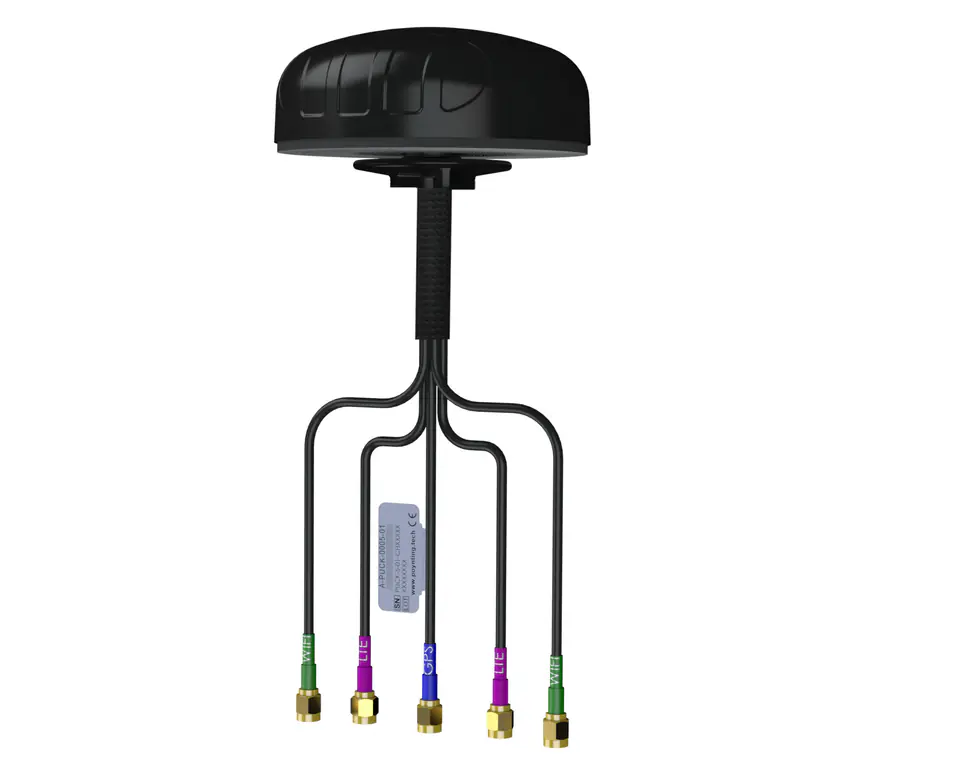

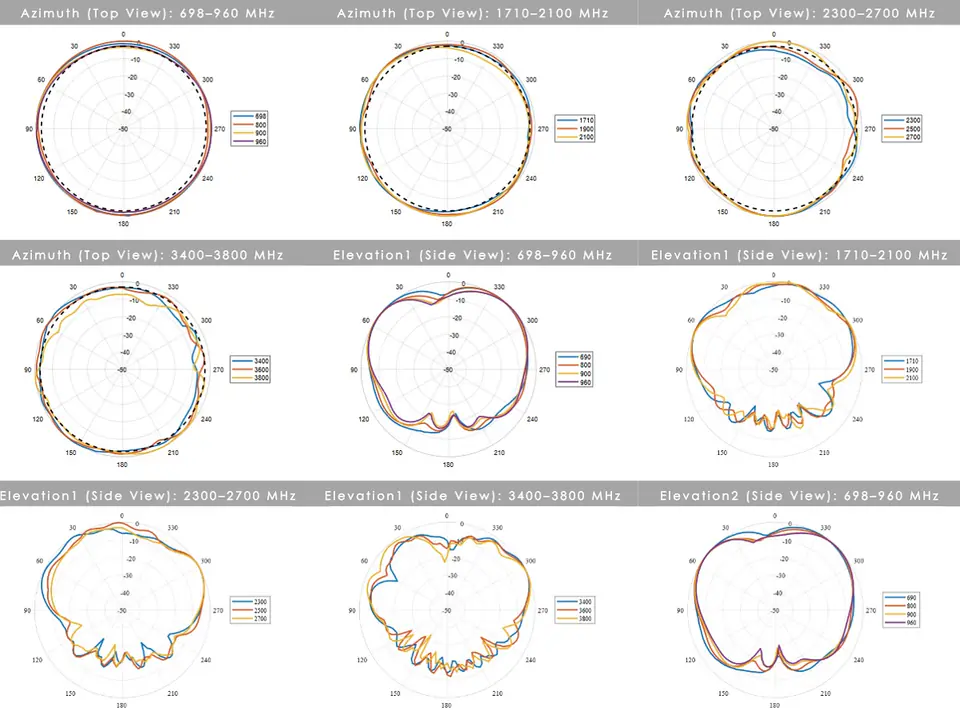

Poynting's new PUCK antenna offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine, and Agro-Agricultural markets. The PUCK-5 consists of a 5-in-1 antenna system in one housing, equipped with 2X2 MIMO LTE, 2X2 MIMO Wi-Fi (dual-band 2.4GHz and 5GHz) and GPS/GLONASS. 2x Cellular MIMO antennas (for 2G / 3G / 4G) cover the band from 698 MHz to 3800 MHz, including the most popular international LTE bands. The antenna provides two separate dual-band Wi-Fi antennas offering simultaneous 2.4GHz and 5GHz bands, supporting 802.11ni 802.11ac/ax with 2 × 2 MIMO. The fifth antenna is a high-performance, active GPS/GLONASS system operating at temperatures down to -40ºC. PUCK outperforms the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, variety of patterns and good radiation abilities at the desired height, which is often overlooked in antennas of such small size. Despite its small size, this antenna provides excellent performance, especially in higher frequency bands, where performance is crucial for LTE throughput and connection stability. This antenna is designed so that both LTE ports are connected to your router/device to ensure the best performance. Take a look at other derivatives of the PUCK series that are more suitable for SISO applications.
- High performance multi-frequency LTE 5 in 1
- 2G / 3G / 4G / LTE antenna (5G ready)
- LTE (2X2 MIMO), dual-band Wi-Fi (2X2 MIMO), GPS / GLONASS
- Broadband frequency range, including CBRS 3.5 GHz band
- Independent of ground plane
- Robust, vandal-proof and waterproof antenna housing (IP 68 rating)
- Ideal for transportation, marine and IoT/M2M applications
- Ultra-veZAtile mounting options for easy installation
- Smart tools: smart metering of energy, gas and water
- Smart buildings: air conditioning control, access control, security, irrigation
- Industrial automation, robotics and other M2M systems
- Digital Signage
- Warehouses and logistics systems
- Transport (buses, utilities and public safety)
- Communication, telemetry and automation of mining vehicles and machinery (M2M and IoT)
-Agricultural machinery
- Marine: small boats, yachts near coasts or internal waters

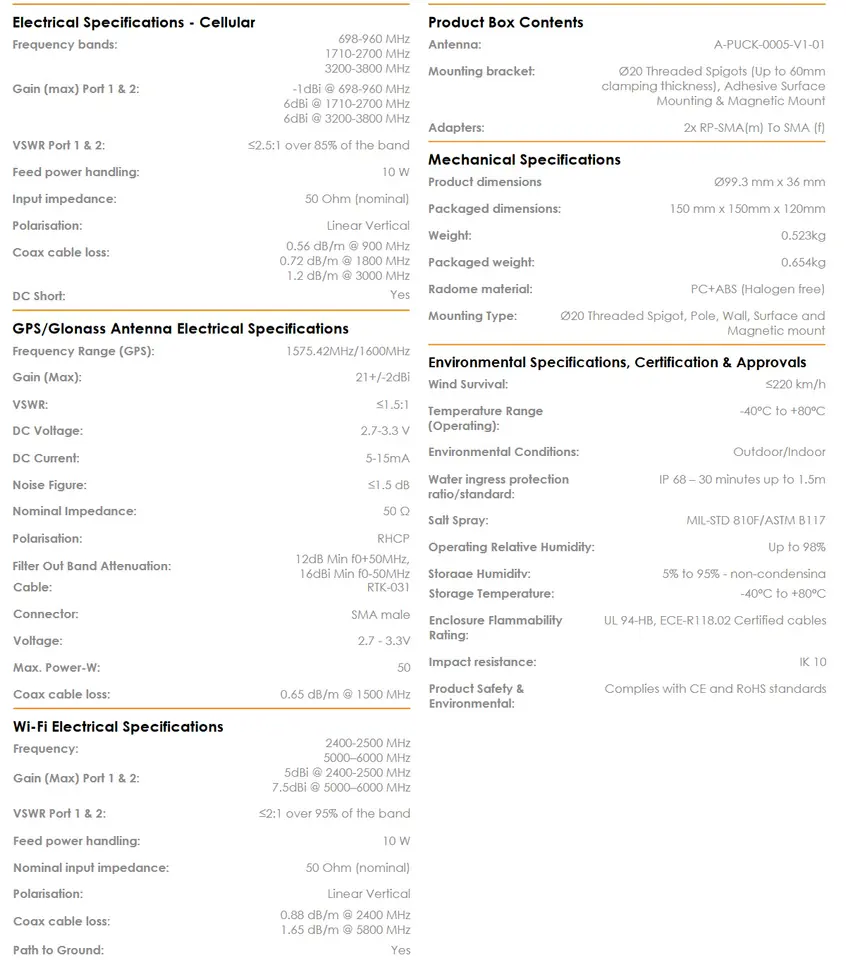

Voltage Wave Factor (VSWR)*
VSWR is a measure of the efficiency of transmitting radio frequency power from a power source through a transmission line to a load.

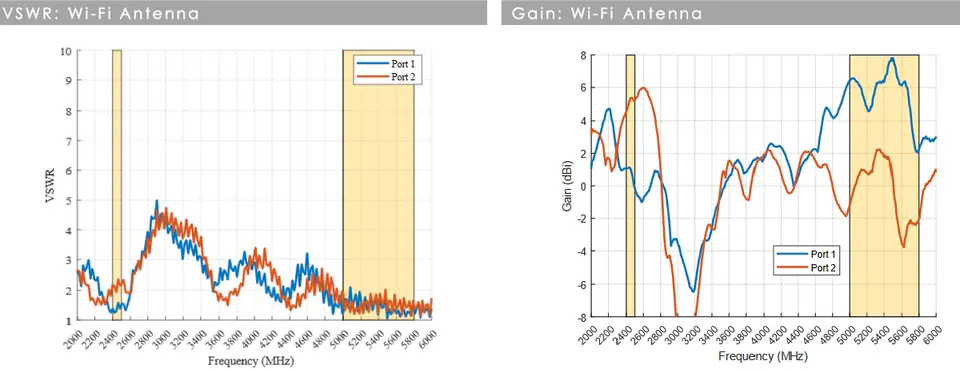

In an ideal system, 100% of the power is transmitted, which corresponds to VSWR 1:1, PUCK-5 provides excellent performance in all bands with VSWR ≤2.5:1 over 85% of the bandwidth
Gain in dBi

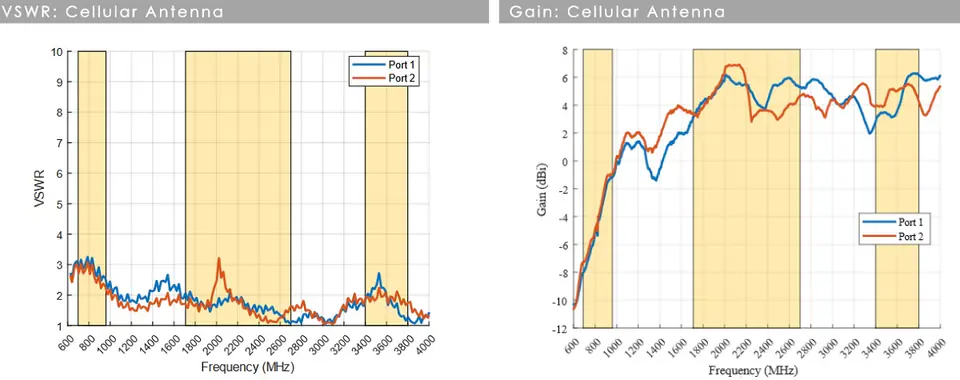

6dBi is the peak gain in all bands from 698-960, 1710-2700 and 3400-3800 MHz
7.5dBi is the peak gain in all bands from 2400-2500, 5000-5800 MHz
- Gain at 698–960 MHz: -1 dBi
- Gain at 1710–2700 MHz: 6 dBi
- Gain at 3400–3800 MHz: 6 dBi
- Gain at 2400-2500 MHz: 5 dBi
- Gain at 5000-5800 MHz: 7.5 dBi
link: https://youtu.be/wQ7WTtjMNPM
Links to other videos about PUCK-5: Unboxing - https://youtu.be/AfL5b7pRWbk
High voltage test PUCK - https://youtu.be/A-3FVcQjK-I
PUCK test in the wind tunnel - https://youtu.be/Yga3oqAGly0
Endurance test - https://youtu.be/MS_gkMZ26tE
Constructing 4x4 MIMO solutions - https://youtu.be/YsRRjBAfX4k

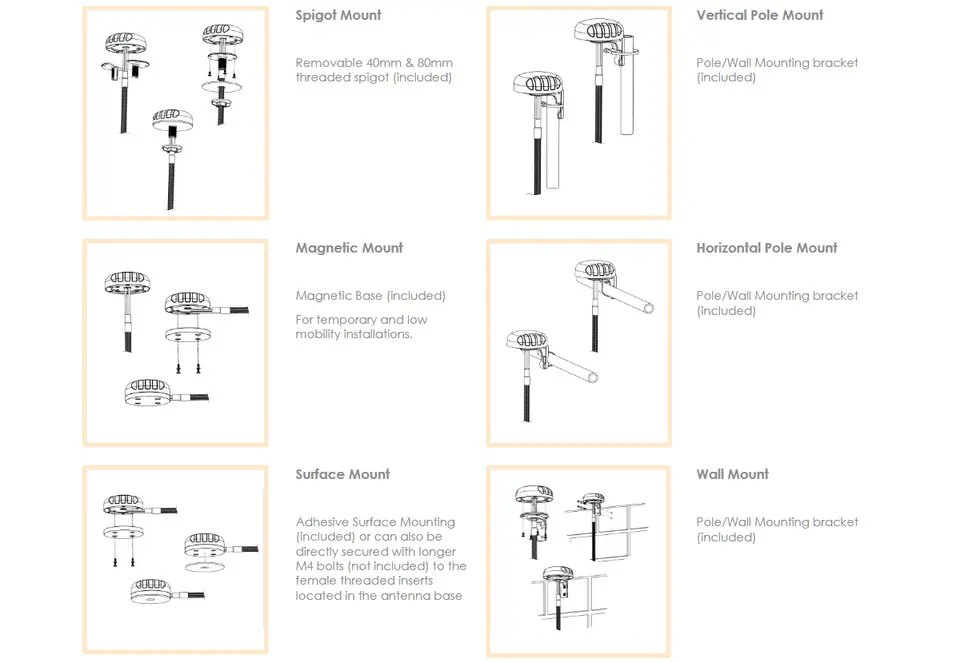

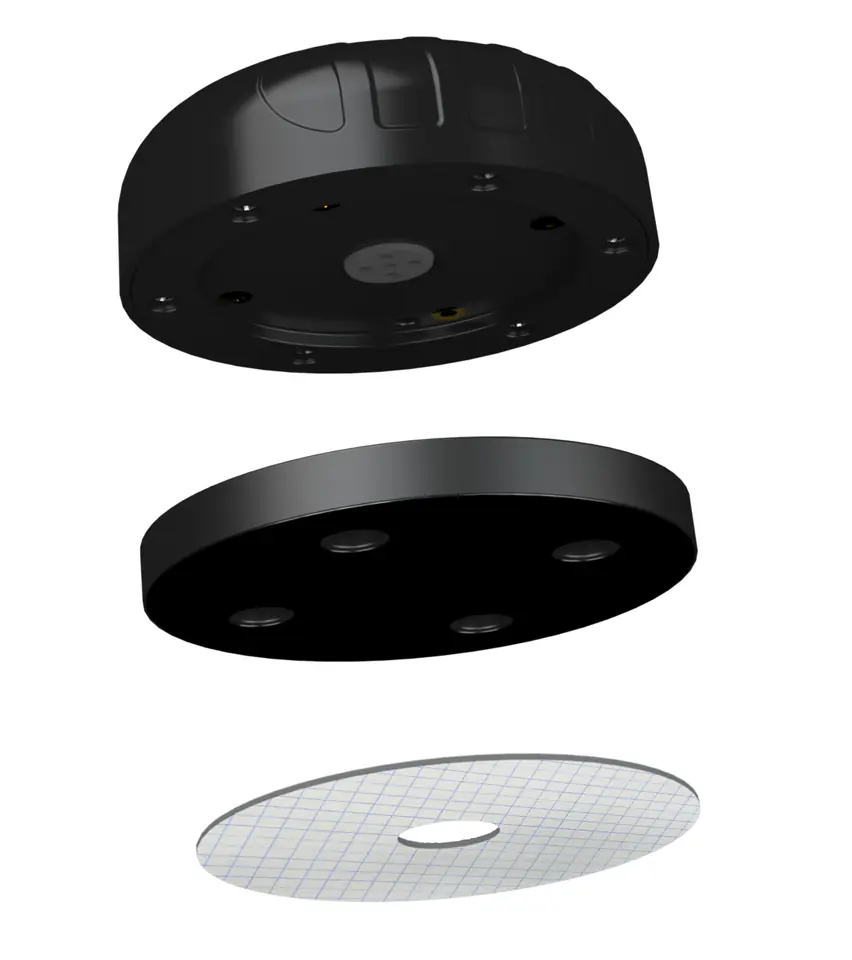

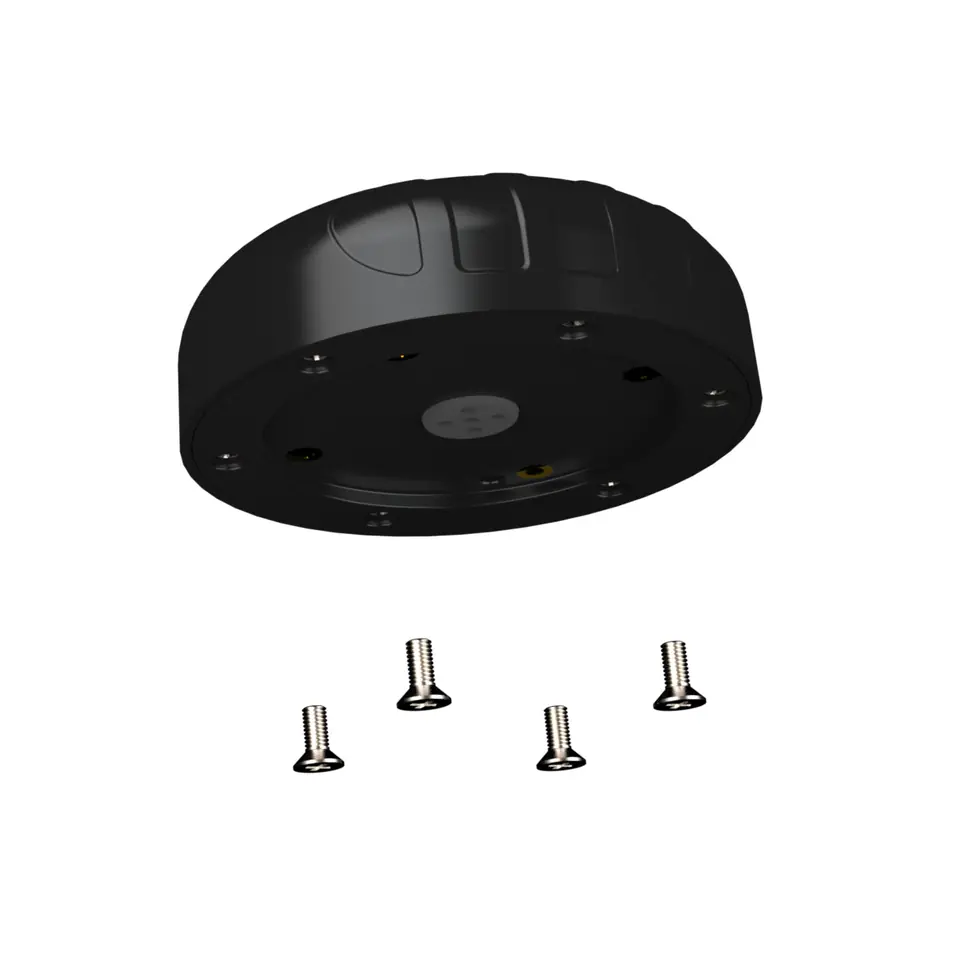

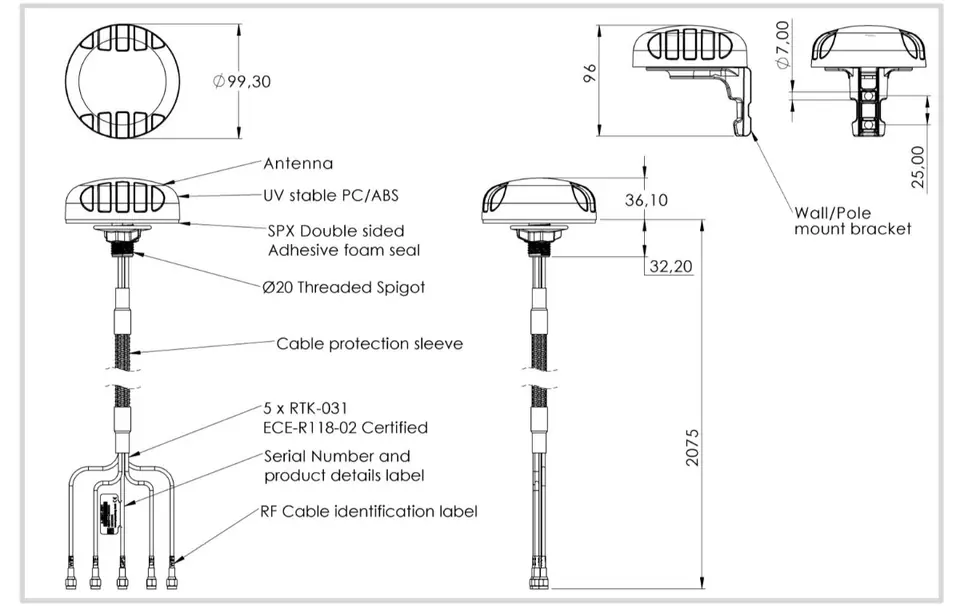

The new PUCK antenna series from Poynting ensures easy installation with many mounting options. This includes as standard:
- Pinch mount - two different lengths included (40 mm and 80 mm)
- Installation on a vertical post (internal and external installation for smaller and larger poles)
- Horizontal pole mounting (e.g. marine rails)
- Magnetic mount
- Surface mounting (double-sided tape)
- Wall mounting
Click here for full antenna technical documentation.
