Poynting PUCK-4 2X2 LTE (MIMO) 6dBi GPS/GLONASS 21 dBi Omnidirectional Broadband Omnidirectional Antenna
Poynting's new PUCK series offers small profile antennas for use in IoT/M2M, smart meters, smart utilities, transportation, shipping, and agriculture. The PUCK-4 consists of a 3-in-1 antenna system in one housing, equipped with 2X2 MIMO LTE and GPS/GLONASS. 2X2 Cellular MIMO antennas (for 2G/3G/4G) support the 698 to 3800MHz band, including the most popular international LTE bands. The third antenna is a high-performance, active GPS/GLONASS system operating at temperatures down to -40ºC. PUCK outperforms the performance of many competitors thanks to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, variety of patterns and good radiation abilities at the desired height, which is often overlooked in antennas of such small size. Despite its small size, this antenna provides excellent performance, especially in higher frequency bands, where performance is crucial for LTE throughput and connection stability. This antenna is designed so that both LTE ports are connected to your router/device to ensure the best performance. Take a look at other derivatives of the PUCK series that are more suitable for SISO applications.

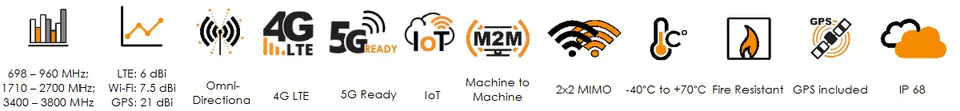

- High-performance 3-in-1 multi-frequency antenna
- 2G / 3G / 4G / LTE and 5G antenna

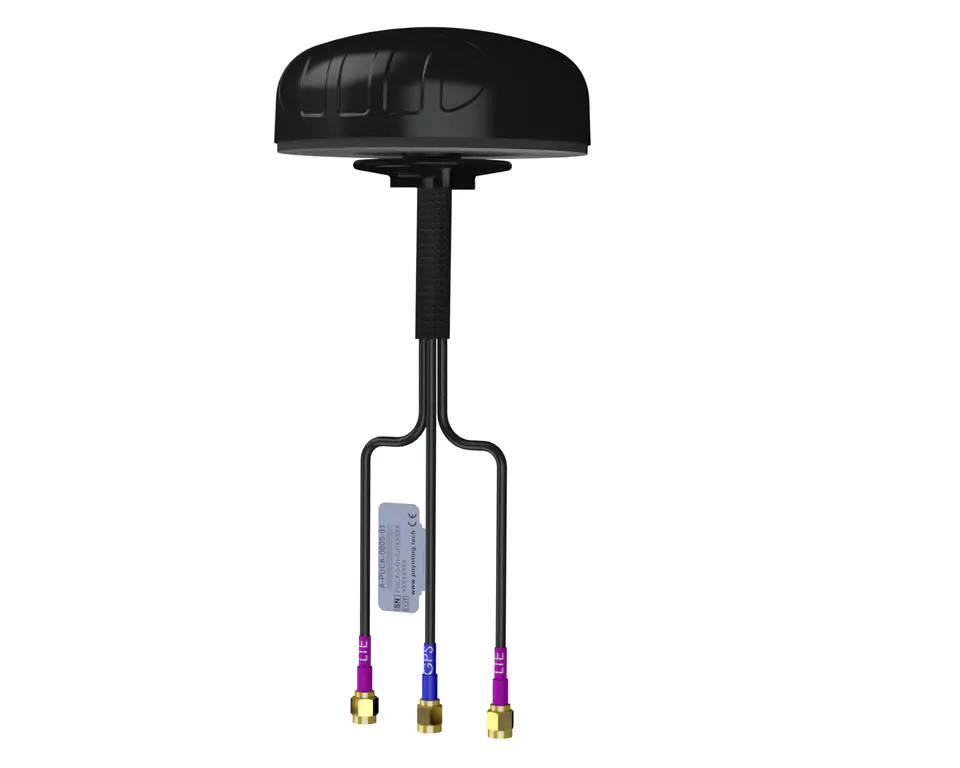

- LTE (2X2 MIMO) and GPS/GLONASS
- Broadband frequency range, including CBRS band
- Antenna independent of the ground plane
- Robust, vandal-proof and waterproof antenna housing (IP 68 rating)
- Ideal for transportation, marine and IoT/M2M applications
- Ultra-veZAtile mounting options for easy installation
- Smart tools: smart metering of energy, gas and water
- Smart buildings: air conditioning control, access control, security, irrigation
- Industrial automation, robotics and other M2M systems
- Digital Signage
- Warehouses and logistics systems
- Transport (buses, utilities and public safety)
- Communication, telemetry and automation of mining vehicles and machinery (M2M and IoT)
-Agricultural machinery
- Marine: small boats, yachts near coasts or internal waters

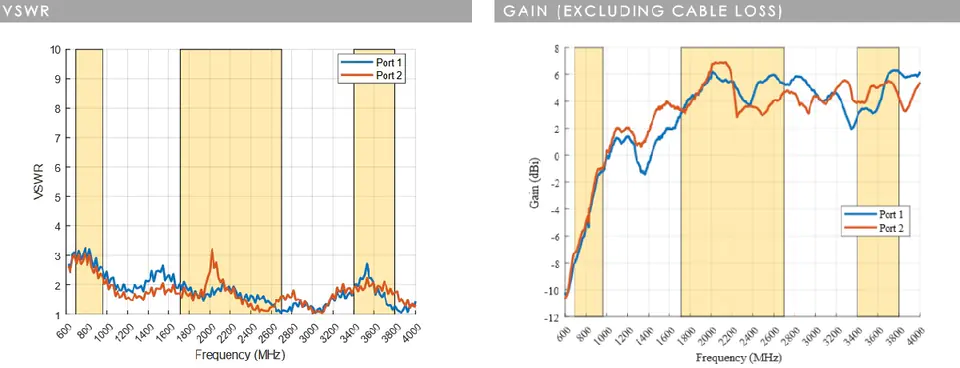

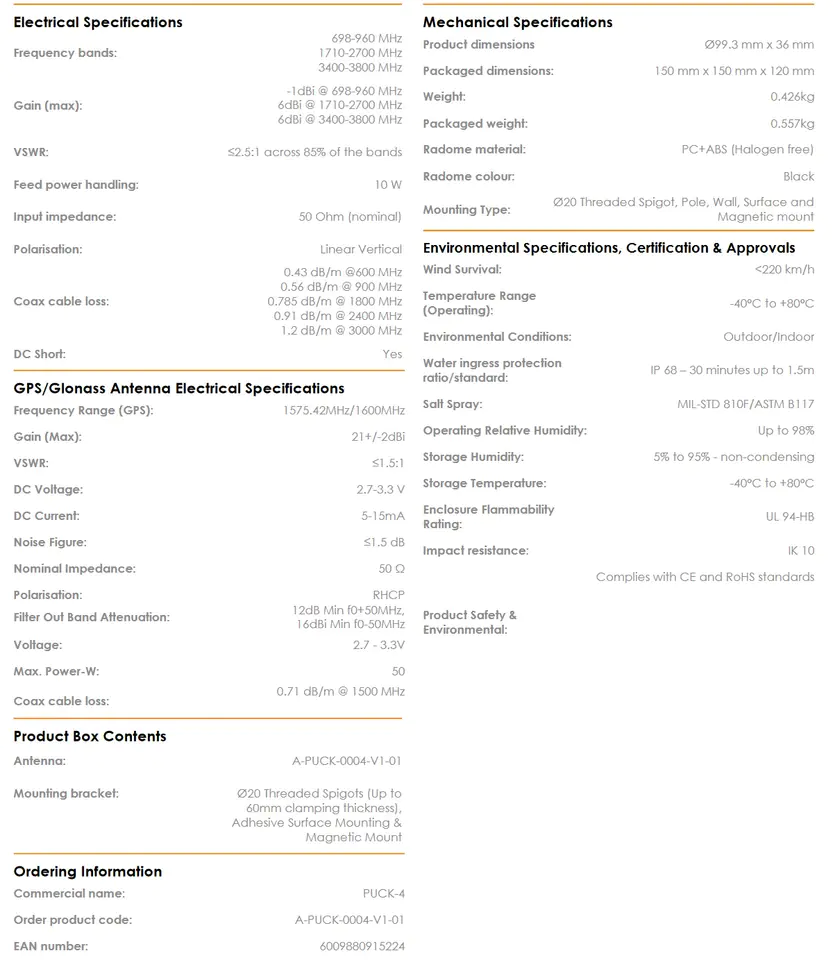

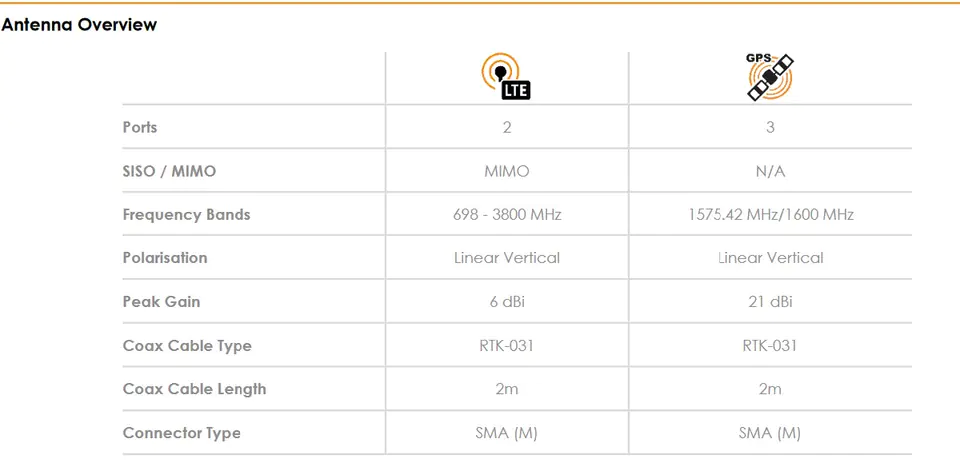

Voltage Wave Factor (VSWR)*
VSWR is a measure of the efficiency of transmitting radio frequency power from a power source through a transmission line to a load.
In an ideal system, 100% of the energy is transmitted, which corresponds to a VSWR of 1:1. PUCK-4 provides excellent performance on all bands with VSWR 2.5:1 or better in 85% of bands

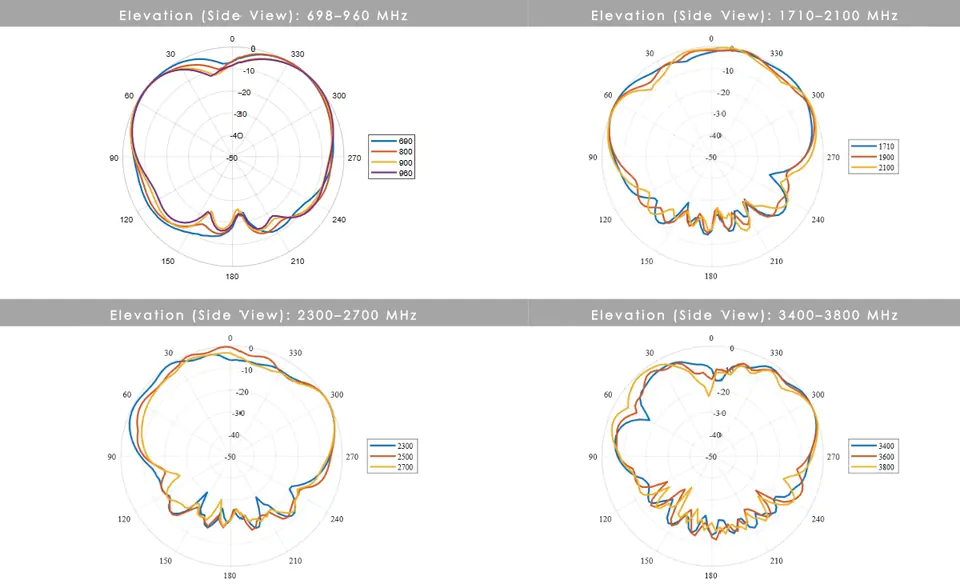

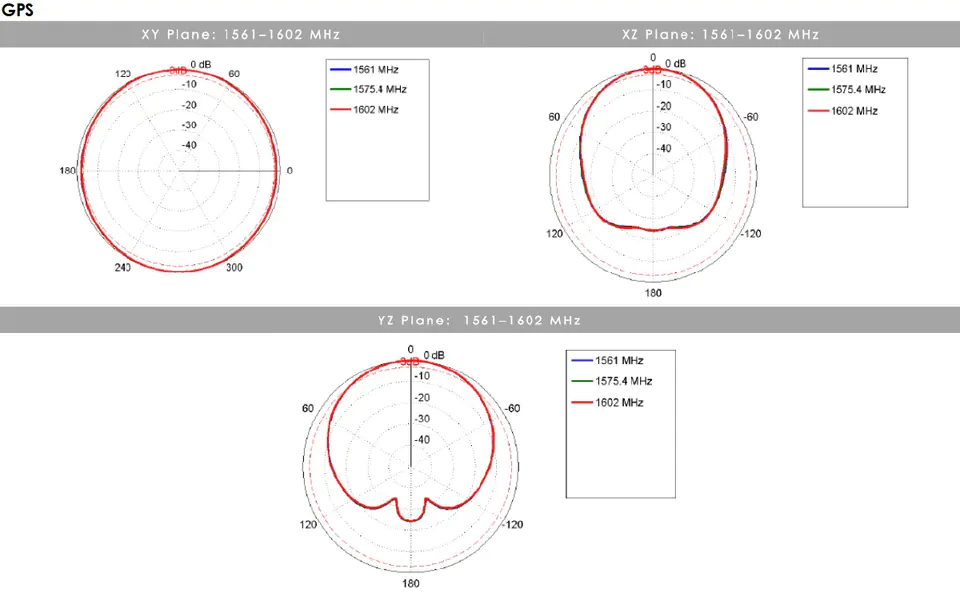

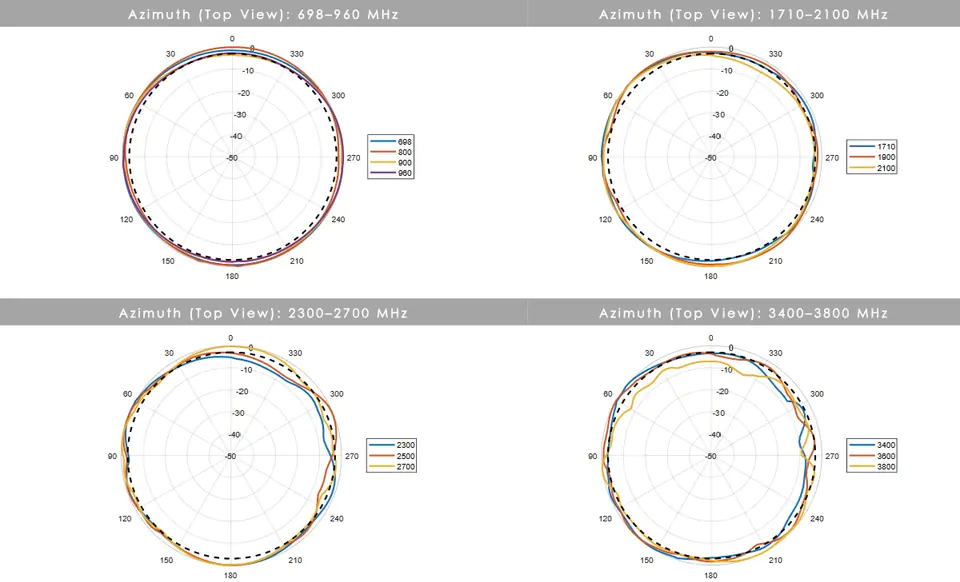

Gain in dBi
6dBi is the peak gain in all bands from 698-3800 MHz
- Gain at 698–960 MHz: -1 dBi
- Gain at 1710–2700 MHz: 6 dBi
- Gain at 3400–3800 MHz: 6 dBi
link: https://youtu.be/wQ7WTtjMNPM
Links to other videos about PUCK-2: Unboxing - https://youtu.be/AfL5b7pRWbk
High voltage test PUCK - https://youtu.be/A-3FVcQjK-I
PUCK test in the wind tunnel - https://youtu.be/Yga3oqAGly0
Endurance test - https://youtu.be/MS_gkMZ26tE
Building 4x4 MIMO solutions - https://youtu.be/YsRRjBAfX4k

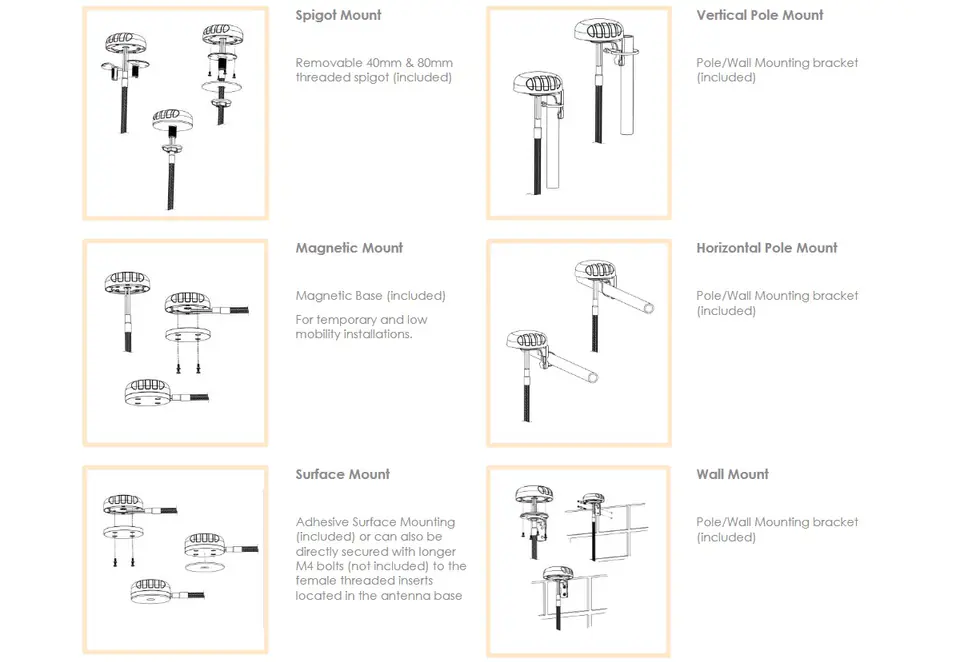

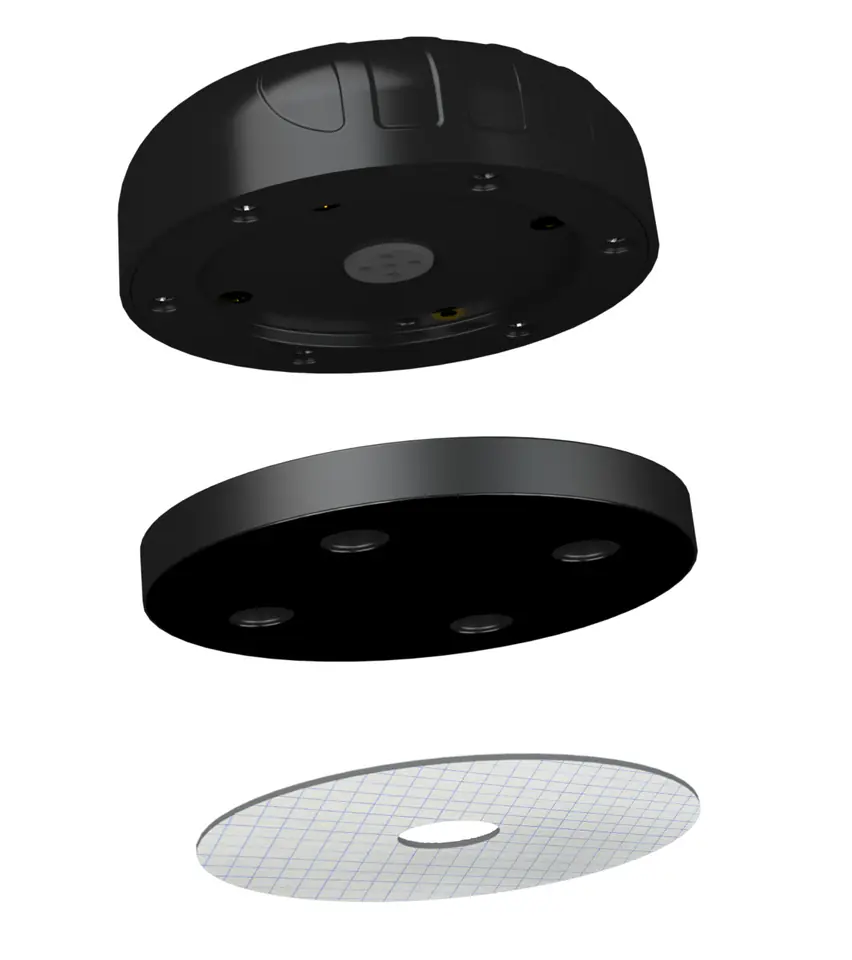

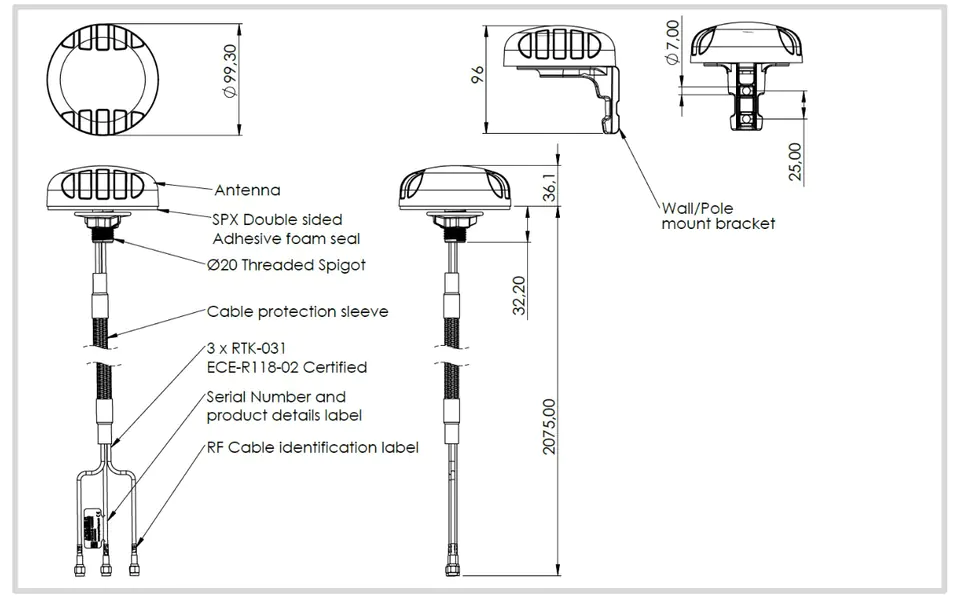

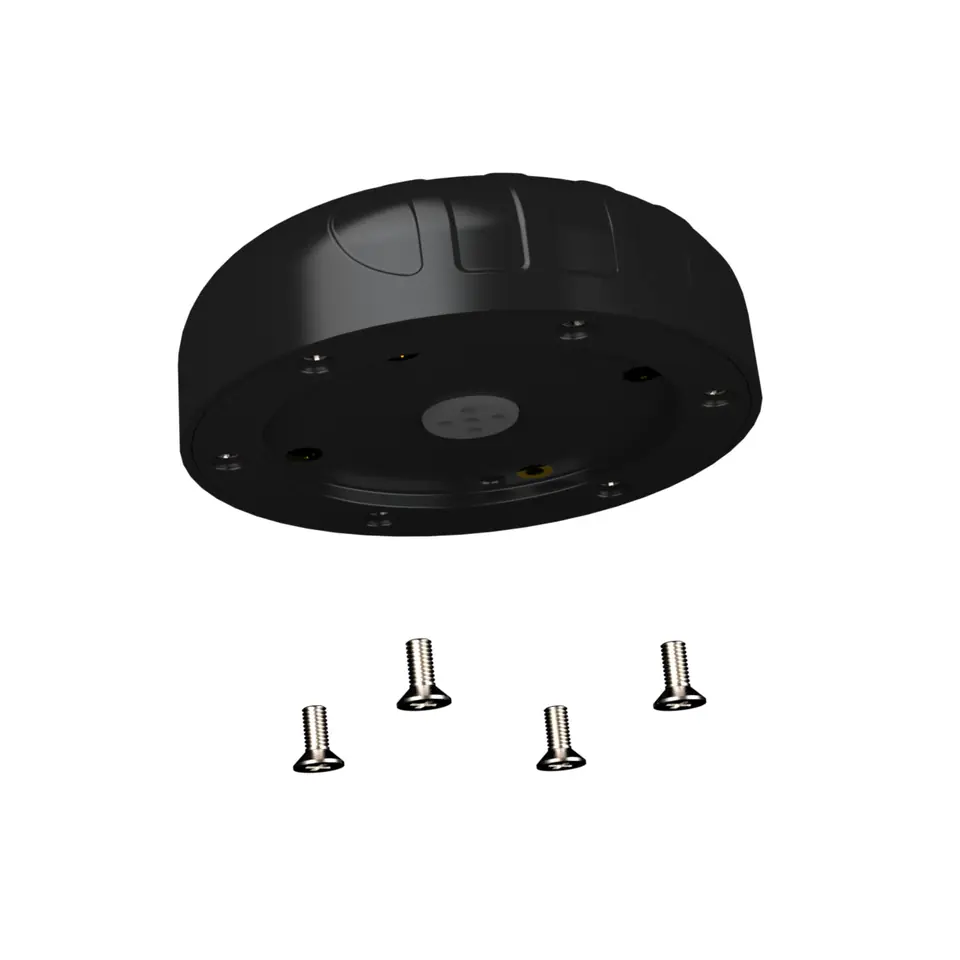

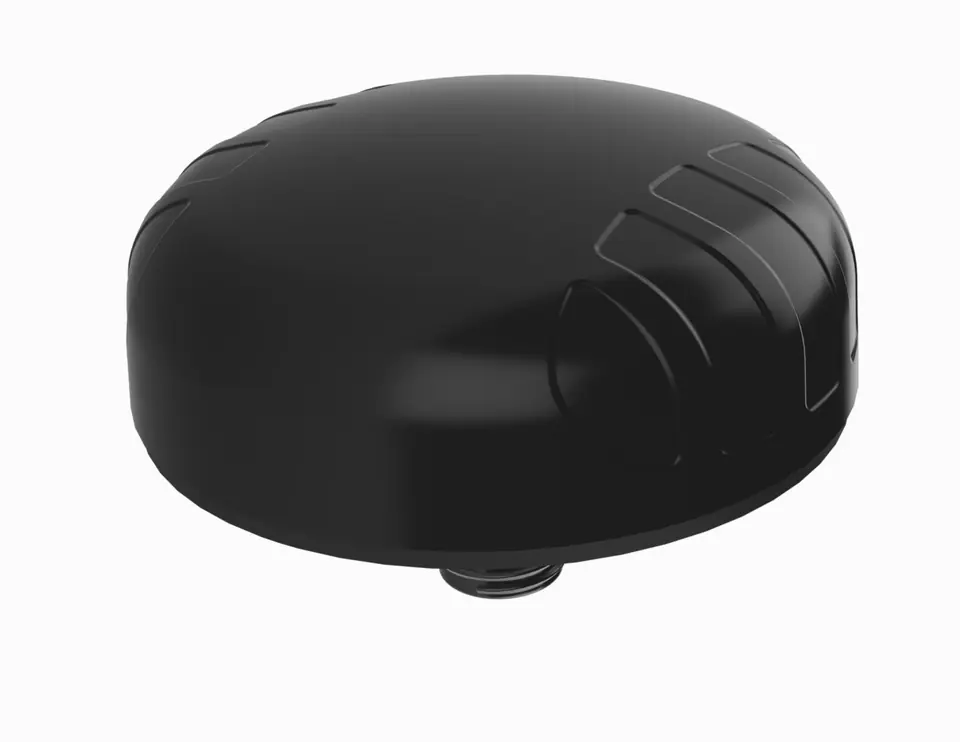

The new PUCK antenna series from Poynting ensures easy installation with many mounting options. This includes as standard:
- Pinch mount - two different lengths included (40 mm and 80 mm)
- Installation on a vertical post (internal and external installation for smaller and larger poles)
- Horizontal pole mounting (e.g. marine rails)
- Magnetic mount
- Surface mounting (double-sided tape)
- Wall mounting
Click here for full antenna technical documentation.
