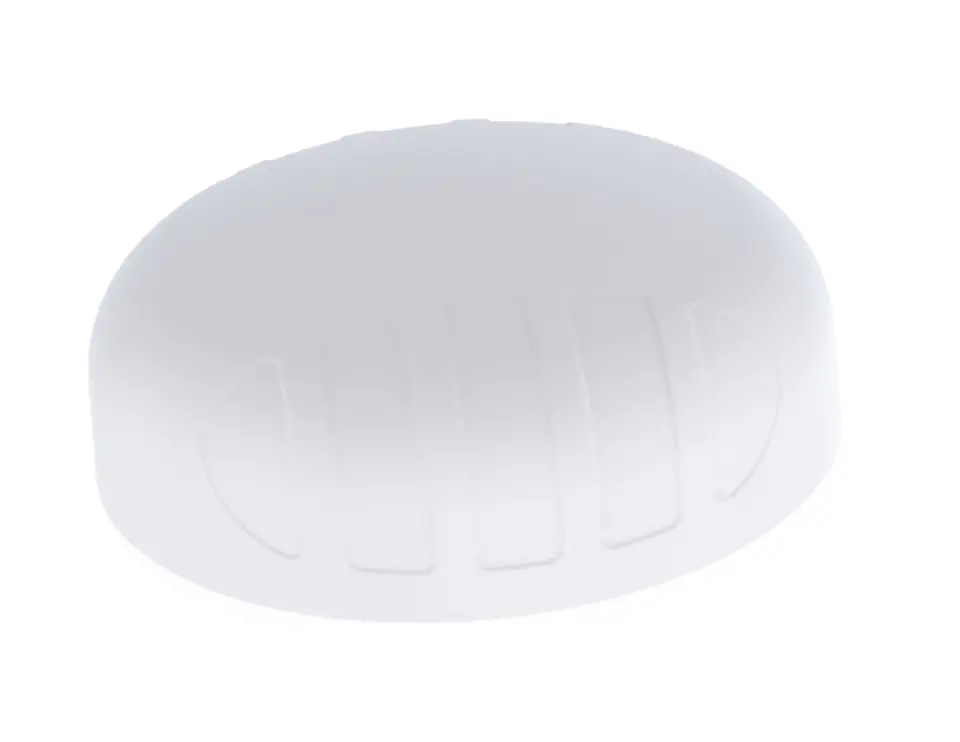

Wideband panel omnidirectional antenna Poynting PUCK-2 LTE MIMO 6 dBi

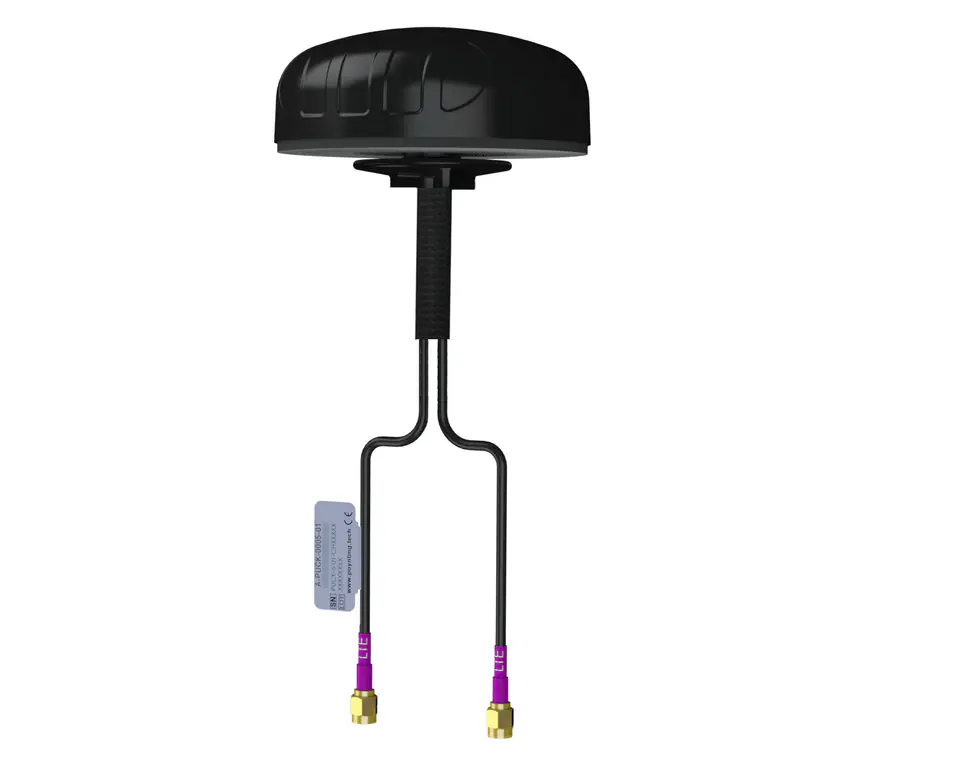

Poynting's new PUCK series offers small profile panel antennas for use in IoT/M2M, smart meters, smart utilities, transportation, shipping, and agriculture. The PUCK-2 consists of a 2-in-1 antenna system in one housing with 2 × 2 MIMO LTE antennas (for 2G/3G/4G), which cover the band from 698 to 3800 MHz, the most popular international LTE bands. PUCK outperforms the performance of many competitors thanks to the attention to the design of this high-performance antenna. The radiation characteristics of all radiating elements provide an excellent balance between omnidirectionality, variety of patterns and good radiation abilities at the desired altitude, which is often overlooked in antennas of such small sizes. Despite its small size, this antenna provides excellent performance, especially in the higher frequency bands, where performance is critical to LTE bandwidth and connection stability. This antenna is designed so that both LTE ports are connected to the router/device to ensure the best performance. Familiarize yourself with other derivatives of the PUCK series that are more suitable for SISO applications.

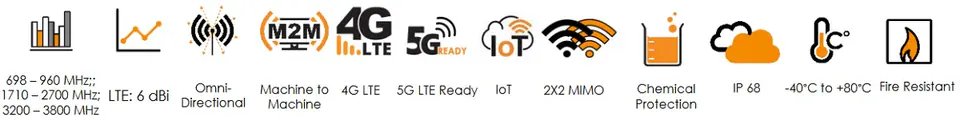

- 2in1 LTE with high performance and multi-frequency reception
- 2G / 3G / 4G / LTE antenna (5G ready)
- For LTE technology (2X2 MIMO)
- Broadband - covers a wide frequency band, including the CBRS 3.5 GHz band
- Independent of the ground plane
- Robust, vandal-proof and waterproof housing (IP 68)
- Ideal for transportation, marine and IoT/M2M applications
- Ultra-veZAtile mounting options for easy installation
- Smart tools: smart metering of energy, gas and water
- Smart buildings: air conditioning control, access control, security, irrigation
- Digital Signage
- Warehouses and logistics systems
- Industrial automation, robotics and other M2M systems
- Transport (buses, utilities and public safety)
- Communication, telemetry and automation of mining vehicles and machines (M2M and IoT)
- Agricultural machinery
- Marine: small boats, yachts near coasts or internal waters

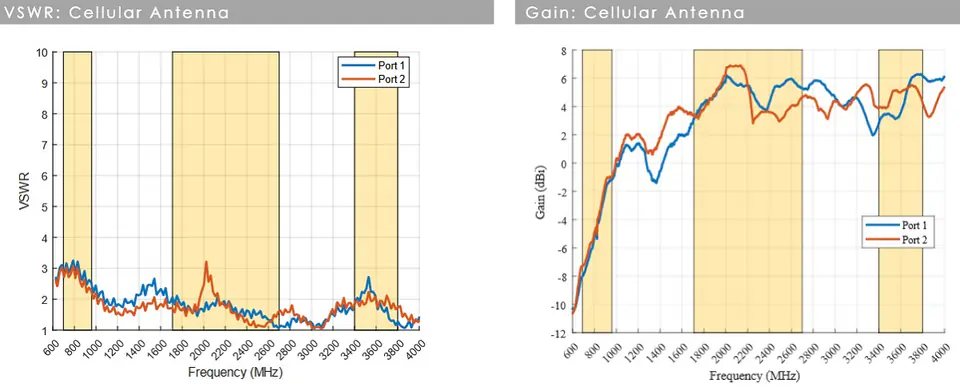

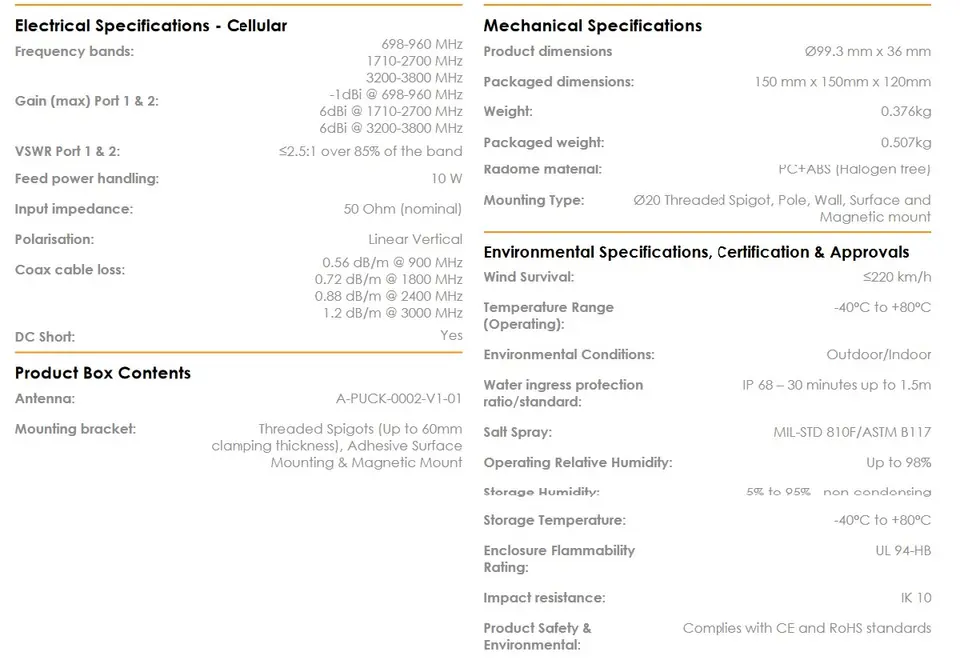

Voltage Wave Factor (VSWR)*
VSWR is a measure of the efficiency of transmitting radio frequency power from a power source through a transmission line to a load.
In an ideal system, 100% of the power is transmitted, which corresponds to VSWR 1: 1, PUCK-1 provides excellent performance in all bands with VSWR ≤2.5: 1 over 85% of the bandwidth

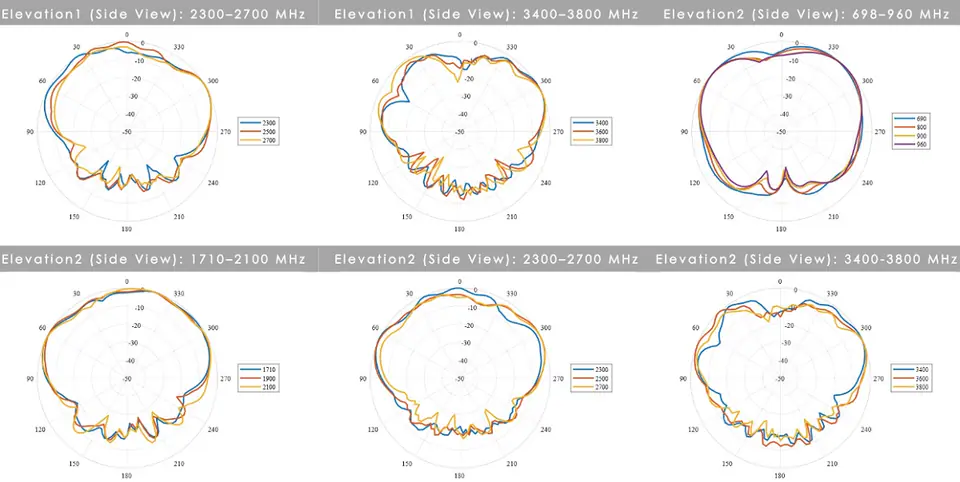

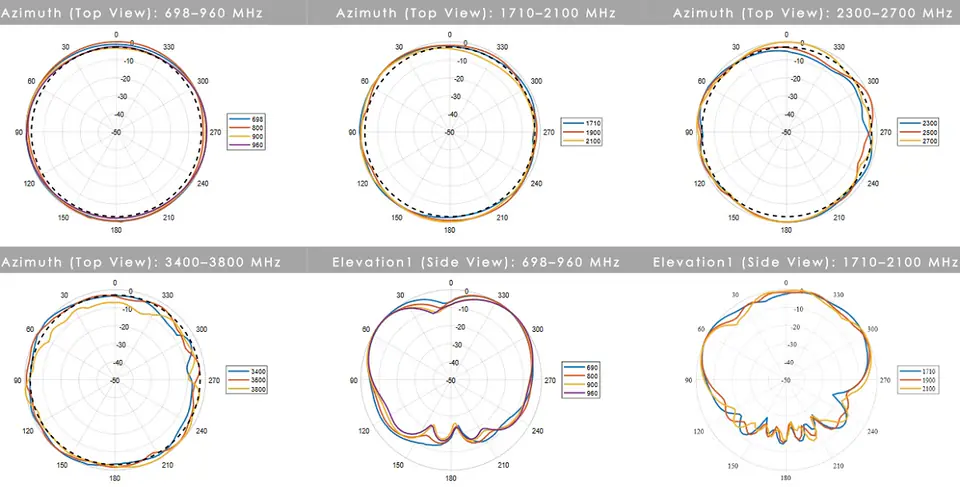

Gain in dBi
6dBi is the peak gain in all bands from 698-960,1710-2700 and 3400-3800 MHz
- Gain for different bands: -1dBi @ 698-960MHz
- Gain for different bands: 6 dBi at 1710-2700 MHz
- Gain for different bands: 6 dBi at 3400-3800 MHz
link: https://youtu.be/wQ7WTtjMNPM
Links to other videos about PUCK-2: Unboxing - https://youtu.be/AfL5b7pRWbk
PUCK High Voltage Test - https://youtu.be/A-3FVcQjK-I
PUCK wind tunnel test - https://youtu.be/Yga3oqAGly0
Endurance Test - https://youtu.be/MS_gkMZ26tE
Building 4x4 MIMO solutions - https://youtu.be/YsRRjBAfX4k

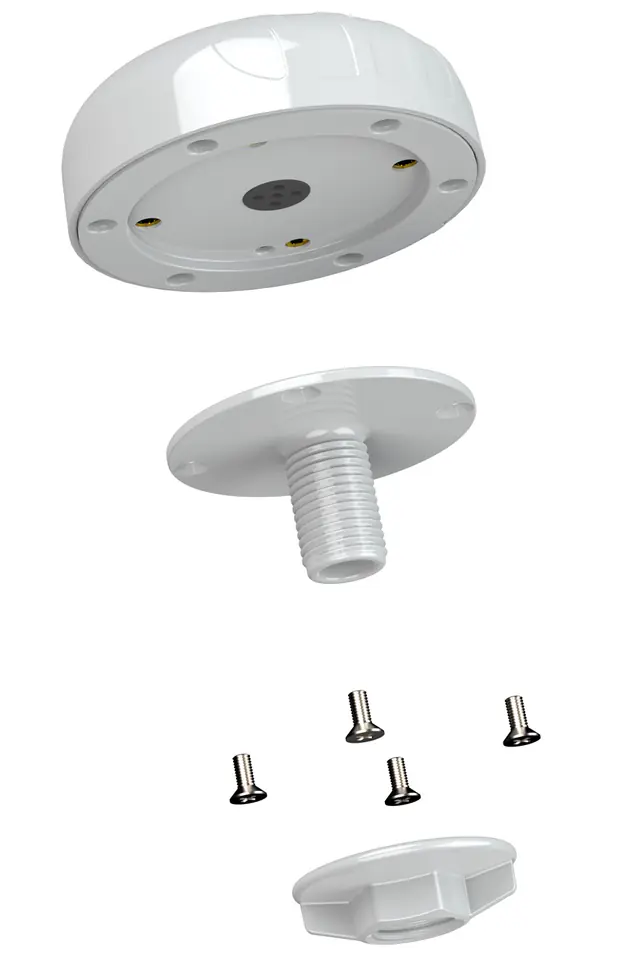

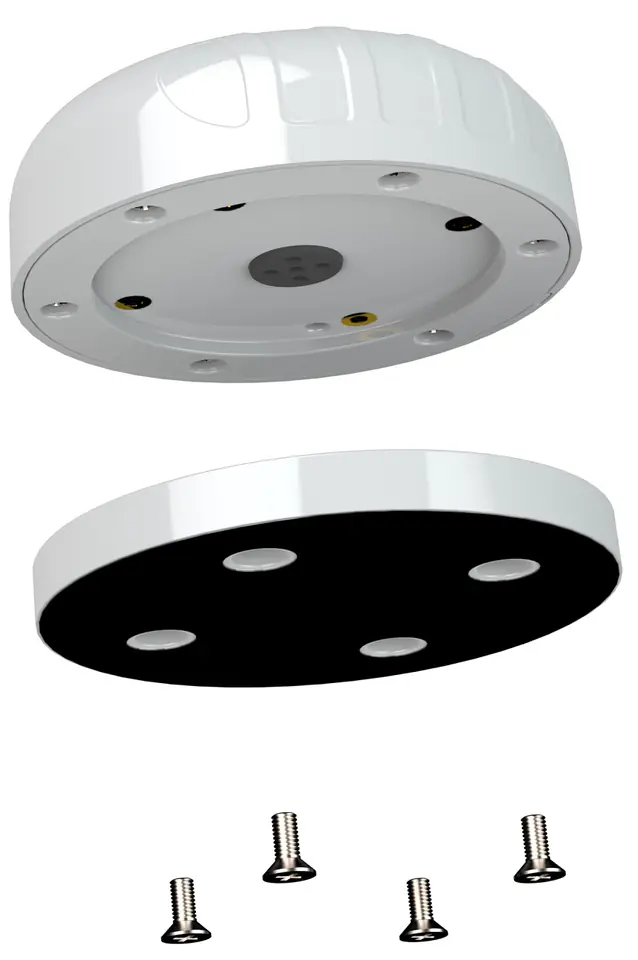

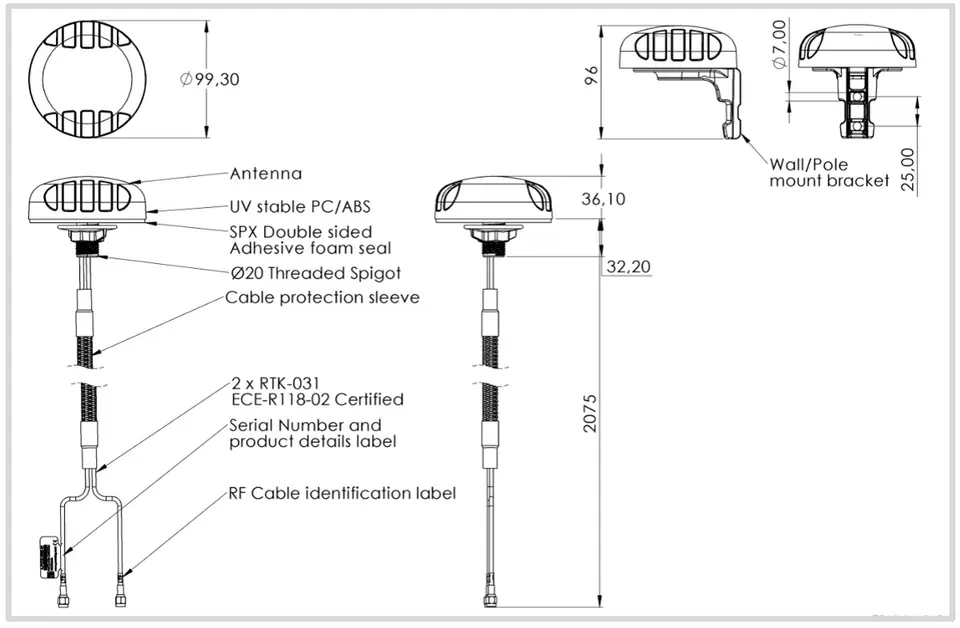

Poynting's new PUCK antenna series provides easy installation with multiple mounting options. This includes as standard:
- Attachment to the spigot - two different lengths (40 mm and 80 mm) included
- Vertical post mounting (internal and external mounting for smaller and larger poles)
- Horizontal pole mounting (e.g. sea rails)
- Magnetic mount
- Surface mounting (double-sided tape)
- Wall mount
Click here for full technical documentation of the antenna.
