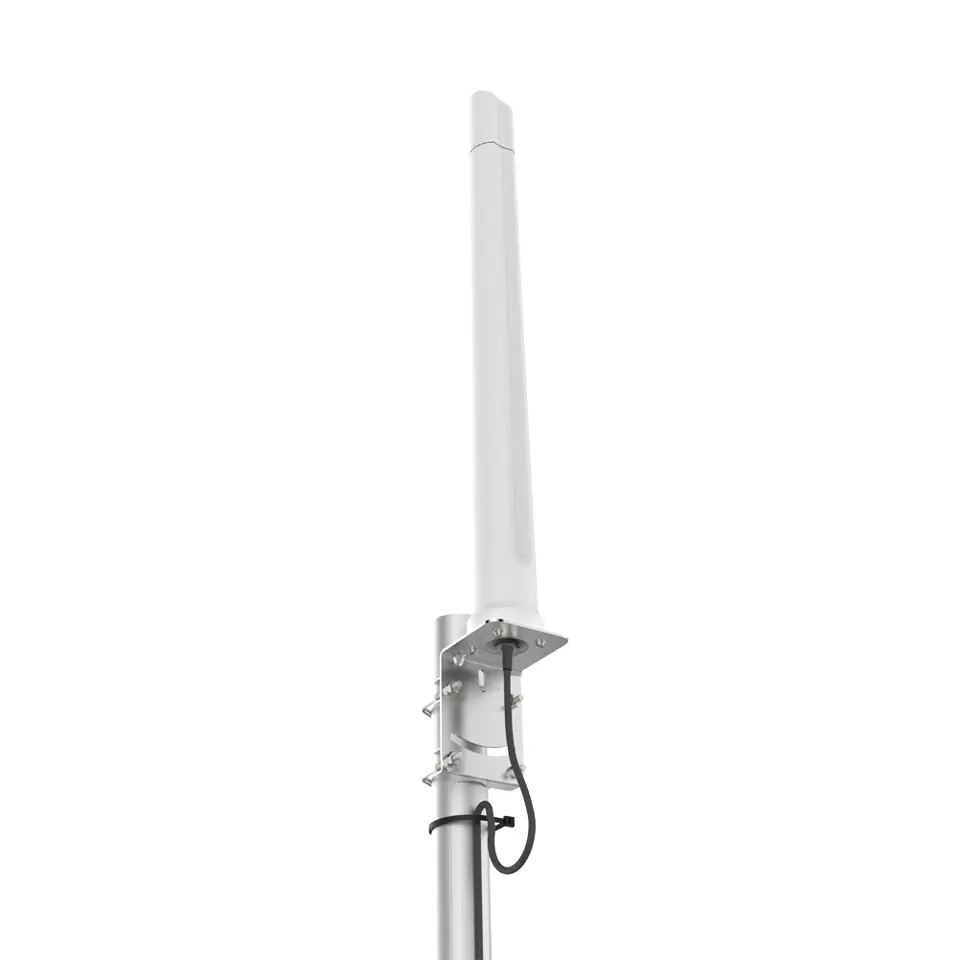

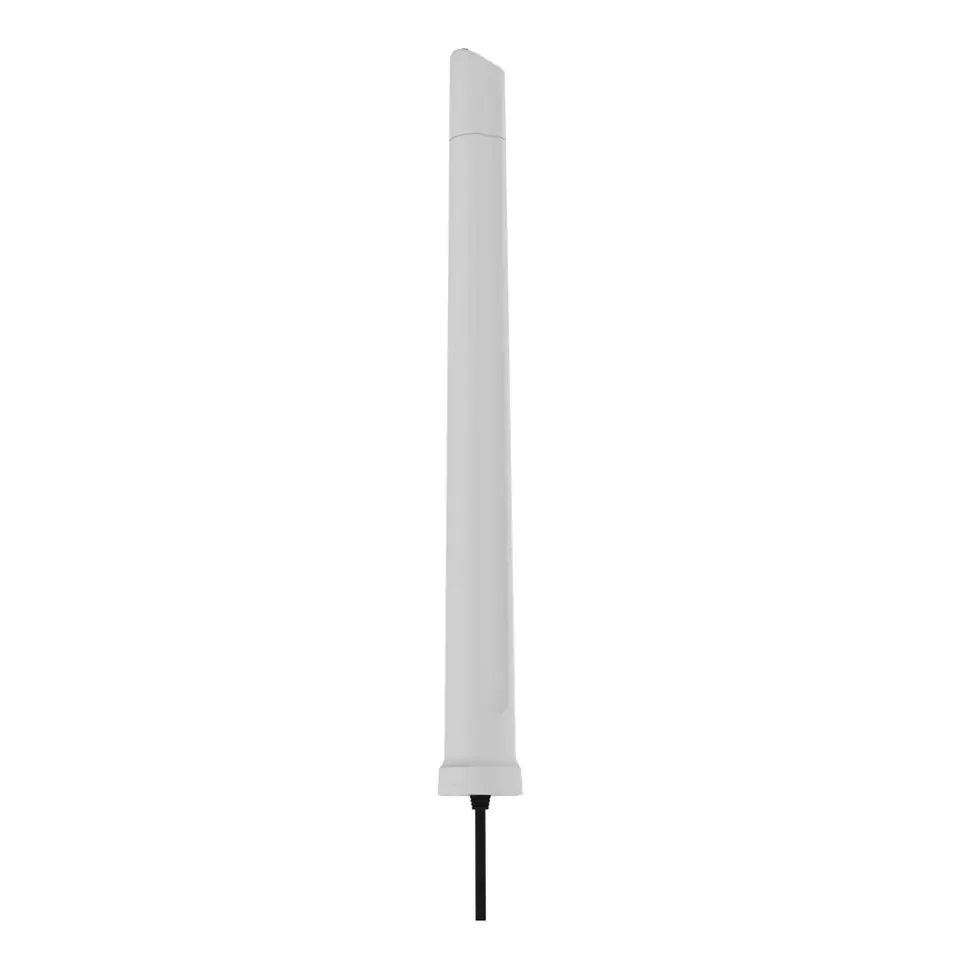

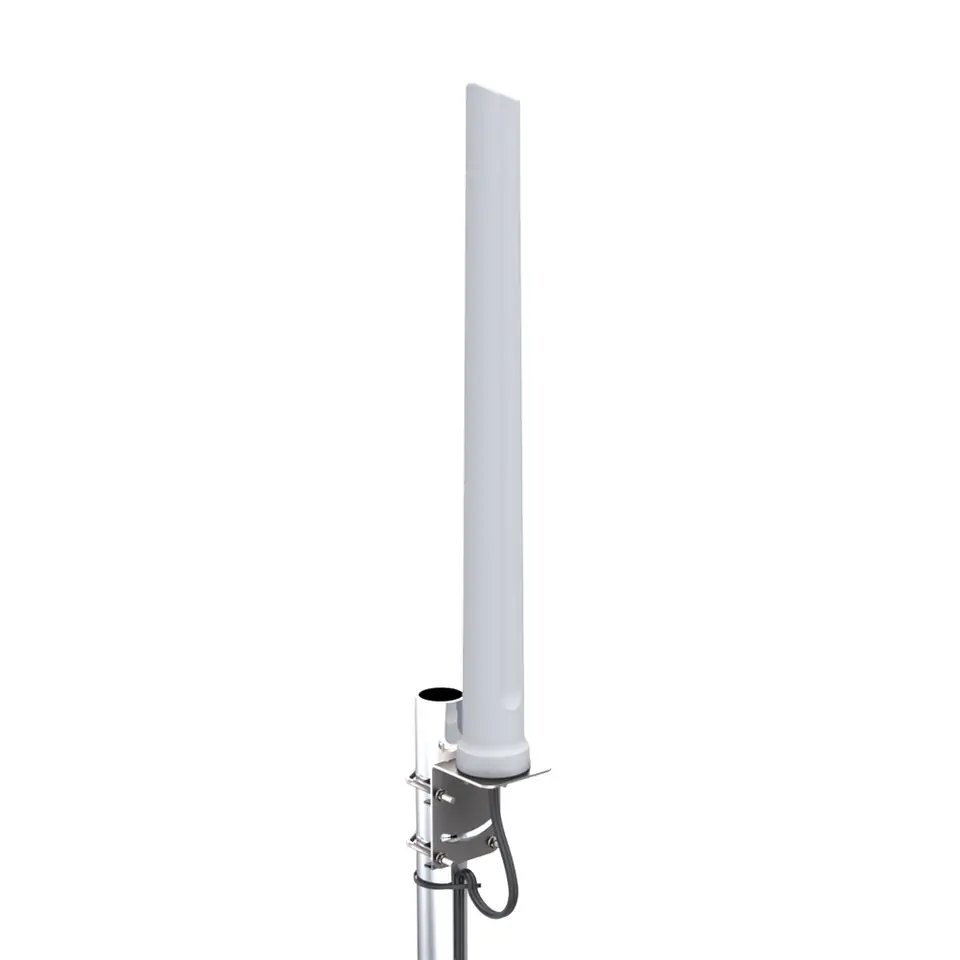

Poynting OMNI-600 Omni-directional Broadband Antenna
The OMNI-600 is a unique new design with improved 2×2 MIMO performance. The ultra-wide band covers all modern operating frequencies with excellent balanced gain at all frequencies. The antenna guarantees signal reception almost everywhere, so it can be used in all parts of the world. The OMNI-600 achieves this with a new configuration using multiple dipoles and a unique (patented) power grid. The antenna is future-proof as it supports the 450 MHz frequency and the 3.5 GHz CBRS band, which is gaining popularity in different regions and countries.
- High-performance 2X2 MIMO omnidirectional antenna
- Constant gain in a wide frequency band
- Increased connectivity stability

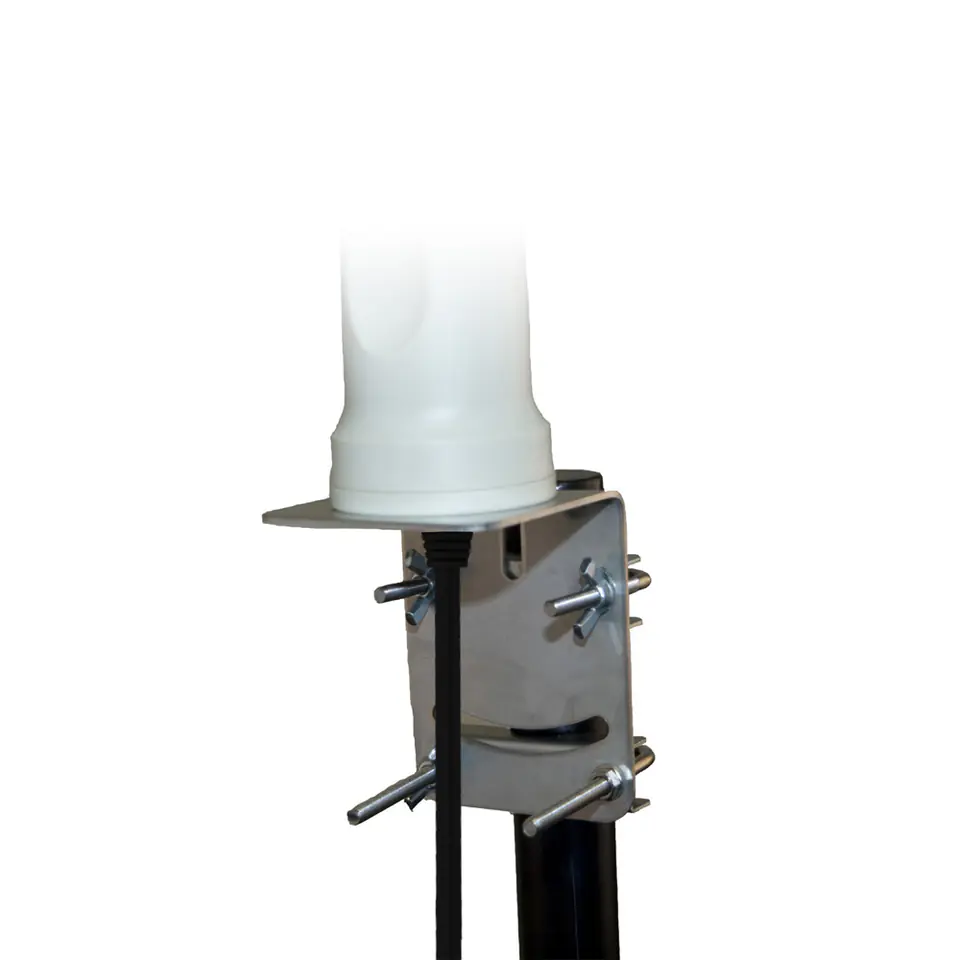

- Vandal-proof and waterproof housing
- Light & solid
- Works in the 2.4 - 2.5 GHz Wi-Fi band
- Machine to machine (M2M)
- Poor data signal reception (indoors or outdoors)
- Slow data connection
- Unstable connection
- Increases the reliability of system transmission

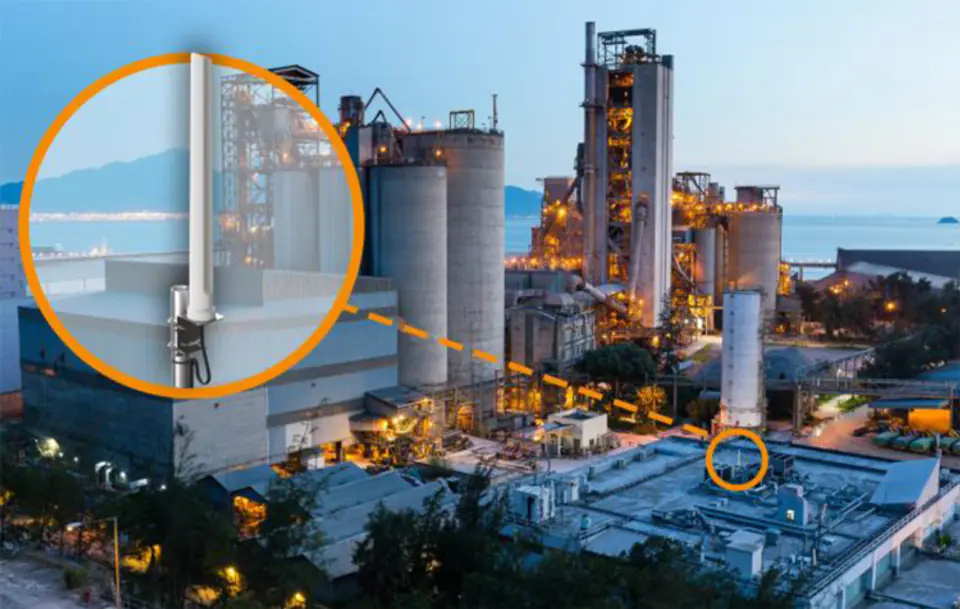

- Advanced industrial-grade router applications
- Mobile offices

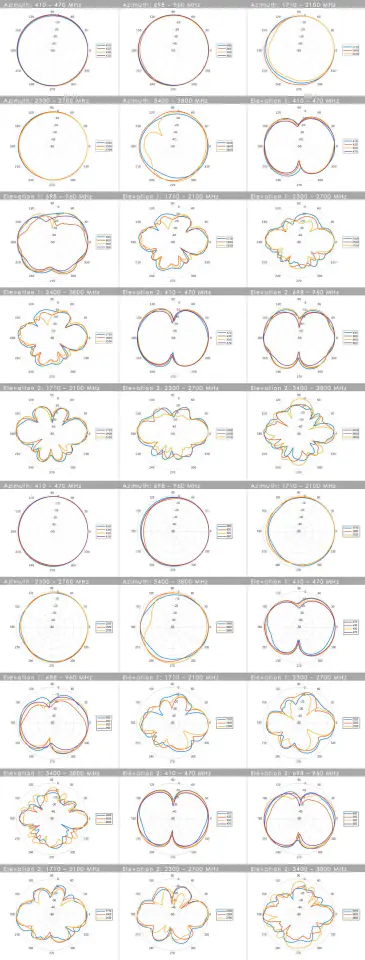

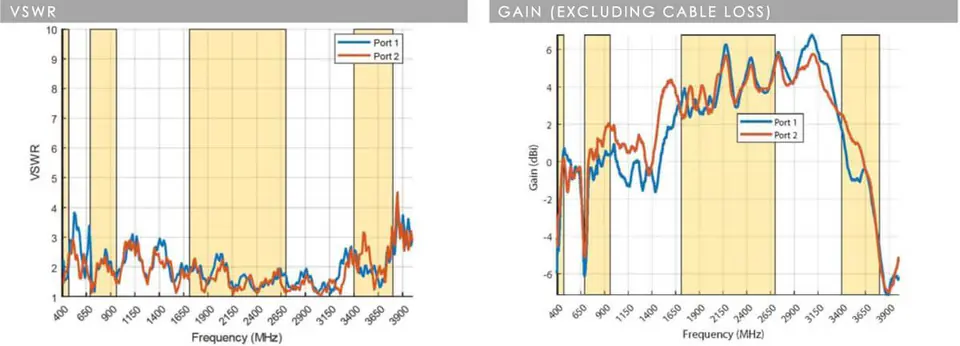

Gain* in dBi
6.2 dBi is the peak gain in all bands from 410 to 3800 MHz. (Gain at 410-470 MHz: 1 dBi; Gain at 698-960 MHz: 2 dBi; Gain at 1710-2700 MHz: 6.2 dBi; Gain at 3400-3800 Mhz: 2 dBi )
* Antenna gain measured as standard with equalized antenna polarization

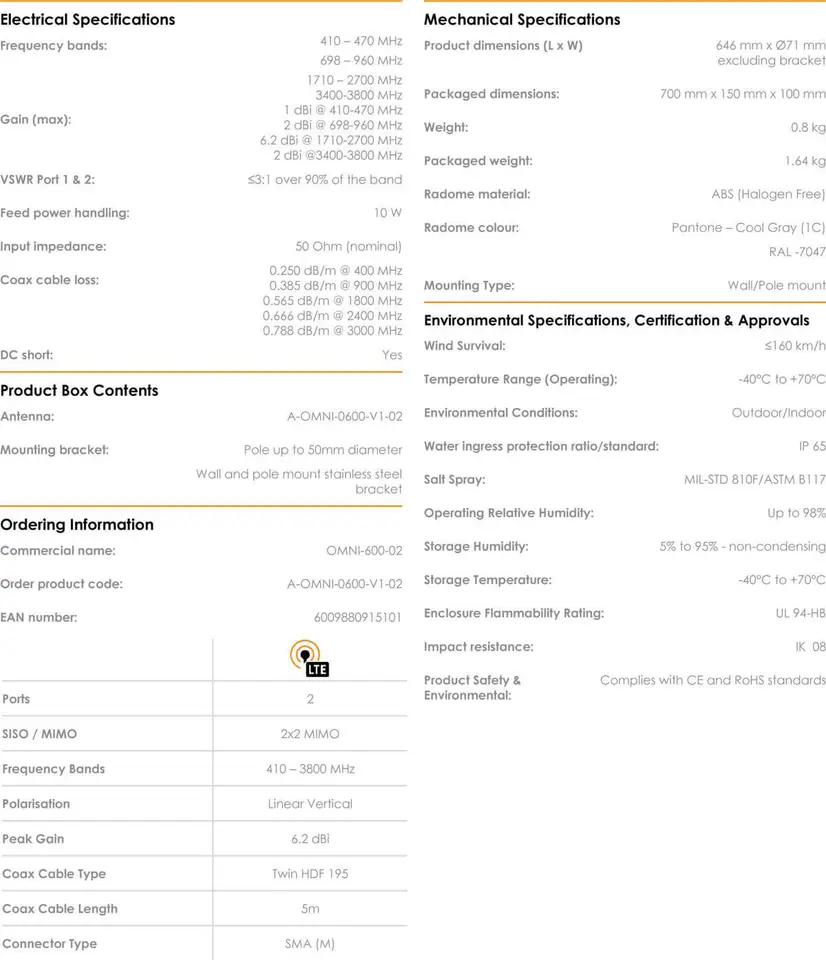

Click here for full antenna technical documentation.
