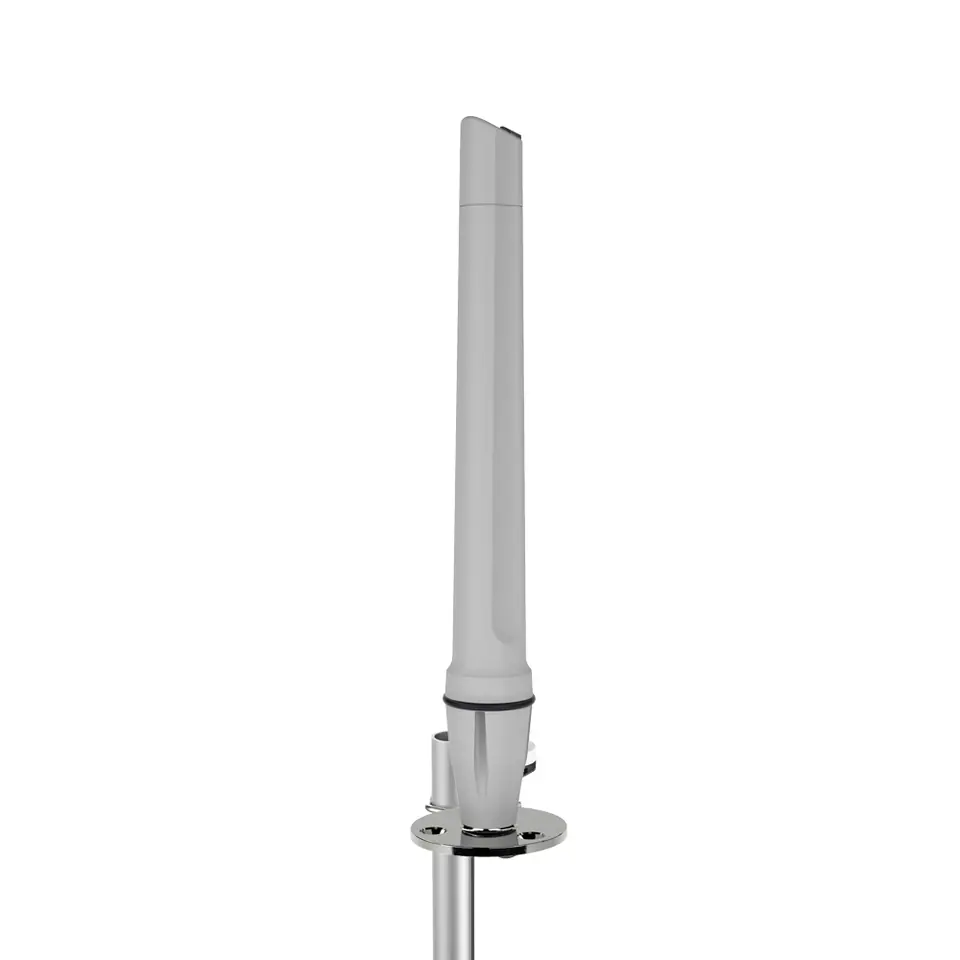

Poynting Broadband Omni-directional Antenna OMNI-291-V2
OMNI-291 is a high-performance marine antenna. It uses a standard 1-inch (14 TPI) marine mount, which greatly simplifies installation. The ultra-wide frequency band covers all modern LTE operating frequencies with excellent balanced gain on all frequencies, including the LTE and CDMA 450 MHz bands, which are typical requirements for marine applications. The OMNI-291 guarantees signal reception almost all over the coast, so it can be used in all parts of the world. Poynting antennas achieve this thanks to a new antenna configuration using multiple dipoles and a unique (patented) power grid. The antenna is future-proof as it supports the 450 MHz LTE frequency, which is becoming increasingly popular in different regions and countries!
- High-performance omnidirectional marine antenna
- Easy to install with 1" bushing, standard marine adapter
- Robust and resistant to all weather (also in harsh sea conditions (IP 68))
- UV and salt water protection
- Medium gain omnidirectional antenna
- Purpose-built antenna for marine and offshore applications
- Works in the 2.4 - 2.5 GHz Wi-Fi band
- Improved LTE reception
- IoT and M2M
- Poor data signal reception (indoors or outdoors)
- Improve the reliability and stability of your data connection
- Wi-Fi apps
Gain* in dBi
7 dBi is the peak gain in all bands from 450 to 2700 MHz. (Gain at 450-470 MHz: 2 dBi; Gain at 698-960 MHz: 2.7 dBi; Gain at 1710 - 2700 MHz: 7 dBi)
* Antenna gain measured as standard with equalized antenna polarization
link: https://www.youtube.com/watch?v=g6d4nrkdQ_o
Click here for full antenna technical documentation.
