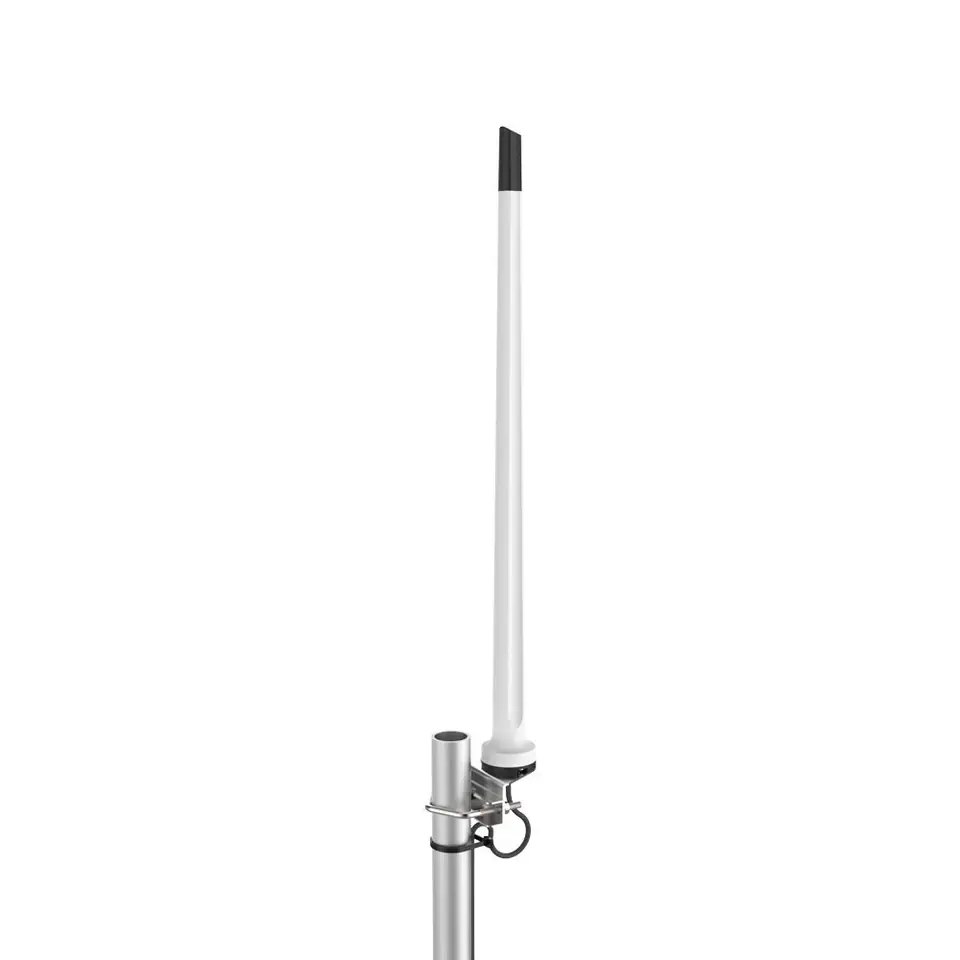

Poynting Omni-121 Omni-directional Broadband Antenna

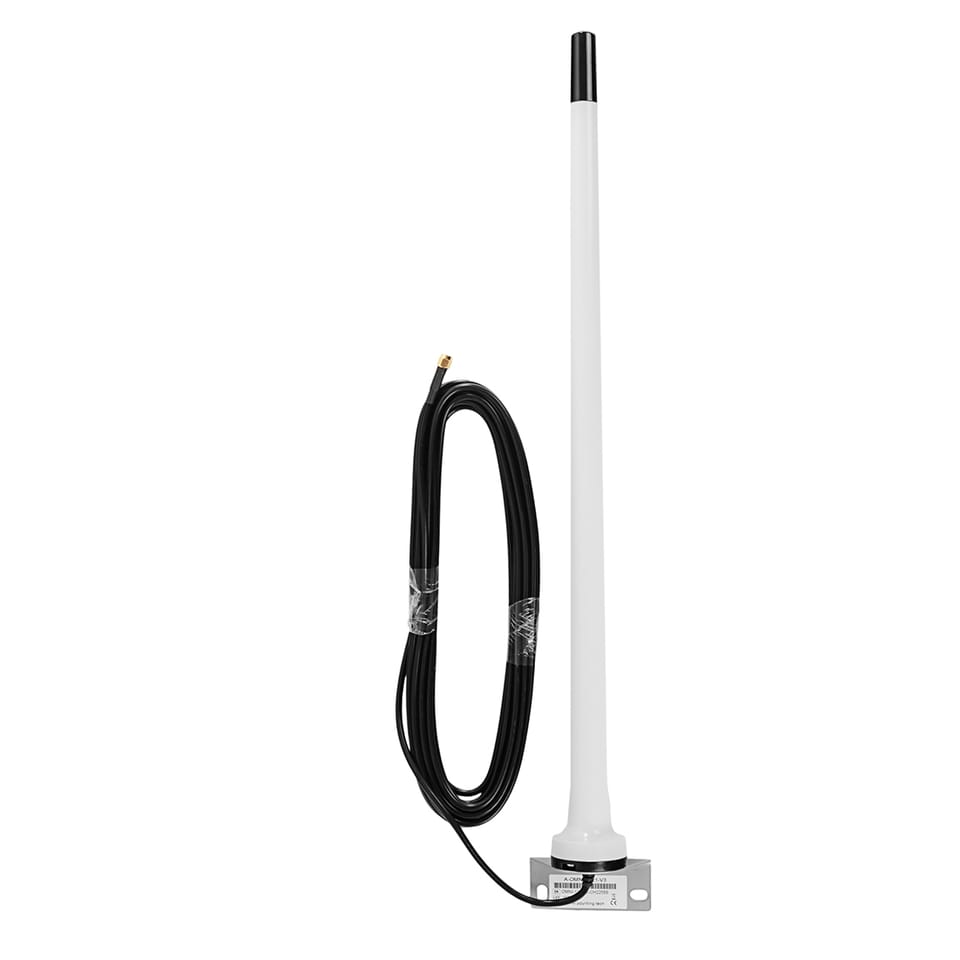

Medium gain omnidirectional antenna supporting GSM 900, GSM1800/UMTS and LTE frequency bands. It is lightweight and easy to install. It is a cost-effective, multidirectional solution. The antenna has a 5 m cable. The antenna is a popular choice among installers due to its base station capabilities. It is also suitable for machine-to-machine (M2M) applications that communicate via a GSM network (GPRS/EDGE/3G/HSPA/LTE).
- Coverage of GSM 900, GSM 1800 / UMTs frequency bands and LTE bands
- Increased link stability
- Machine-to-Machine (M2M) capabilities
- Constant high gain over a very wide frequency range
- Popular choice among installers due to the base station
- Vandal-proof and waterproof housing (IP65)

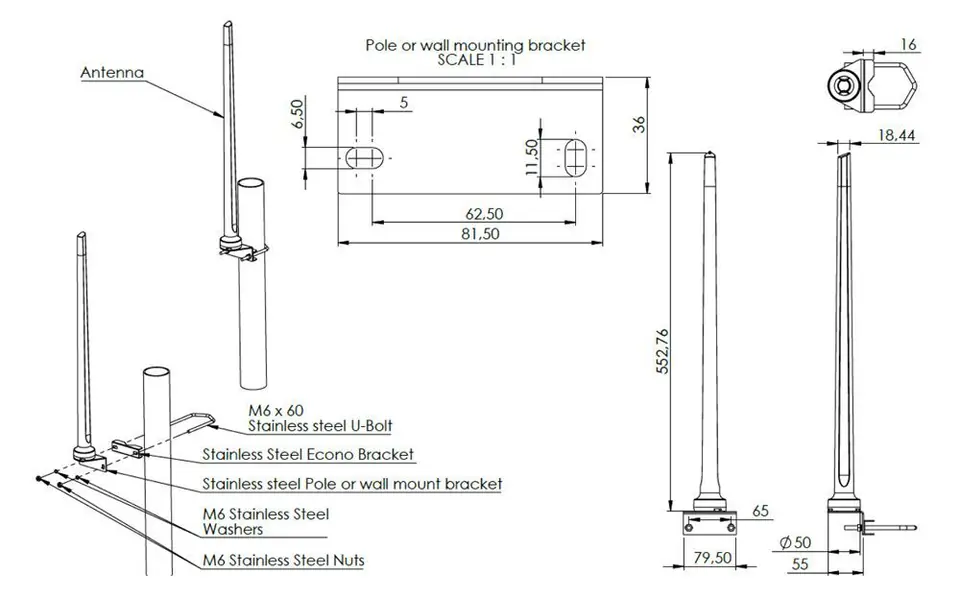

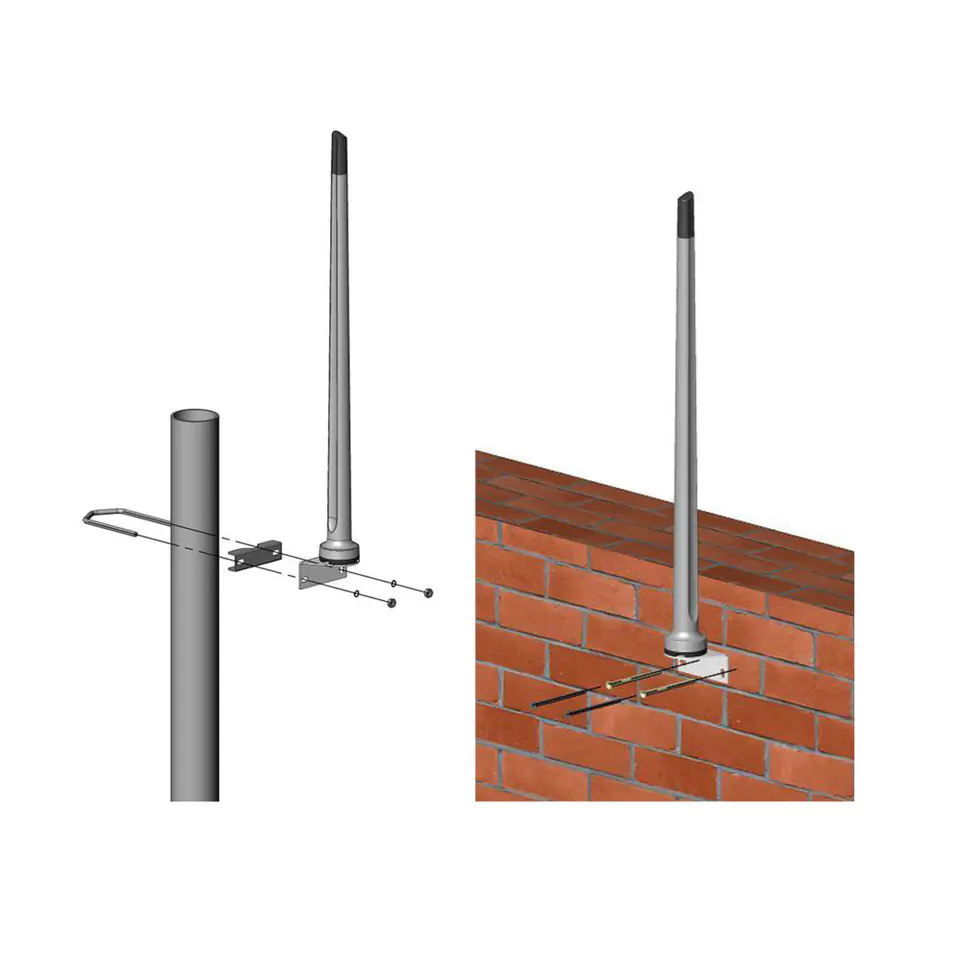

- Can be mounted on the wall and pole
- Lightweight design
- Covers most international GSM and LTE bands

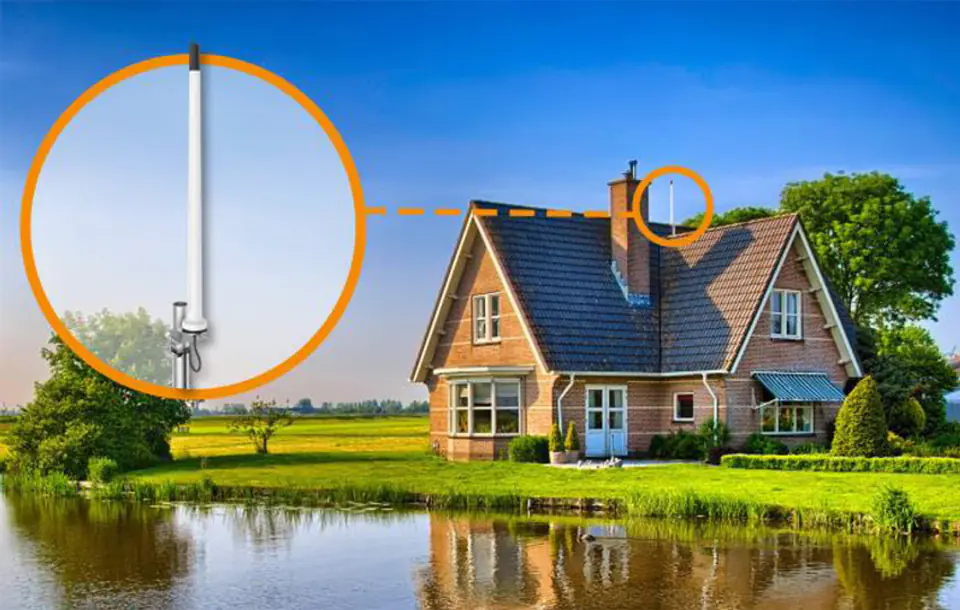

- Enables the provision of wireless services in rural and remote areas
- M2M communication (ATMs, financial data processing, telemetry, etc.)
- Extending wireless data to areas with weak signal (possibility to extend the range of connectivity by 3 times or more)
- Poor data signal reception (indoors or outdoors)
- Slow data connection
- Unstable connection

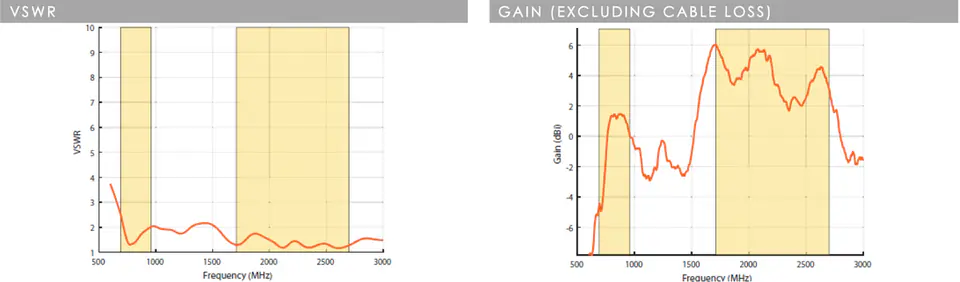

Gain* in dBi
6 dBi is the peak gain in all bands from 690 to 2700 MHz. (Gain at 690-960 MHz: 1.8 dBi; Gain at 1710-2170 MHz: 6 dBi; Gain at 2300 - 2700 MHz: 5 dBi)
* Antenna gain measured as standard with equalized antenna polarization
link: https://www.youtube.com/embed/ZJjqd3a1Ec4

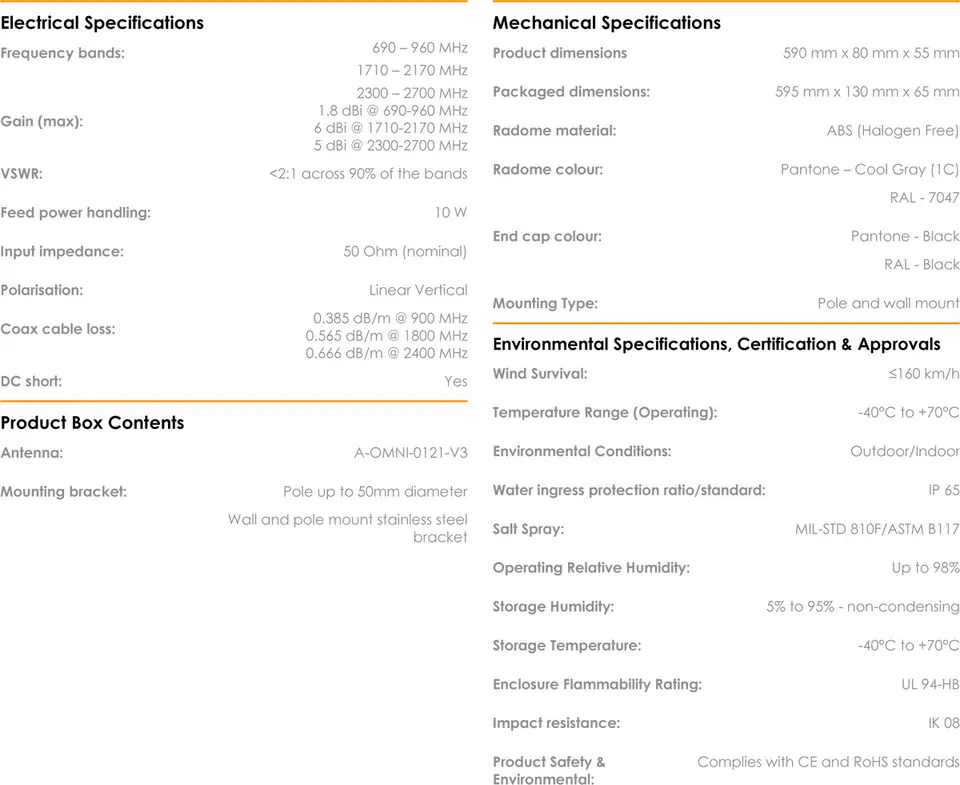

Click here for full antenna technical documentation.
