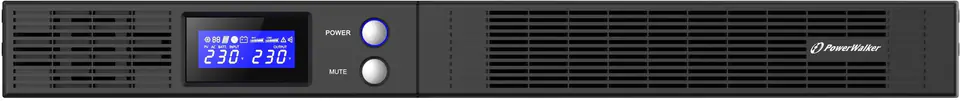

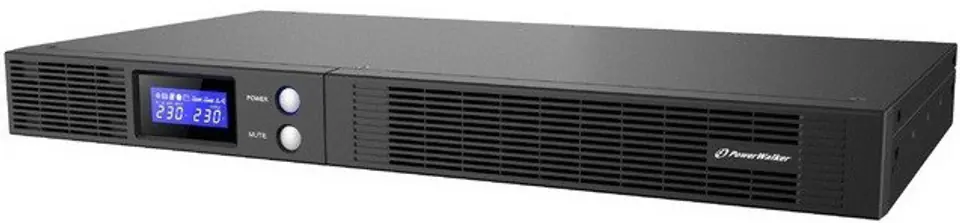

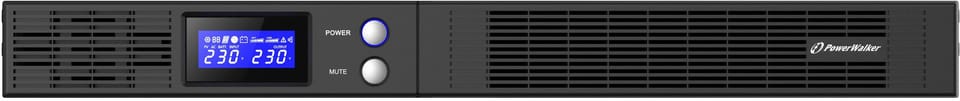

POWER SUPPLY VI-1500/R1U 1500 VA PowerWalker UPS

€473.07
Shipping from warehouse: ⁨H7⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
running out
Brand:
PowerWalker
Product code:
VI 1500 R1U / 4260074980417

Specification

Ac outlet types:C13 coupler
Ac outlets quantity:4 AC outlet(s)
Accumulator:4 x 6V/9Ah
Active power:900 watts (Printing)
Apparent power:1500 VA
Battery recharge time (90%):8 h
Battery voltage:6 V
Charging time (up to 90%):8 hours
Depth:485 mm
Destiny:monitoring systems, data storage centers, network, servers, workstations, industrial equipment
Dimensions:435 x 400 x 44 mm ; 19" RACK, 1U
Enclosure type:Rack
Estimated battery life:3.1 minutes @ load 100% 12.1 minutes @ 50% load
Harmonized system (hs) code:85078000
Height:44 mm

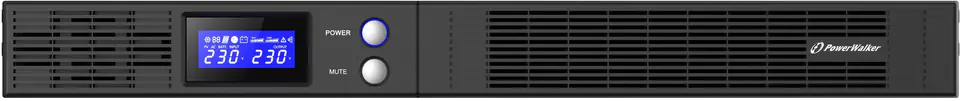

Indication of operating status:LCD display: operating mode, battery charge level, I/O voltage level Audible - muted
Input frequency:45/55 Hz
Input frequency:45  ... 55 Hz
Input operation voltage (max):290 V
Input operation voltage (min):165 V
Input voltage:165  ... 290 VAC
Management software:PowerMaster
Number of batteries supported:4

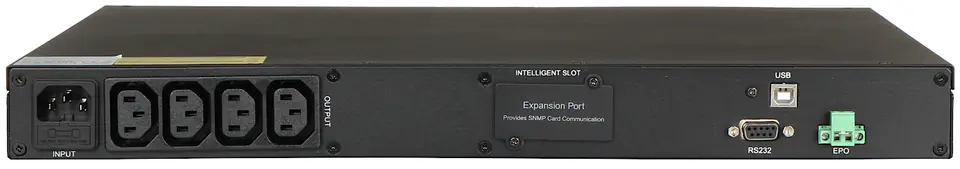

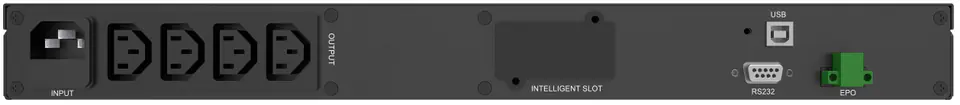

Number of outputs:4 pcs. IEC320 C13 socket
Operating relative humidity (h-h):0 - 90%
Operating temperature (t-t):0 - 40 °C
Operating temperature / relative humidity:0 °C ... 40 °C / 0 ... 90 % (non-condensing)
Output frequency:50 Hz
Output operation voltage (max):230 V
Output operation voltage (min):230 V
Output power:900 W
Output power capacity:1.5 kVA
Output voltage:230 V AC (pure sine wave)
Power plug:C14 coupler
Power protection features:Overload
Producer / brand:PowerWalker
Product colour:Black
Rack capacity:1U
Rs-232 ports:1
Scales:16.31 kg
Security:Fuse Fuse Surge Protection Overload Protection Circuit Breaker EPO (Emergency power off)

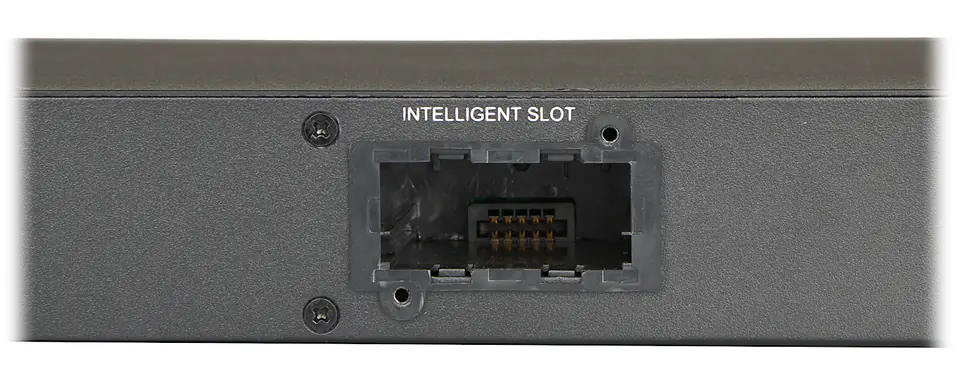

Selected features:"Cold start" function Expansion slot Battery charging and maintenance control. USB/RS-232 communication port
Switching time:.max. 4 ms
Typical backup time at full load:0.4 min
Typical backup time at half load:8.7 min
Ups topology:Line-Interactive
Usb port:Yes
Voltage regulation:± 10 %
Warranty:2 years
Weight:16.2 kg
Width:433 mm

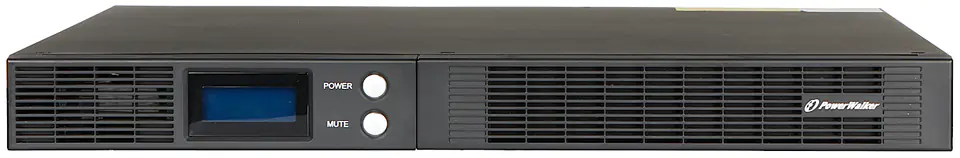

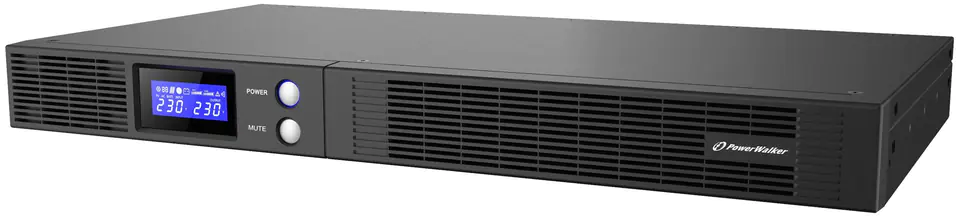

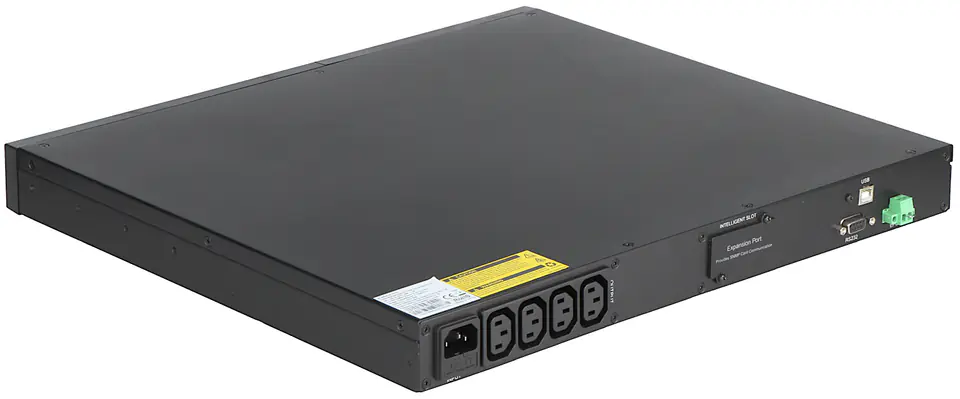

The VI-1500/R1U UPS is a professional device used to maintain the operation of the components connected to itThe device is mounted to a 19" RACK cabinet

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
