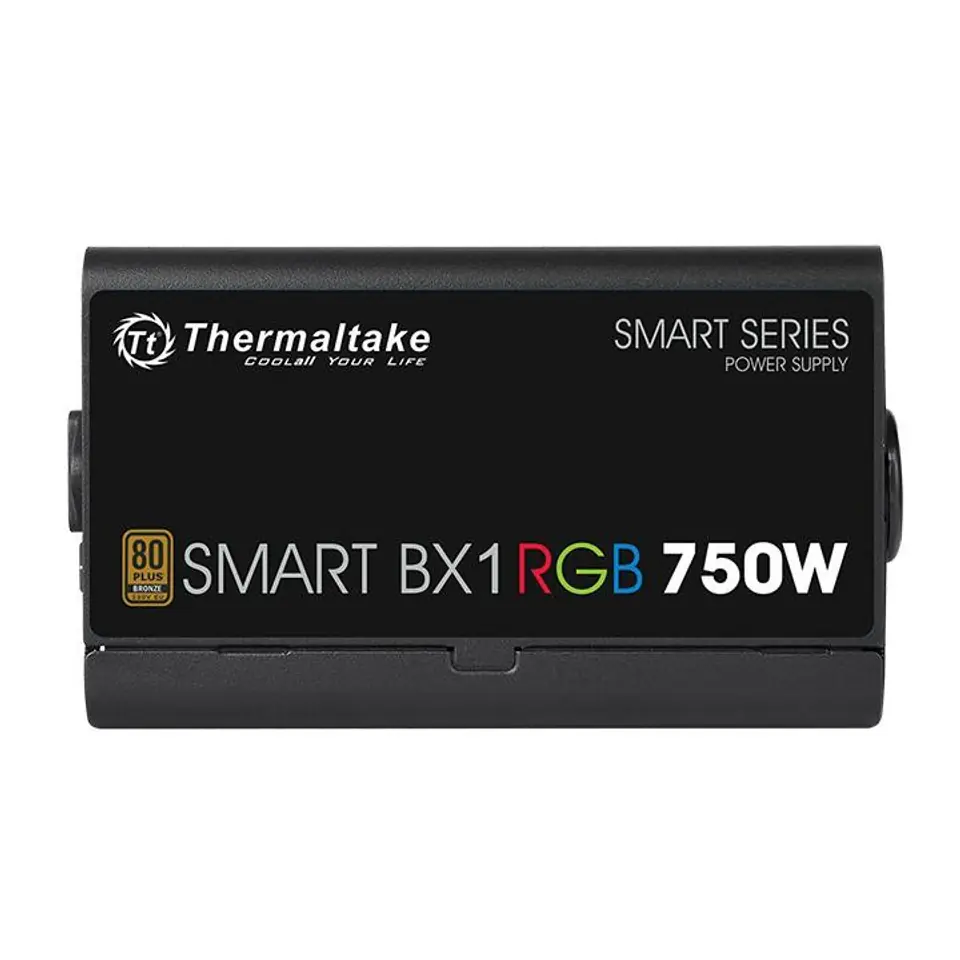

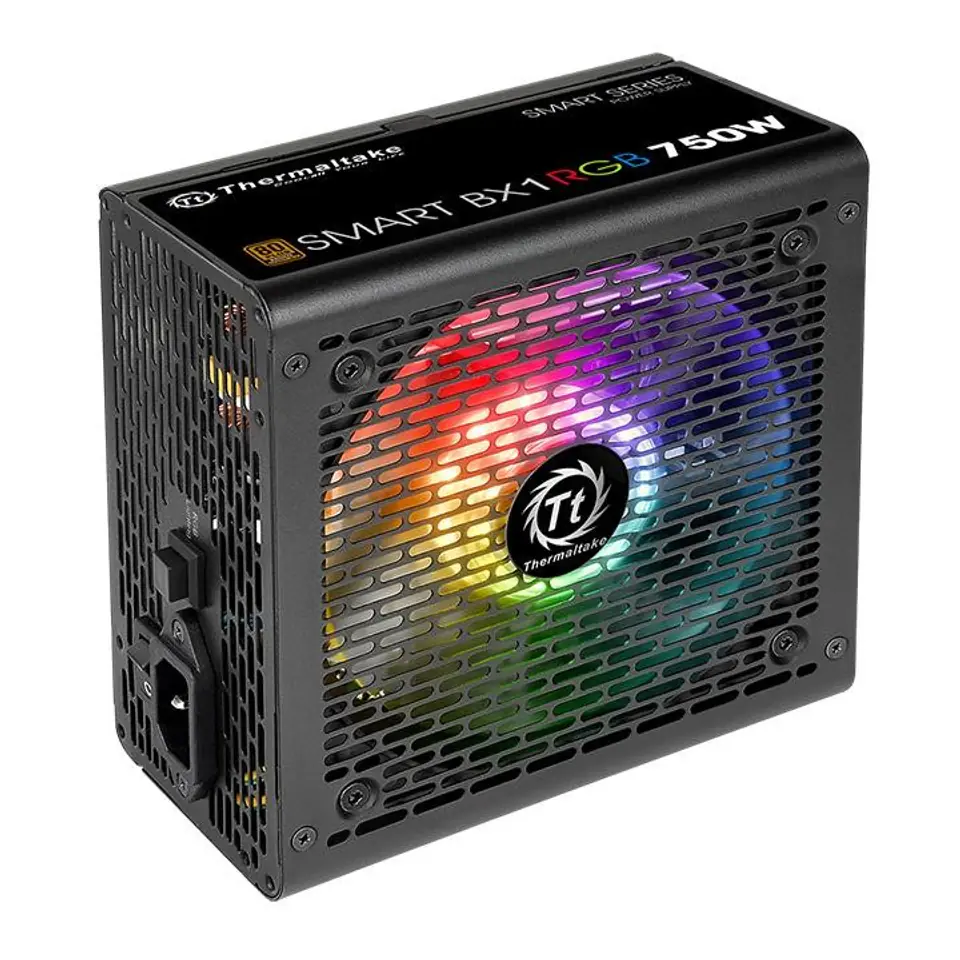

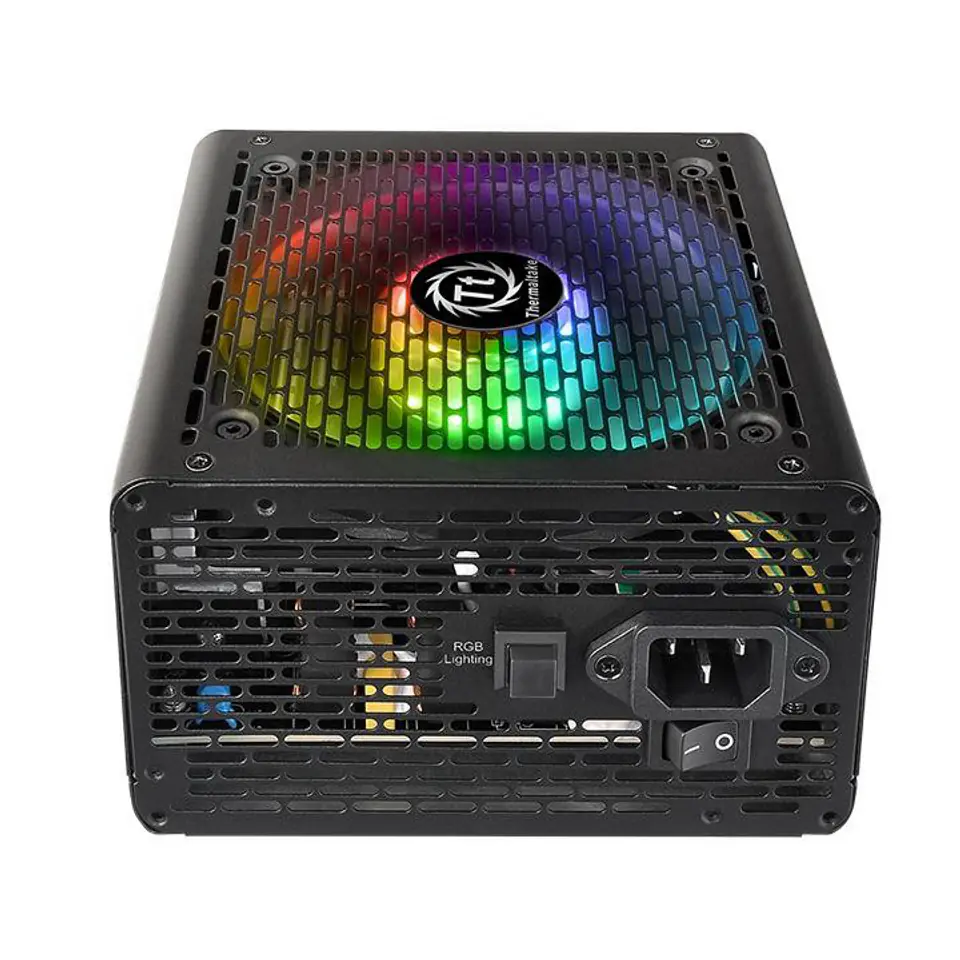

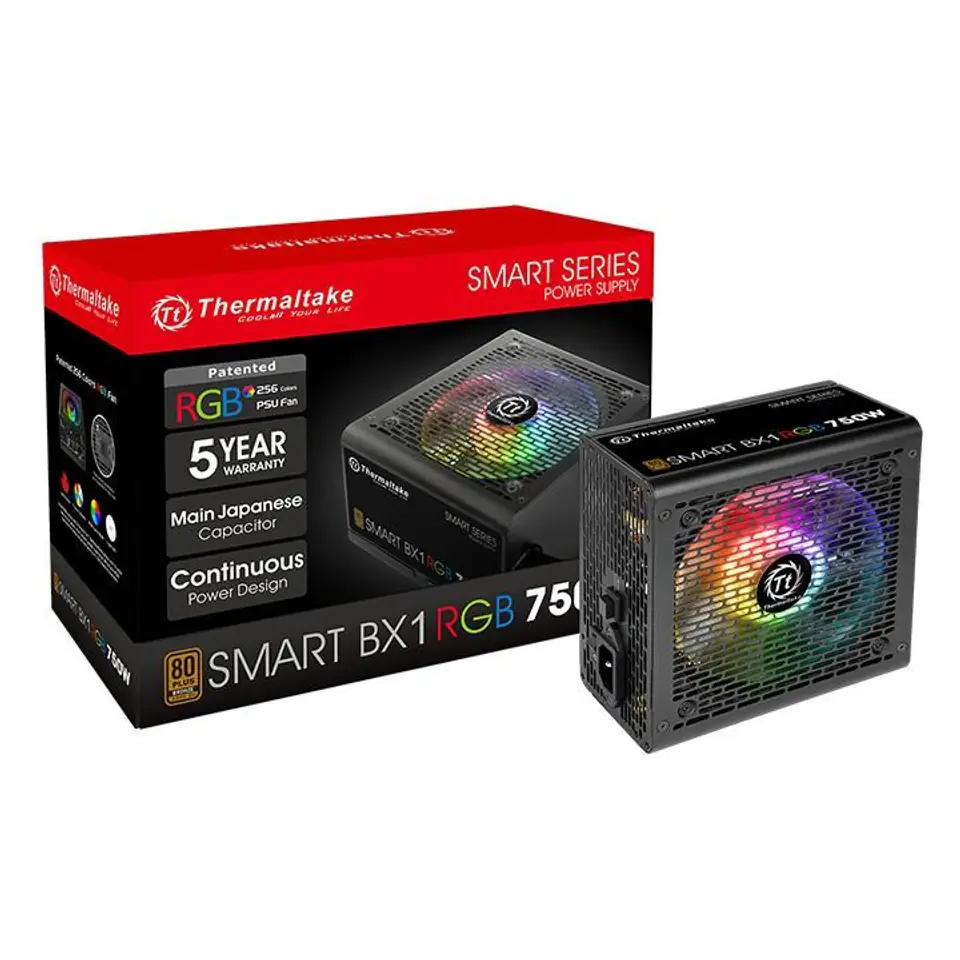

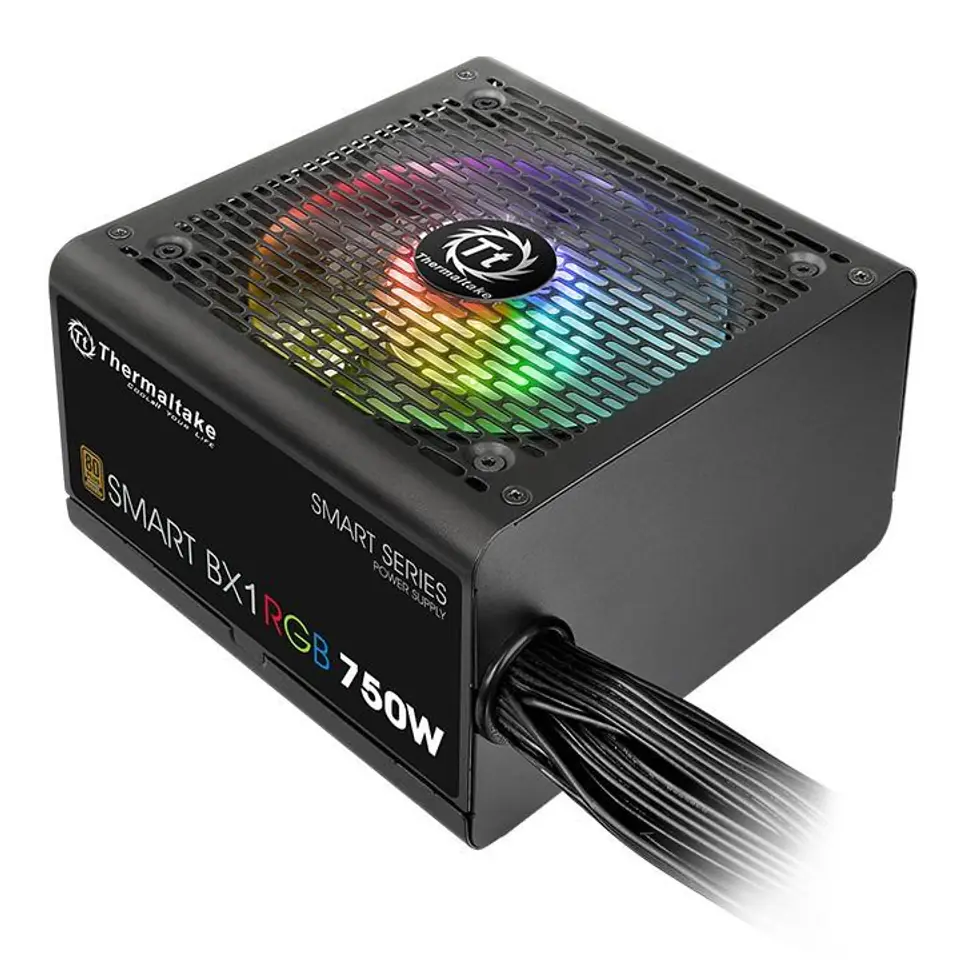

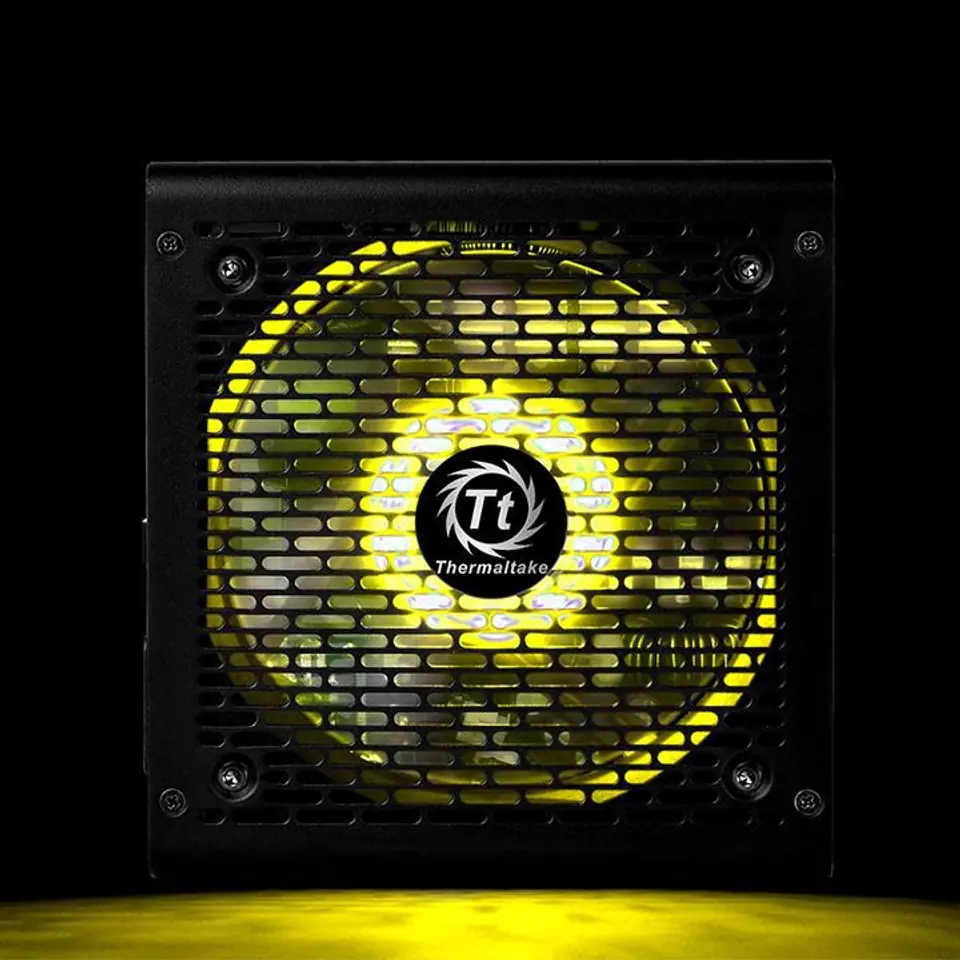

Power Supply Smart BX1 RGB 750W (80+ Bronze 230V EU, 4xPEG, 120mm, Single Rail)
€106.47
Shipping from warehouse: M7
Estimated shipping: Mon, Sep 23 - Thu, Sep 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Thermaltake
- Product code:
- PS-SPR-0750NHSABE-1 / 4711246873964
Share this product:
Specification
| 80 plus certification: | 80 PLUS Bronze |
|---|---|
| Ac input frequency: | 50 Hz |
| Ac input voltage: | 230 V |
| Atx power connector (24-pin): | Y |
| Atx version: | 2.4 |
| Combined power (+12v): | 672 W |
| Combined power (+3.3v): | 100 W |
| Combined power (+5v): | 100 W |
| Combined power (+5vsb): | 12.5 W |
| Cooling type: | Active |
| Cpu power cable length: | 65 cm |
| Cpu power connector (4+4 pin): | Y |
| Depth: | 140 mm |
| Eps version: | 2.92 |

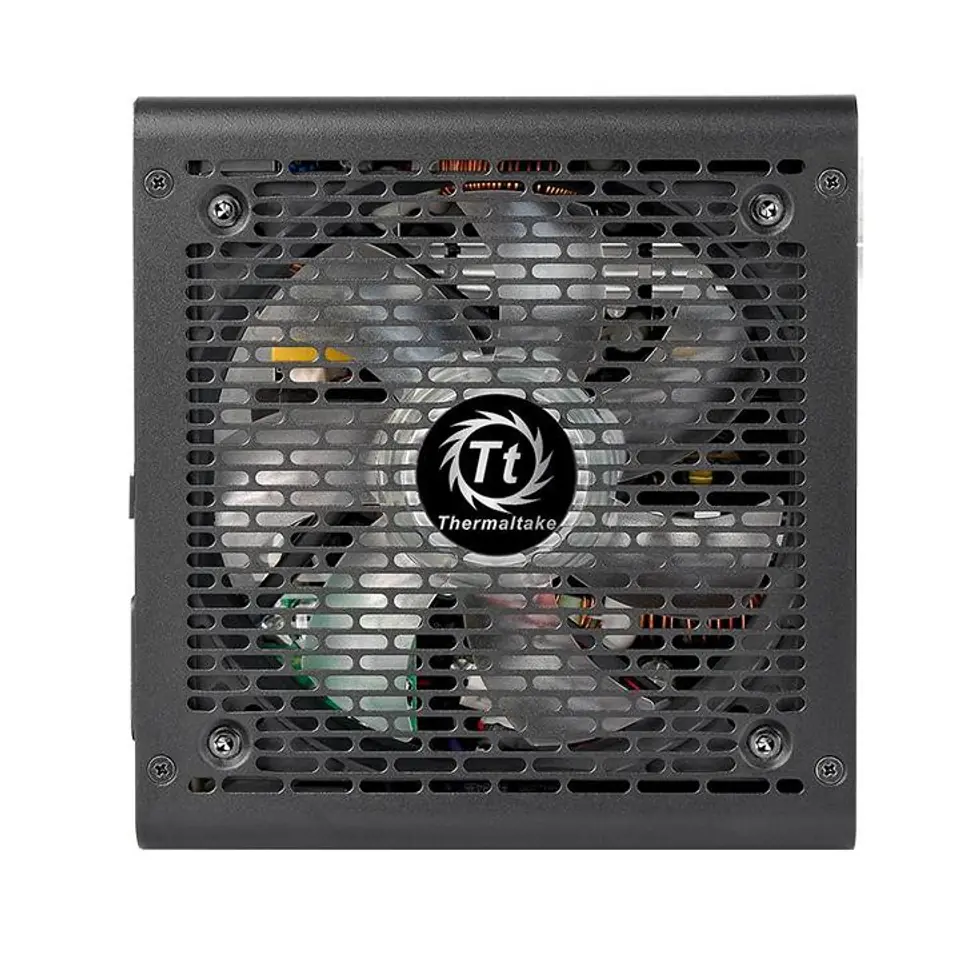

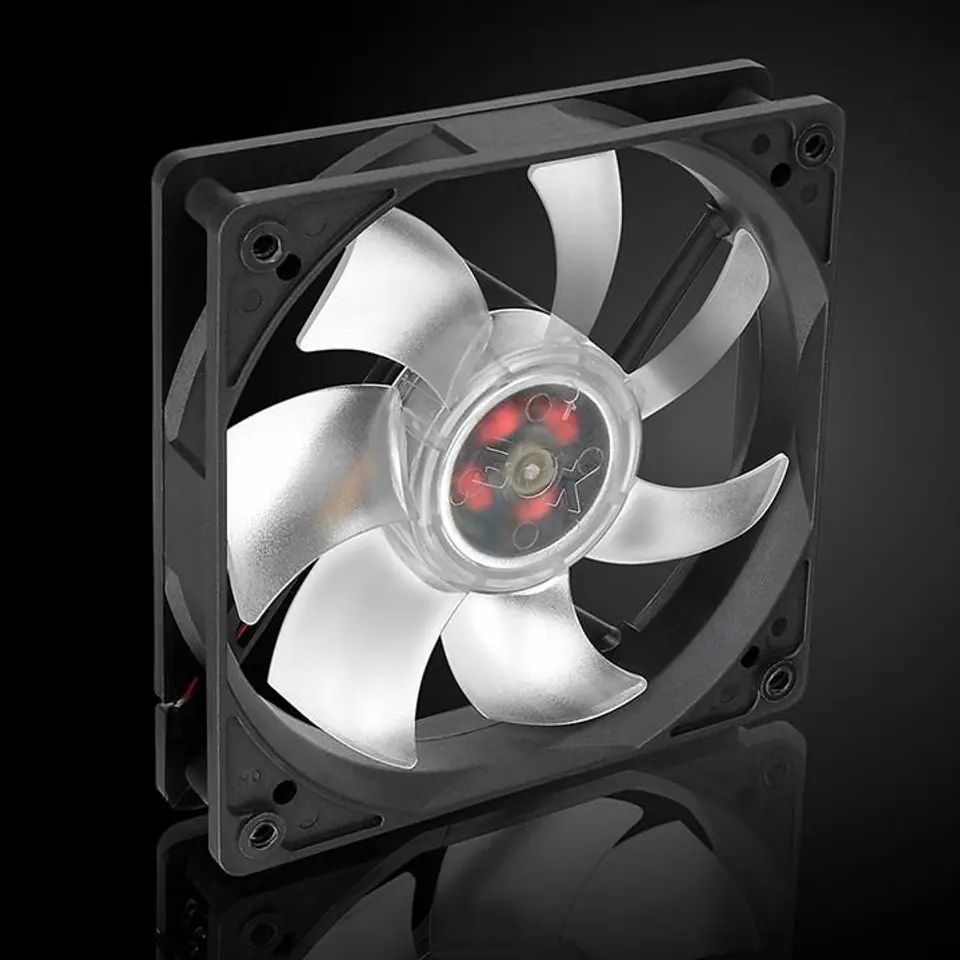

| Fan diameter: | 12 cm |
| Fan location: | Top |
| Height: | 86 mm |

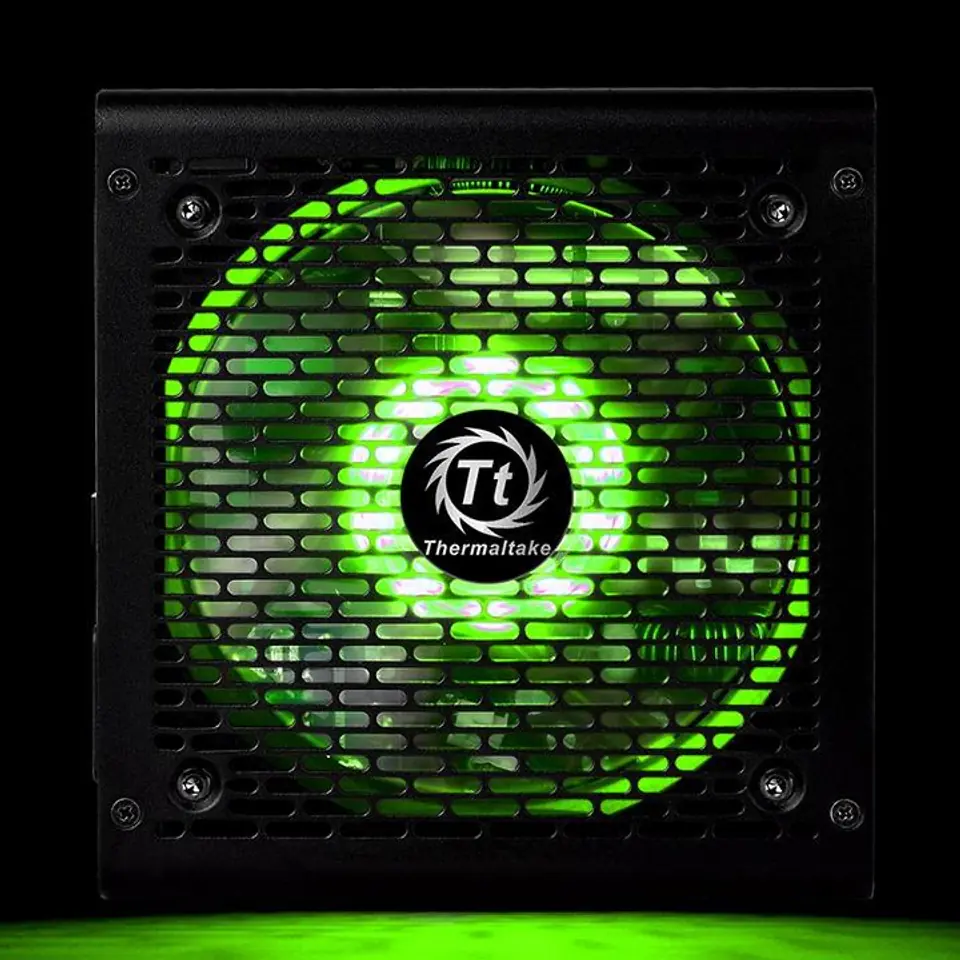

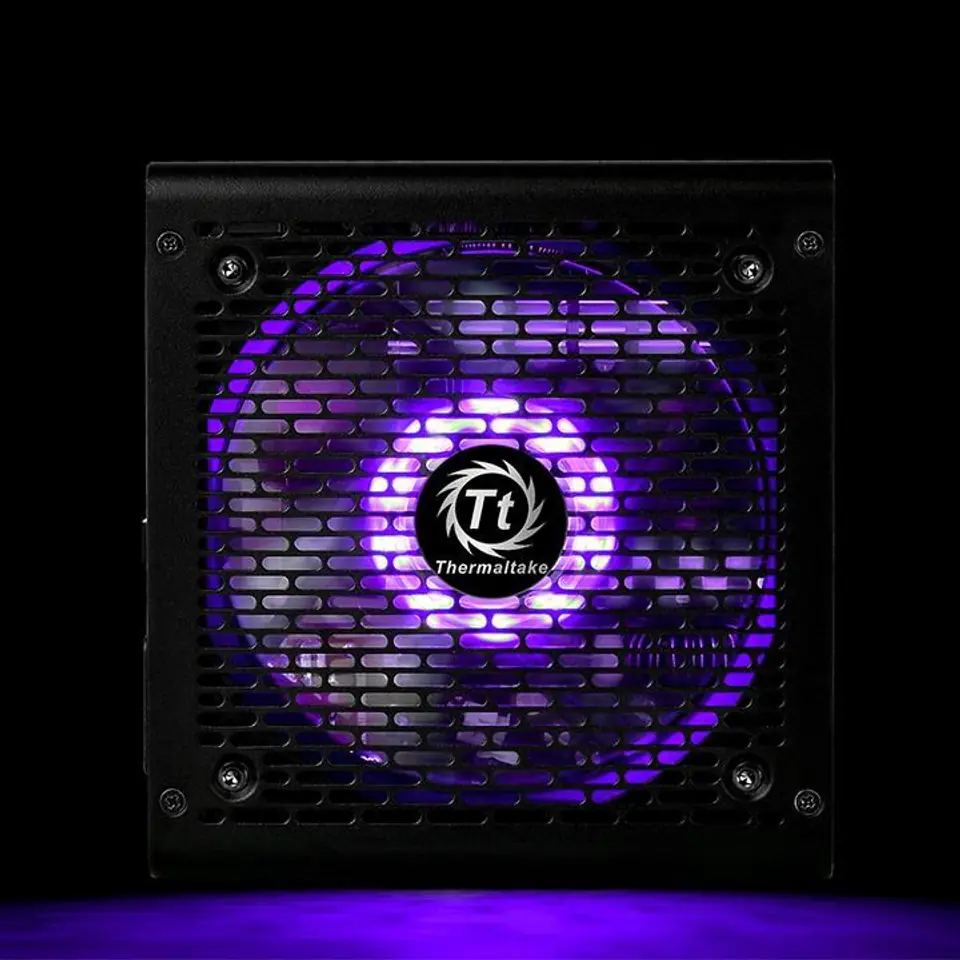

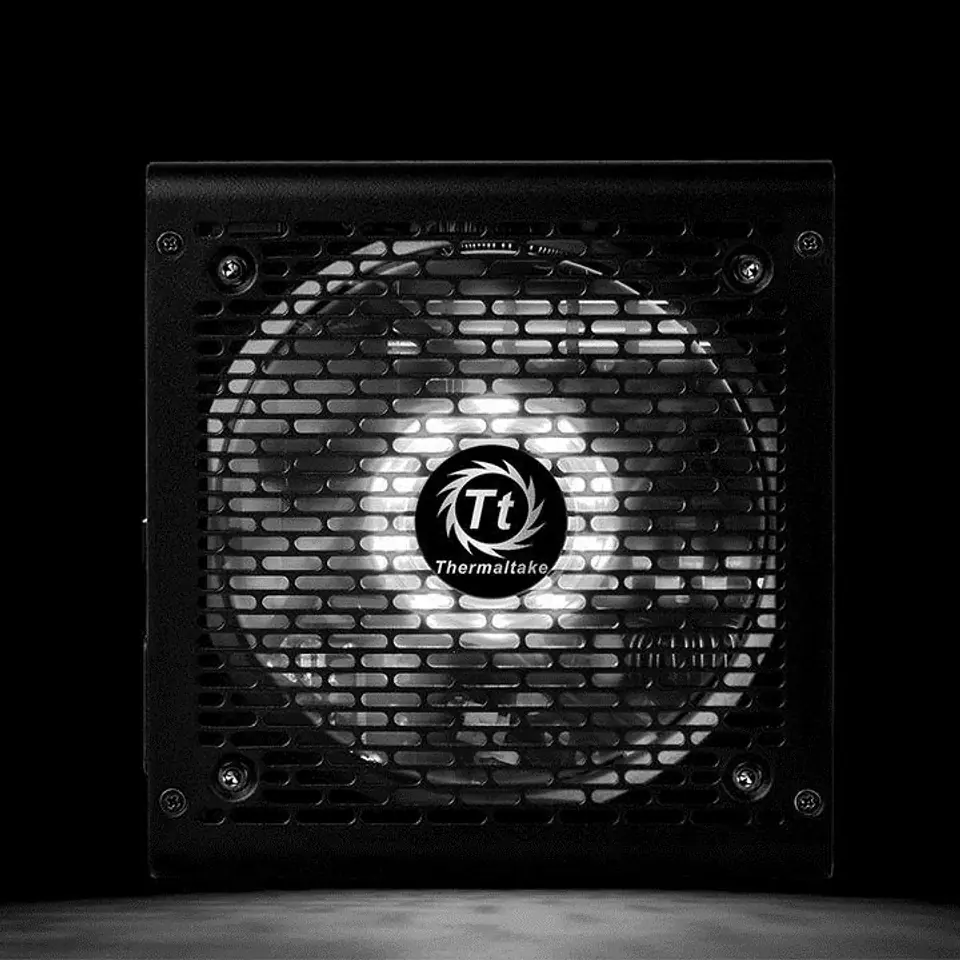

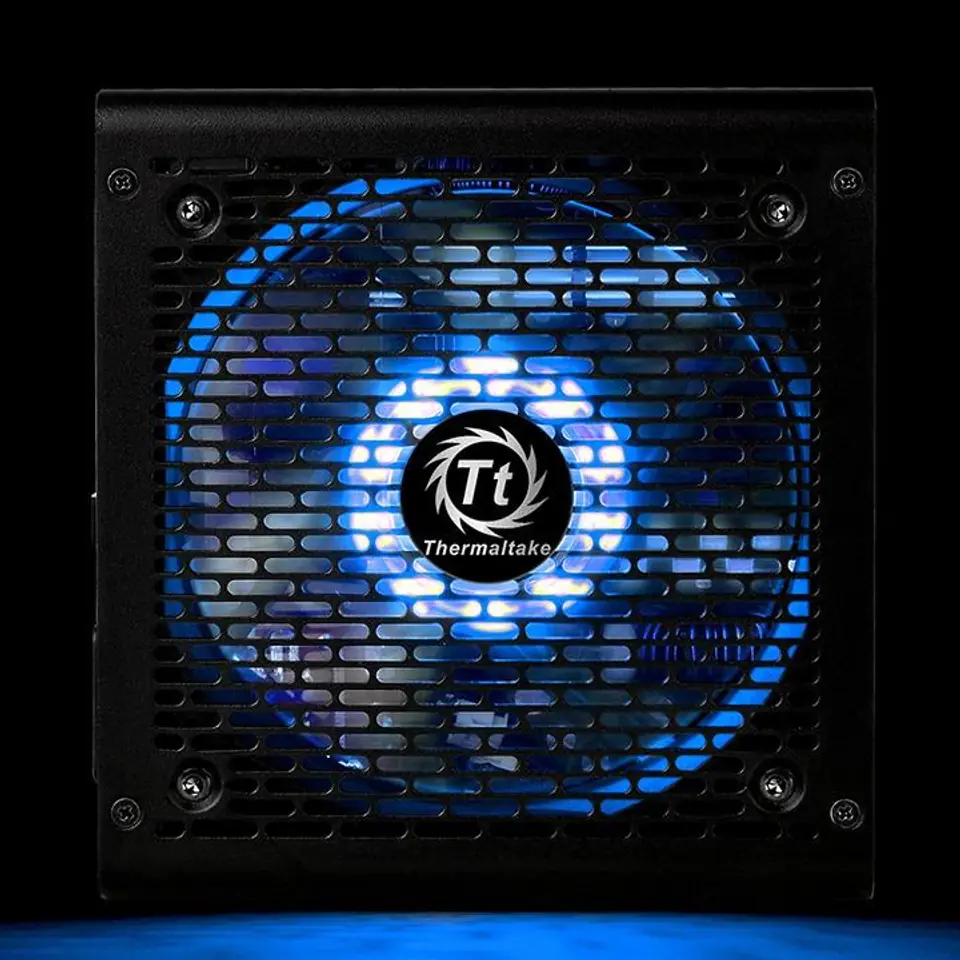

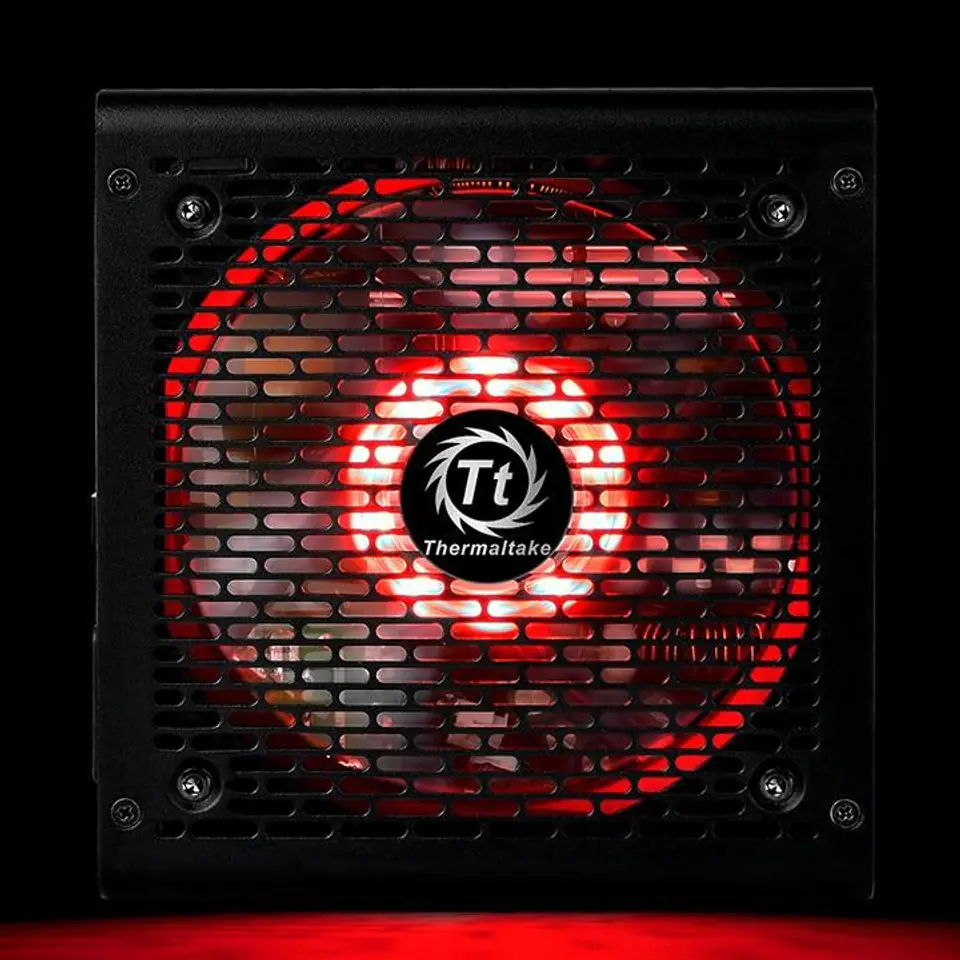

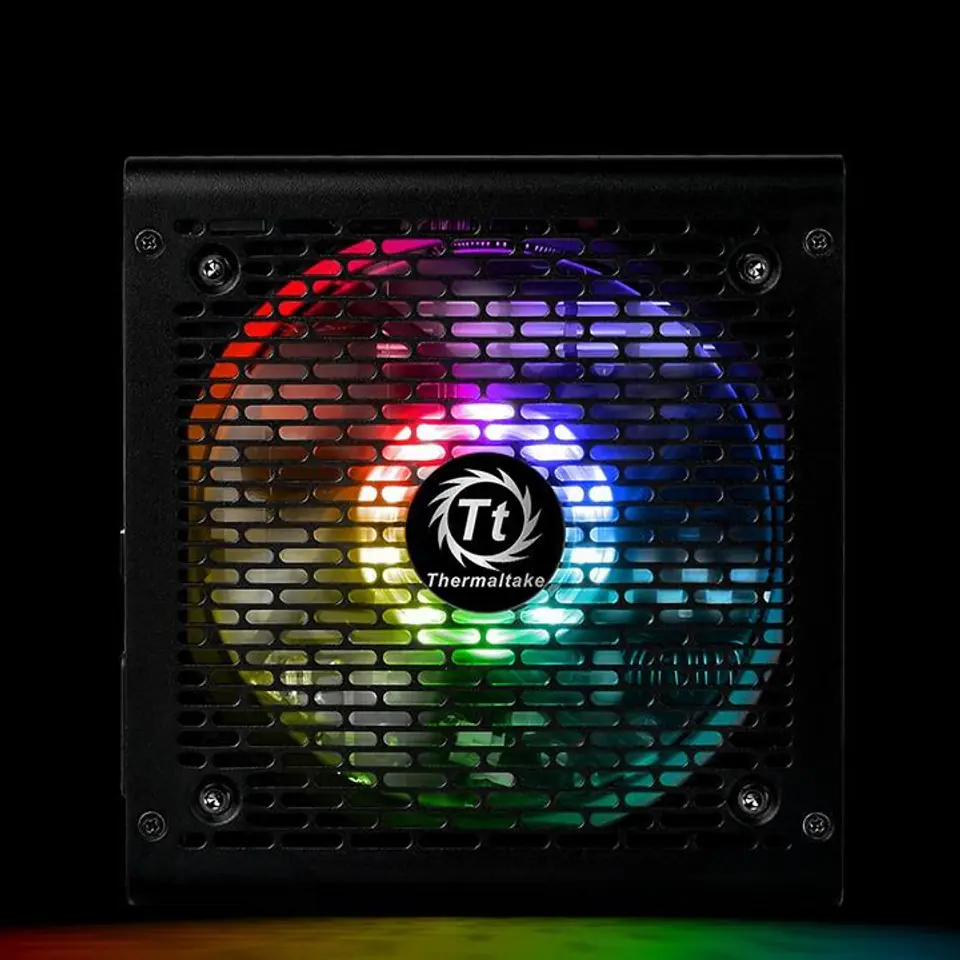

| Illumination: | Y |
| Illumination colour: | Red, Blue, Green |
| Input current: | 10 A |
| Max output current (-12v): | 0.5 A |
| Max output current (+12v): | 56 A |
| Max output current (+3.3v): | 24 A |
| Max output current (+5v): | 18 A |
| Max output current (+5vsb): | 2.5 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power cable length: | 60 cm |
| Motherboard power connector: | 24-pin ATX |
| Noise level: | 39.59 dB |
| Noise level (full-load mode, 100%): | 39.59 dB |
| Noise level (quiet mode, 50%): | 25 dB |
| Noise level (silent mode, <30%): | 22 dB |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 8 |

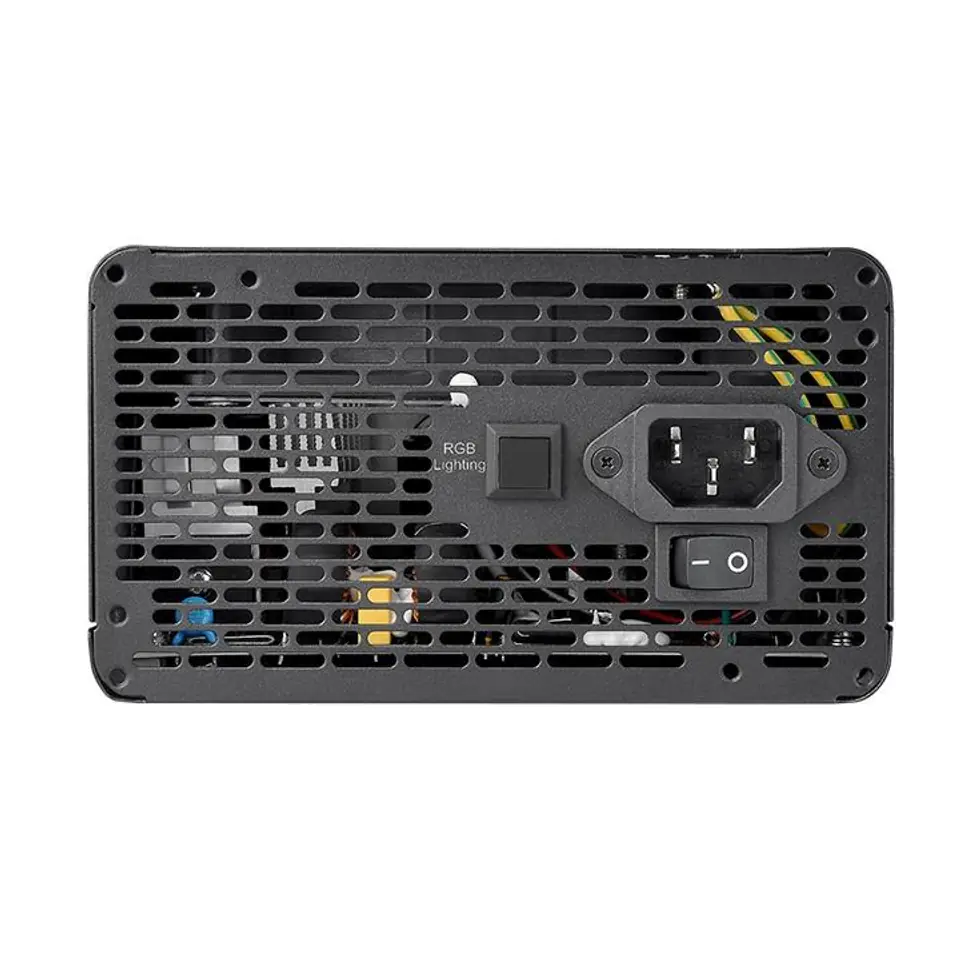

| On/off switch: | Y |
| Operating relative humidity (h-h): | 20 - 85% |
| Operating temperature (t-t): | 5 - 40 °C, 41 - 104 °F |
| Pci express connector: | Y |
| Pci express power cable length: | 50 cm |
| Pci express power connectors (6+2 pin): | 4 |
| Peak power: | 900 W |
| Peripheral (molex) power cable length: | 150, 500 mm |
| Peripheral (molex) power connectors (4-pin): | 4 |
| Power factor correction (pfc) type: | Active |
| Power good signal delay range: | 100 - 500 ms |
| Power plug type: | Type C |
| Power protection features: | Short circuit, Over voltage, Over power |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC/Server |
| Sata power cable length: | 150, 500 mm |
| Storage relative humidity (h-h): | 10 - 95% |
| Storage temperature (t-t): | -40 - 55 °C |
| Supported motherboard form factors: | ATX |
| Total power: | 750 W |
| Width: | 150 mm |
