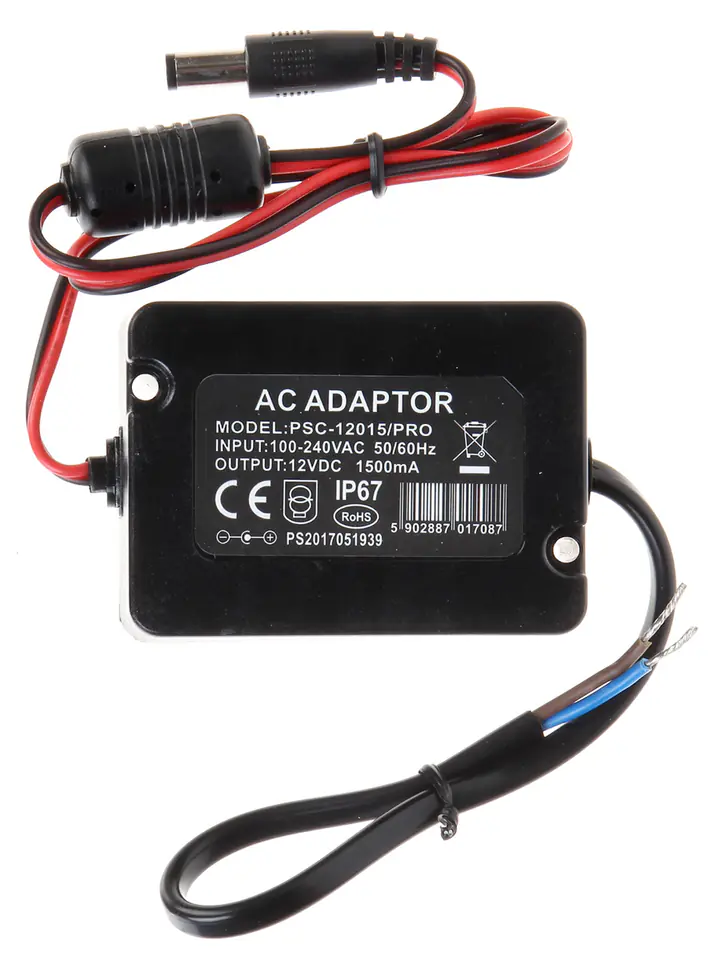

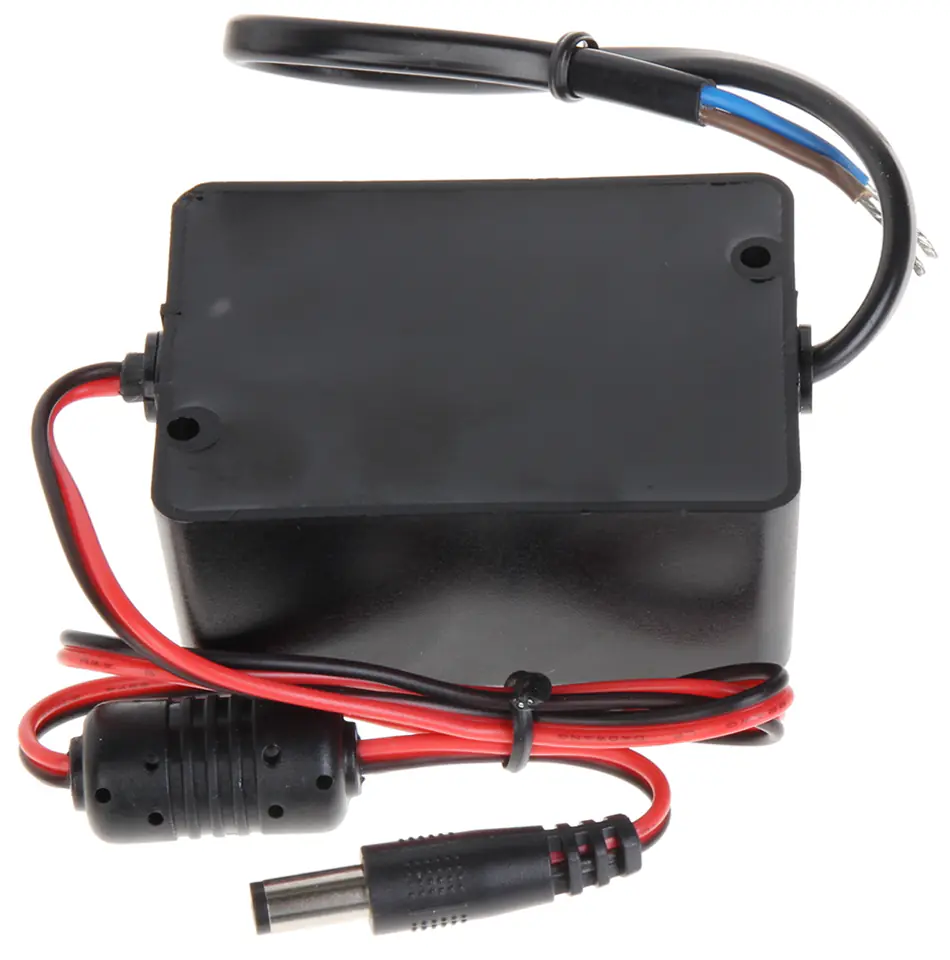

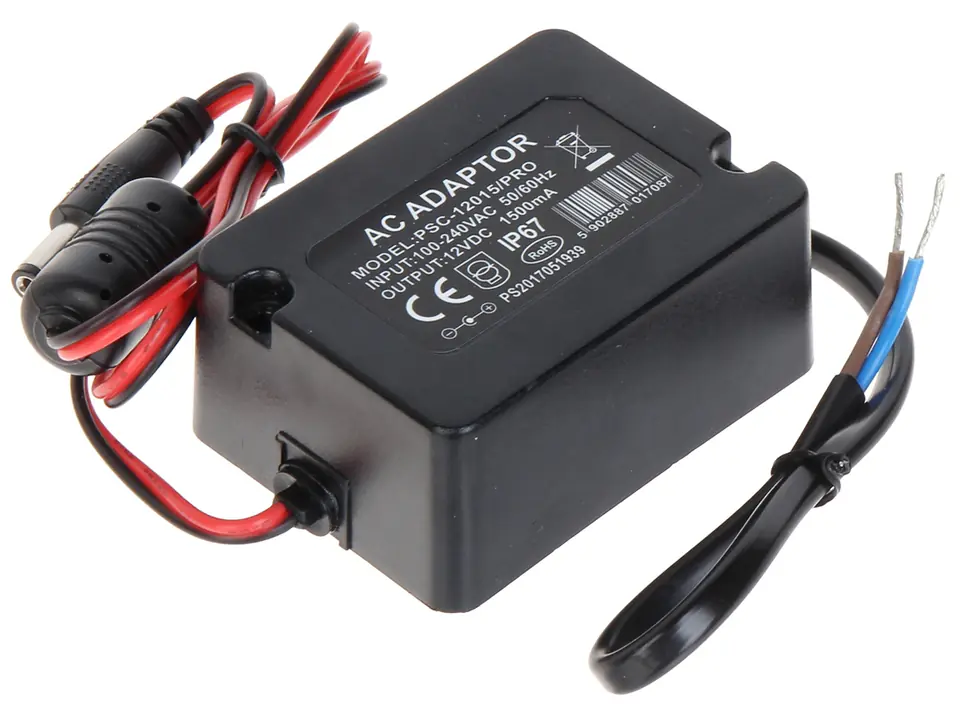

Power supply designed for installation in surface-mounted and flush-mounted installation boxes
Special attention should be paid to the proper cooling of the power supply during operation!
Average efficiency:: | 80.4 % |
---|---|
Current efficiency of the power supply:: | 1.5 A |
Dimensions:: | 65 x 48 x 28 mm |
Housing type:: | Plastic |
No-load power consumption:: | < 0.1 W |
Number of outputs:: | 1 pc. |
Operating temperature:: | 0 °C ... 40 °C |
Output voltage:: | 12 VDC |
Power supply type:: | Pulse |
Power supply:: | 18 watts (Printing) |
Scales:: | 0.16 kg |
Sealing:: | IP67 |
Selected features:: | Short-circuit protection Overload protection The device has a very small dimensions Length of wires: 40 + 15 cm |
Supply voltage:: | 100 ... 240 V AC |

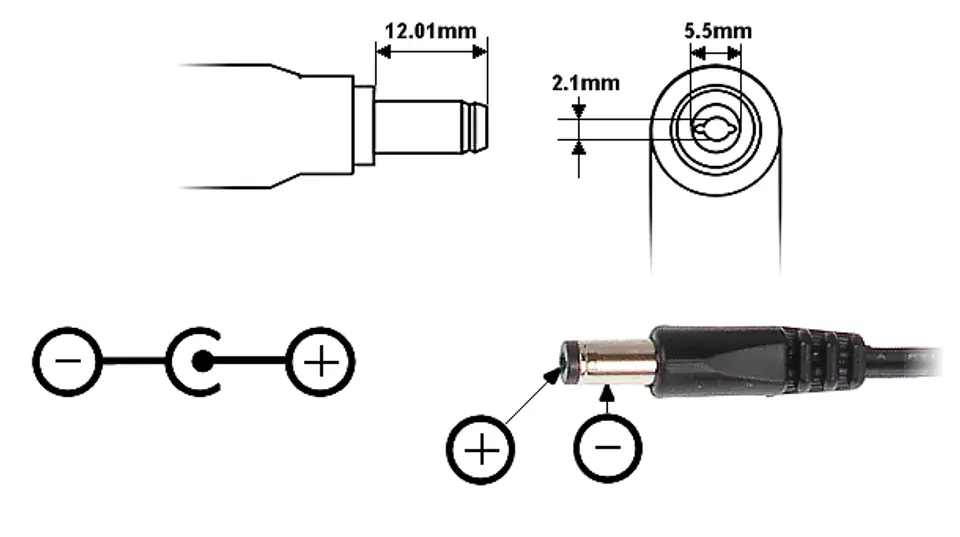

Type of power connectors:: | 2.1/5.5 mm - Straight plug |
Warranty:: | 2 years |
Power supply designed for installation in surface-mounted and flush-mounted installation boxes
Special attention should be paid to the proper cooling of the power supply during operation!
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
