Power supply designed for installation in surface-mounted and flush-mounted installation boxes
Special attention should be paid to the proper cooling of the power supply during operation!

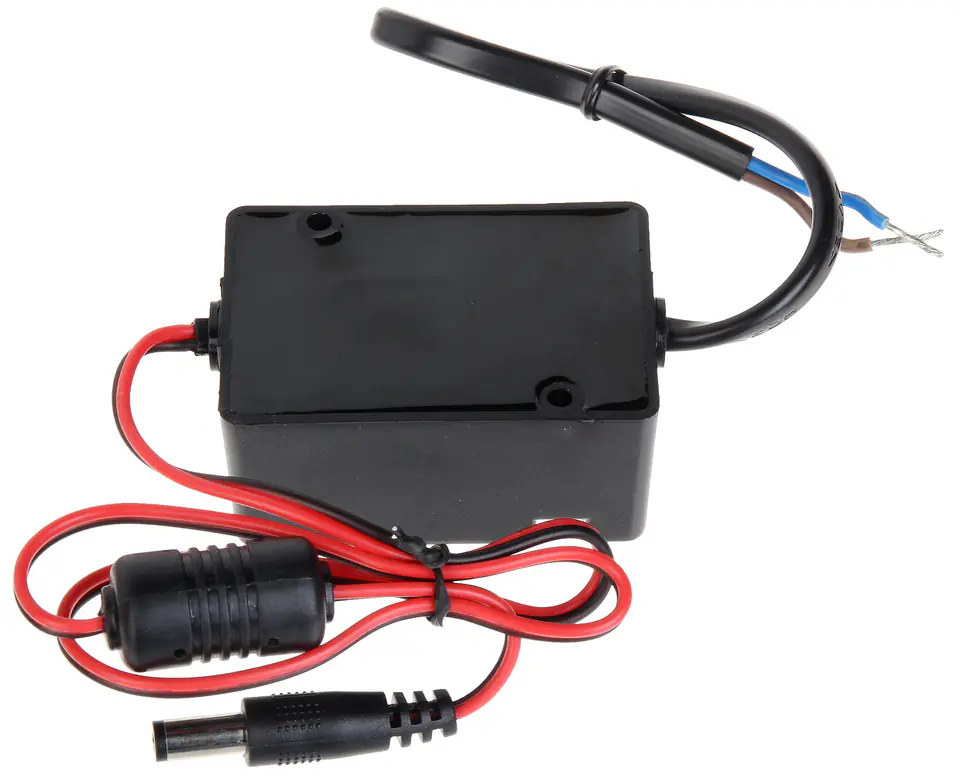

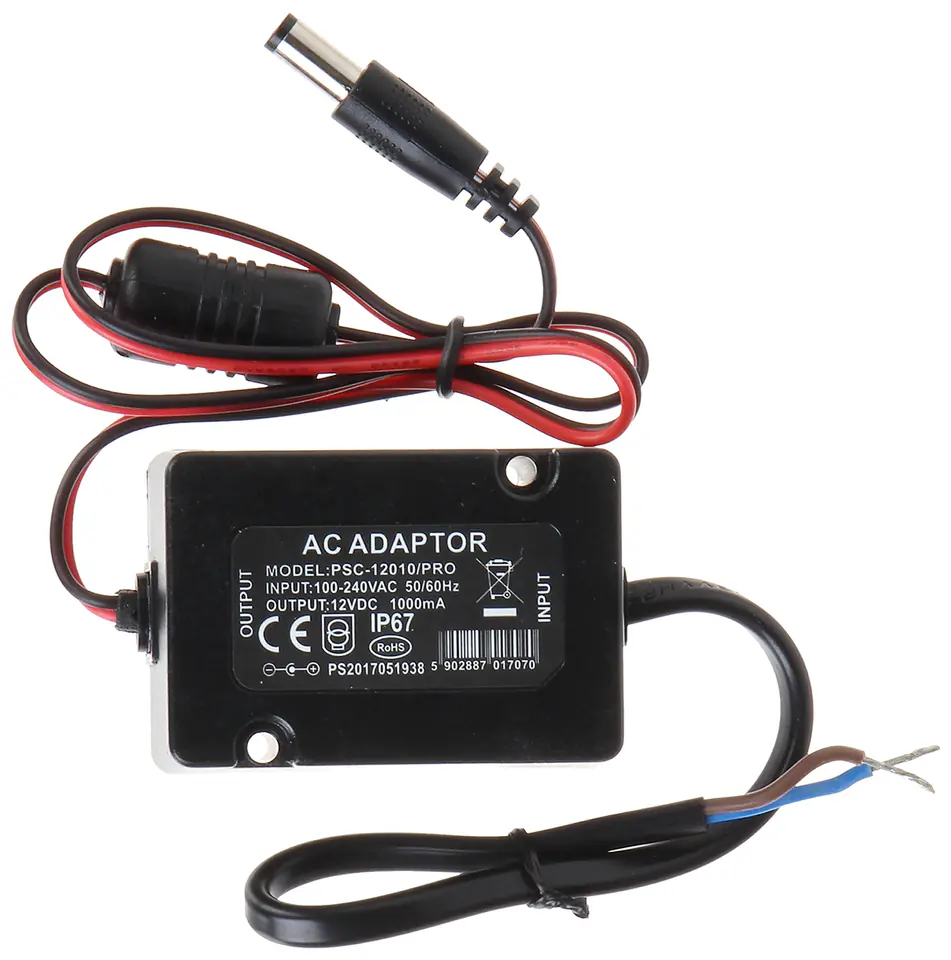

POWER SUPPLY PSC-12010/PRO 12 V DC 1 A
€8.10
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- PSC-12010/PRO / 5902887017070
Share this product:
Specification
| Average efficiency:: | 77.7 % |
|---|---|
| Current efficiency of the power supply:: | 1 A |
| Dimensions:: | 57 x 40 x 26 mm |
| Housing type:: | Plastic |
| No-load power consumption:: | < 0.1 W |
| Number of outputs:: | 1 pc. |
| Operating temperature:: | 0 °C ... 40 °C |
| Output voltage:: | 12 VDC |
| Power supply type:: | Pulse |
| Power supply:: | 12 watts (Printing) |
| Scales:: | 0.12 kg |
| Sealing:: | IP67 |
| Selected features:: | Short-circuit protection Overload protection The device has a very small dimensions Length of wires: 40 + 15 cm |
| Supply voltage:: | 100 ... 240 V AC |

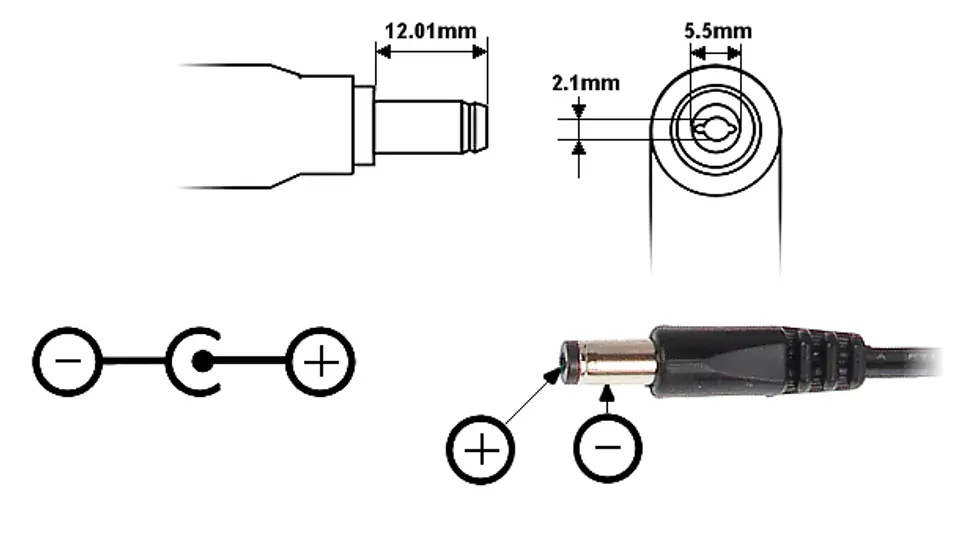

| Type of power connectors:: | 2.1/5.5 mm - Straight plug |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
