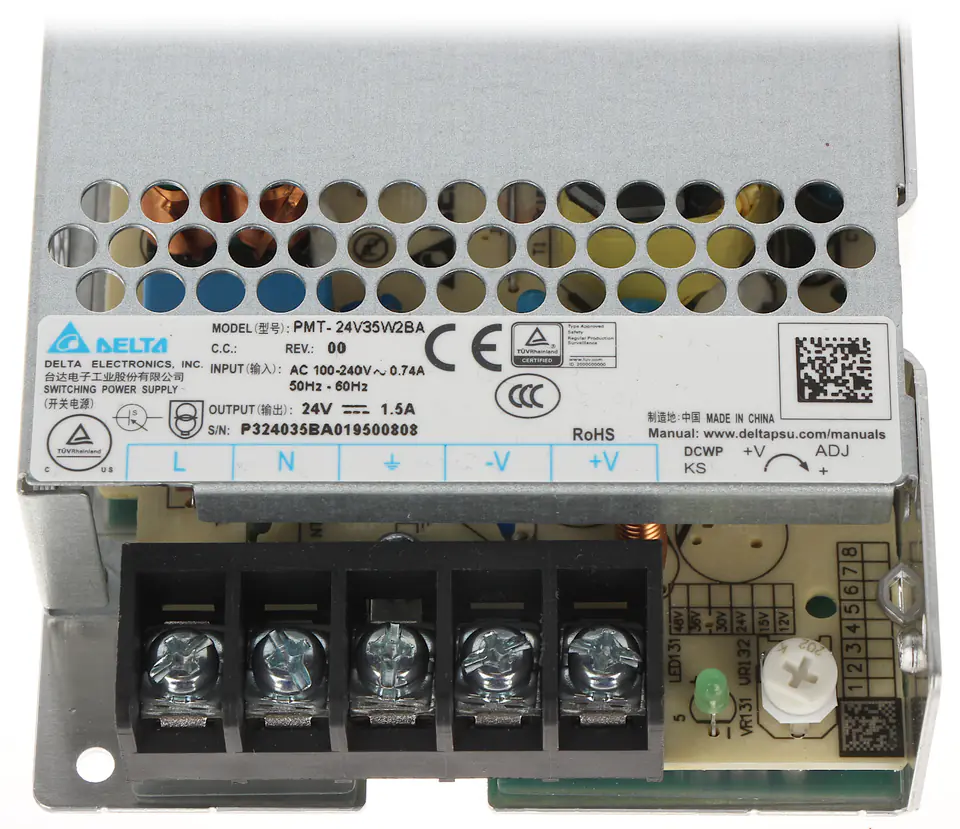

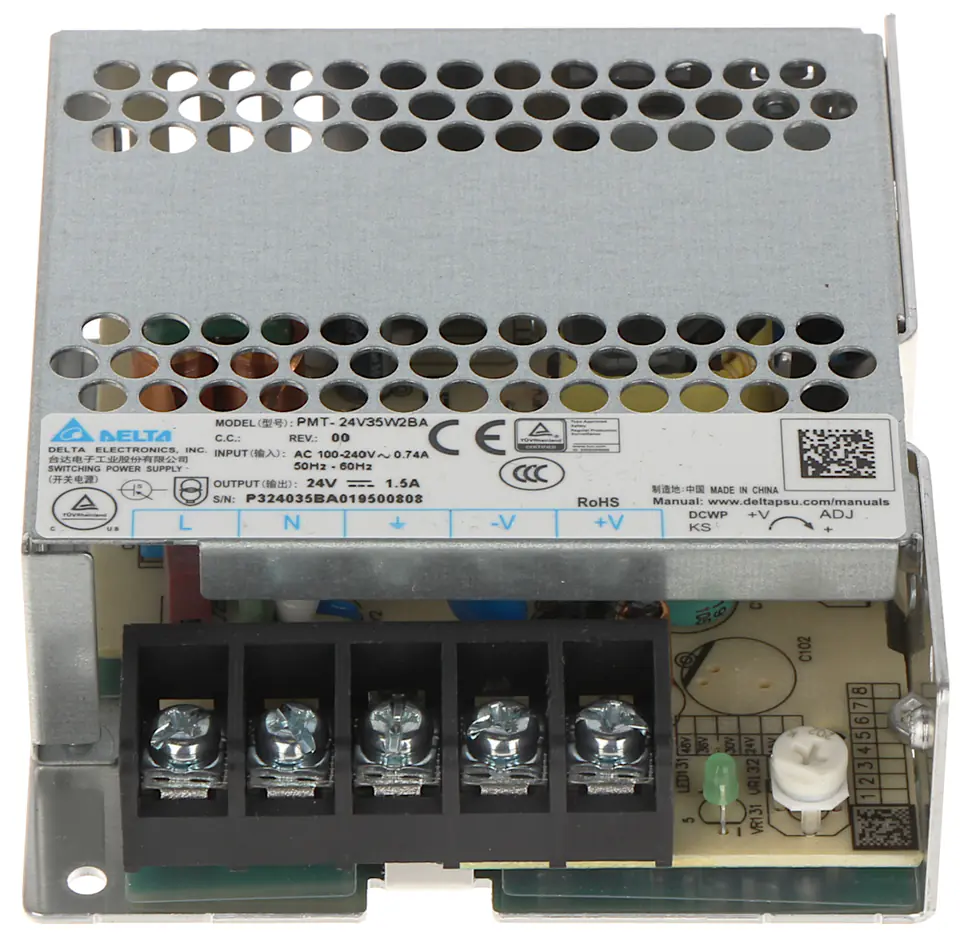

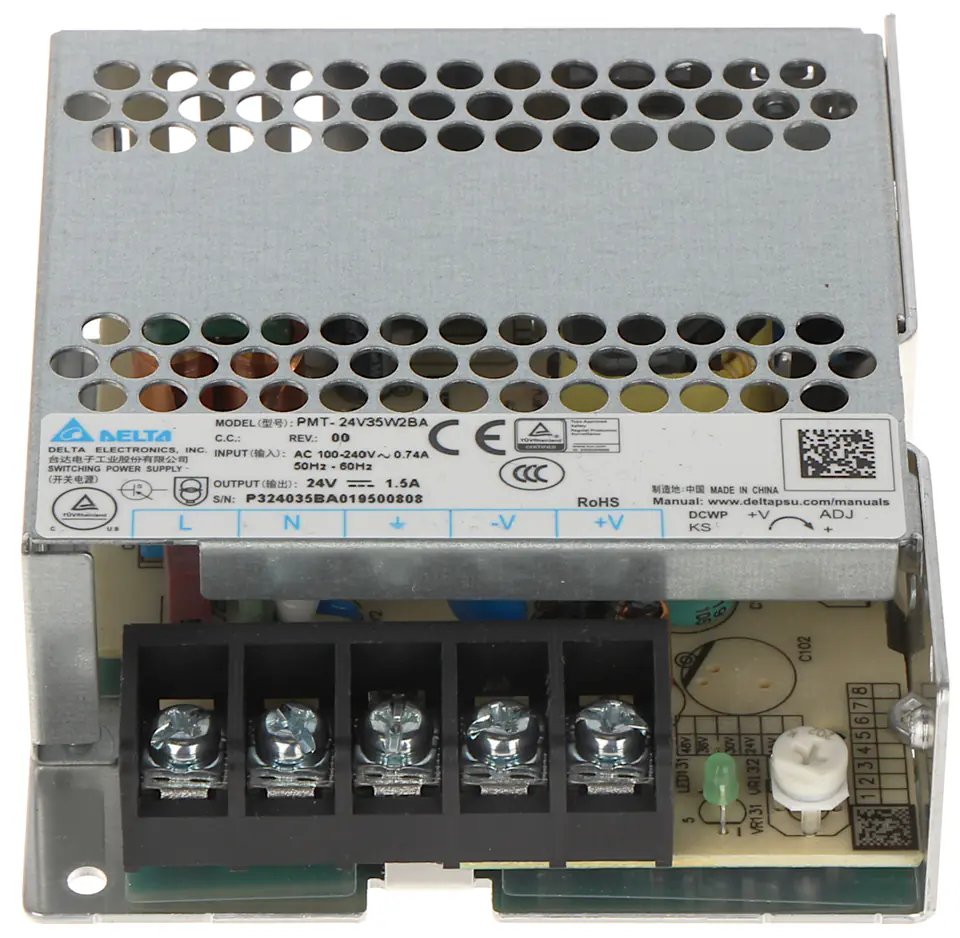

Single-output switched-mode power supply with small form factor
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current
Dimensions: | 99 x 82 x 29 mm |
---|---|
Number of outputs: | 1 pc |
Operating temperature / relative humidity: | -10 °C ... 70 °C / 10 % ... 95 % |
Output voltage: | 24 volts DC |
Output voltage adjustment: | 22 ... 28 volts |
Power supply: | 36 watts (Printing) |
Power supply current efficiency: | 1.5 A |
Producer / brand: | Delta Electronics |
Scales: | 0.24 kg |
Supply voltage: | 230 VAC |
Type of power supply: | Pulse |
Warranty: | 5 years |
Single-output switched-mode power supply with small form factor
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
