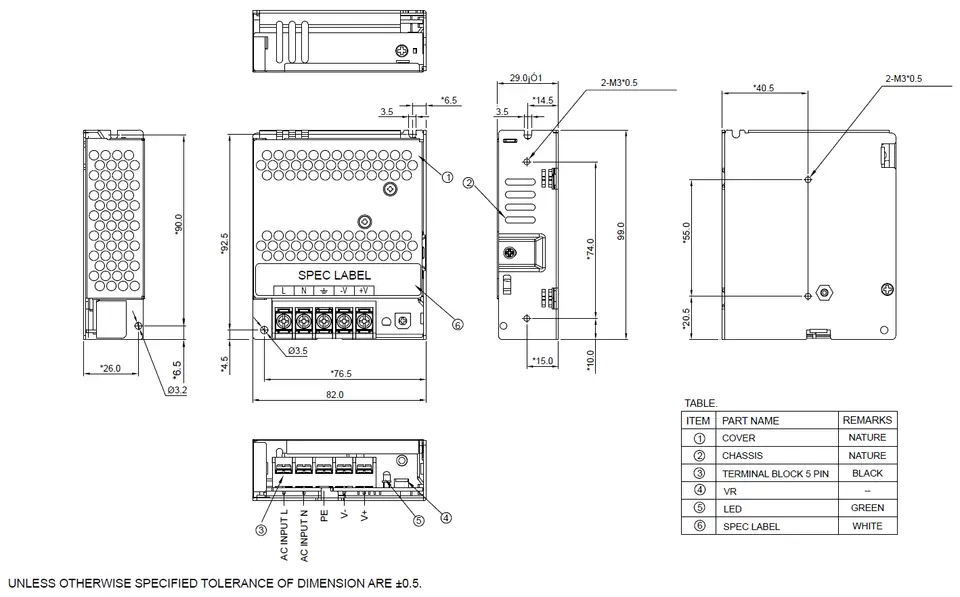

| Dimensions: | 99 x 82 x 29 mm |
|---|---|
| Mtbf (mean time between failures): | > 700000 h |
| Number of outputs: | 1 pc |
| Operating temperature / relative humidity: | -30 °C ... 70 °C / 20 % ... 90 % |
| Output voltage: | 12 volts DC |
| Output voltage adjustment: | 10.8 ... 13.2 volts |
| Power supply: | 50.4 watts |
| Power supply current efficiency: | 4.2 A |
| Producer / brand: | Delta Electronics |
| Scales: | 0.18 kg |
| Security: | Short Circuit Overload Thermal Surge Protection Electric Shock Protection |
| Supply voltage: | 100 volts ... 240 VAC |
| Type of power supply: | Pulse |
| Warranty: | 5 years |

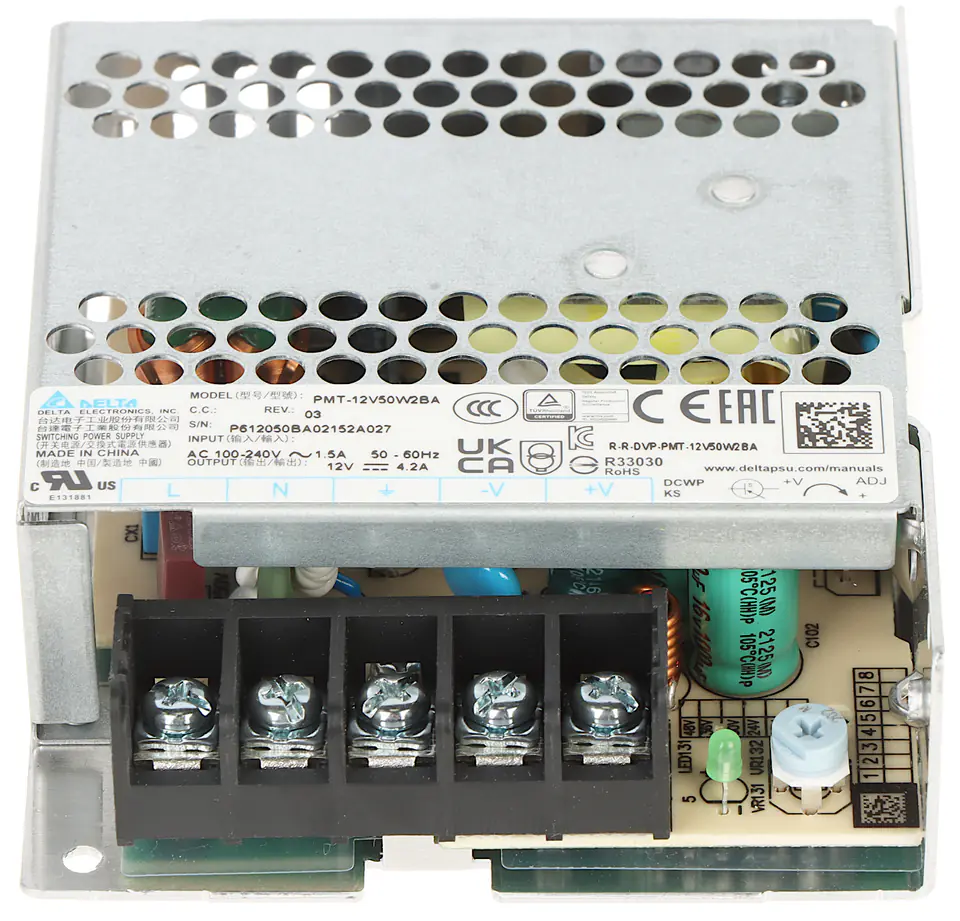

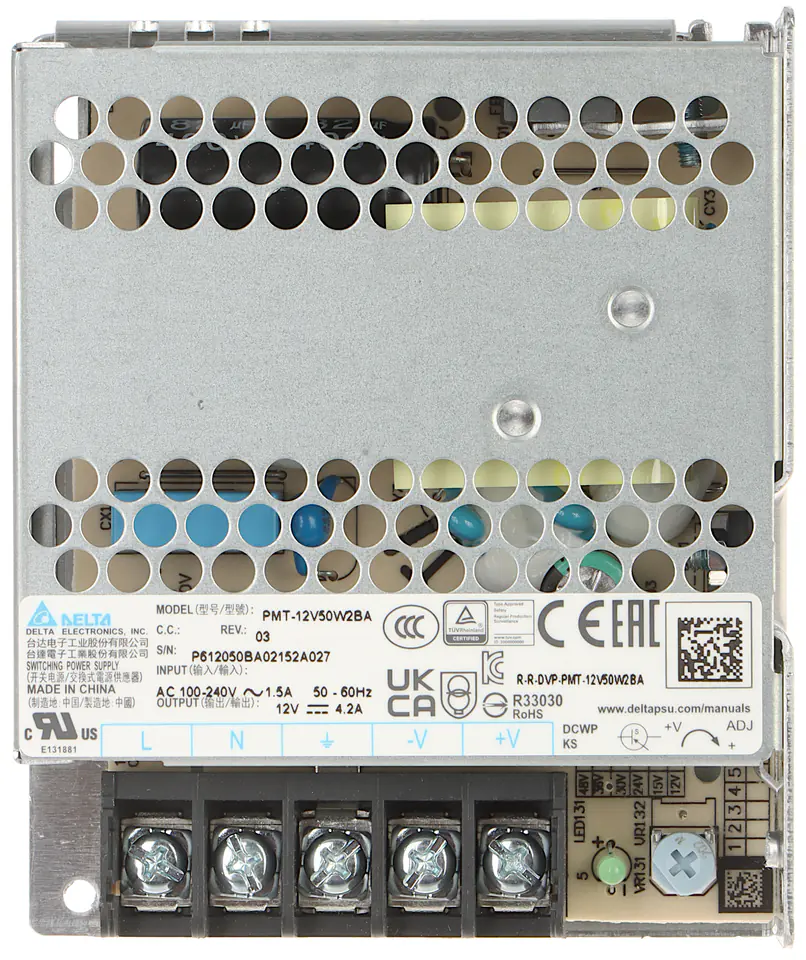

Single-output switched-mode power supply with small form factor
Particular attention should be paid to the proper cooling of the power supply during operation! In rack cabinets and poorly ventilated areas, we recommend using the following elements with the power supply: A19-W12 fan and FR-1 speed controller
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
